Installation Report
DVIA-M Series
10-26-2017

QUALCOMM ZEISS Crossbeam 540 DVIA-M1000 installation test data — 2017-10-24 / 2017-10-26

DVIA-M Series
Installation Report
Qualcomm
ZEISS
Crossbeam 540
DVIA-M1000
MB1000

Contents

Report information

DVIA-M type (MB1000)

Installation Test Data

< USER : QUALCOMM >

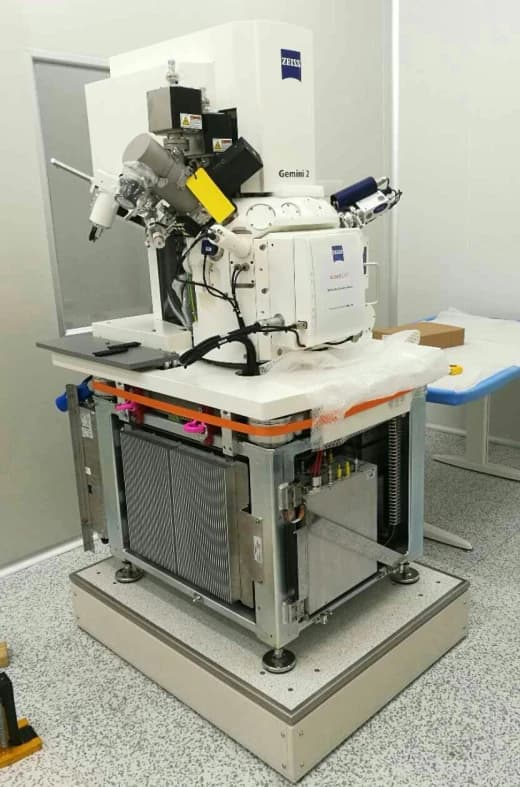

ZEISS-CROSSBEAM 540

Installation & Mesurement Date : 2017.10.24

Reporting Date : 2017.10.26

DAEIL SYSTEMS

CHOI, HYOUNGMUN

Result - Performance graph - Transmissibility with coherence

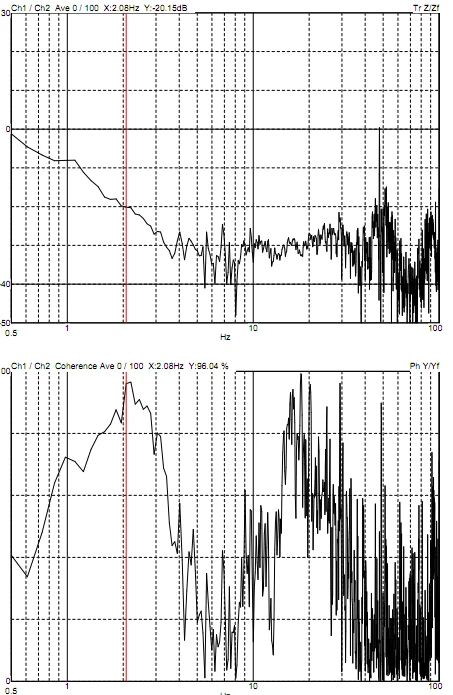

Transmissibility - Z axis

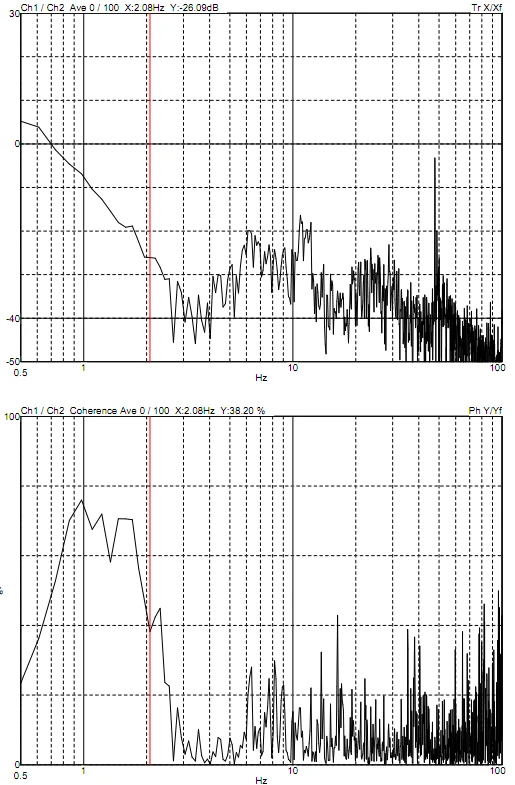

Transmissibility - X axis

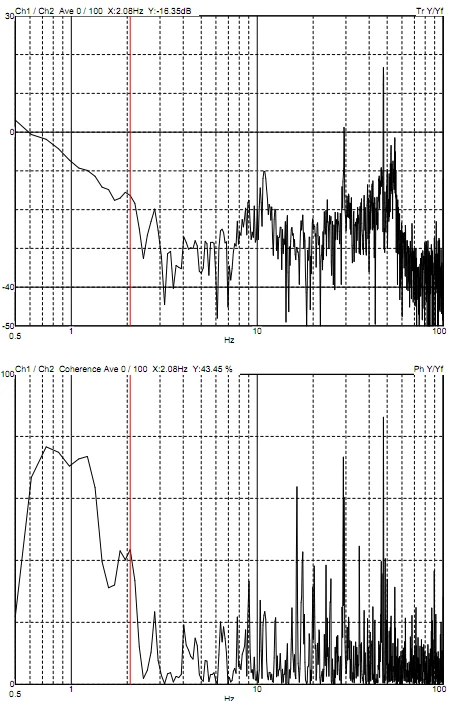

Transmissibility - Y axis

Result - Octave Band

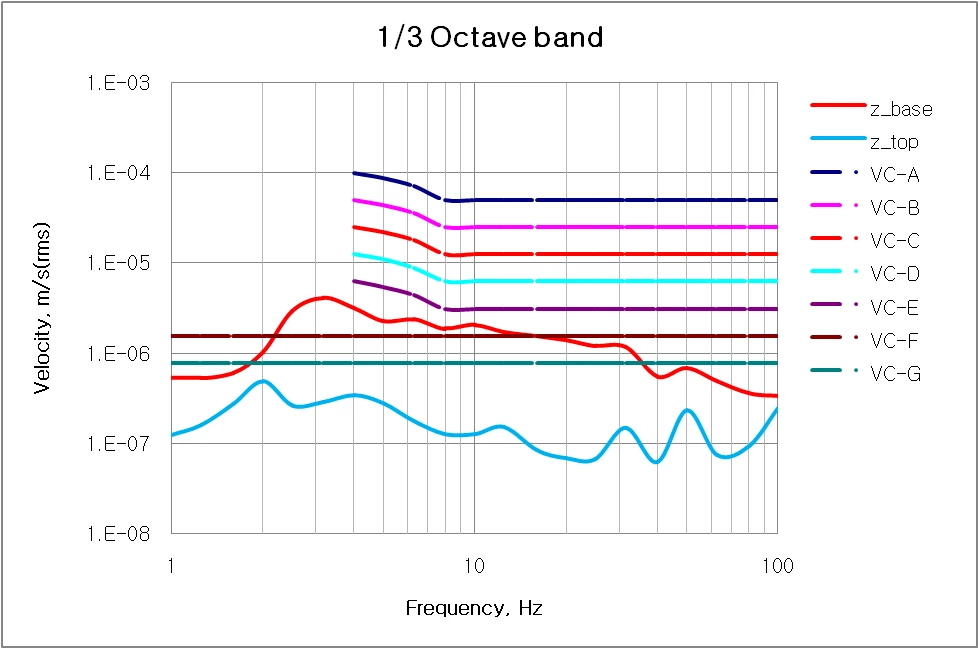

Octave band - Z axis

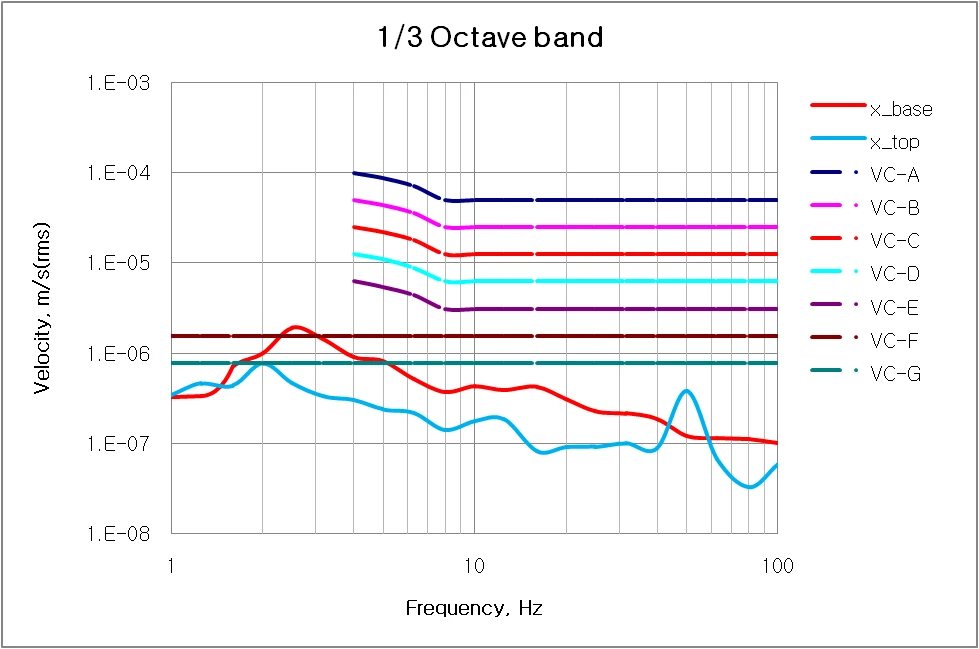

Octave band - X axis

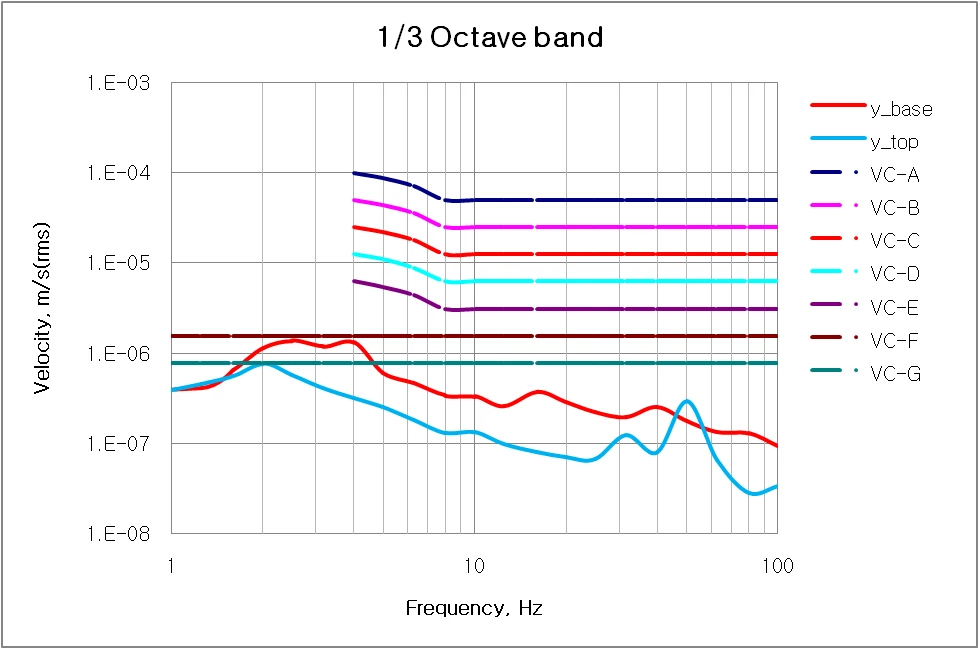

Octave band - Y axis

Reference

Generic Vibration Criteria

Criterion CurveDescriptionAmplitude
μm/s (µin/s)		Detail Size
μm
Workshop (ISO)Distinctly perceptible vibration. Appropriate to workshops and non-sensitive areas.800 (32,000)N/A
Office (ISO)Perceptible vibration. Appropriate to offices and non-sensitive areas.400 (16,000)N/A
Residential Area (ISO)Barely perceptible vibration. Appropriate to sleep areas in most instances.200 (8,000)75
Operating Theatre (ISO)Vibration not perceptible. Suitable for surgical suites, microscopes to 100x.100 (4,000)25
VC-AAdequate for optical microscopes to 400x, microbalances, optical balances.50 (2,000)8
VC-BAppropriate for inspection and lithography equipment to 3μm line widths.25 (1,000)3
VC-CAppropriate for optical microscopes to 1000x, lithography equipment to 1μm.12.5 (500)1 - 3
VC-DSuitable for demanding equipment including electron microscopes (SEMs/TEMs).6.25 (250)0.1 - 0.3
VC-EFor the most demanding systems including E-Beam lithography at nanometer scales.3.12 (125)< 0.1
VC-FFor extremely quiet research spaces. Not recommended as design criterion.1.56 (62.5)N/A
VC-GFor extremely quiet research spaces. Not recommended as design criterion.0.78 (31.25)N/A

Notes:

- As measured in one-third octave bands over 8-80 Hz (VC-A/B) or 1-80 Hz (VC-C through VC-G).

- Detail size refers to width in microelectronics fabrication or particle size in medical research.
