ZEISS SIGMA HD DVIA-M1000 Installation Test Data — Qualcomm — 2017.10.26

DVIA-M Series
Installation Report
Qualcomm
ZEISS
SIGMA HD
DVIA-M1000
MB1000
2017

Contents

Installation Test Data

DVIA-M type (MB1000)

Installation Test Data

< USER : QUALCOMM >

ZEISS-SIGMA HD

Installation & Mesurement Date : 2017.10.24

Reporting Date : 2017.10.26

DAEIL SYSTEMS

CHOI, HYOUNGMUN

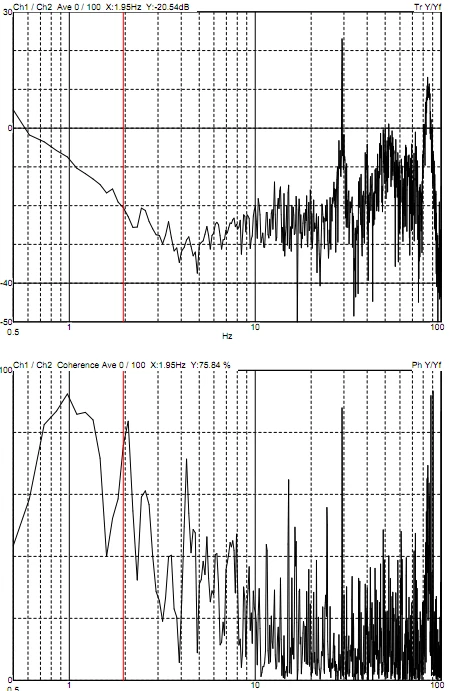

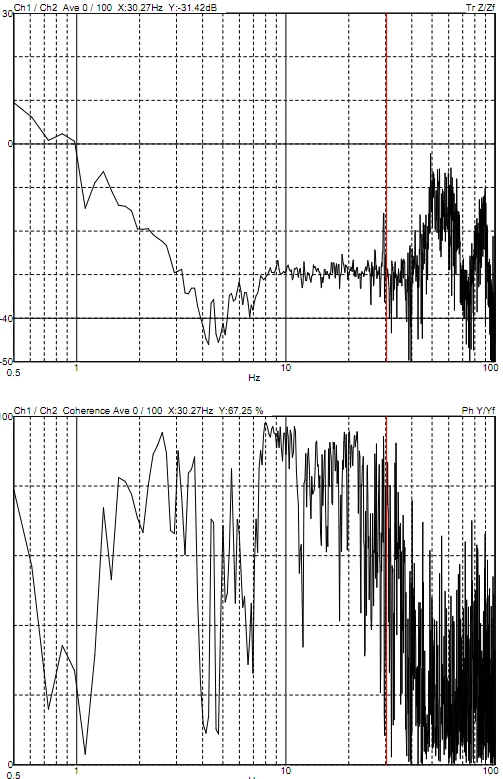

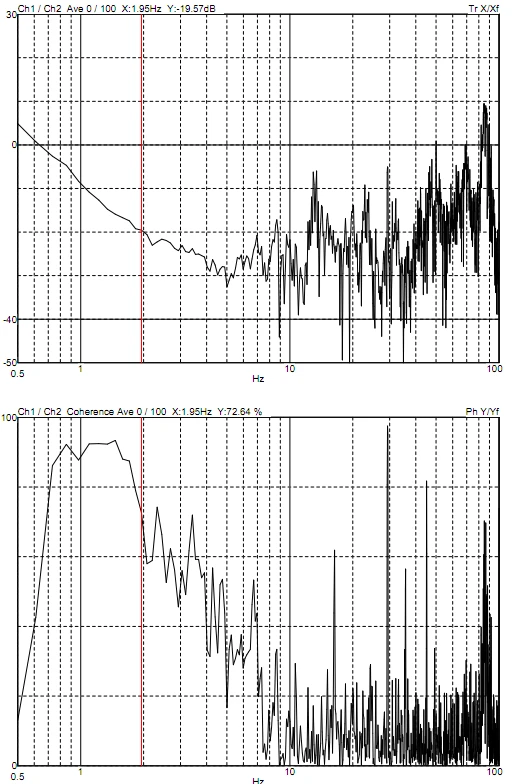

Result <Performance graph – Transmissibility with coherence>

Z axis

X axis

Y axis

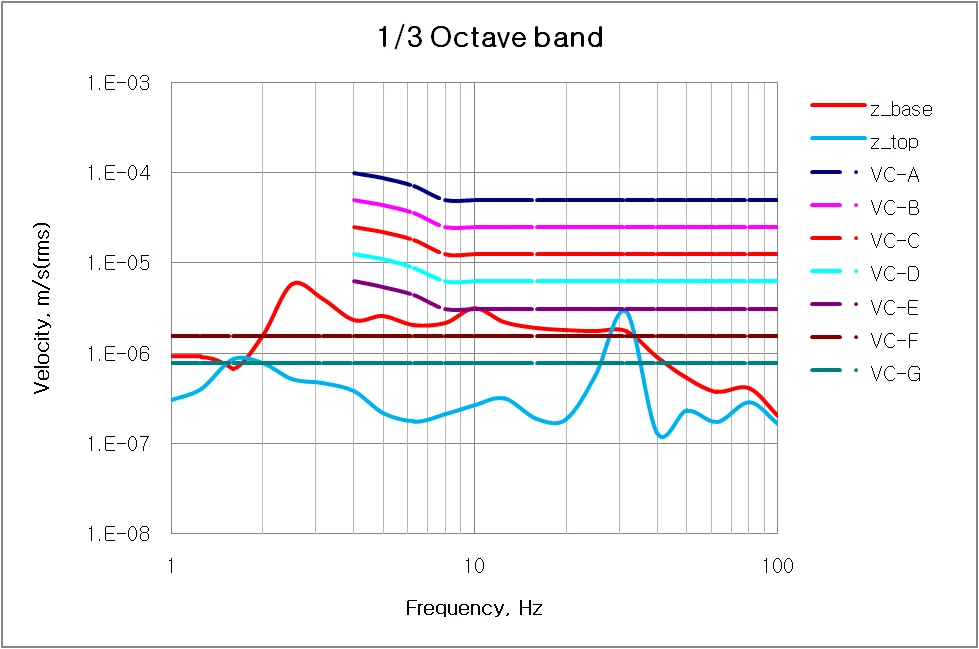

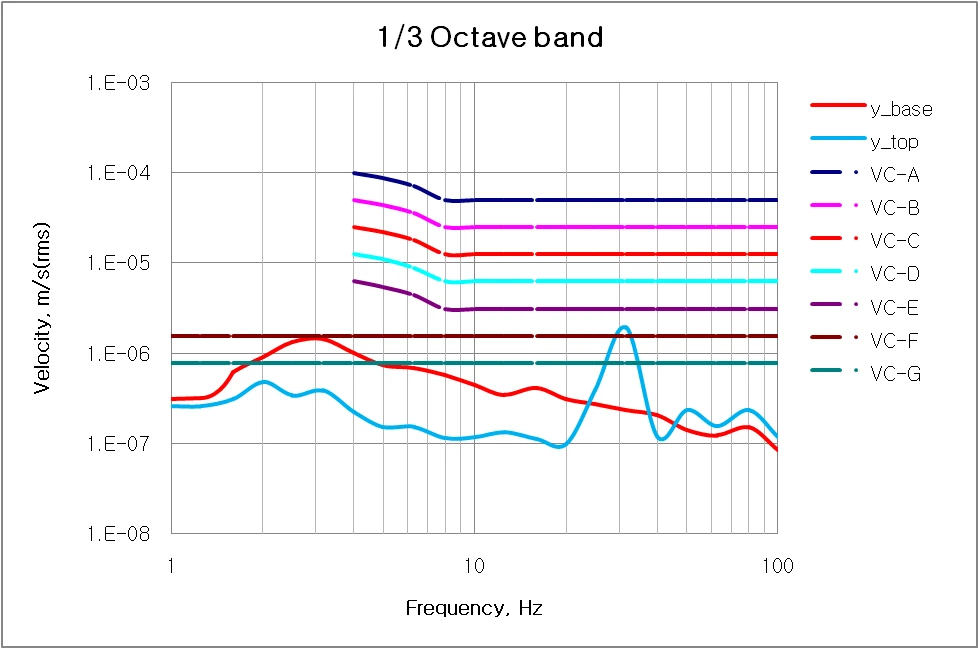

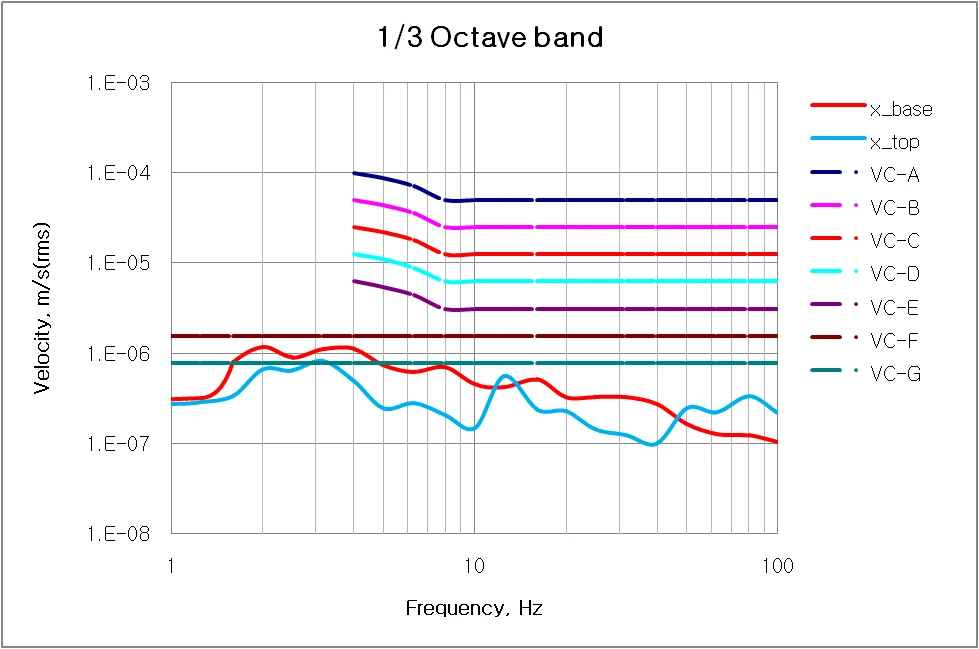

Result < Octave Band >

Z axis

X axis

Y axis

Reference

Generic Vibration Criteria

Criterion CurveDescriptionAmplitude
μm/s (µin/s)		Detail Size
μm
Workshop (ISO)Distinctly perceptible vibration. Appropriate to workshops and non-sensitive areas.800 (32,000)N/A
Office (ISO)Perceptible vibration. Appropriate to offices and non-sensitive areas.400 (16,000)N/A
Residential Area (ISO)Barely perceptible vibration. Appropriate to sleep areas in most instances.200 (8,000)75
Operating Theatre (ISO)Vibration not perceptible. Suitable for surgical suites, microscopes to 100x.100 (4,000)25
VC-AAdequate for optical microscopes to 400x, microbalances, optical balances.50 (2,000)8
VC-BAppropriate for inspection and lithography equipment to 3μm line widths.25 (1,000)3
VC-CAppropriate for optical microscopes to 1000x, lithography equipment to 1μm.12.5 (500)1 - 3
VC-DSuitable for demanding equipment including electron microscopes (SEMs/TEMs).6.25 (250)0.1 - 0.3
VC-EFor the most demanding systems including E-Beam lithography at nanometer scales.3.12 (125)< 0.1
VC-FFor extremely quiet research spaces. Not recommended as design criterion.1.56 (62.5)N/A
VC-GFor extremely quiet research spaces. Not recommended as design criterion.0.78 (31.25)N/A

Notes:

1. As measured in one-third octave bands over 8-80 Hz (VC-A/B) or 1-80 Hz (VC-C through VC-G).

2. Detail size refers to width in microelectronics fabrication or particle size in medical research.
