Hangzhou China DVIA-MB1000 (170906R4) Business Trip Report — ZIESS EVO18 Special Edition — 2017.12.08
Contents
Target equipment
ZIESS EVO18 Special Edition
Installation site
China Hangzhou
Notes
Installed on the 1st floor of the factory research building.
End user
Wangxiang campany (automotive parts company)
Business trip date
17.12.05
Author
임종욱
Report written date
17.12.08
Installation result summary
| Test Direction | VC-Class | Base | Top | ACTIVE |
|---|---|---|---|---|
| Z | A+ | D | ||
| X | C | E | ||
| Y | C | G |
Good performance in every direction.
Floor vibration is very poor, so imaging is currently difficult. A large production facility is right next to the research building, which appears to affect the site.

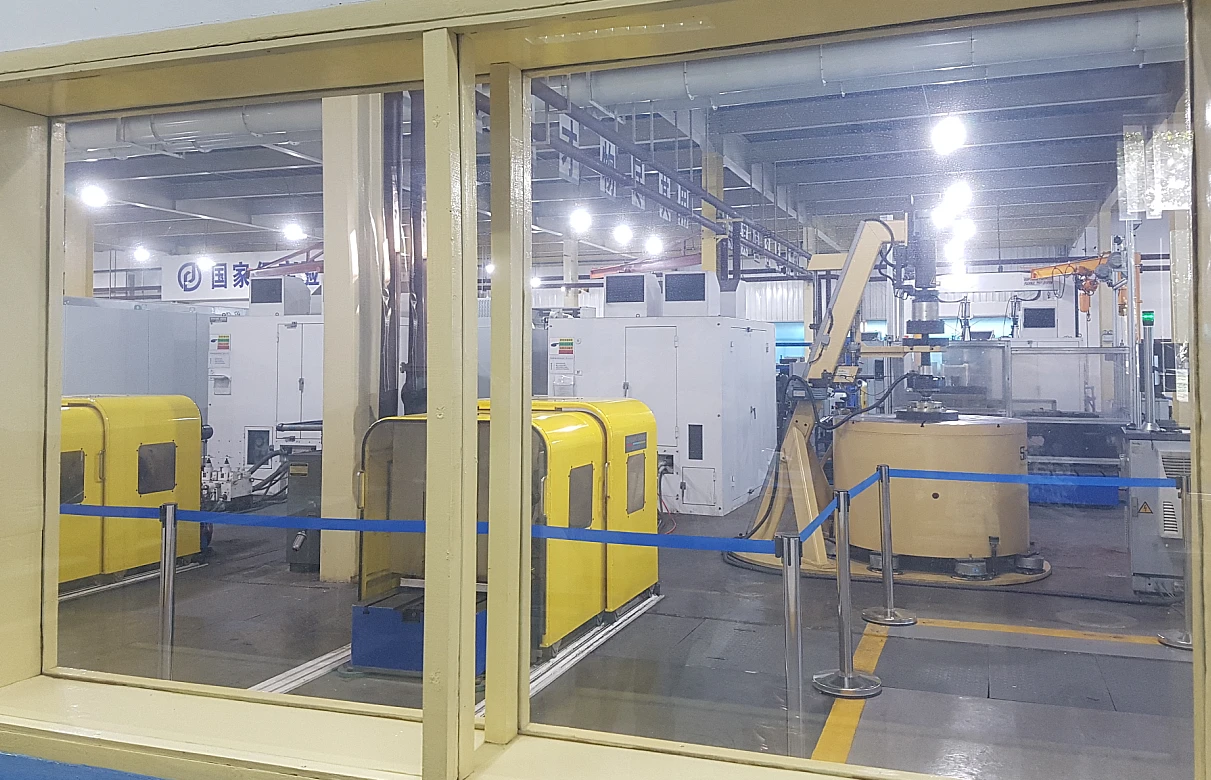

Factory site
The isolator performance was demonstrated at its maximum and the customer confirmed. They recognize the issue is the installation location and will coordinate internally on installation matters.
MB1000 internal program performance measurement result

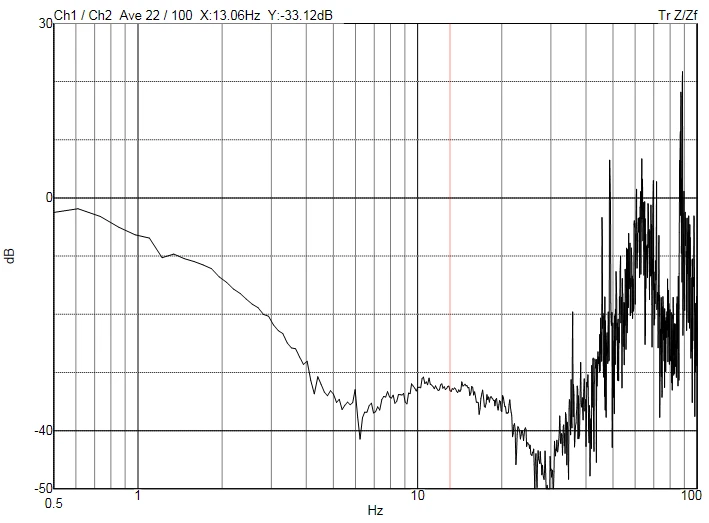

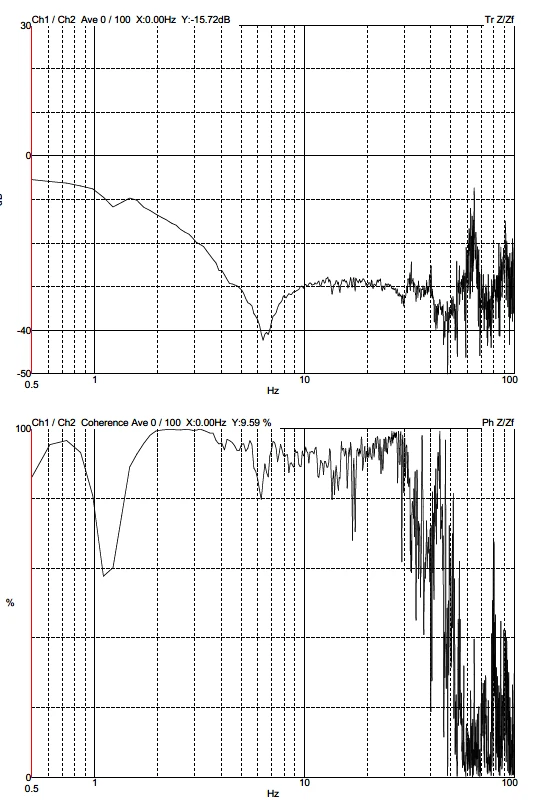

Z axis (MB1000 internal program)

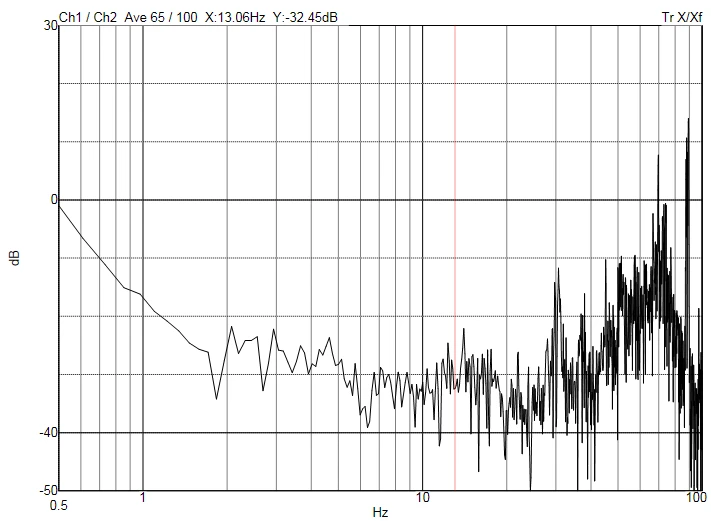

X axis (MB1000 internal program)

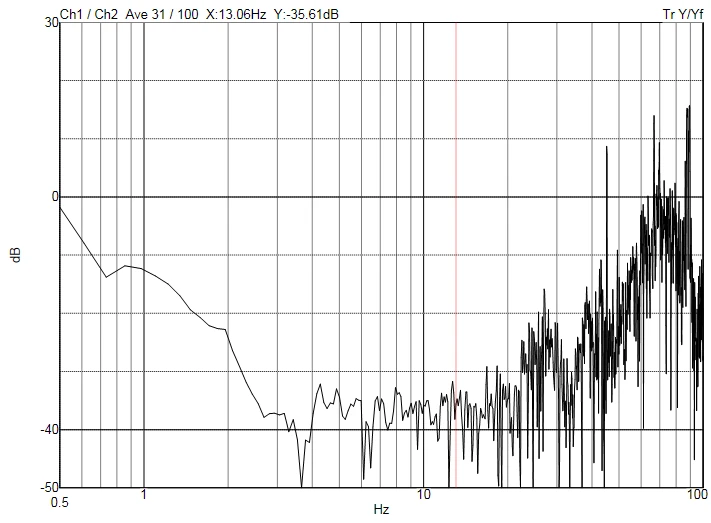

Y axis (MB1000 internal program)
Vibration environment measurement result

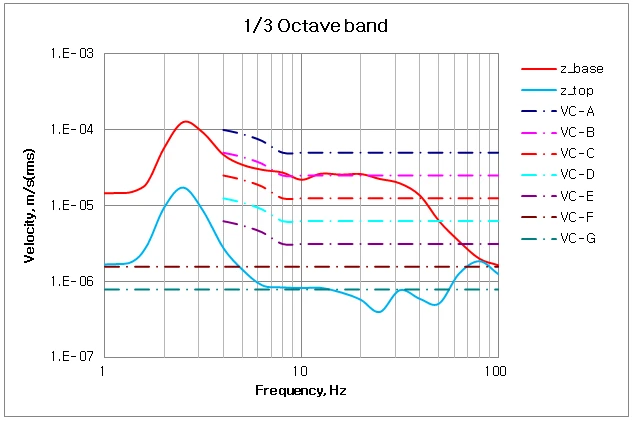

Z axis (vibration environment)

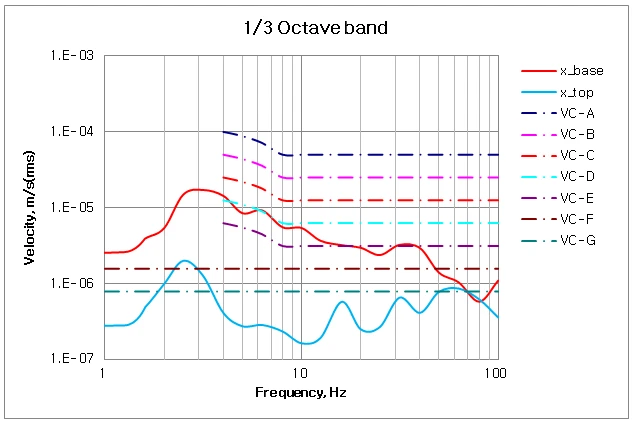

X axis (vibration environment)

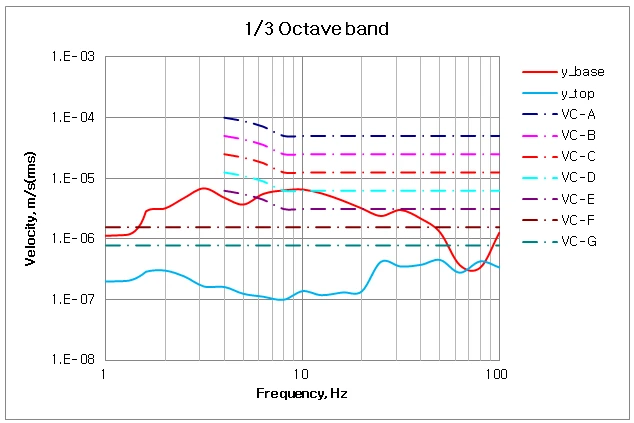

Y axis (vibration environment)
Reference
Generic Vibration Criteria
Notes:
- As measured in one-third octave bands over 8-80 Hz (VC-A/B) or 1-80 Hz (VC-C through VC-G).
- Detail size refers to width in microelectronics fabrication or particle size in medical research.
