Wangxiang ZIESS EVO18 DVIA-MB1000 (170906R4 · P50) Internal program worksheet — 2020.10.21
DVIA-M Series
Installation Report
YIMO
DVIA-MB1000
170906R4
P50
ZIESS
EVO18
Hangzhou
Remote tuning
Contents
(MB1000_170906R4(P50) Set up)
Target equipment
ZIESS EVO18
Place of installation
Hangzhou
Remark
Good Performance
END USER
Wangxiang campany
Operator
Operator : Doohyun Kim
Date of setup
Date of setup : 20.10.20
Date of reporting
Date of reporting : 20.10.21
Date of business trip
Date of business trip : 17.12.27~17.12.29
Overview
After Active mounting, measure the vibration environment to check that there is no problem in using the equipment.
Measurement date
Measurement date: 20.10.20 (TUE)
Operator: Daeil System, Research engineer Doohyun kim
Place of measurement
Place of measurement : Hangzhou
Equipment Model
Equipment Model: ZIESS EVO18
Measurement conditions and results
Summary of measurement results
| Test Condition | 2 Hz | 5 Hz | 10 Hz |
|---|---|---|---|
| Z | -14 dB | -30 dB | -30 dB |
| X | -25 dB | -25 dB | -30 dB |
| Y | -25 dB | -30 dB | -30 dB |
Good omnidirectional performance.
MB1000 internal program performance measurement result

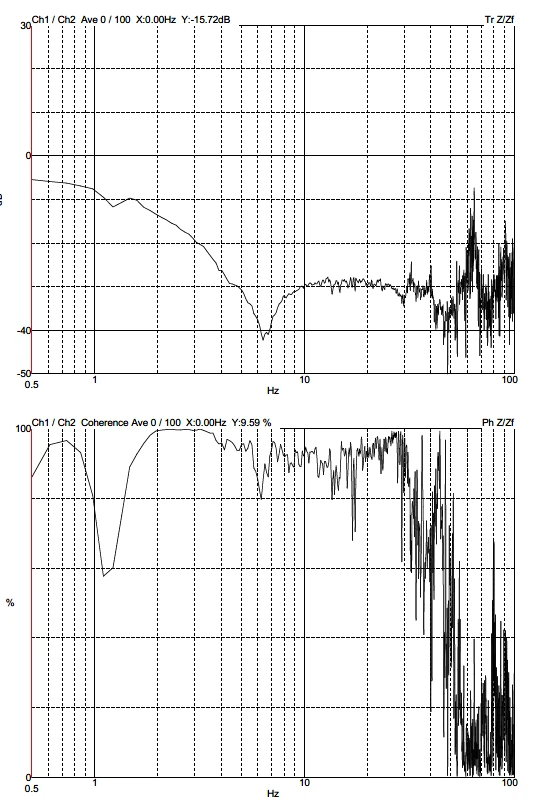

Z axis

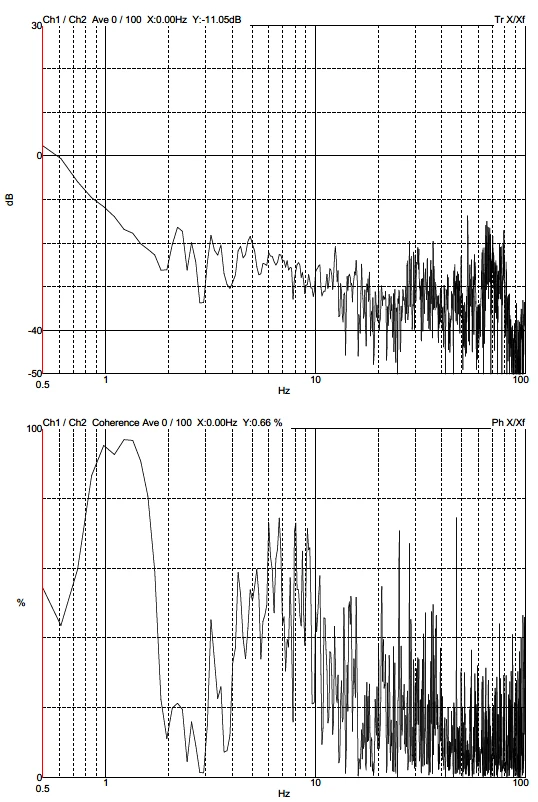

X axis

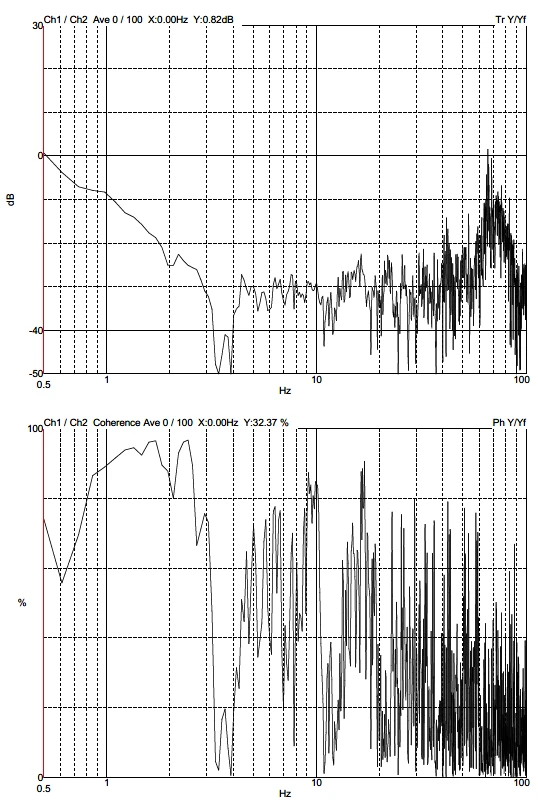

Y axis
