East China Normal University FEI Helios G4 UX DVIA-MB1000 (P36) China trip installation report — 2017.04.24
DVIA-M Series
Installation Report
DVIA-MB1000
P36
FEI
Helios G4 UX
Shanghai
China
ECNU
Contents
중국 출장 보고서 (MB1000_P36 Set up)
| Target equipment | FEI : Helios G4 UX |
|---|---|
| Installation site | 중국 상해 |
| Notes | 대학연구동 1층에 설치. 특이사항 없음. |
| END USER | EAST CHINA NORMAL UNIVERSITY |
출장일 : 17.04.18
출장자 : 임종욱
작성일 : 17.04.24
Installation result summary
| Test Direction | VC-Class | Base | Top |
|---|---|---|---|
| ACTIVE | Z | E | G |
| X | E | G | |
| Y | E | G |
전 방향 성능 양호.
추후 엔크루저 설치 및 이미지 확인 예정.
MB1000 internal program performance measurement result

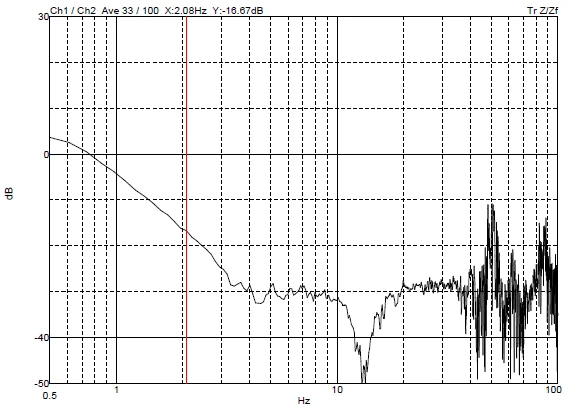

Z axis (MB1000 internal program)

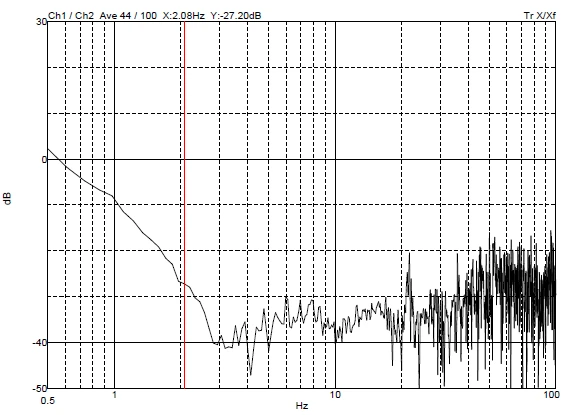

X axis (MB1000 internal program)

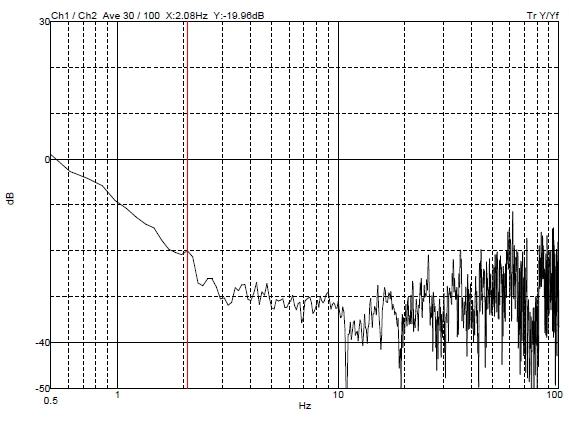

Y axis (MB1000 internal program)
Vibration environment measurement results

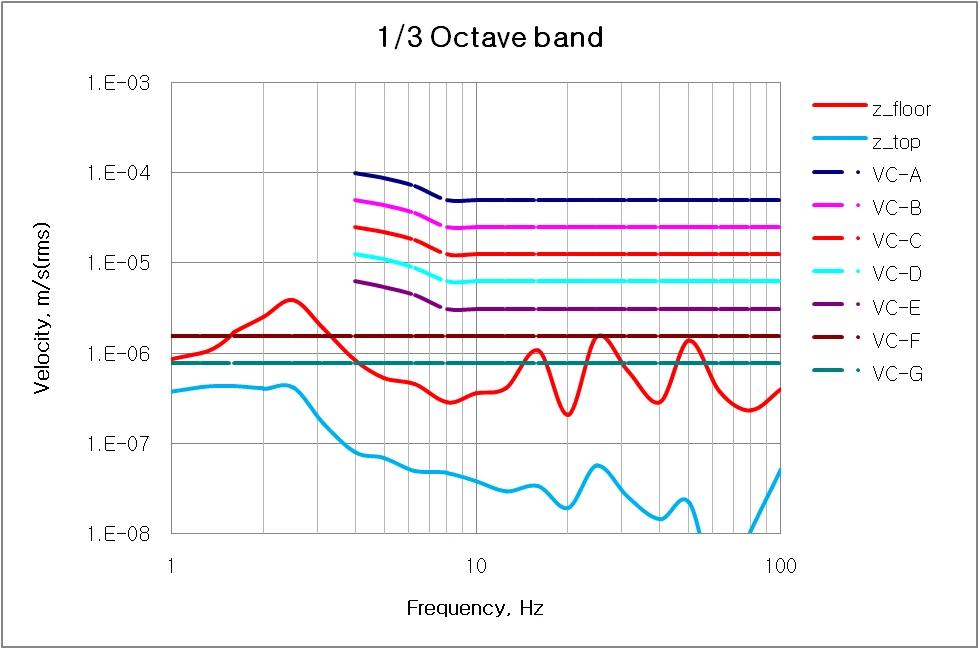

Z axis (vibration environment)

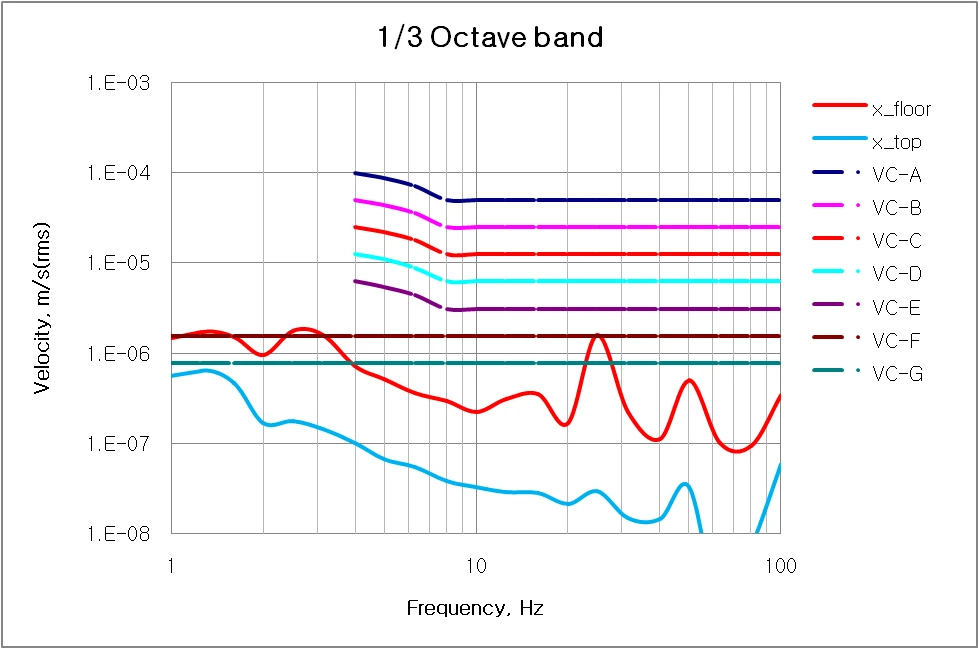

X axis (vibration environment)

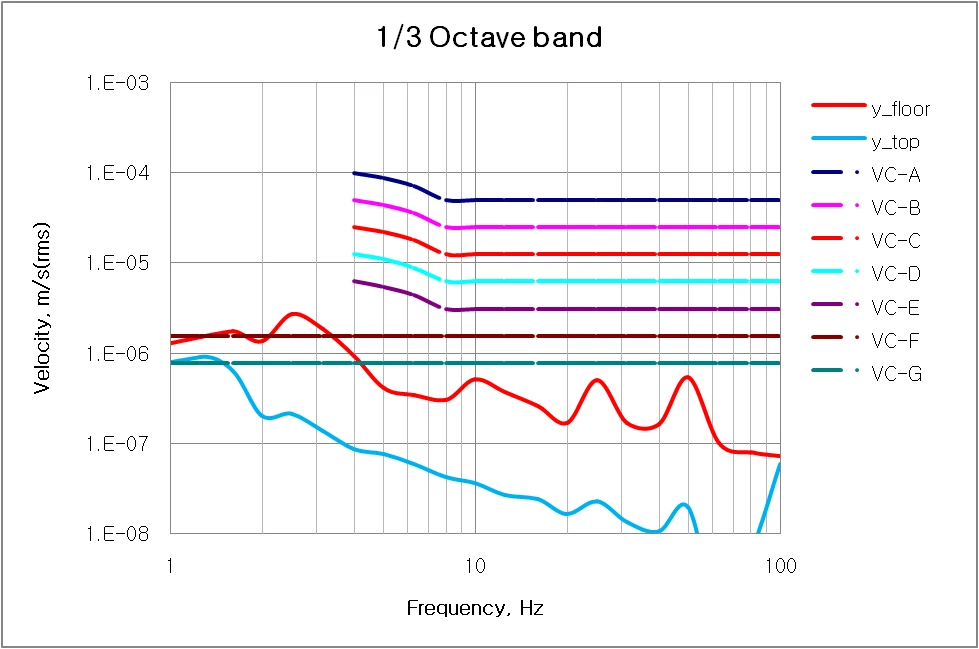

Y axis (vibration environment)
