DVIA-M type (MB1000) Installation Test Report

Installation & Mesurement Date : 2016.05.25.

Reporting Date : 2016.05.27

DAEIL SYSTEMS

LIM JONG UK

※ Installation Results Summary

Test Direction	Axis	VC-Class (Base — floor)	VC-Class (Top — above Active)
ACTIVE	Z	C	F
	X	D	E
	Y	C	E

Good performance in all directions.

Vertical axis Z is C Class, the horizontal axis X is D Class, the horizontal axis Y is C Class. It was measured vibration environment in floor.

Vertical axis Z is F Class, the horizontal axis X is E Class, the horizontal axis Y is E Class. It was measured vibration environment in top of Active state.

Used data of internal program to making performance graph, show “Result 1”.

conversion unit in 1/3 octave band, Show “Result 2“.

we check image of equipment, Show “Result 3“.

Result 1 <Performance graph used data of internal program – Transmissibility >

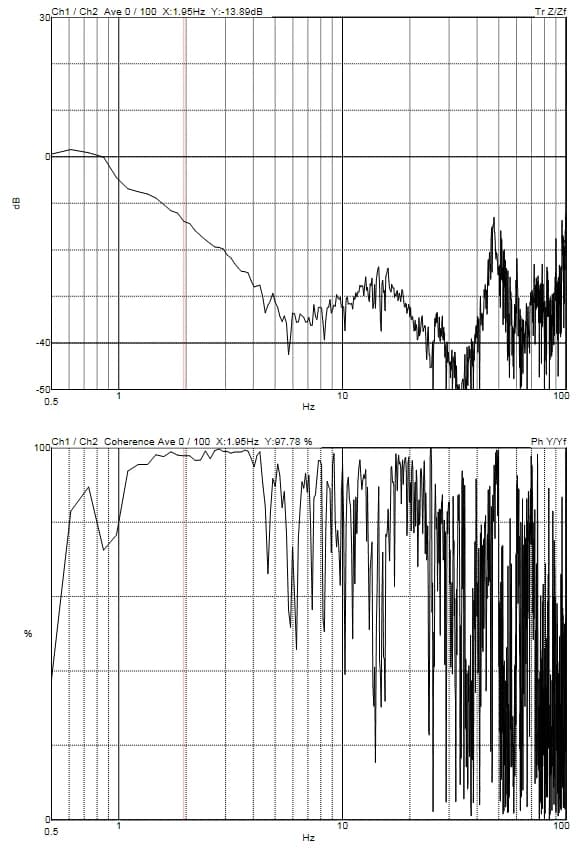

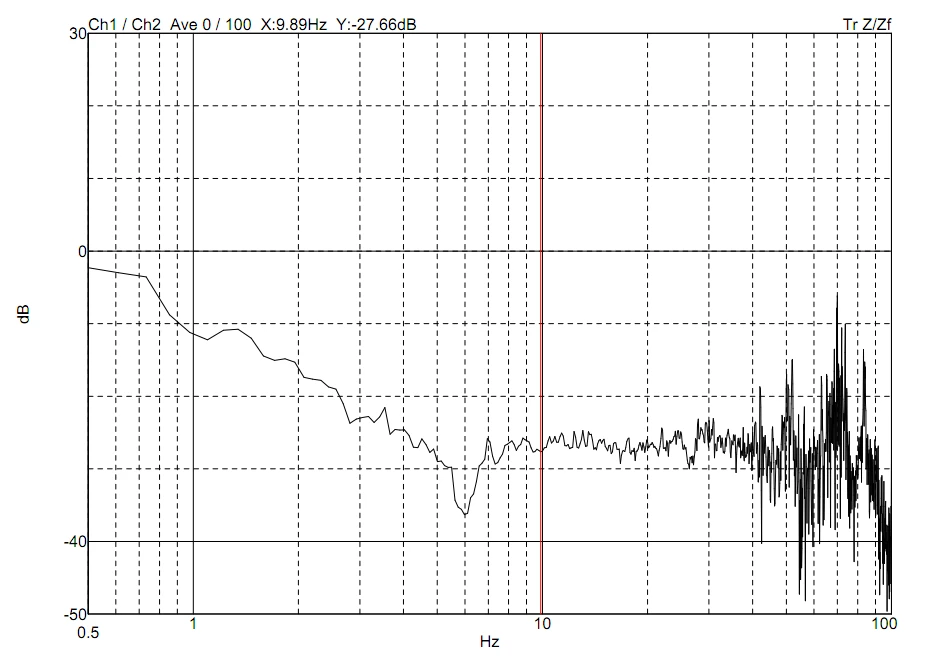

Result 1: Z axis

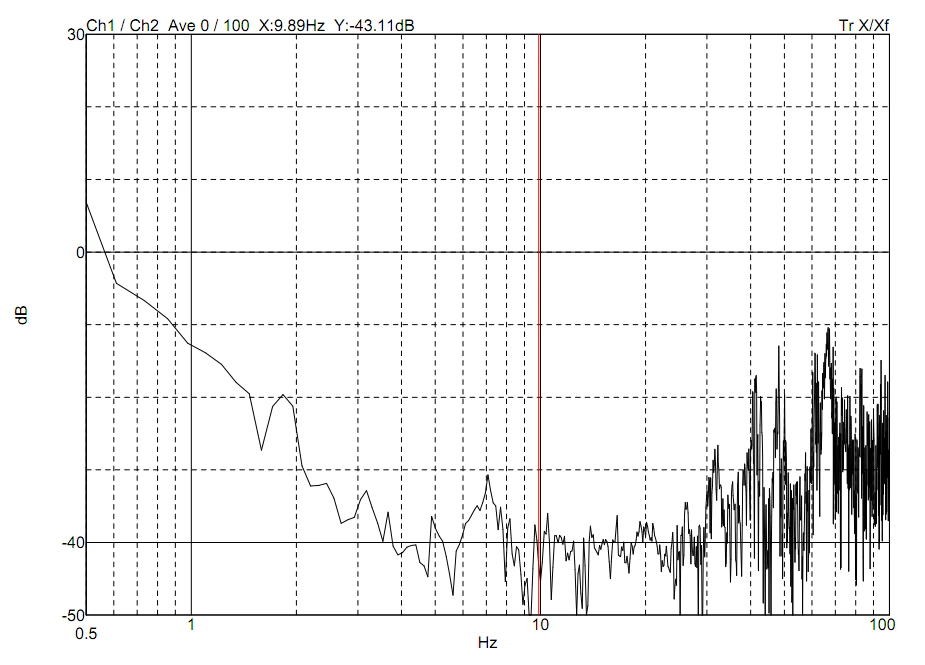

Result 1: X axis

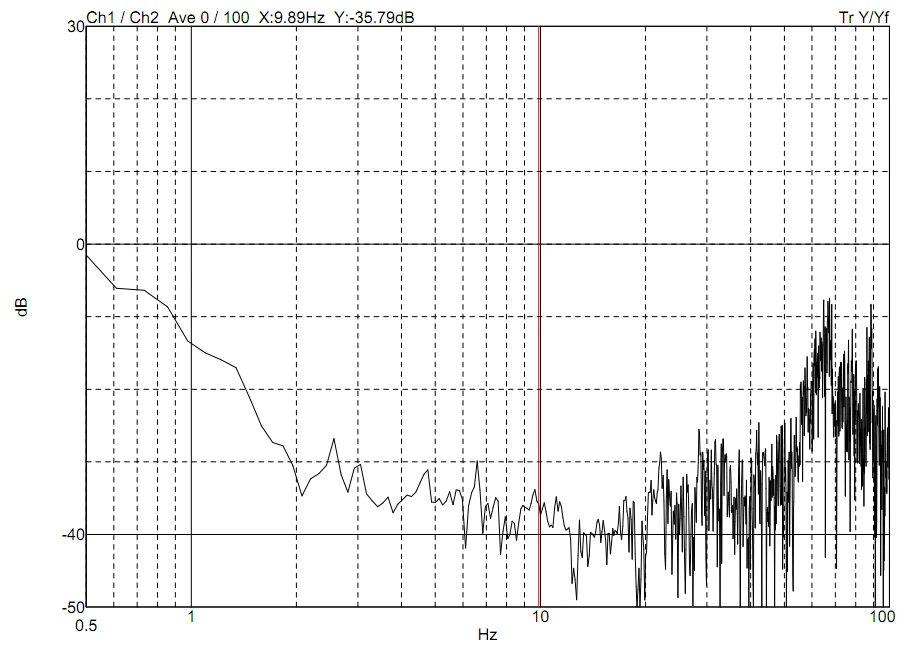

Result 1: Y axis

Result 2 <Performance graph used data of PULSE – 1/3 Octave band>

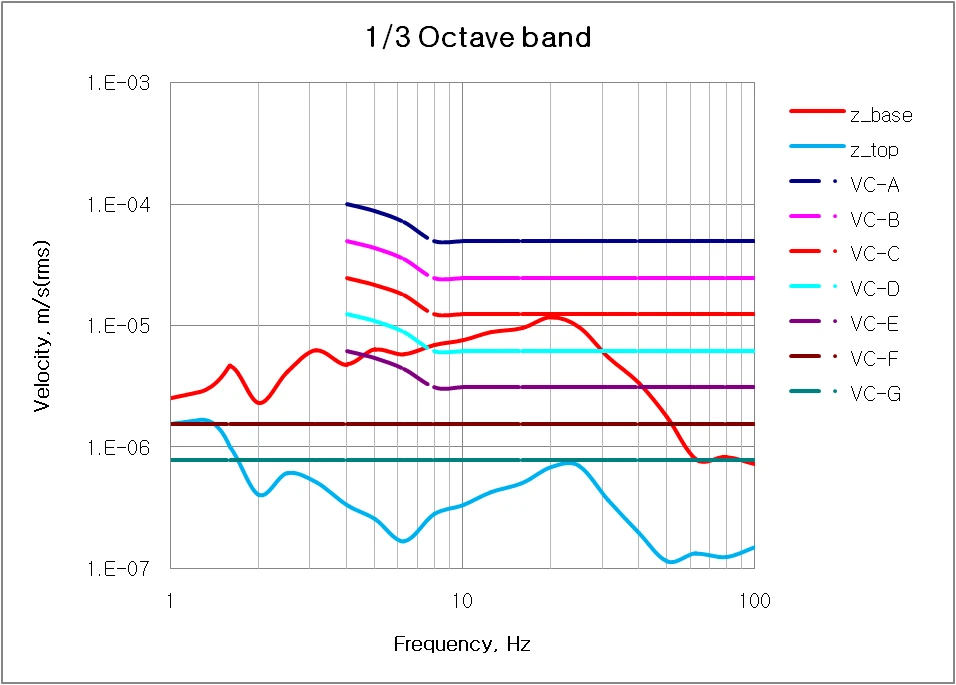

Result 2: Z axis

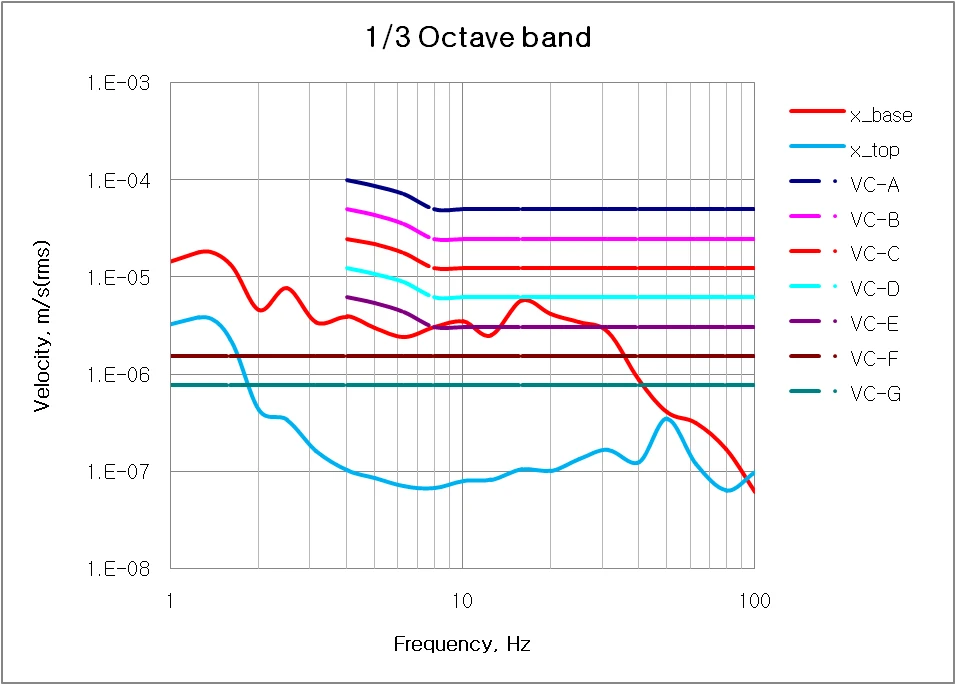

Result 2: X axis

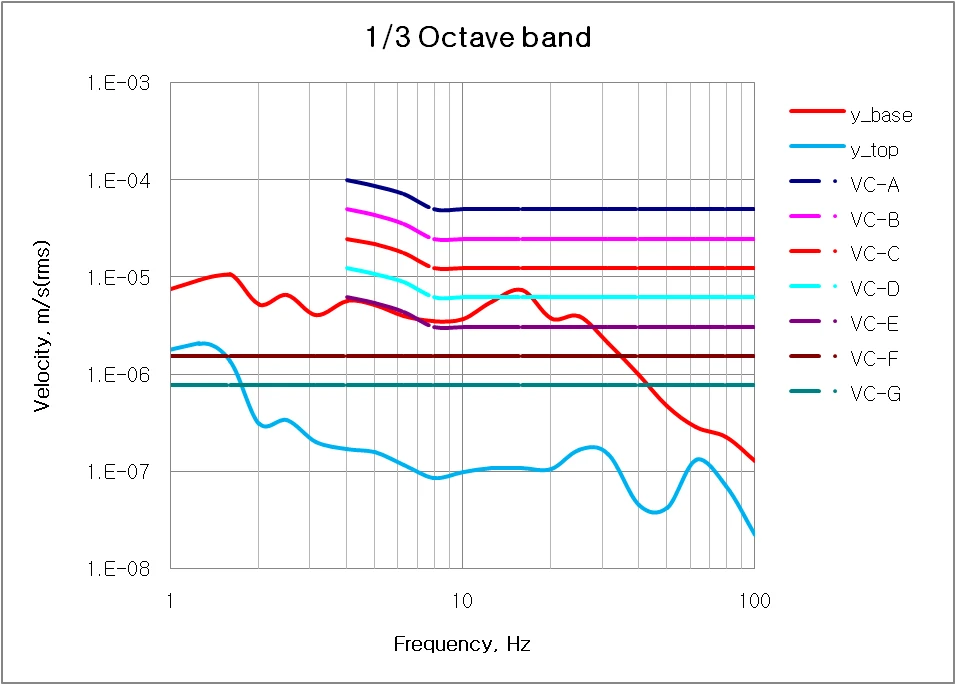

Result 2: Y axis

Result 3 <Image Check>

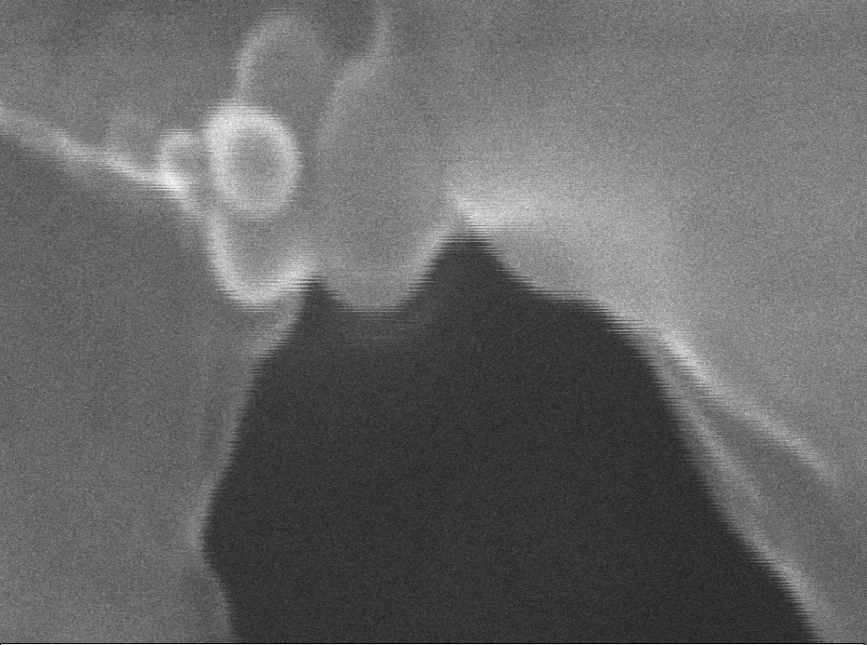

Floor

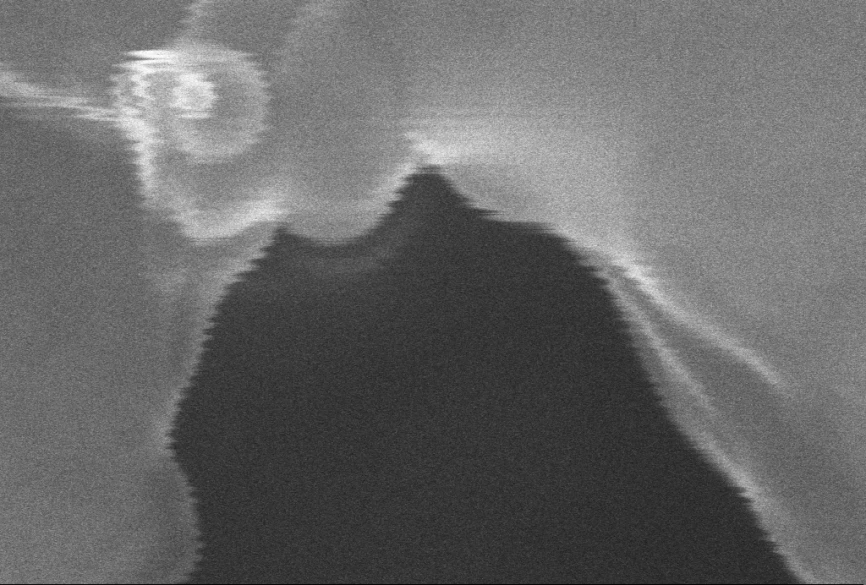

Passive

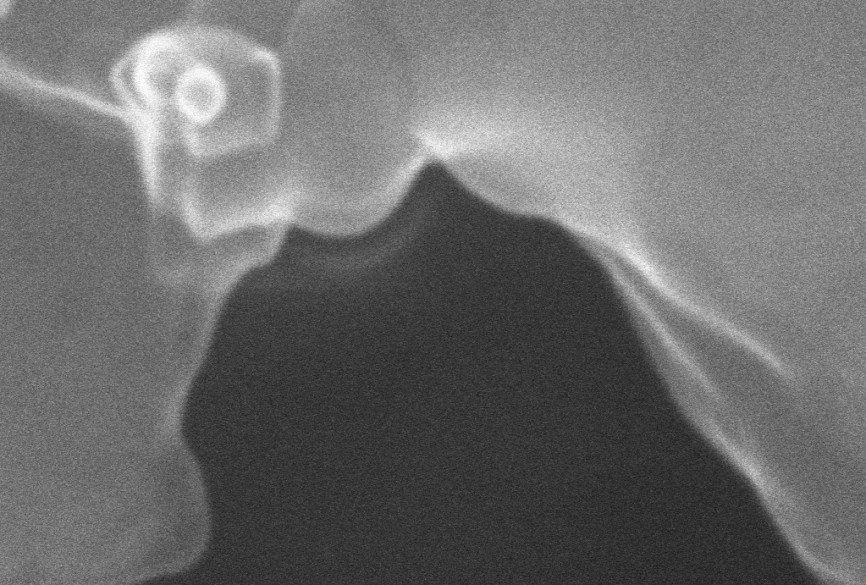

Active
