China business trip report — MB1000 P11 setup and vibration environment evaluation (September 2015)
Contents
Report title and scope
China business trip report
(MB1000_P11 Set up)
Target equipment
N/A

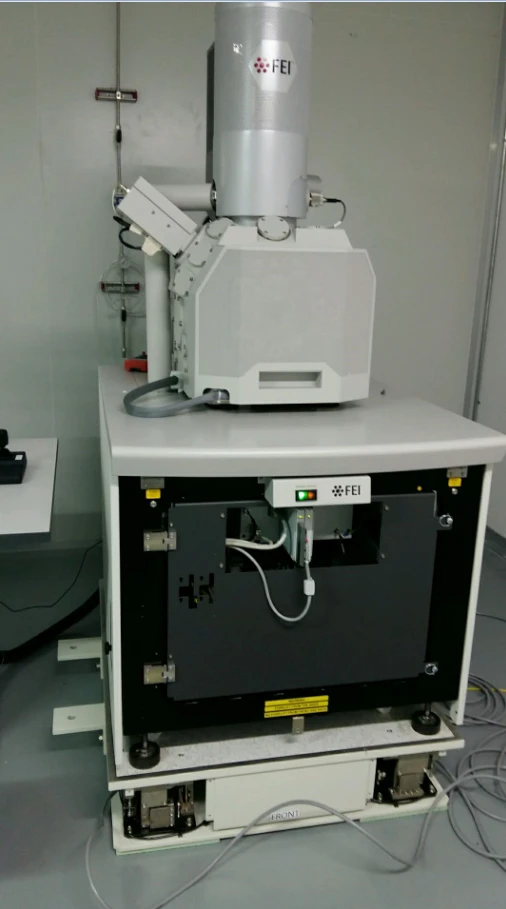

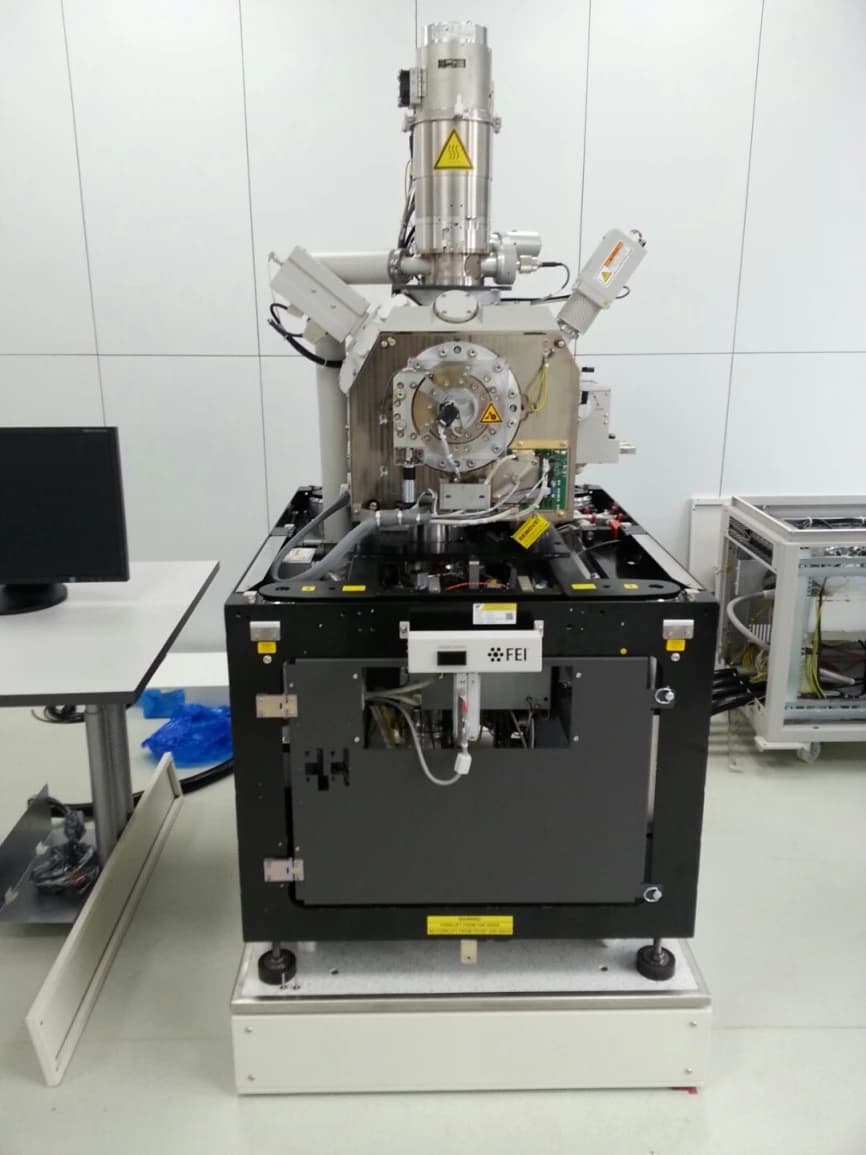

Site photograph
Trip dates, travelers, and report date
| Field | Value |
|---|---|
| Trip dates | 15.08.31 ~ 15.09.02 |
| Travelers | Lim Jong-wook, Yu Ho-sang |
| Report date | 2015.09.03 |
Business trip schedule
15.08.31 ~ 15.09.02
MB1000_P11 Set up (tuning, vibration environment evaluation)
15.08.31
Depart; arrive at accommodation
15.09.01
MB1000_P11 set-up and vibration environment measurement
15.09.02
Return
Installation results summary
| Condition | Test Direction | Base | Top |
|---|---|---|---|
| ACTIVE | Z | B | D |
| X | E | G | |
| Y | D | F |
Good performance in all directions.
Floor vibration environment: vertical axis B-Class; horizontal X E-Class; horizontal Y D-Class.
On the active isolation top surface: vertical axis D-Class; horizontal X G-Class; horizontal Y F-Class; performance is satisfactory.
Per NEMO, the customer is fully satisfied.
The MB1000 internal program performance plots show peak markers similar to red circles; these appear to be mains-related noise. (Mains frequency in China is 50 Hz.)
Because the SEM’s internal passive isolation is operating, the mains noise is not expected to be an issue. (NEMO directly reviewed and judged it acceptable.)
MB1000 internal program performance measurement results

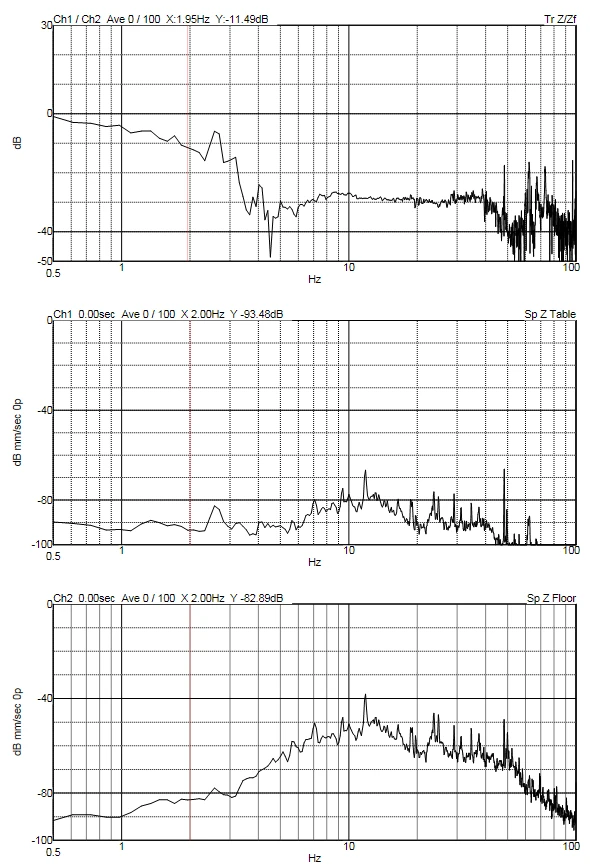

Z axis

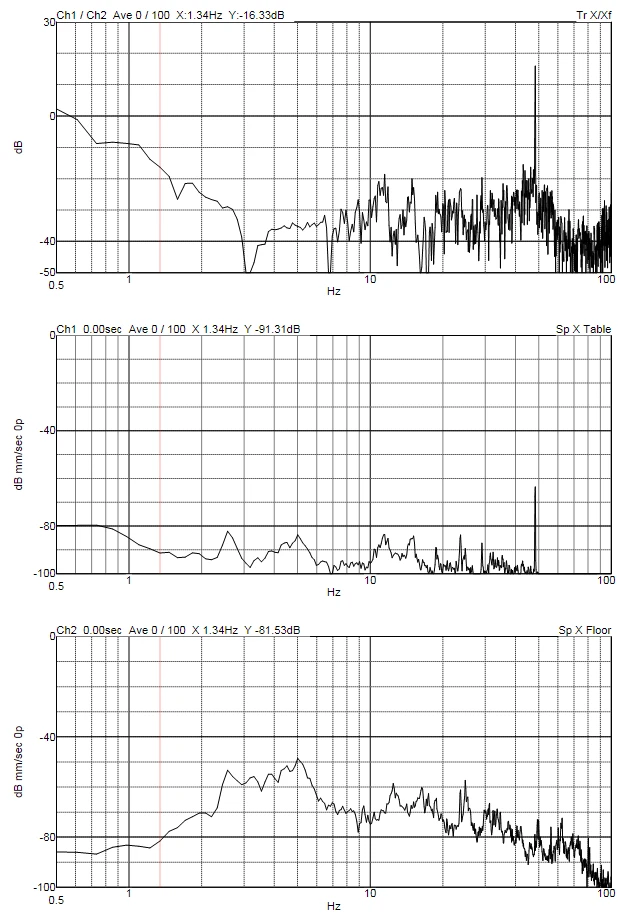

X axis

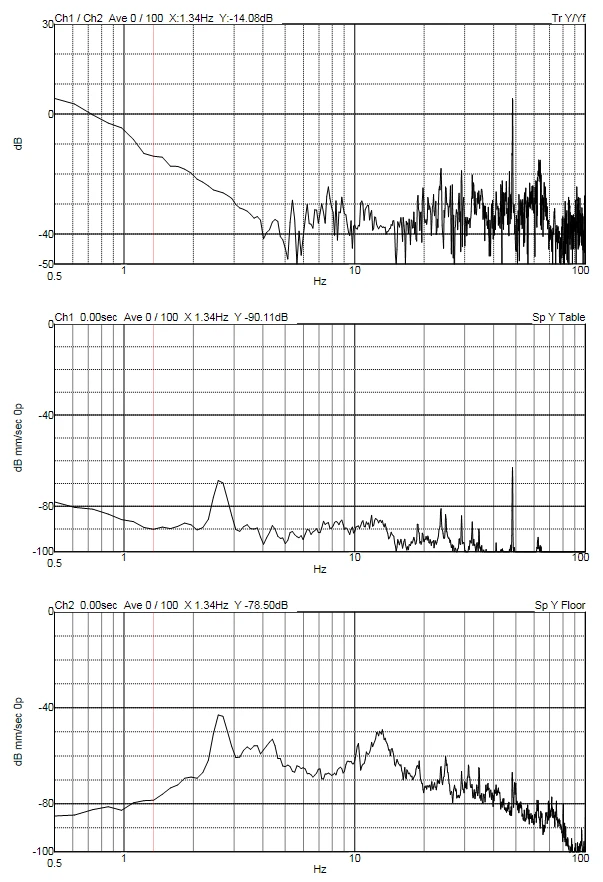

Y axis
Vibration environment measurement results

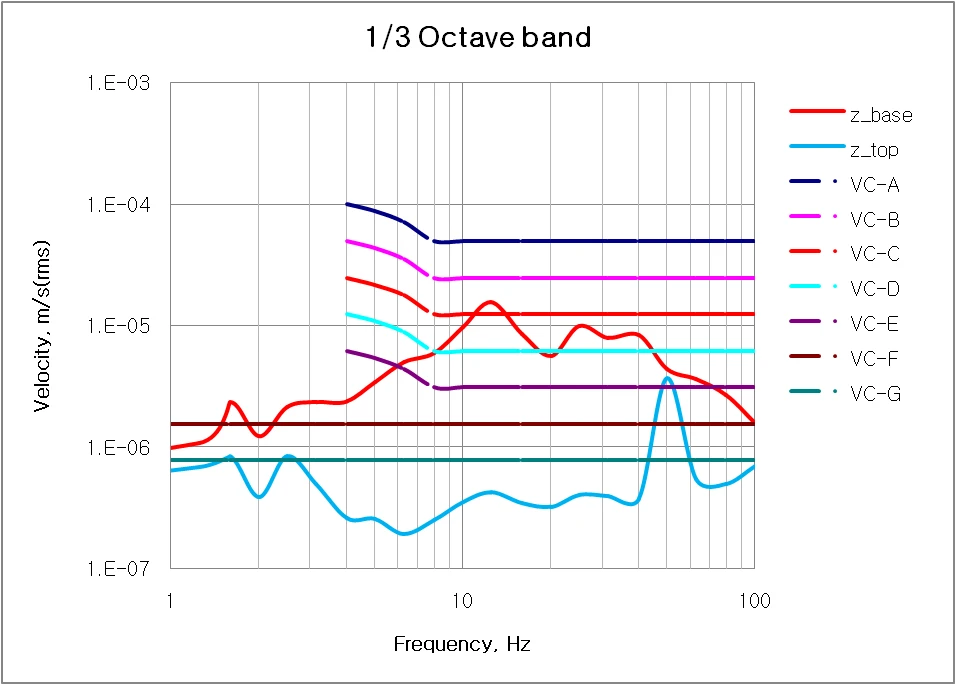

Z axis

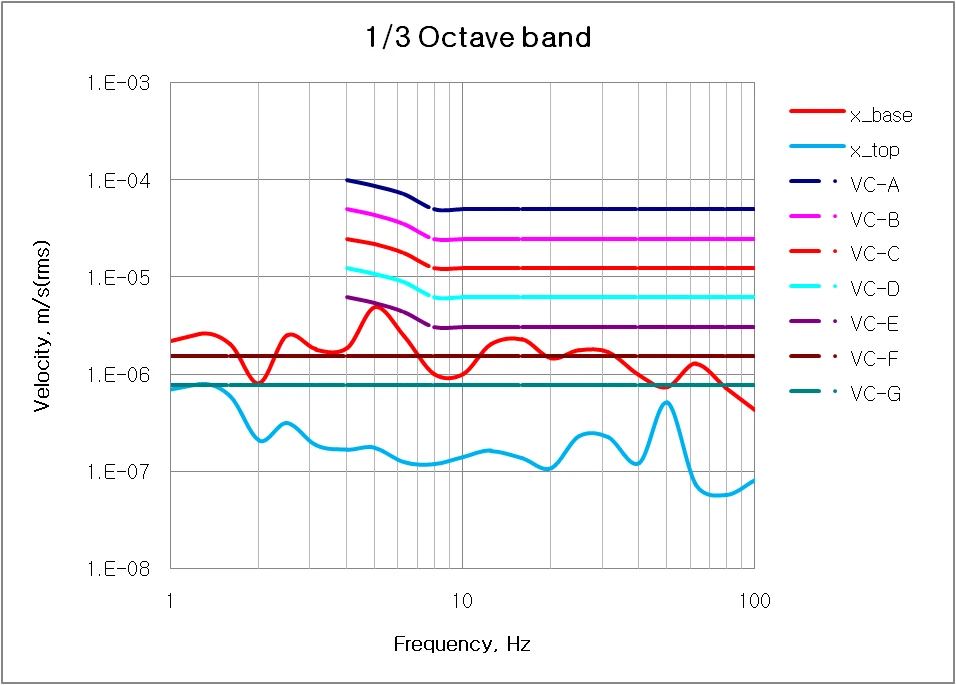

X axis

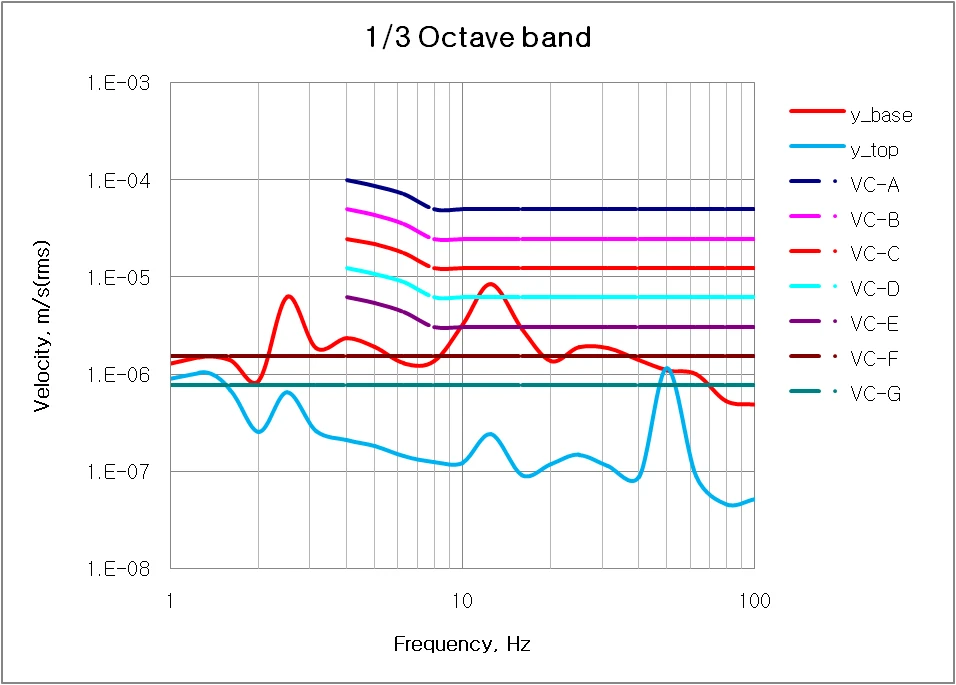

Y axis
