DVIA-M type (MB1000) Installation test — NEMO — 2015-09-03
Contents
Installation dates and engineer
Installation & Mesurement Date : 2015.09.01.
Reporting Date : 2015.09.03.
DAEIL SYSTEMS
LIM JONG UK
Installation Results Summary
※ Installation Results Summary
| Direction | Floor VC-Class | Platform (Active) VC-Class |
|---|---|---|
| Z | B | D |
| X | E | G |
| Y | D | F |
Good performance in all directions.
Vertical axis Z is B Class, the horizontal axis X is E Class, the horizontal axis Y is D Class. It was measured vibration environment in floor.
Vertical axis Z is D Class, the horizontal axis X is G Class, the horizontal axis Y is F Class. It was measured vibration environment in top of Active state.
Use the internal programs as a result of performance measurement, such as red circles and marked the peak occurs but is thought to power supply noise.
Used data of internal program to making performance graph, show "Result 1".
Used first data of PULSE to making performance graph, Show "Result 2".
Used second data of PULSE to making performance graph, Show "Result 3".
Result 1 — Performance graph (internal program, Transmissibility)

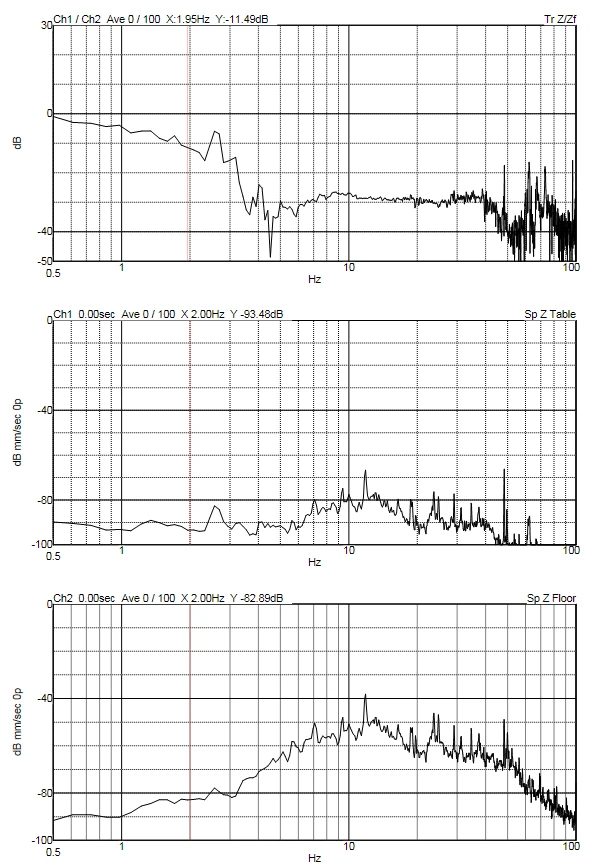

Result 1 — Z axis

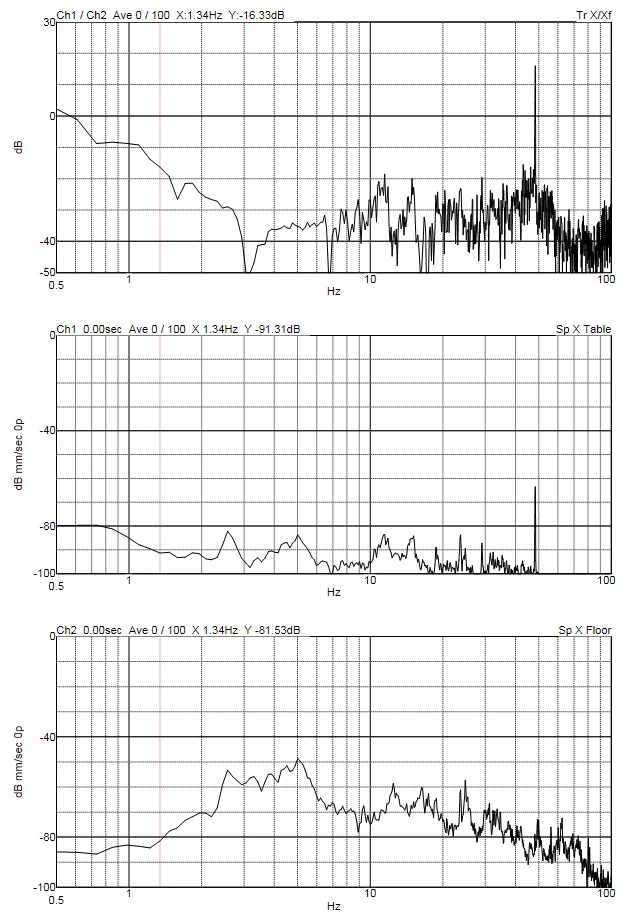

Result 1 — X axis

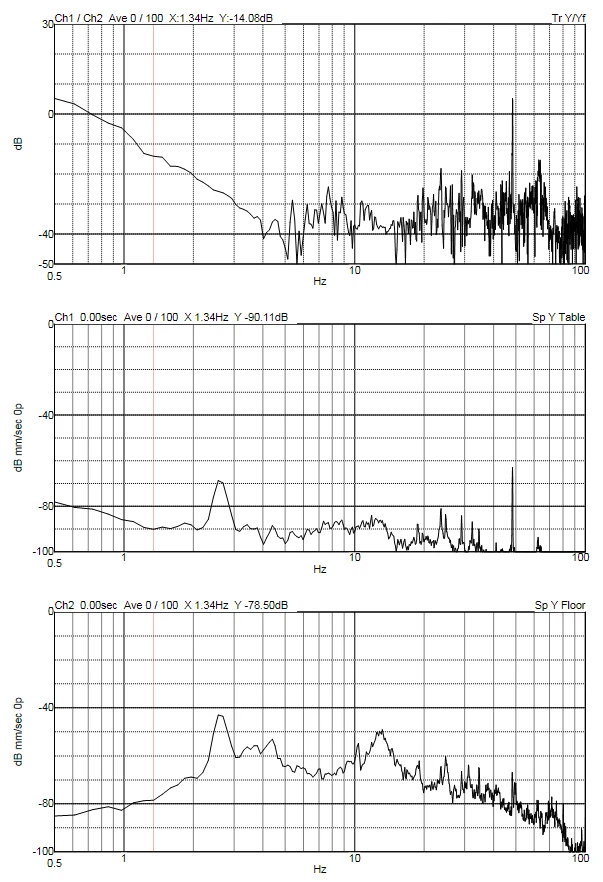

Result 1 — Y axis
Result 2 — Performance graph (PULSE, first dataset — 1/3 Octave band)

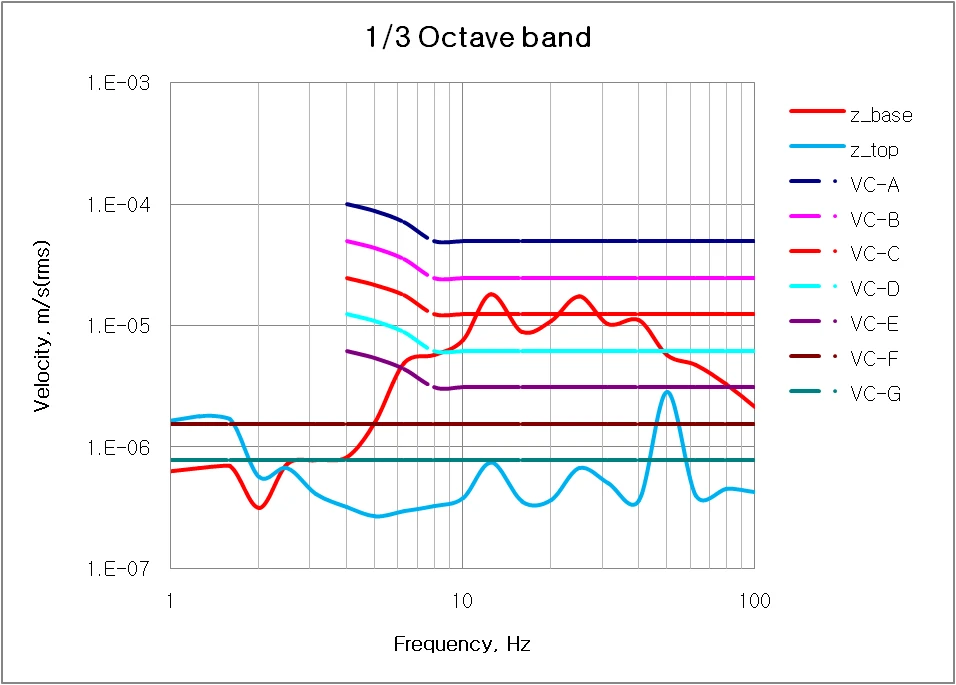

Result 2 — Z axis
Result 2 — X axis

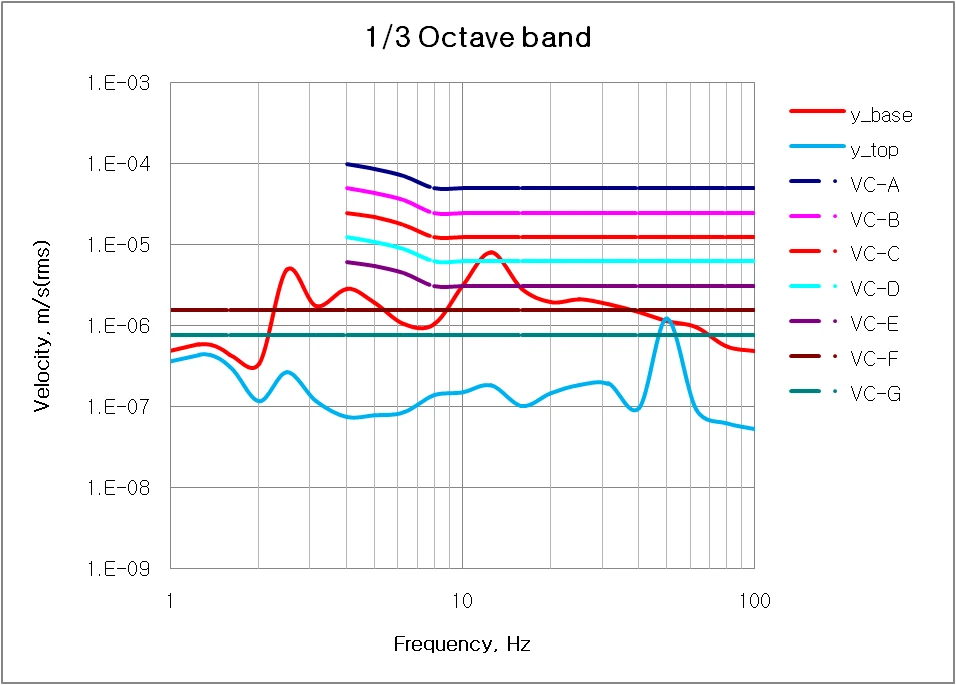

Result 2 — Y axis
Result 3 — Performance graph (PULSE, second dataset — 1/3 Octave band)

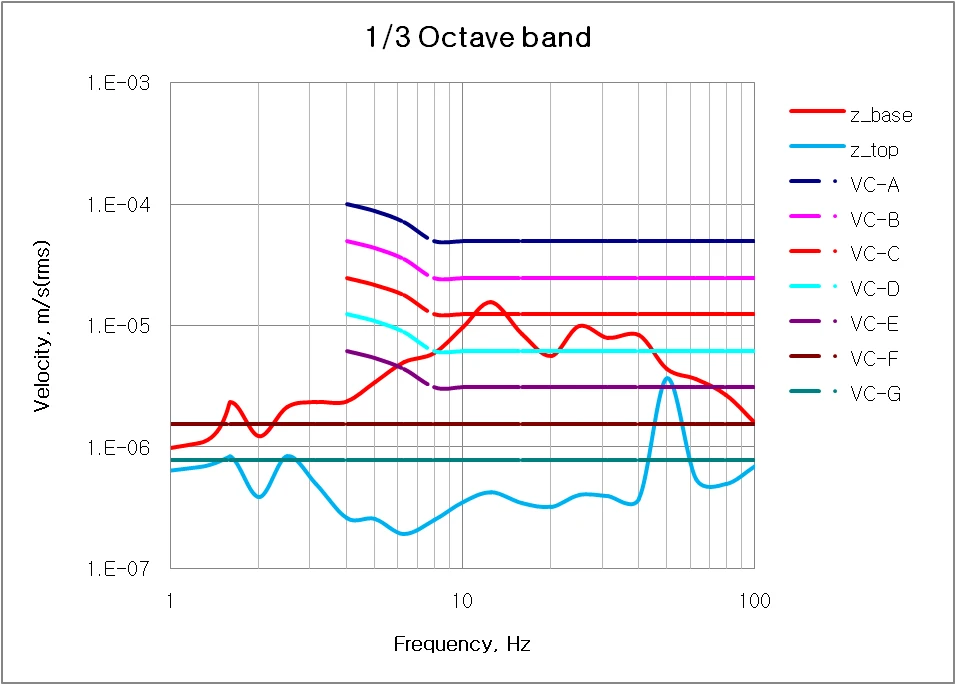

Result 3 — Z axis

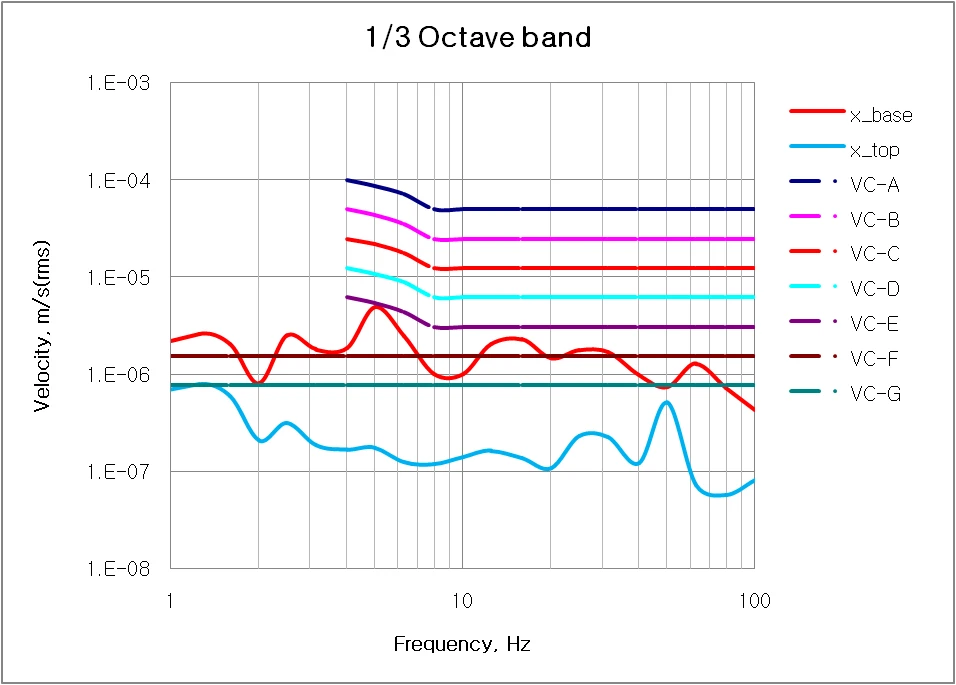

Result 3 — X axis

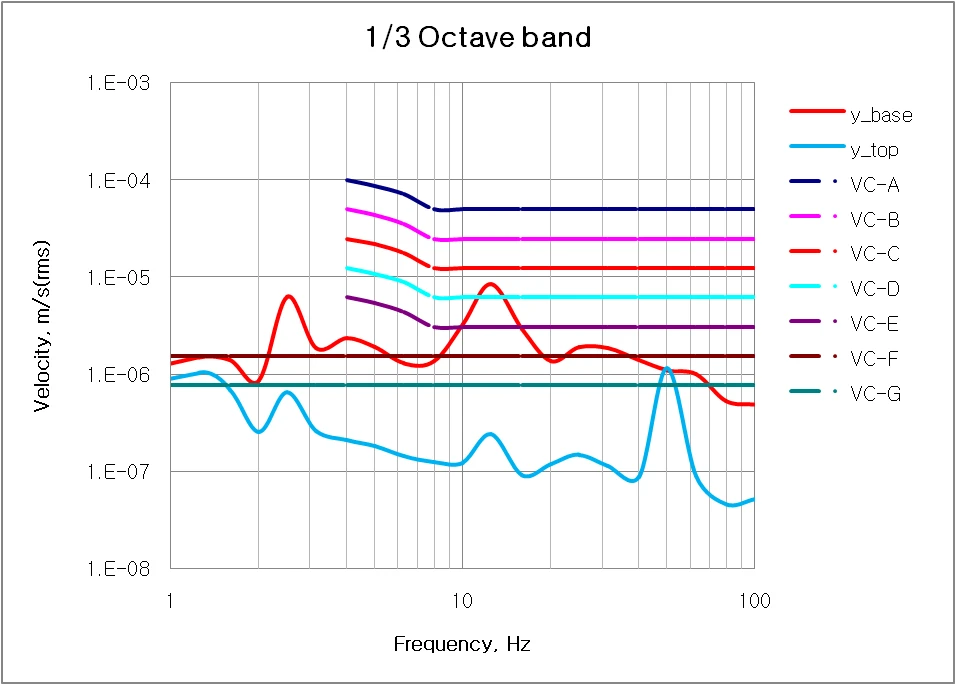

Result 3 — Y axis
Share this Case Study
Case Study Information
Related Case Studies

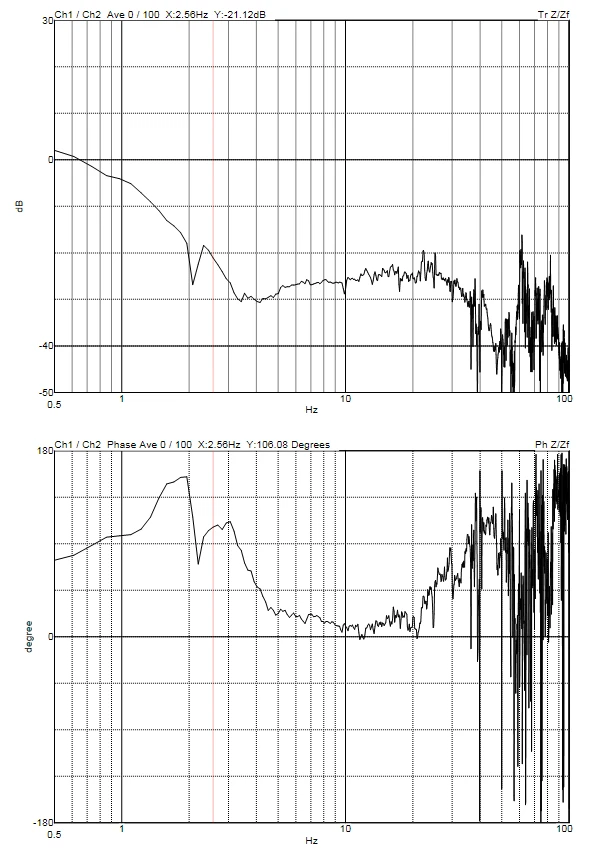

DVIA-M type (MB1000) Installation test — NEMO — 2016-04-08

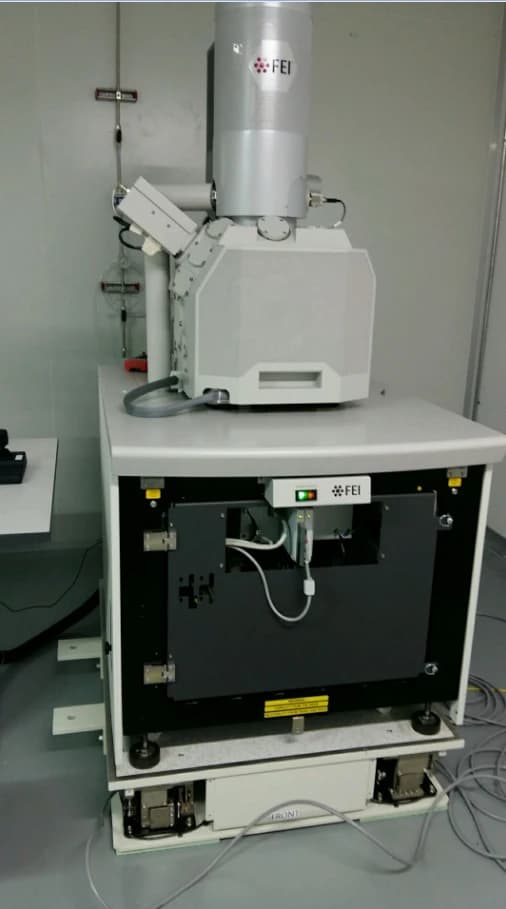

China business trip report — MB1000 P11 setup and vibration environment evaluation (September 2015)
