Installation Report

DVIA-M Series

04-08-2016

DVIA-M type (MB1000) Installation test — NEMO — 2016-04-08

DVIA-M Series

Installation Report

DVIA-MB1000

NEMO

DVIA-M

MB1000

2016

Installation dates and engineer

Installation & Mesurement Date : 2016.04.06.

Reporting Date : 2016.04.08.

DAEIL SYSTEMS

LIM JONG UK

Installation Results Summary

※ Installation Results Summary

Direction	Floor VC-Class	Platform (ACTIVE) VC-Class
Z	C	G
X	C	F
Y	D	G

Good performance in all directions.

Vertical axis Z is C Class, the horizontal axis X is C Class, the horizontal axis Y is D Class. It was measured vibration environment in floor.

Vertical axis Z is G Class, the horizontal axis X is F Class, the horizontal axis Y is G Class. It was measured vibration environment in top of Active state.

Used data of internal program to making performance graph, show "Result 1".

conversion unit in 1/3 octave band, Show "Result 2".

we check image of equipment, Show "Result 3".

Result 1 — Performance graph (internal program, Transmissibility)

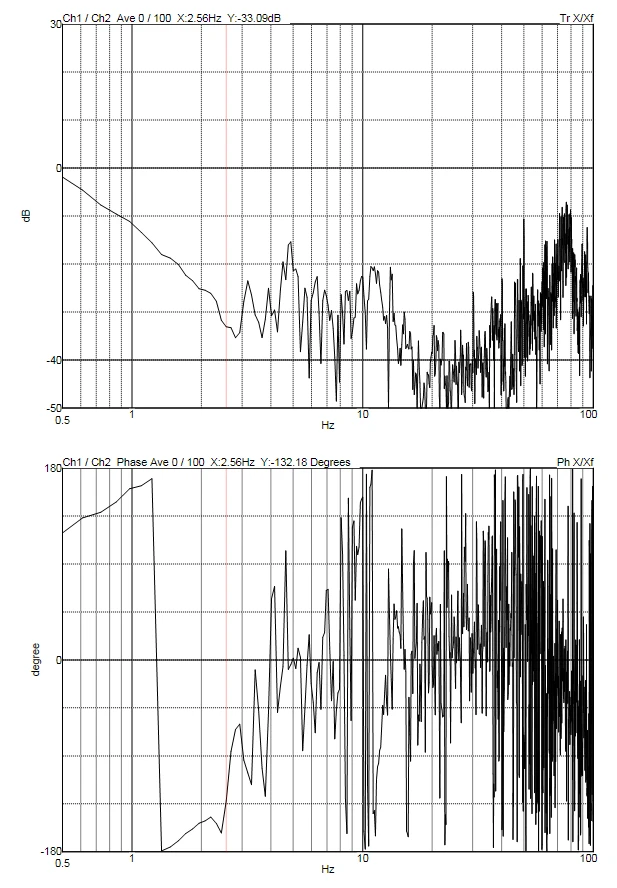

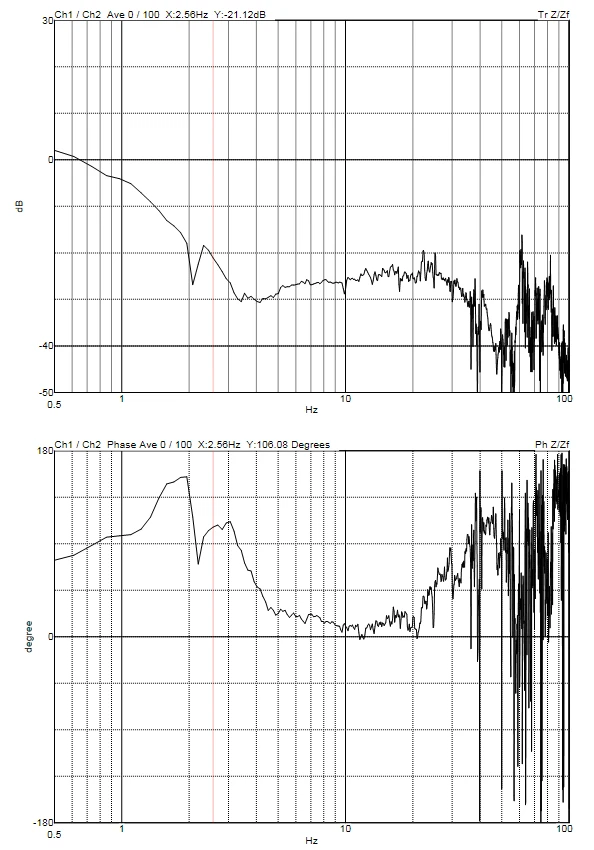

Result 1 — Z axis

Result 1 — X axis

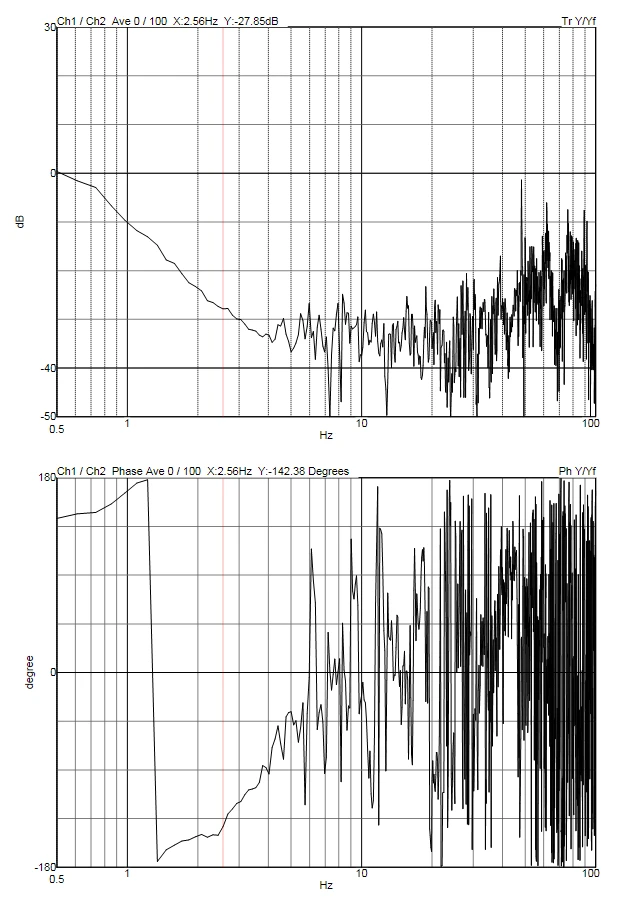

Result 1 — Y axis

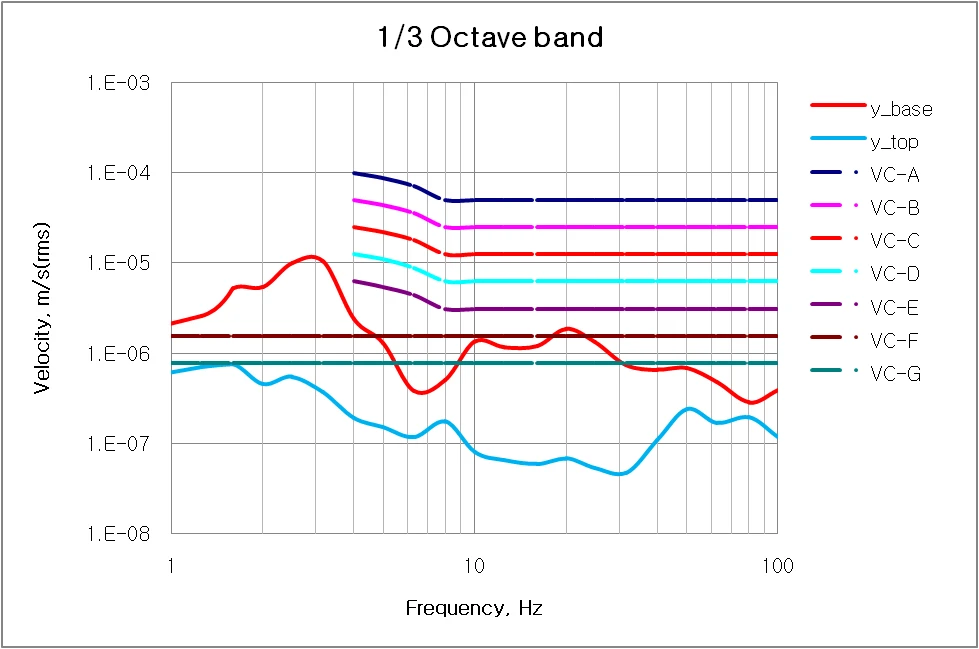

Result 2 — Performance graph (PULSE, 1/3 Octave band)

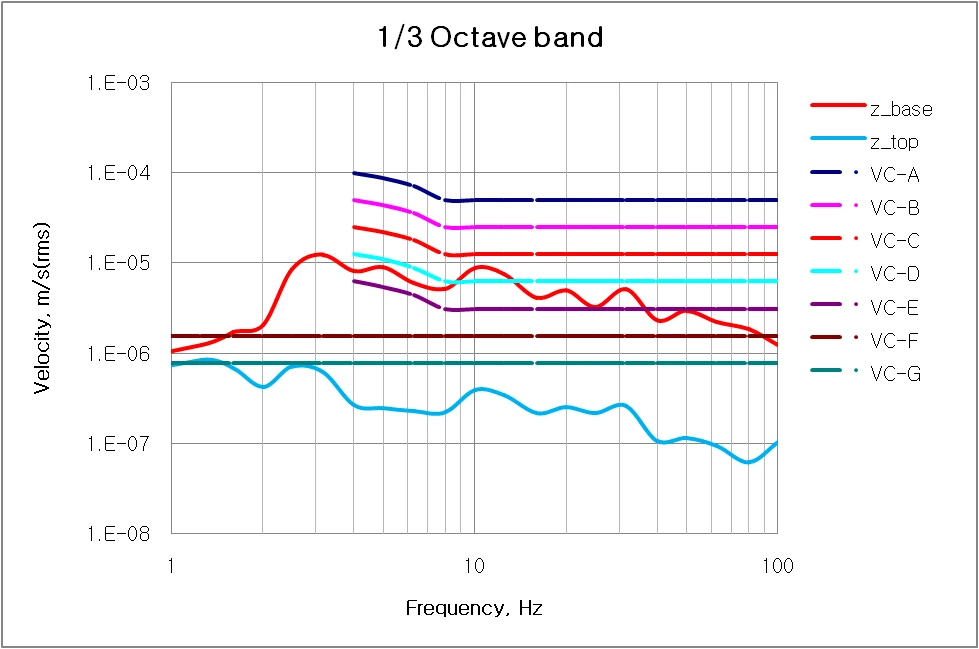

Result 2 — Z axis

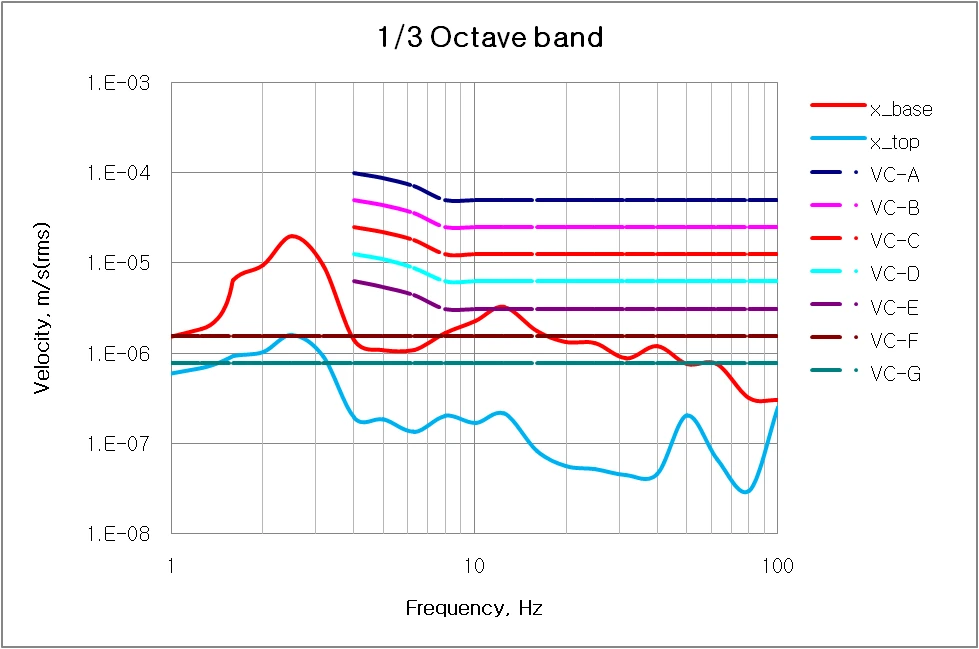

Result 2 — X axis

Result 2 — Y axis

Result 3 — Image Check

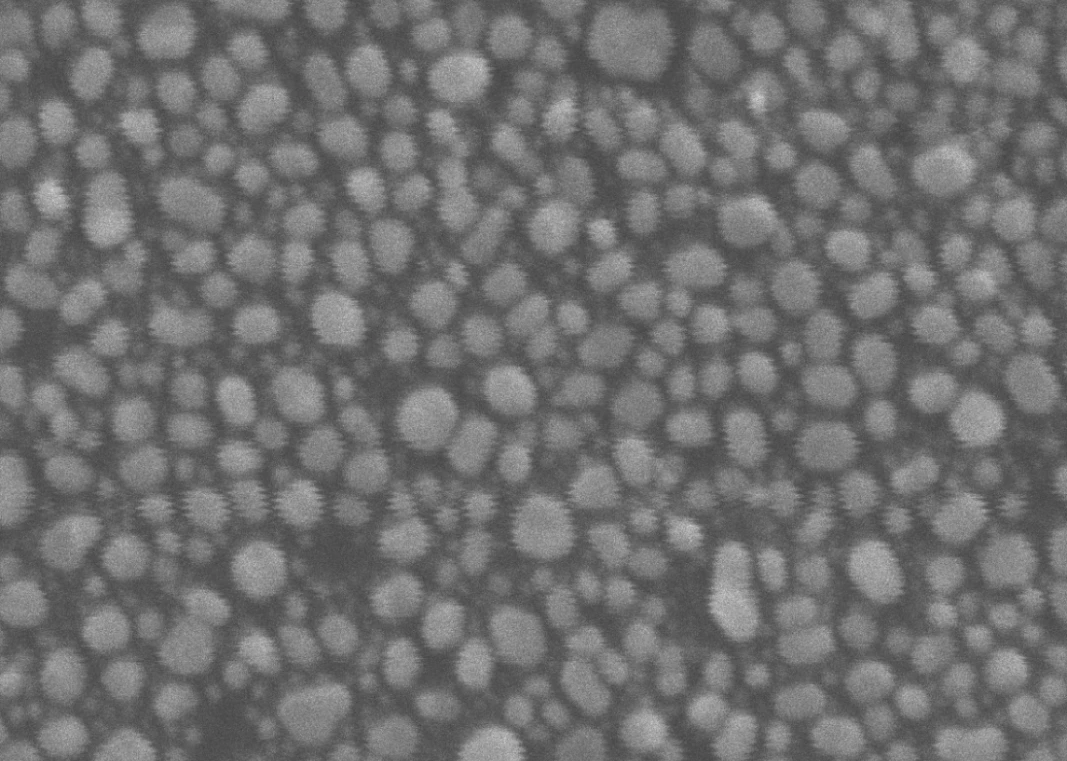

Result 3 — ACTIVE — OFF

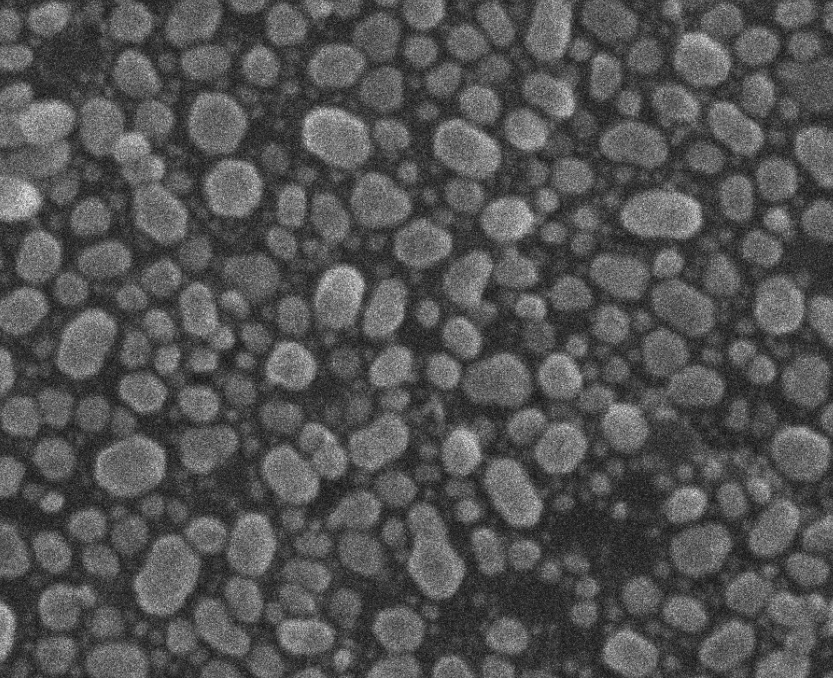

Result 3 — ACTIVE — ON
