Installation Report
DVIA-M Series
12-09-2020
ZEISS GEMINI DVIA-MB1000 (P168 / 191219R3-1) NEMO worksheet — 2020-12-09
DVIA-M Series
Installation Report
NEMO
ZEISS
GEMINI
DVIA-MB1000
191219R3-1
MB1000
P168
YIMO
Contents
MB1000 P168 YIMO 191219R3-1
| Target equipment | ZEISS-GEMINI |
|---|---|
| Place of installation | N/A |
| Remark | Good Performance |
| END USER | N/A |
| Operator: Choi, HyoungMun | Date of business trip : 17.12.27~17.12.29 |
| Date of setup : 20.12.07 | |
| Date of reporting : 20.12.09 |
Overview
After Active mounting, measure the vibration environment to check that there is no problem in using the equipment.
Measurement date: 20.12.07 (TUE)
Operator: Daeil System, Research engineer Choim, HyoungMun
Place of measurement : N/A
Equipment Model: ZEISS-GEMINI
Measurement conditions and results
Summary of measurement results
Test Condition
Transmissibility
| Direction | 2 Hz | 5 Hz | 10 Hz |
|---|---|---|---|
| Z | -21 dB | -35 dB | -27 dB |
| X | -26 dB | -32 dB | -30dB |
| Y | -26 dB | -34 dB | -35dB |
Good omnidirectional performance.
MB1000 internal program performance measurement result

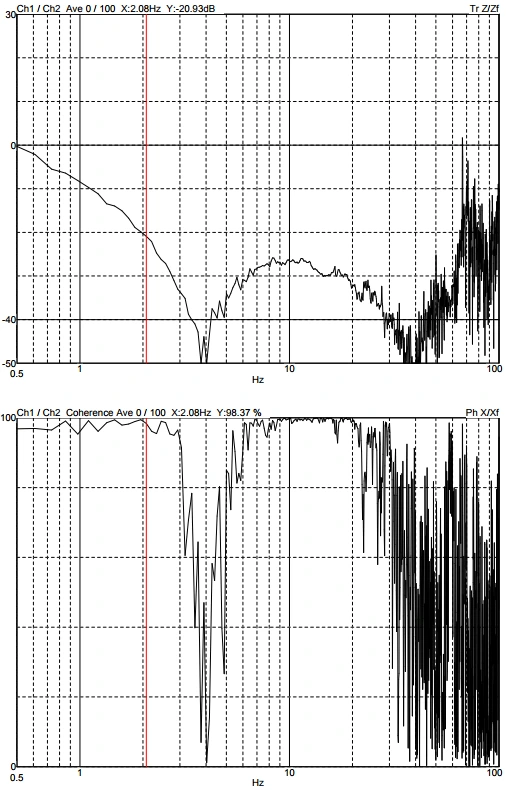

Z axis

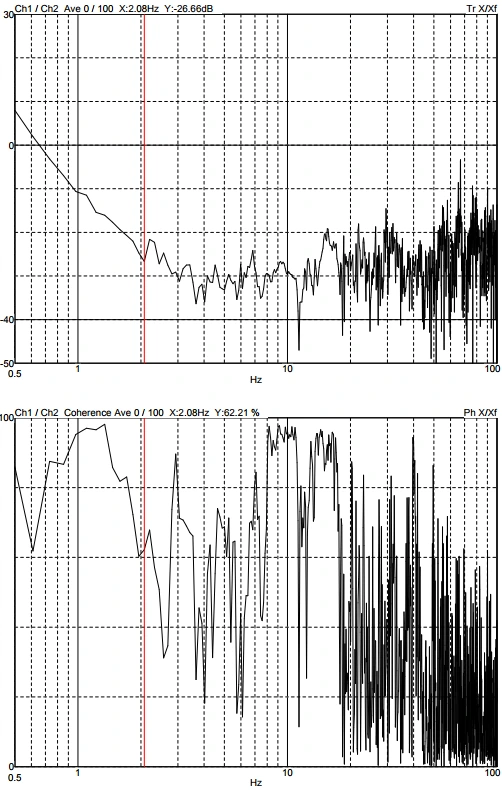

X axis

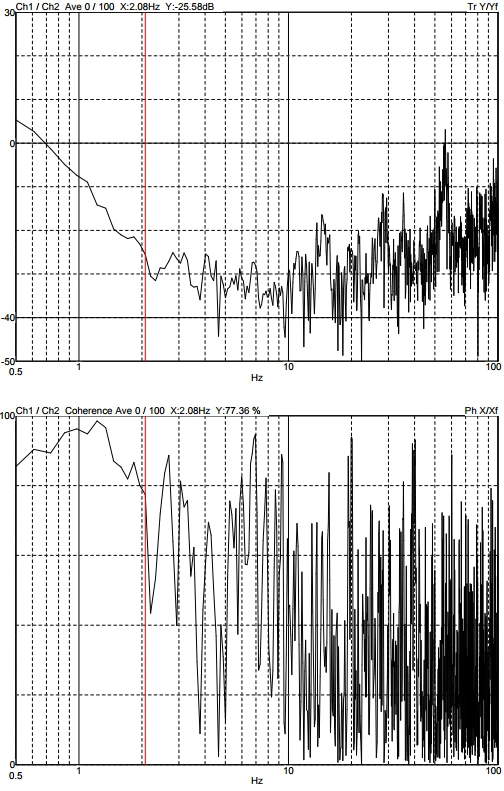

Y axis
