Installation Report
DVIA-M Series
03-15-2021
ZEISS-Gemini DVIA-MB1000 MB1000 P197 (200928R2) Internal Program Performance — 2021.03.15
DVIA-M Series
Installation Report
ZEISS
GEMINI
DVIA-MB1000
P197
MB1000
Internal Program
Contents
(MB1000 P197 200928R2 Set up)
| Target equipment | ZEISS-Gemini |
|---|---|
| Place of installation | N/A |
| Remark | Good Performance |
| END USER | N/A |
| Operator: Choi, HyoungMun | Date of business trip : 17.12.27~17.12.29 |
| Date of setup : 21.03.12 | Date of reporting : 21.03.15 |
Overview
After Active mounting, measure the vibration environment to check that there is no problem in using the equipment.
Measurement date: 21.03.12 (FRI)
Operator: Daeil System, Research engineer Choi, HyoungMun
Place of measurement : N/A
Equipment Model: ZEISS-Gemini
Measurement conditions and results
Summary of measurement results
Test Condition: Transmissibility
| 2 Hz | 5 Hz | 10 Hz | |
|---|---|---|---|
| Z | -25 dB | -32 dB | -33 dB |
| X | -25 dB | -33 dB | -33 dB |
| Y | -32 dB | -35 dB | -37 dB |
Good omnidirectional performance.
MB1000 internal program performance measurement result

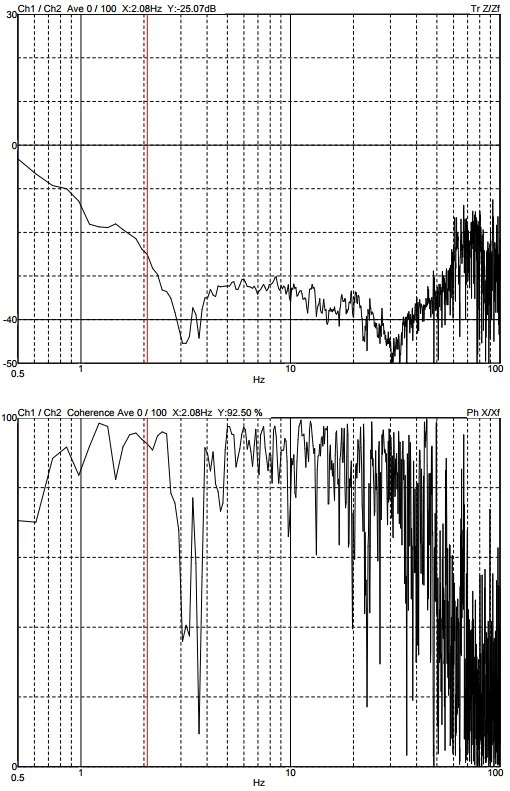

Z axis

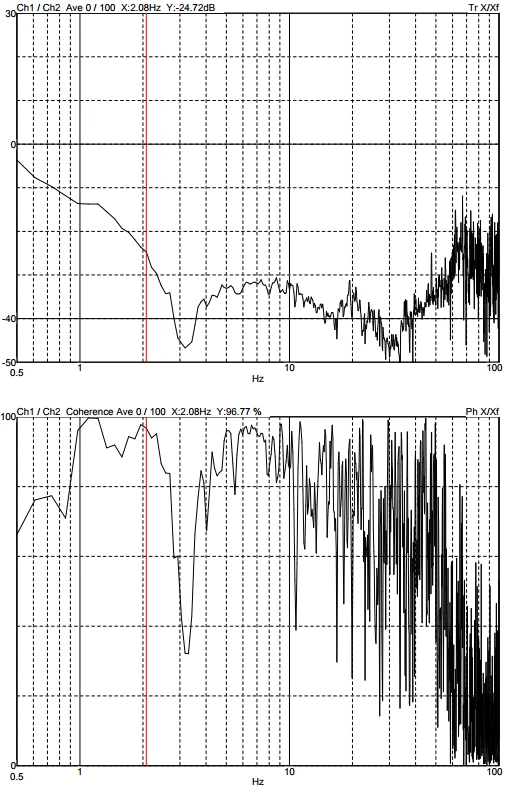

X axis

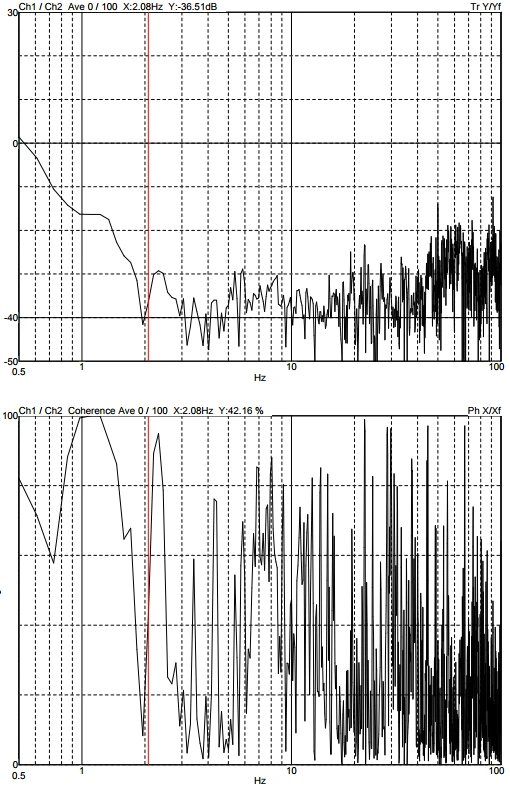

Y axis
