Vibration Isolation Case Studies

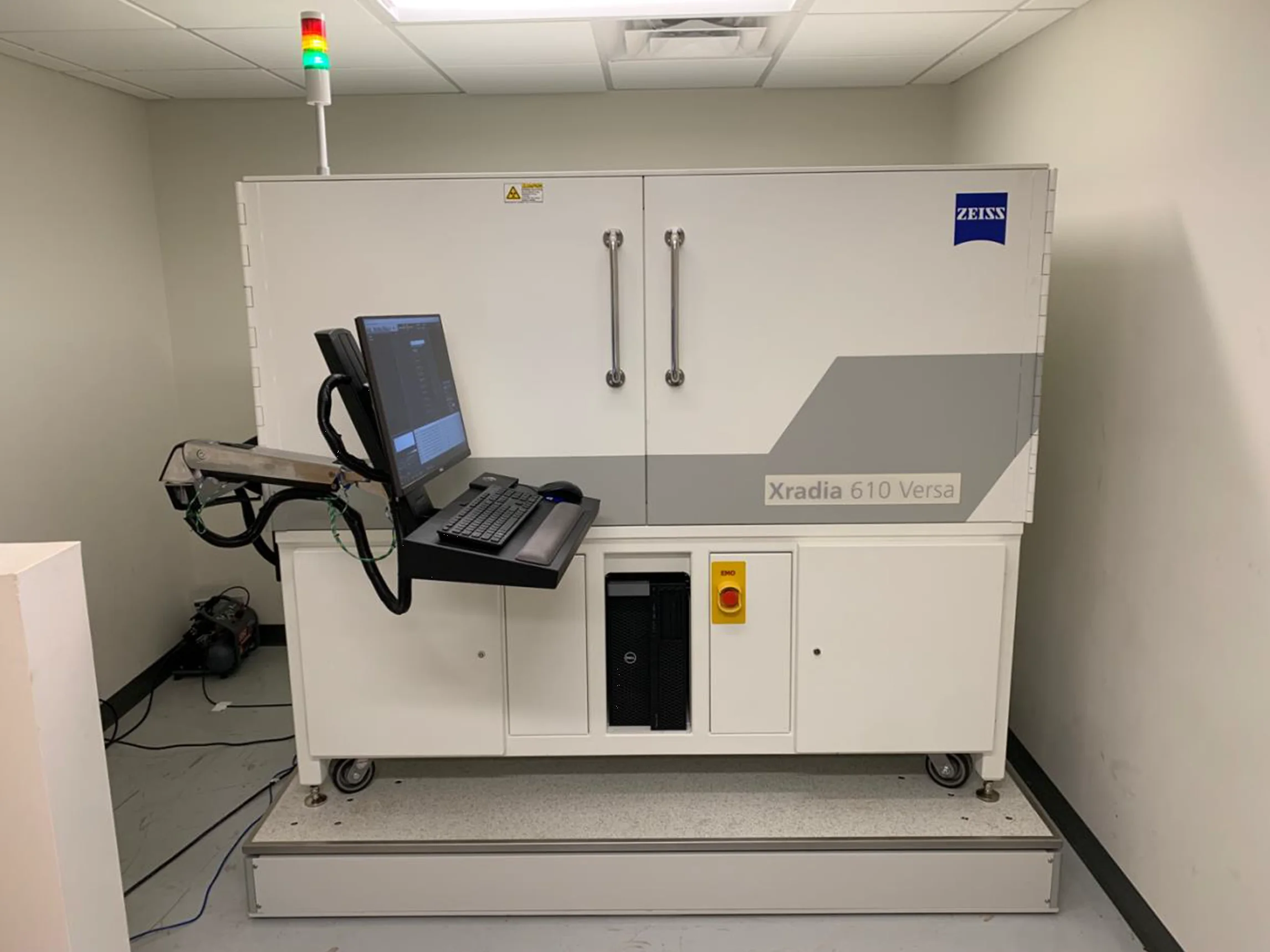

DVIA-MB3000 (serial 230110R4, platform DVIA-MB3000-1370x2180) VEC installation worksheet at Yale School of Medicine Child Study Center (350 George St, New Haven, CT) with Zeiss Versa 610. Includes UI program transmissibility (Z/X/Y), VEC measurement plots (transmissibility, floor VC, active VC per axis), an installed equipment photograph, and Reference as the standard Generic Vibration Criteria markdown table (reference criterion graphic not republished). Engineer Youngha Lee (DAEIL SYSTEMS).

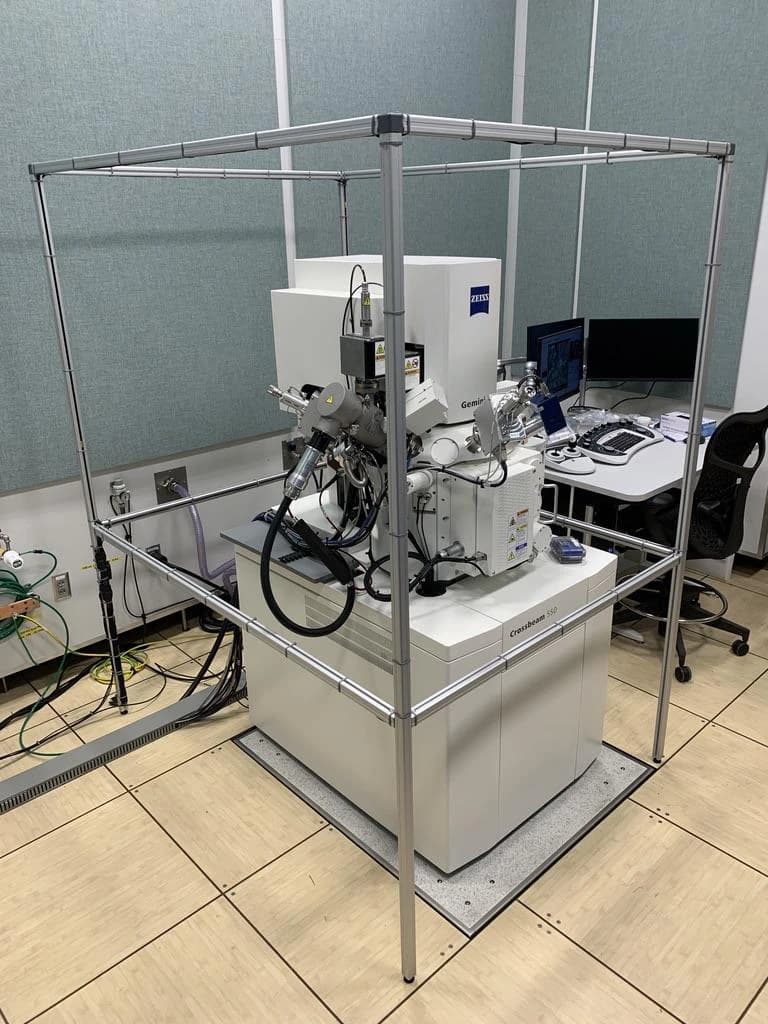

DVIA-MB1000 (SN 220908R2) at Vanderbilt University Engineering and Science Building Room 051 with Zeiss Crossbeam 550 — UI program transmissibility screens and VEC measurement curves.

DVIA-MB1000 installation report (serial 210609R4) for Hitachi S-4800 FESEM at Tier-1 Semiconductor (Suwon-area research site). Engineers Youngha Lee and Sangjae Lee (DAEIL SYSTEMS); tuning February 8, 2023; report dated February 22, 2023 per the form. Publishes Summary of Vibration Results (floor vs active VC-class grades by axis and band) and six VC curve captures (floor and top for Z/X/Y). Decorative header raster, seal artwork in the Prepared-by block, and the Generic Vibration Criteria graphic are omitted; Reference uses the standard markdown criteria table only.

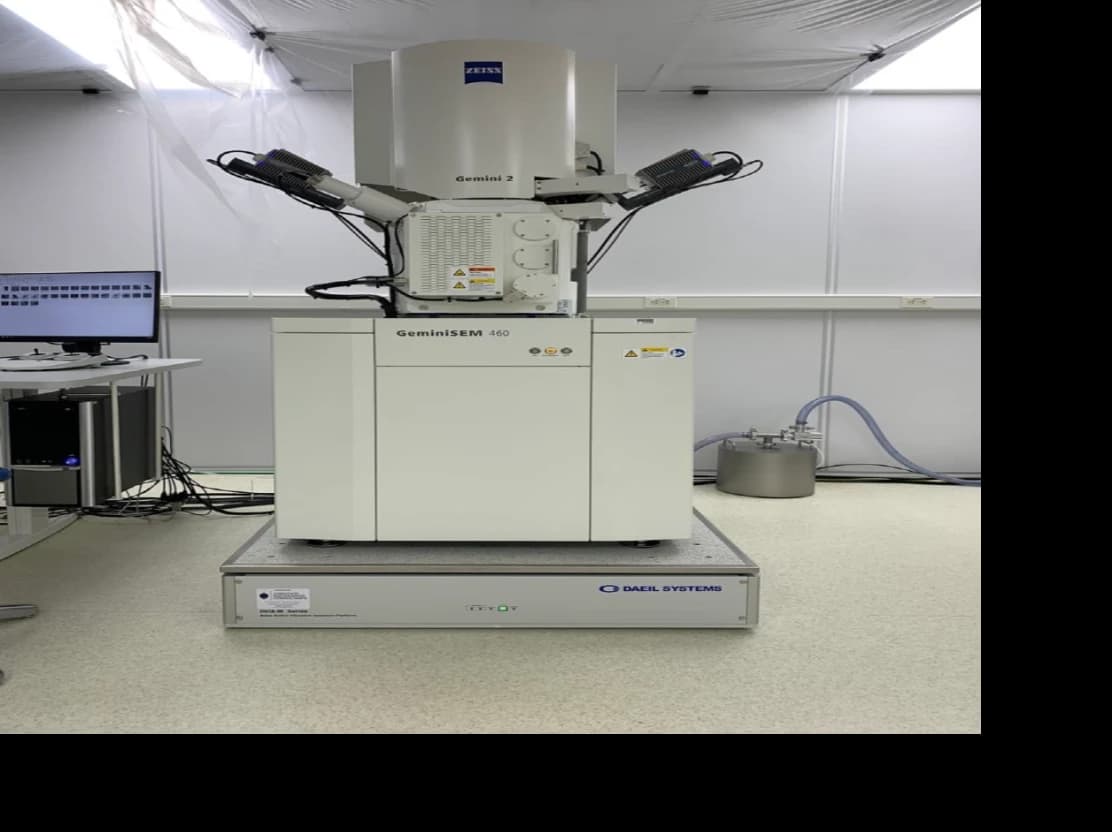

DVIA-MB1000 VEC installation report (serial 221013R2, platform DVIA-MB1000-1000X1200X224H) for Zeiss Gemini SEM 460 at Oak Ridge National Labs, Tennessee. Prepared for Toya Beiswenger PhD; engineer Hosang Yu (DAEIL SYSTEMS). Tuning date February 1, 2023; report written February 7, 2023; business trip dates as stated on the form. Publishes per-axis transmissibility, floor VC, and active VC plots (Z-axis with stomping notation per source labels), equipment photograph, and Generic Vibration Criteria as a markdown table only (decorative header raster and Word Reference graphic omitted).

DVIA-MB1000 (SN 220902R5) at Tier-1 Semiconductor Pyeongtaek P2 3F FA analysis lab with ZEISS Crossbeam 550 — field summary text only (no exported plots or report imagery per site restrictions).

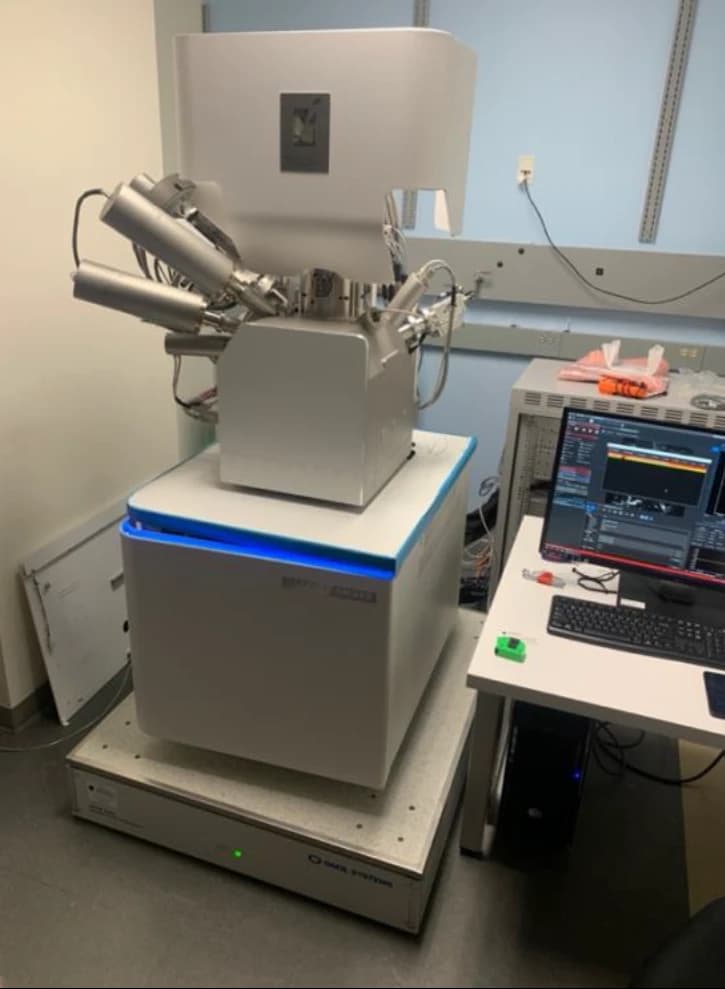

DVIA-MB1000 VEC installation worksheet (serial 220826R2) for TESCAN Amber X at NIH, Bethesda, Maryland. Prepared for Dennis Winkler; engineer Youngha Lee from DAEIL SYSTEMS; tuning January 18, 2023; dates match the Prepared by line on the form. Measurement plots derive from embedded Word PNG and EMF rasters exported for WebP upload; ornamental header raster and Generic Vibration Criteria reference graphic omitted in favor of the standard markdown criteria table.
