Installation Report
DVIA-ML Series
07-07-2023
Shanghai Institute DVIA-MO3000 (220330R5-2) Installation Report
DVIA-ML Series
Installation Report
DVIA-MO3000
220330R5-2
ZOLIX
Shanghai
Three-axis Vibration Exciter
Contents
Overview
The DVIA-MO3000 active vibration isolation platform is appropriately installed and functioning as intended.
System Information
Model: DVIA-MO3000
Serial Number: 220330R5-2
Engineer
Youngha Lee from DAEIL SYSTEMS
Tuning Date
July 07, 2023
Location
Shanghai, China
Equipment
Three-axis Vibration Exciter
Summary of Vibration Transmissibility
| Direction | 2Hz | 5Hz | 10Hz |
|---|---|---|---|
| Z axis | -31.43dB | -24.02dB | -20.74dB |
| X axis | -26.54dB | -20.12dB | -20.24dB |
| Y axis | -32.77dB | -23.08dB | -24.18dB |
Data and Image

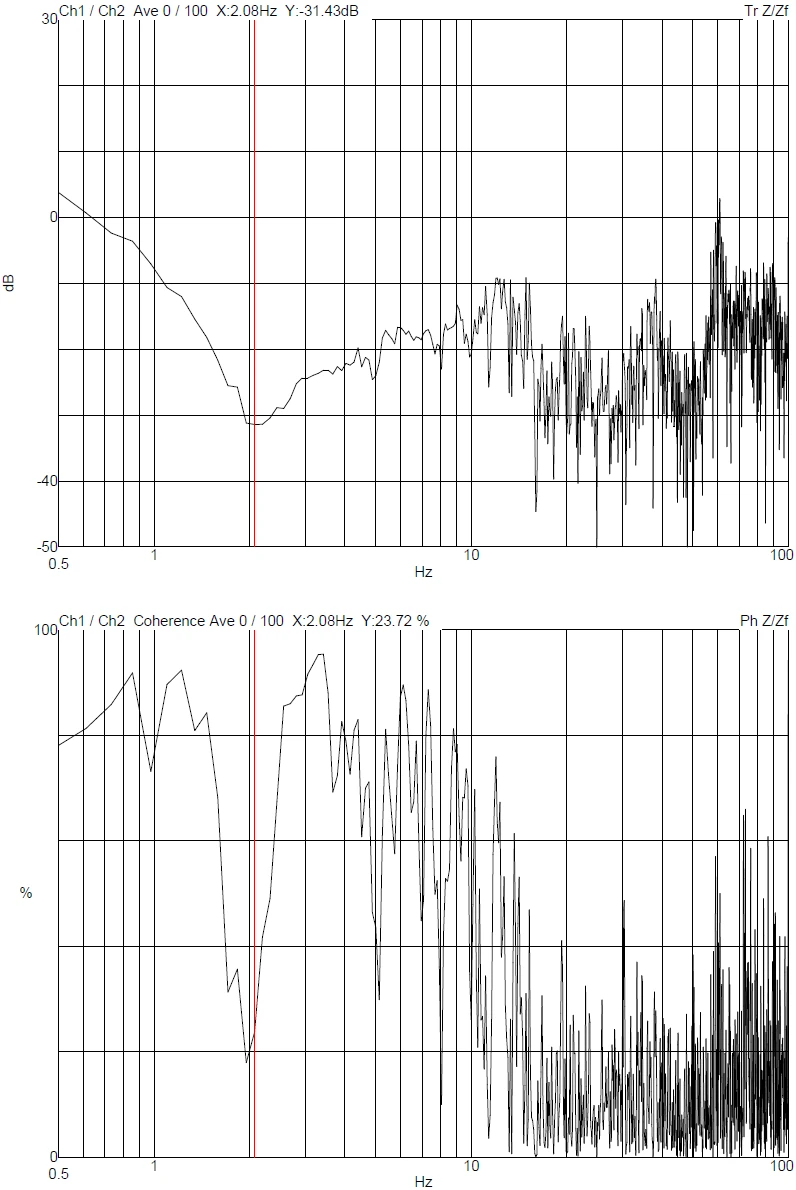

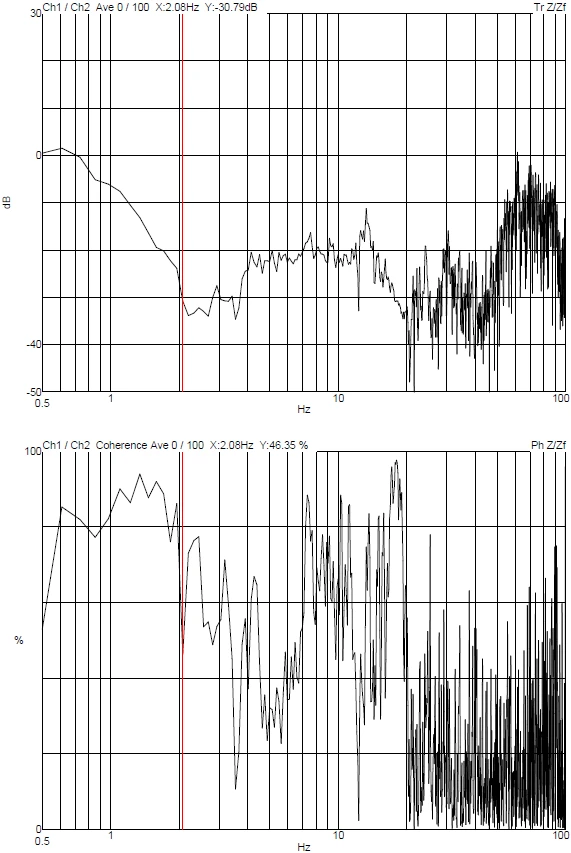

Z-axis (Vertical) Transmissibility

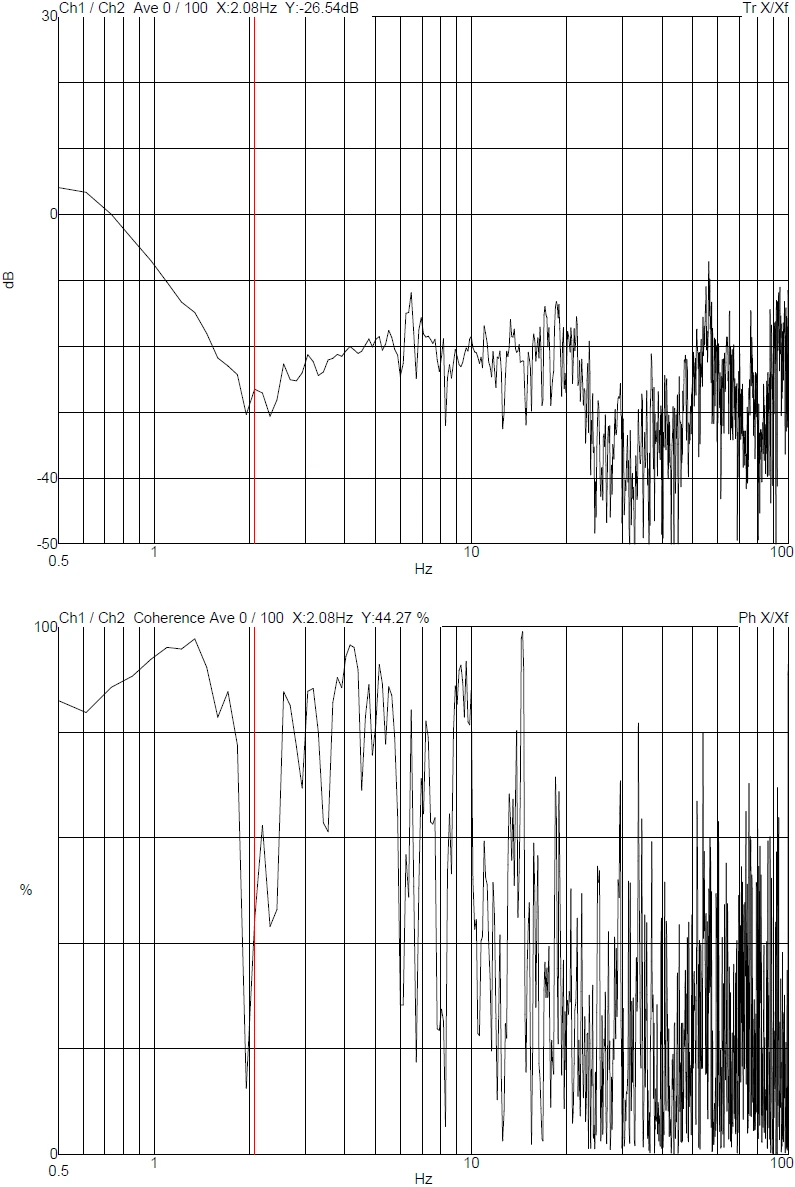

X-axis (Left to Right) Transmissibility

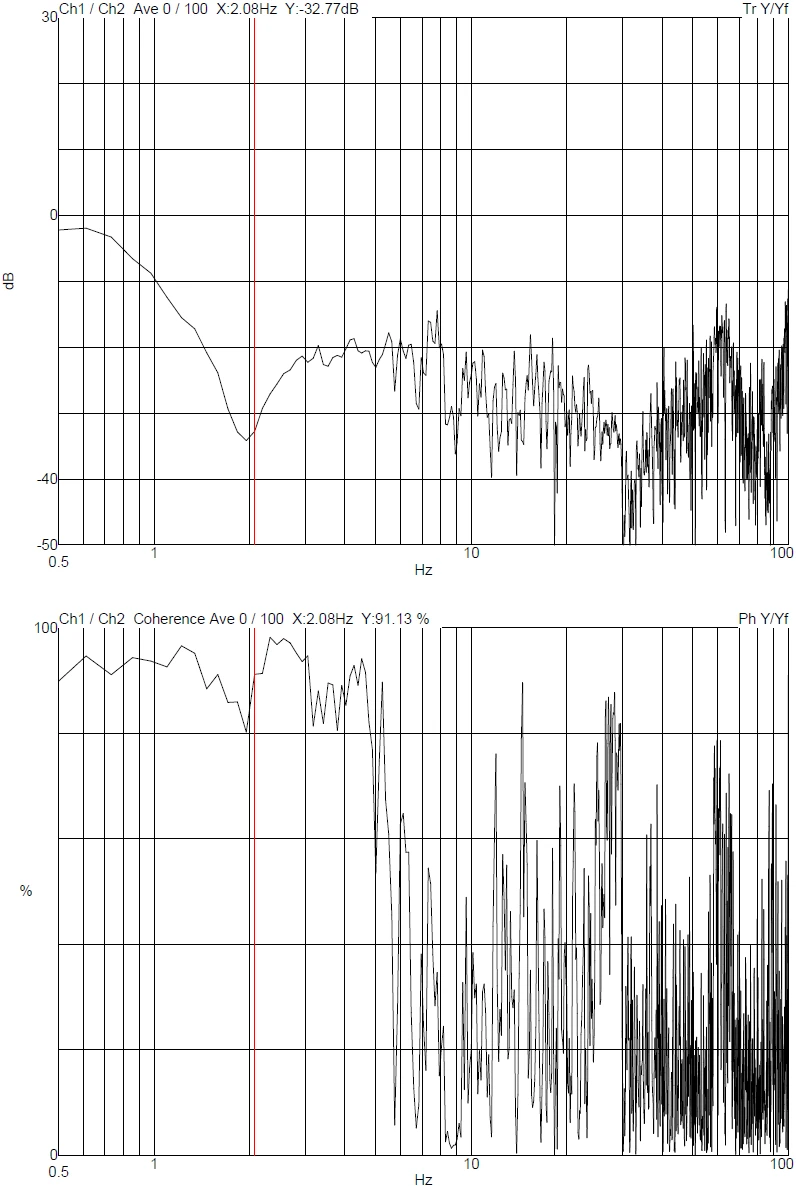

Y-axis (Front to Back) Transmissibility

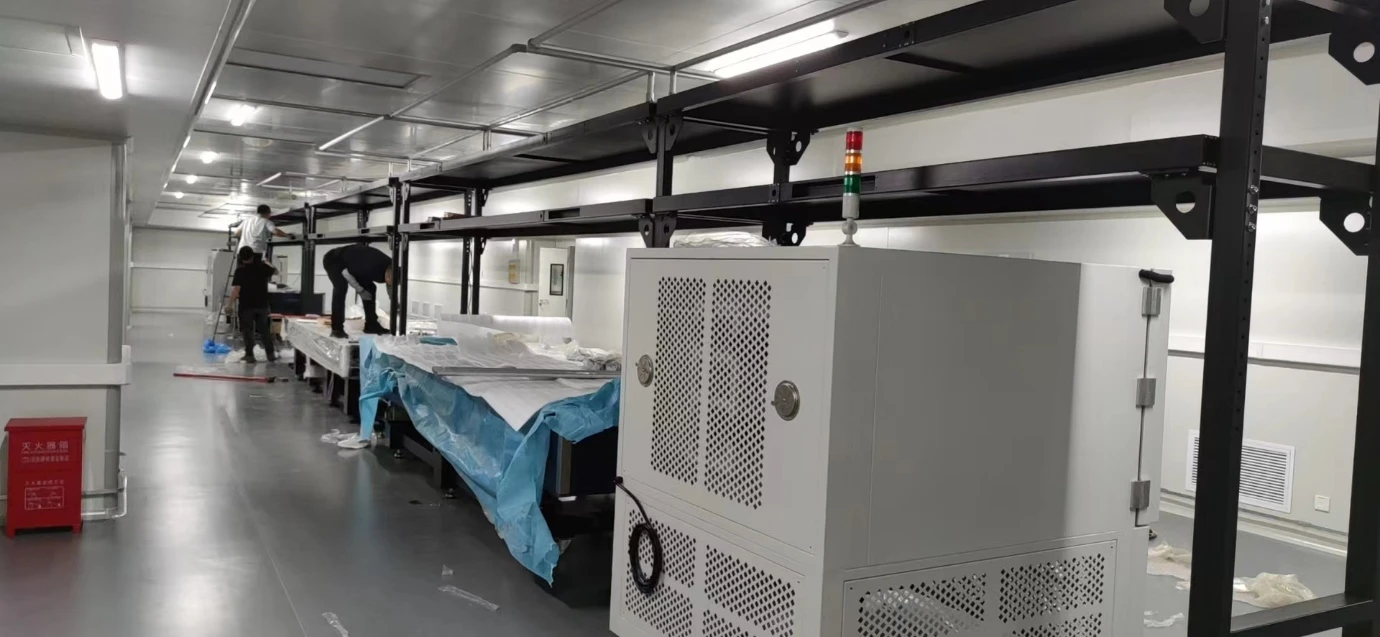

Equipment picture

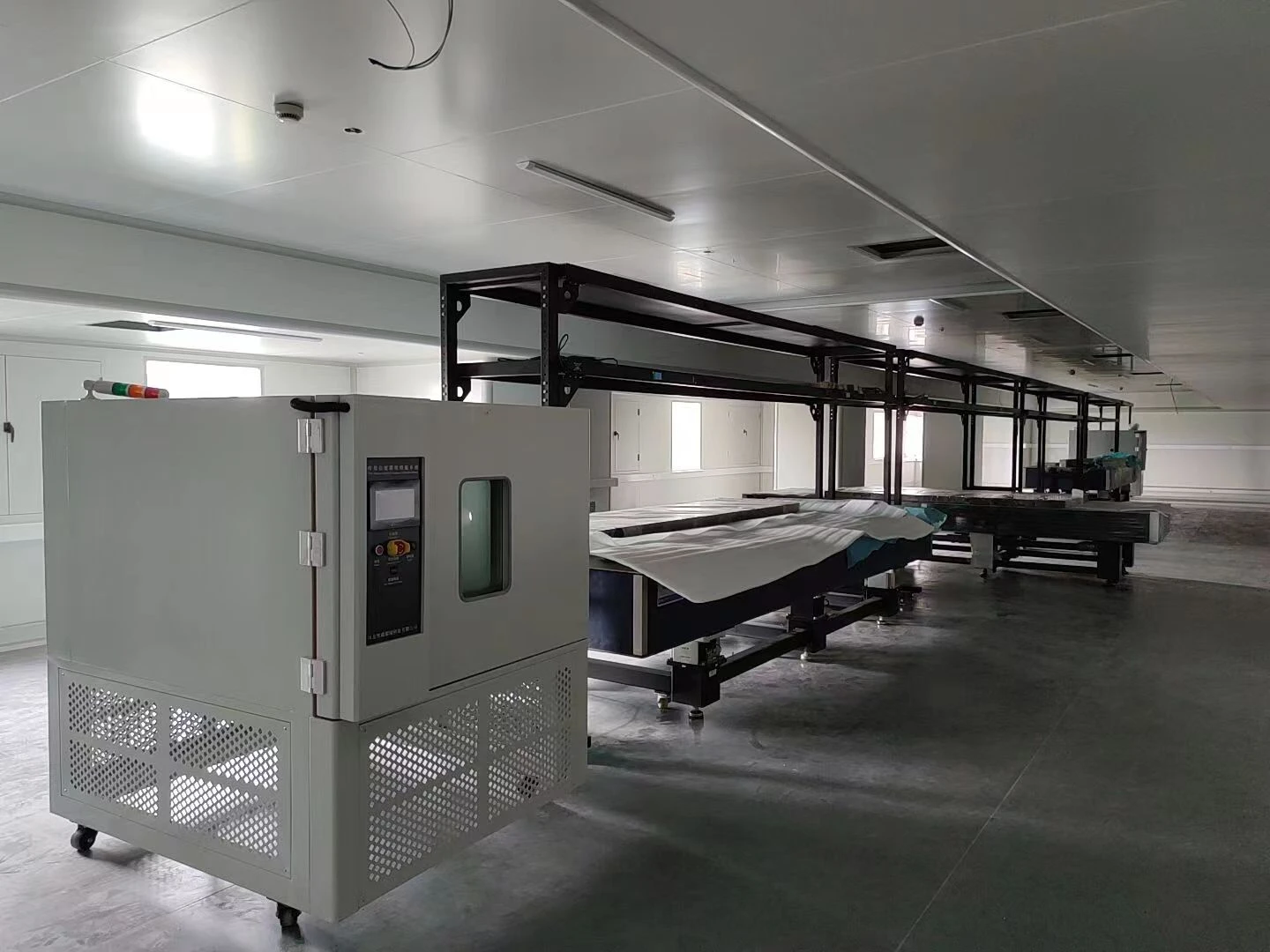

Equipment picture
