Vibration Isolation Case Studies

DVIA-UB350 (S/N 220621R1) active vibration isolation platform installation report for Semilab AFM-2000 at ARCHE (147, Annyeong-gil, Byeongjeom-gu, Hwaseong-si, Gyeonggi-do). Transmissibility and VC-curve data are shown for a routine condition and for an enclosure-door disturbance condition. Reference uses the shared Generic Vibration Criteria markdown table (no separate criteria figure).

DVIA-U1000 compact installation worksheet (serial 230202R1) at BGRIMM Technology Group with TESCAN VEGA GMS in Xiamen. Setup 23.06.07, reporting 22.06.12, business-trip line 17.12.27~17.12.29; Overview measurement dated 2023.06.08 (Thursday). Publication includes setup photograph and Z / X / Y internal-program screenshots. Decorative company-line header bitmap (image1) omitted.

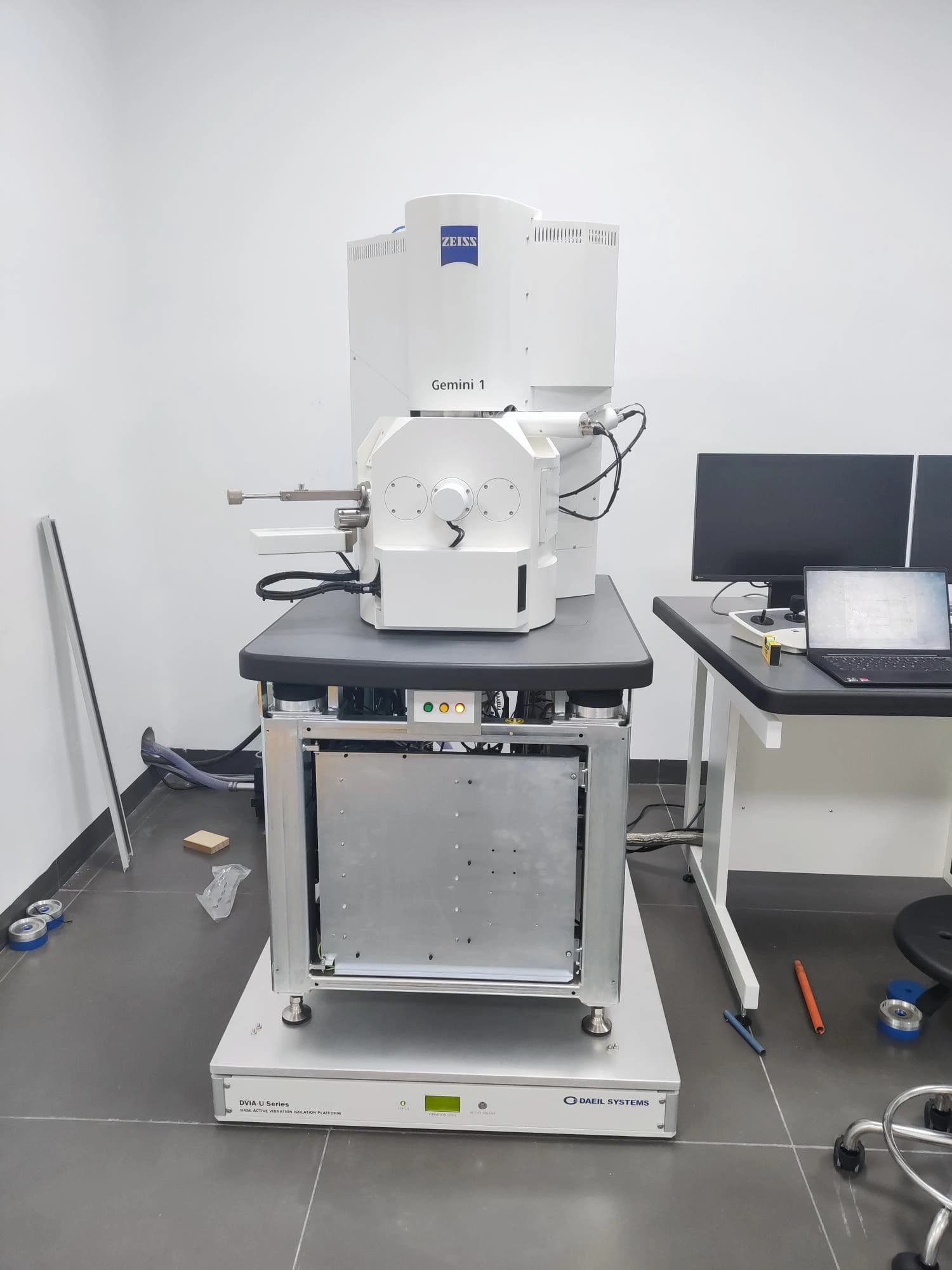

DVIA-UB700 (S/N 230116R4) active vibration isolation platform installation report prepared for Foshan Lehua Hengye Kitchen & Bath Co., LTD; Sigma 300 located in CHANGZHOU, China; tuning date June 6, 2023; report written June 12, 2023; engineer Youngha Lee. Published figures from Data and Image: Z/X/Y-axis transmissibility and one equipment site photo; decorative header bitmap from the Word file (image1 / rId8) omitted.

DVIA-U1000 compact installation worksheet (serial 230116R4) at Foshan Lehua Hengye Kitchen & Bath Co., LTD with Sigma 300 in Changzhou. Setup 23.06.06, reporting 22.06.12, business-trip line 17.12.27~17.12.29; Overview measurement dated 2023.06.06 (Tuesday). Publication includes setup photograph and Z / X / Y internal-program screenshots.

DVIA-UB700 (S/N 221012R10) installation report prepared for BAOWU ALUMINUM TECHNOLOGY CO.,LTD. with EVO10 equipment in HENAN, China. Tuning date 2023-04-17; report written 2023-05-10; engineer Youngha Lee. Source cover title reads DVIA-UB700 while the System Information model line reads DVIA-U1000-910x1140 mm (reproduced verbatim in the case body). Published plots: Z-axis (Vertical), X-axis (Left to Right), and Y-axis (Front to Back) transmissibility plus equipment photograph. Decorative header bitmap from the Word file (image1 / rId8) omitted.

DVIA-U1000 compact installation worksheet (serial 221012R10) at BAOWU ALUMINUM TECHNOLOGY CO.,LTD. with EVO10 in HENAN, China. Setup 23.04.17, report written 23.05.10, business trip line 17.12.27~17.12.29; engineer Youngha Lee. Overview measurement dated 2023.04.17 (Monday). Published setup photograph and U1000 internal-program Z / X / Y performance screenshots; decorative header bitmap (image1) omitted.
