Installation Report
DVIA-M Series
04-28-2017
Hana Materials Cheonan MO3000 (P3) Vibration Environment Measurement — 28 Apr 2017
DVIA-M Series
Installation Report
Hana Materials
MO3000
P3
Cheonan
KEYENCE
VK-X200
Contents
Overview
After installation of the vibration isolation platform, vibration conditions were measured to verify that equipment use would not be affected by unacceptable vibration levels.
Measurement date: 28 April 2017 (Friday), engineer: Im Jong-wook (DAEIL SYSTEMS).
Measurement location: Cheonan — Hana Materials.
Equipment model: KEYENCE VK-X200.
Measurement conditions and results
Measurement conditions: the vibration isolation platform top and the research-building floor were measured.
Measurement summary
| Measurement position | Z | X | Y |
|---|---|---|---|
| Building floor | B | C | C |
| Vibration isolation platform top | F | F | G |
The floor measured B-class vertically and C-class on both horizontal axes.
With the vibration isolation platform in place, values of F-class or better were obtained across all axes.
Performance is favorable; VC-CLASS graphs are included below.
Vibration environment VC-CLASS graphs

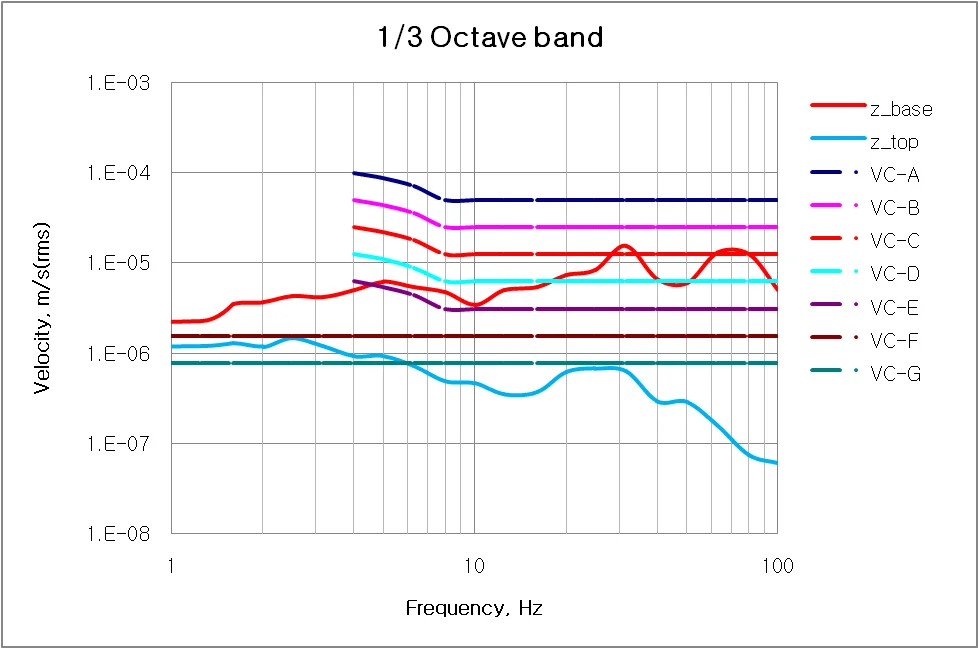

Vertical axis (Z) vibration level

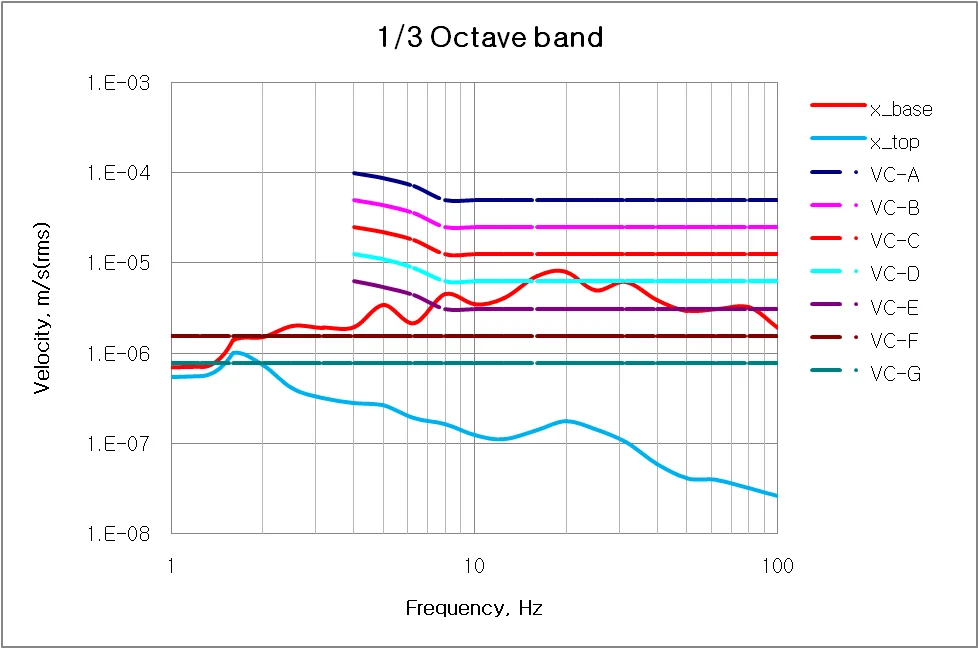

Horizontal axis (X) vibration level

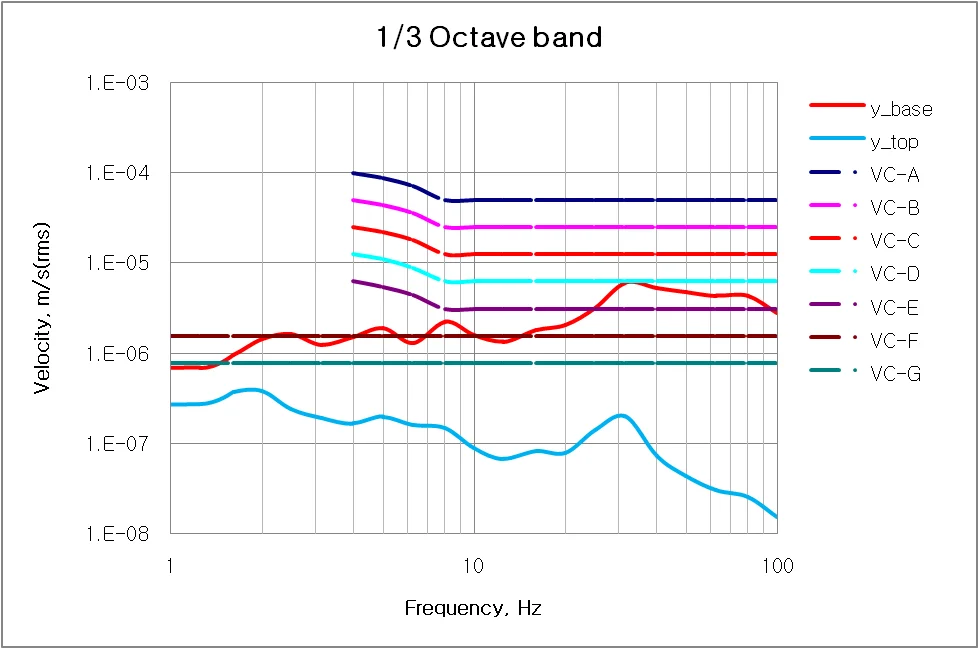

Horizontal axis (Y) vibration level
