Hana Materials (Cheonan) KEYENCE VK-X200 DVIA-MO3000 (MO3000_P3) vibration measurement report
Contents
Report cover
MO3000_P3 vibration environment measurement results
(Hana Materials)
Target equipment: KEYENCE VK-X200
Trip and report information
Business trip date: 2017.04.28 (Fri)
Report written date: 2017.04.28 (Fri)
Field engineer: Im Jong-wook (Assistant Manager)
Overview
After isolator installation, the vibration environment was measured to confirm there are no issues for equipment use.
Measurement date: 2017. 04. 28 (Fri), Measurer: DAEIL SYSTEMS, Assistant Manager Im Jong-wook
Measurement site: Hana Materials, Cheonan
Equipment model: KEYENCE VK-X200
Measurement conditions and results
Measurement condition: The isolator top plate and the research-building floor were measured.
Measurement summary
| Test Condition | Z | X | Y |
|---|---|---|---|
| 건물 바닥 | B | C | C |
| 제진대 상판 | F | F | G |
The floor where the isolator is installed measured B class on the Z axis, C class on the X axis, and C class on the Y axis.
The top of the isolator measured F class on the Z axis, F class on the X axis, and G class on the Y axis.
Performance is satisfactory; VC-Class graphs are attached.
Vibration environment VC-CLASS graphs

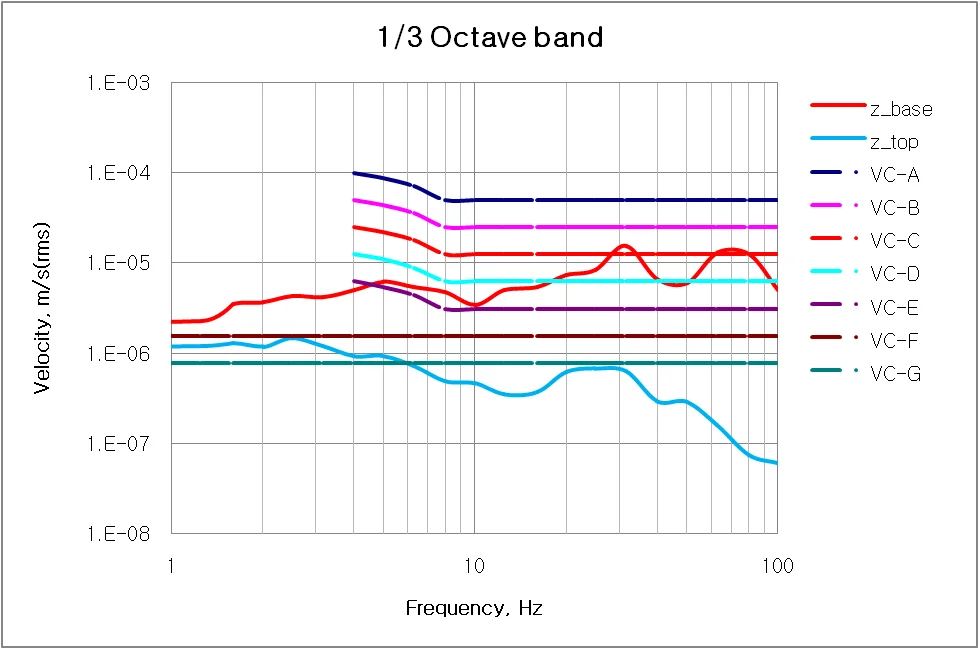

Vertical axis (Z) vibration level (VC-CLASS graph)

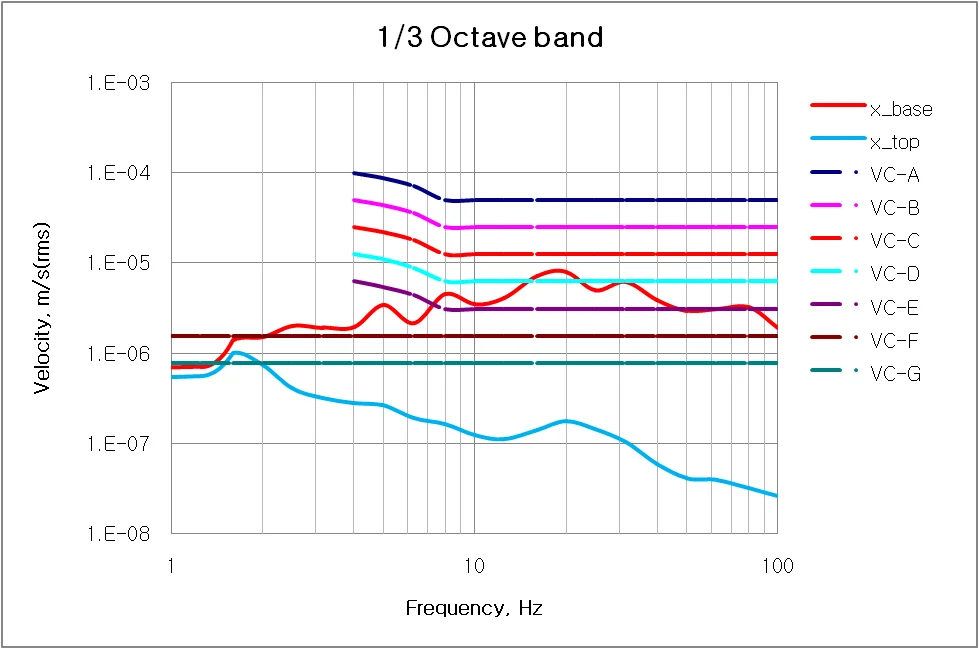

Horizontal axis (X) vibration level (VC-CLASS graph)

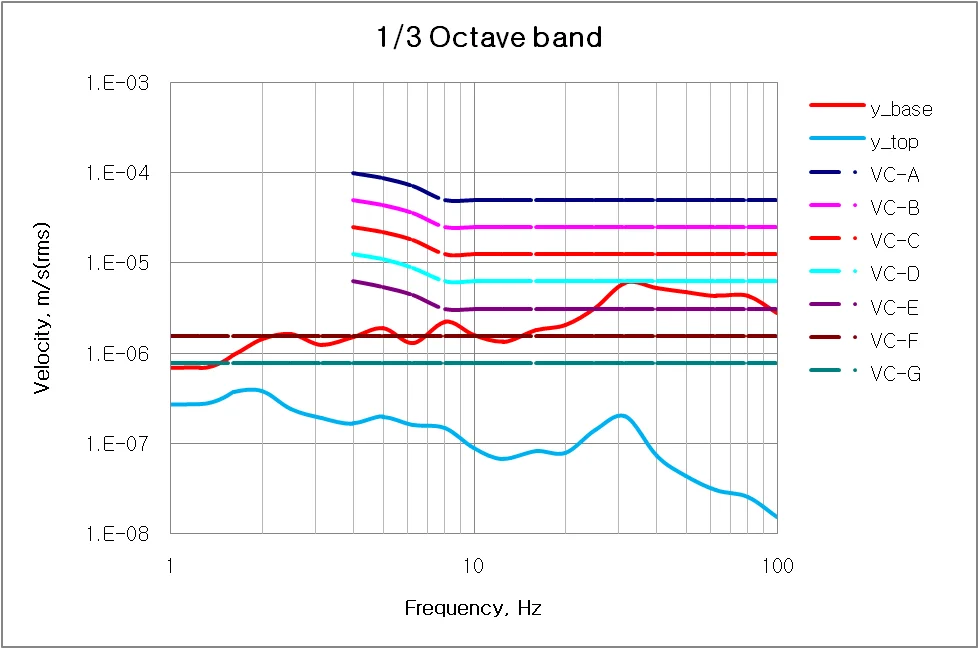

Horizontal axis (Y) vibration level (VC-CLASS graph)
Internal program transmissibility

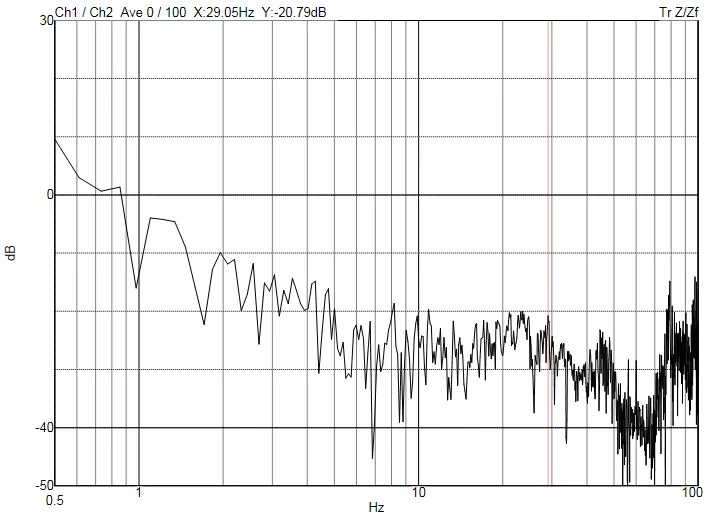

Vertical axis (Z) vibration level (internal program transmissibility)

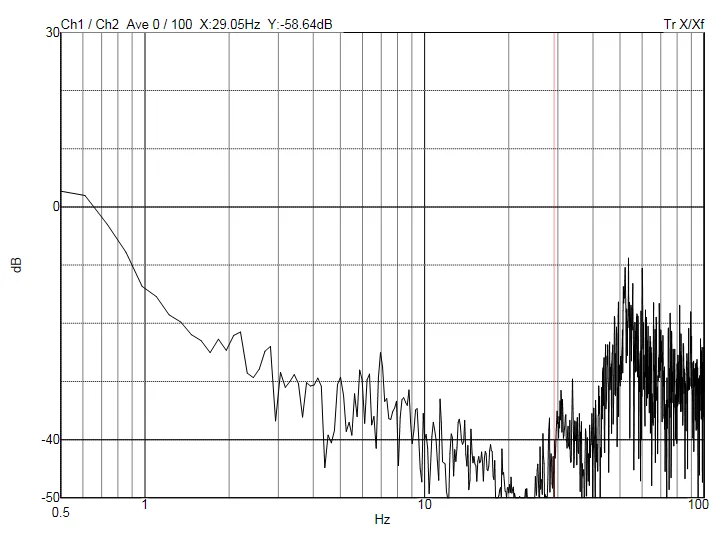

Horizontal axis (X) vibration level (internal program transmissibility)

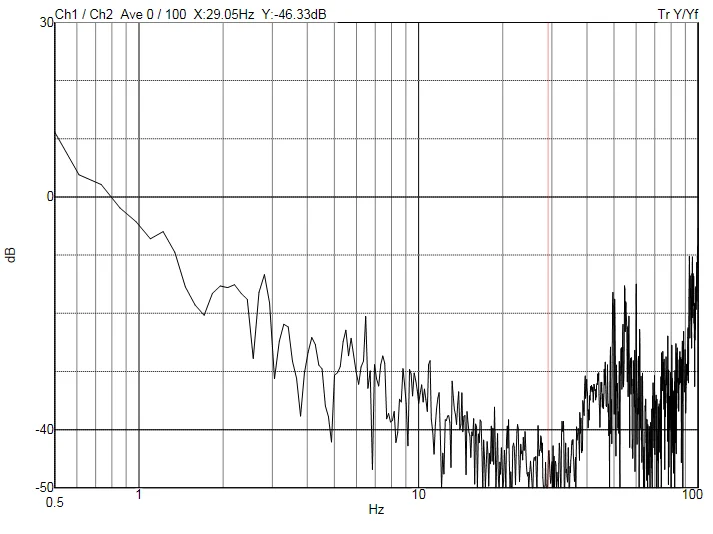

Horizontal axis (Y) vibration level (internal program transmissibility)
