Installation Report
DVIA-M Series
09-06-2021
YIMO DVIA-MB3000 (MB3000 P246, 210701R6-5) installation worksheet — 2021.09.06
DVIA-M Series
Installation Report
YIMO
DVIA-MB3000
MB3000 P246
Contents
Worksheet
MB3000 P246 210701R6-5
Target equipment
N/A
Place of installation
N/A
Remark
Good Performance
End User
N/A
Operator · setup · reporting
Operator: Choi, HyoungMun Date of setup : 21.08.27 Date of reporting : 21.09.06
Date of business trip
Date of business trip : 17.12.27~17.12.29
Overview
After Active mounting, measure the vibration environment to check that there is no problem in using the equipment.
Measurement date
Measurement date: 21.08.25 (WED) Operator: Daeil System, Research engineer Choi, HyoungMun
Place of measurement
N/A
Equipment Model
N/A
Measurement conditions and results
Summary of measurement results
| Test Condition | 2 Hz | 5 Hz | 10 Hz |
|---|---|---|---|
| Z | -28 dB | -36 dB | -34 dB |
| X | -31 dB | -40 dB | -33 dB |
| Y | -30 dB | -42 dB | -32 dB |
Good omnidirectional performance.
MB3000 internal program performance measurement result

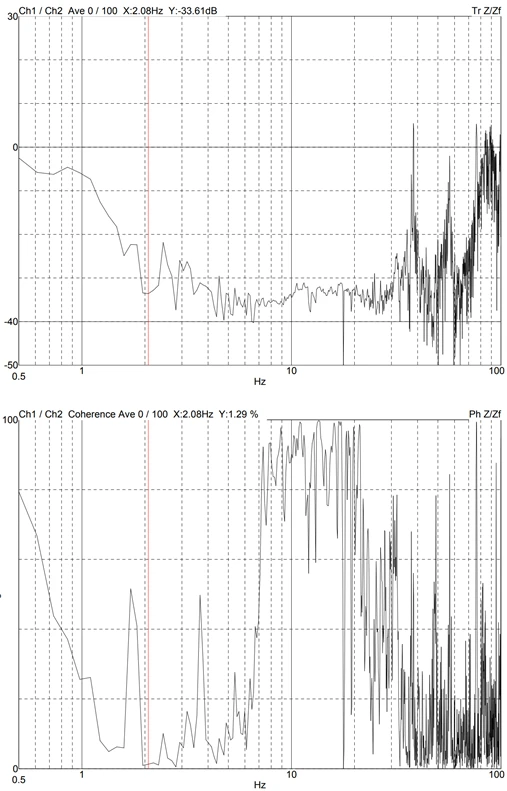

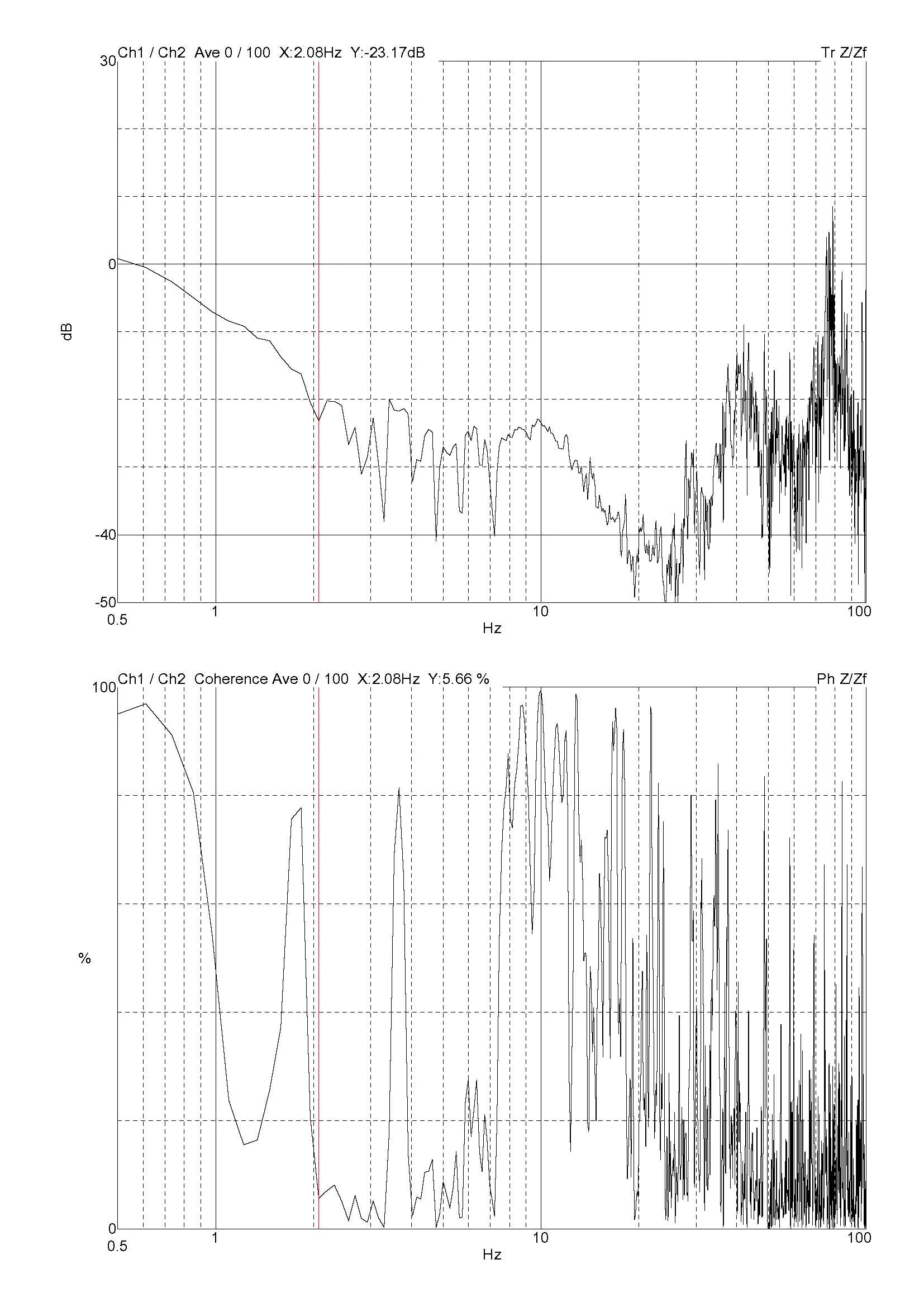

Z axis
X axis

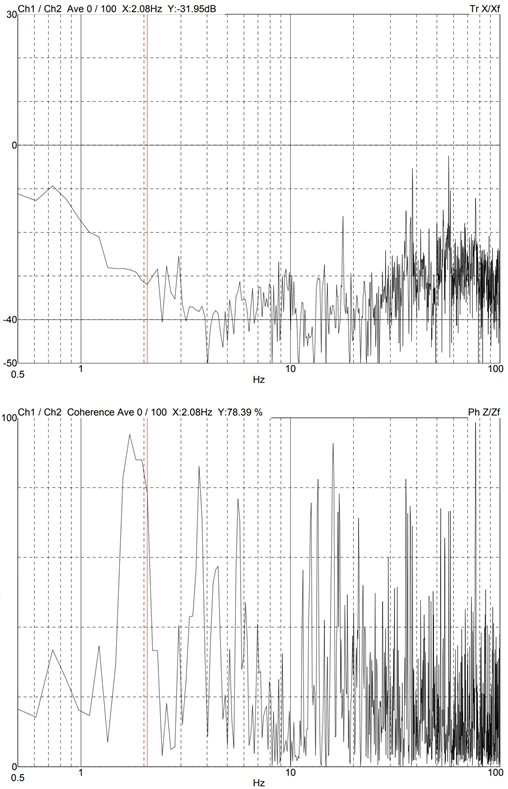

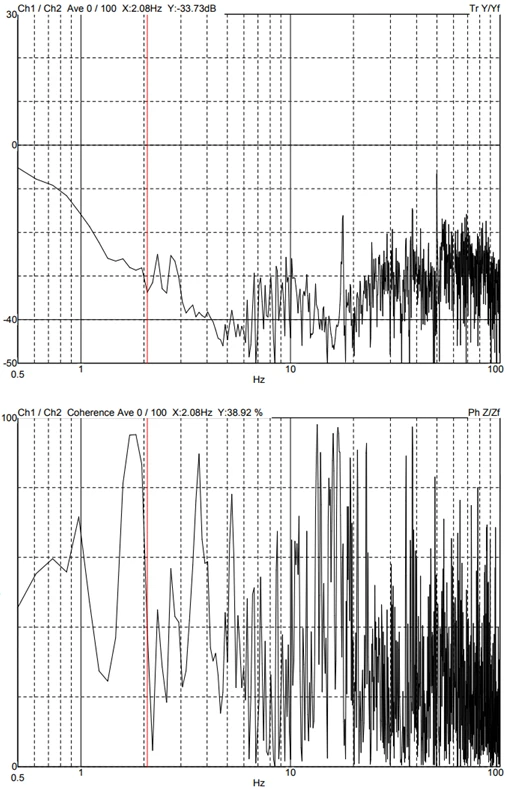

Y axis
Share this Case Study
Case Study Information
Category
Installation Report
SeriesDVIA-M Series
Date09-06-2021
Tags
DVIA-M Series
Installation Report
YIMO
DVIA-MB3000
MB3000 P246
