Installation Report
DVIA-M Series
10-13-2021
Sun Yat-sen University Guangzhou MB3000 P246 DVIA-MB3000 (210701R6-5) internal program — 2021.10.13
DVIA-M Series
Installation Report
Sun Yat-sen University
Guangzhou
DVIA-MB3000
MB3000 P246
210701R6-5
internal program
Contents
Worksheet
MB3000 P246(210701R6-5)
Target equipment
N/A
Place of installation
guangzhou
Remark
Good Performance
End User
Sun Yat-sen University
Operator · setup · reporting
Operator: Kim, Doohyun
Date of setup
21.10.13
Date of reporting
21.10.13
Date of business trip
17.12.27~17.12.29
Overview
After Active mounting, measure the vibration environment to check that there is no problem in using the equipment.
Measurement date
Measurement date: 21.10.13 (WED)
Measurement operator
Daeil System, Research engineer Kim, Doohyun
Place of measurement
guangzhou, Sun Yat-sen University
Equipment Model
N/A
Measurement conditions and results
Summary of measurement results
| Test Condition | 2 Hz | 5 Hz | 10 Hz |
|---|---|---|---|
| Z | -23 dB | -28 dB | -24 dB |
| X | -28 dB | -25 dB | -30 dB |
| Y | -28 dB | -40 dB | -40 dB |
Good omnidirectional performance.
MB1000 internal program performance measurement result

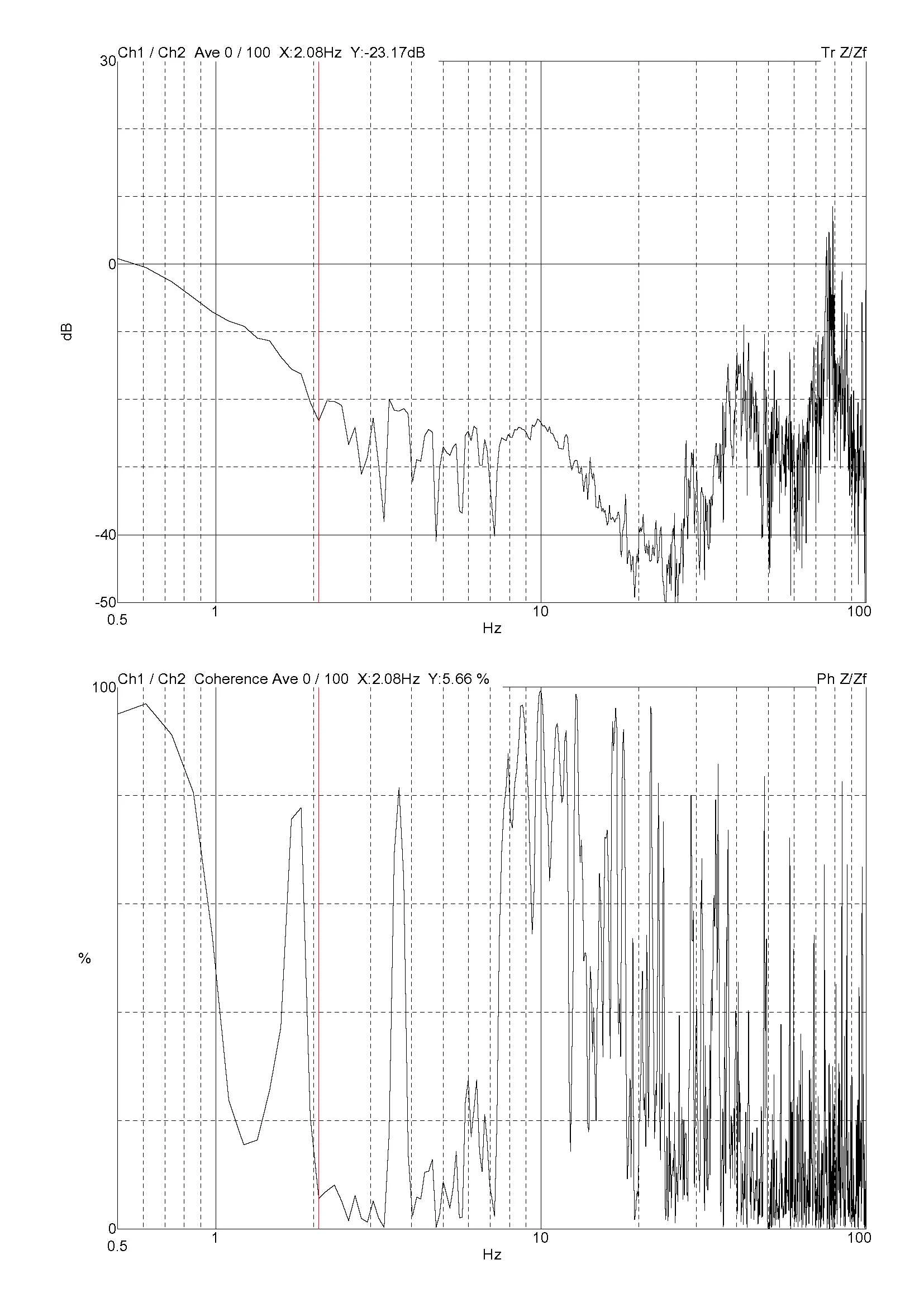

Z axis

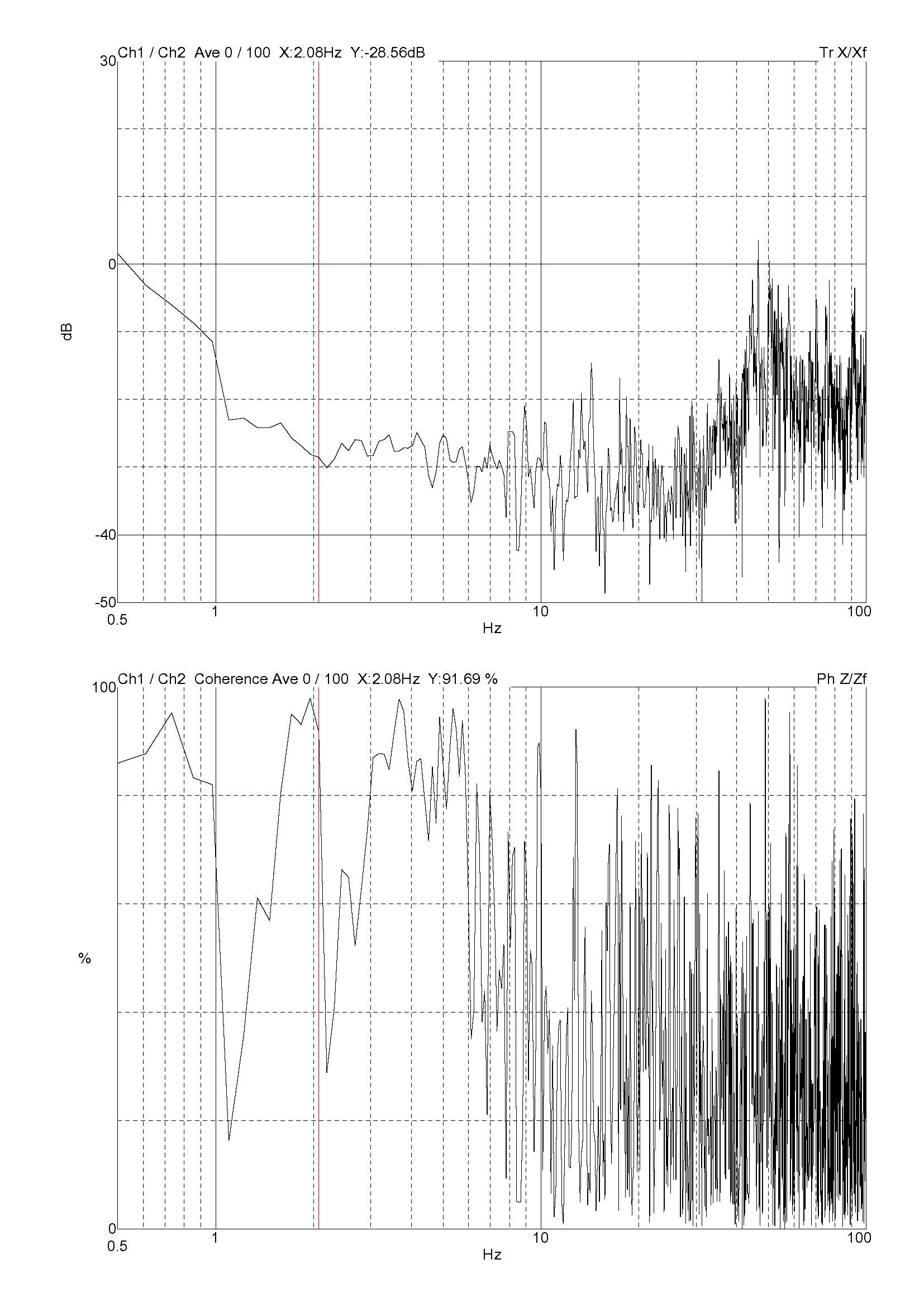

X axis

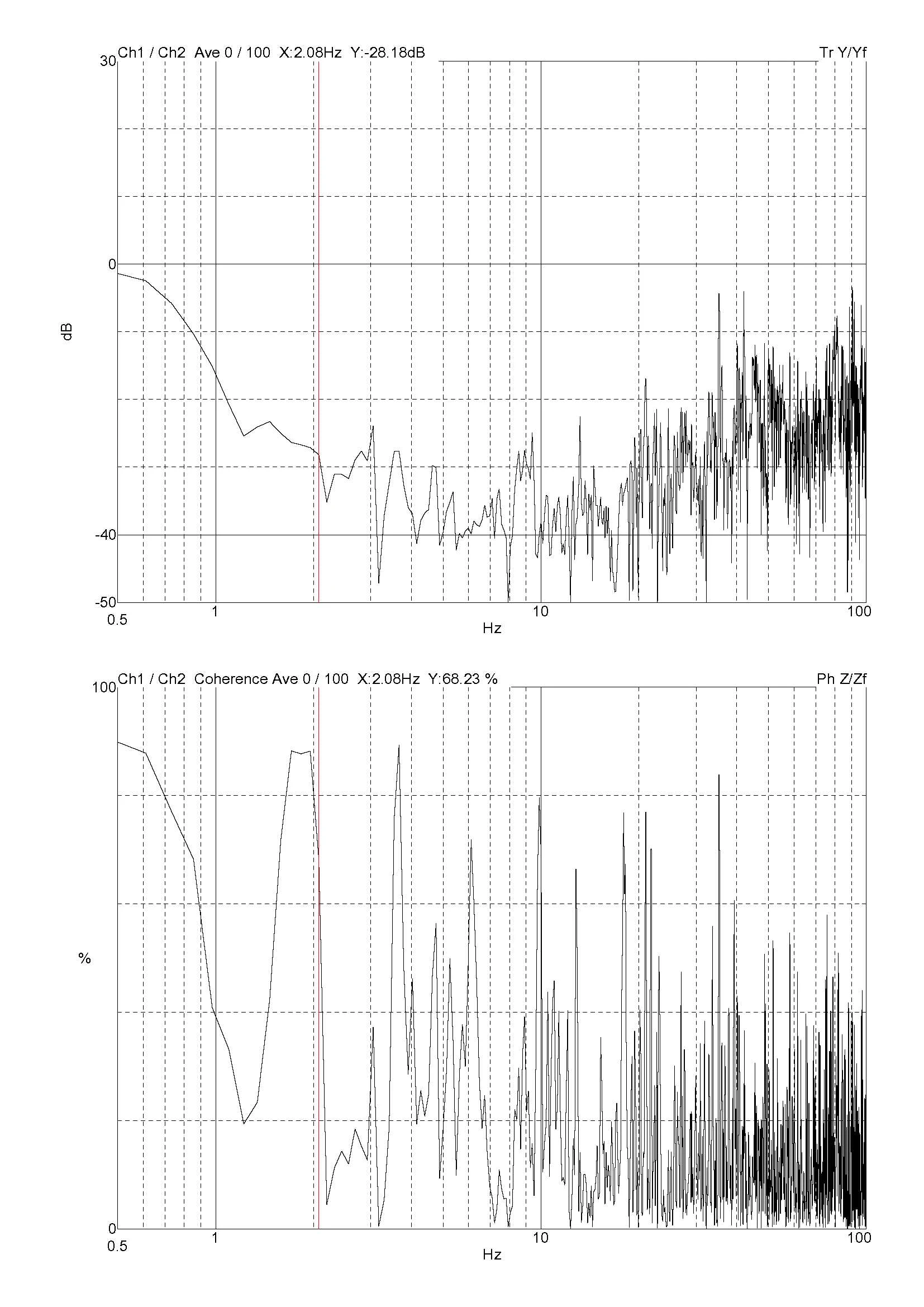

Y axis
