BIEL Crystal Thermo Fisher Scientific Helios 5 FIB-SEM DVIA-ML1000 Installation Report

DVIA-M Series

Installation Report

BIEL Crystal

Thermo Fisher Scientific

Helios 5

FIB-SEM

DVIA-ML1000

260406R2-2

Huizhou

Overview

Following the installation of DVIA-ML1000 at Huizhou, tuning and vibration measurement were performed.

Vibration measurement was conducted with the equipment in the IDLE state.

Data is represented in VC Curve format and reference material on the vibration level is provided.

Vibration Isolation System Information

Model: DVIA-ML1000

Serial Number: 260406R2-2

Engineer

Taehun Kim, DAEIL SYSTEMS

Tuning Date

June 26, 2026

End User

BIEL Crystal

Number of Tuning Trial

1st

Location

Huizhou, Guangdong, China

Equipment

Manufacturer: Thermo Fisher Scientific

Equipment: FIB-SEM

Model: Helios 5

Vibration Specification

VC-F

Equipment Condition

IDLE

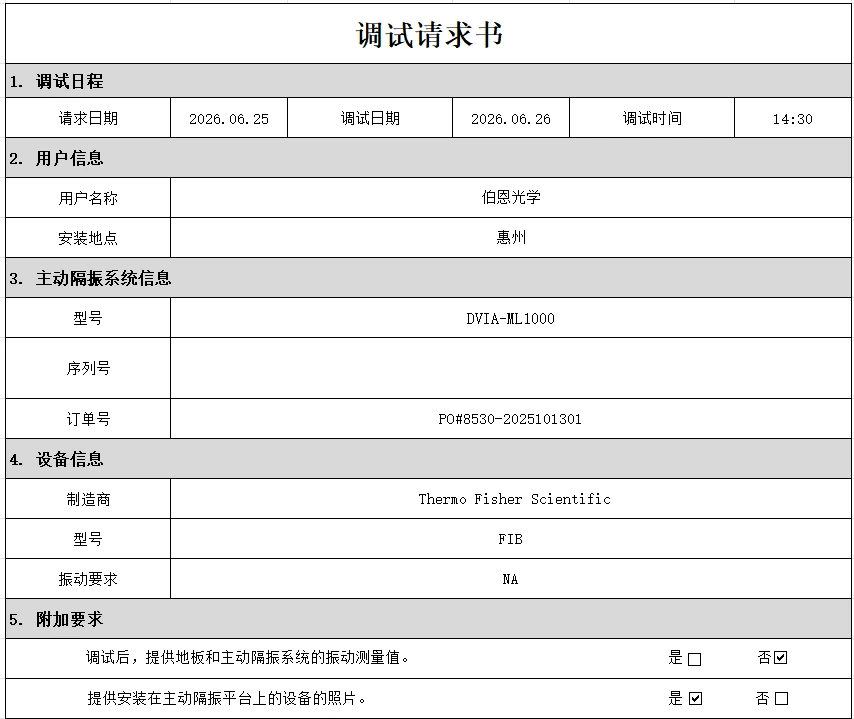

Tuning Request

Conclusion

The installation site exhibited exceptionally low ambient vibration levels. Tuning was carried out with careful consideration of the vibration isolator's stability throughout the process.

Measurement Summary

Measurement Point	Vibration Specifications	Axis	Floor	DVIA-ML1000
1. Floor 2. DVIA-ML1000	See Section 9	Vertical	✗ Fail	✓ PASS
		Left to Right	✓ PASS	✓ PASS
		Front to Back	✓ PASS	✓ PASS

Data and Image

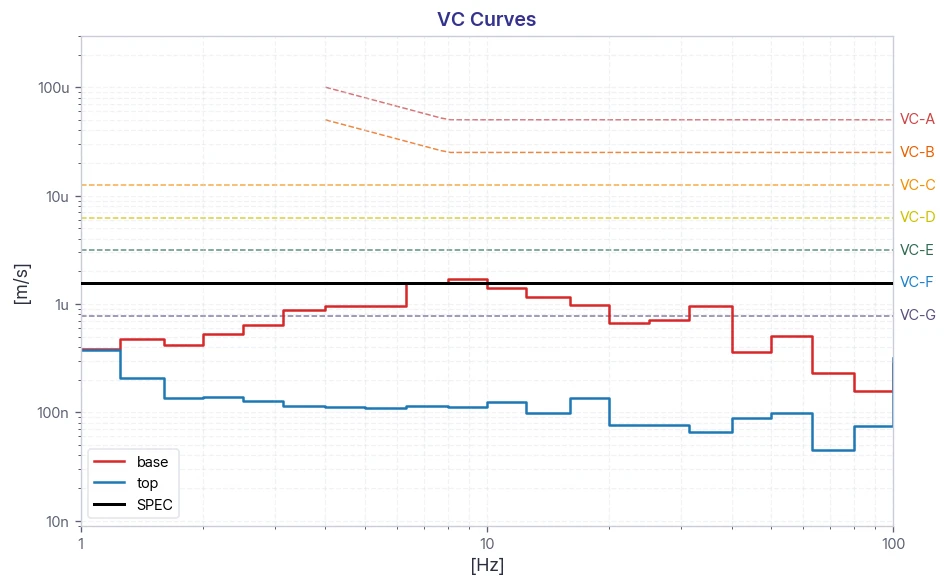

Vertical VC Curves

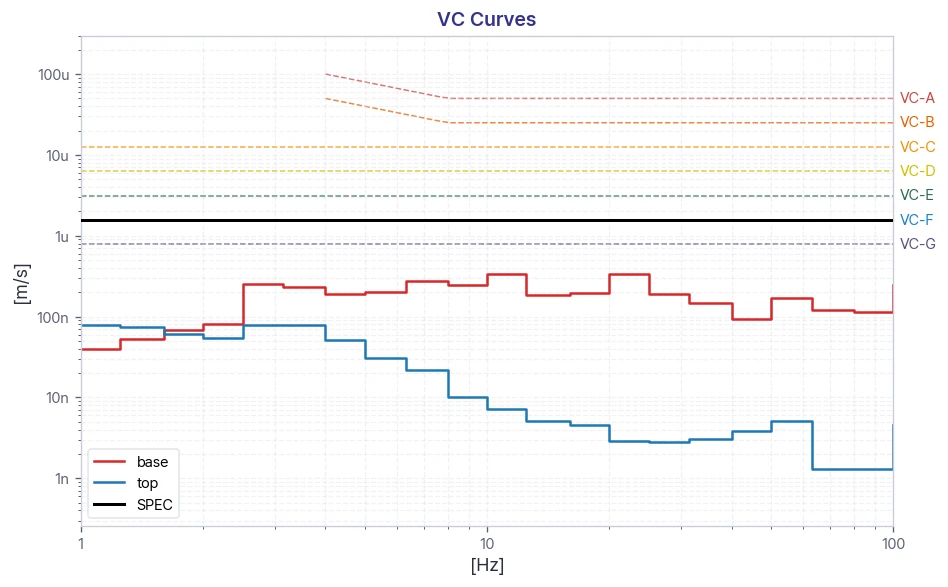

Left to Right VC Curves

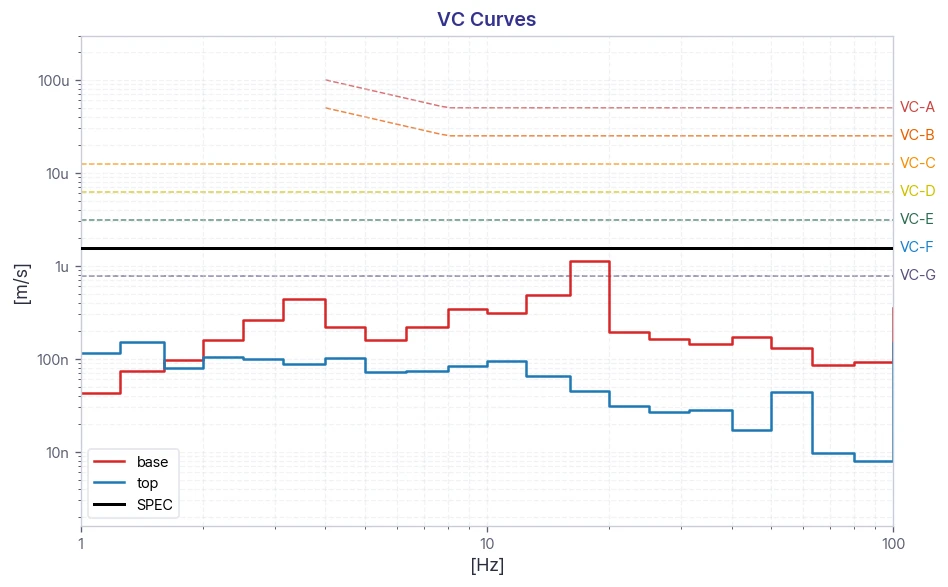

Front to Back VC Curves

Installation Photo

No installation photos were allowed.

Reference

The table below classifies vibration levels based on IEST-RP-CC012.2.

Criterion Curve	Description	Amplitude (μm/s) (μin/s)	Detail Size (μm)
Workshop (ISO)	Distinctly perceptible vibration. Appropriate to workshops and non-sensitive areas.	800 (32,000)	N/A
Office (ISO)	Perceptible vibration. Appropriate to offices and non-sensitive areas.	400 (16,000)	N/A
Residential Area (ISO)	Barely perceptible vibration. Appropriate to sleep areas in most instances. Usually adequate for computer equipment, hospital recovery rooms, semiconductor probe test equipment, and microscopes less than 40x.	200 (8,000)	75
Operating Theatre (ISO)	Vibration not perceptible. Suitable in most instances for surgical suites, microscopes to 100x and for other equipment of low sensitivity.	100 (4,000)	25
VC-A	Adequate in most instances for optical microscopes to 400x, microbalances, optical balances, proximity and projection aligners, etc.	50 (2,000)	8
VC-B	Appropriate for inspection and lithography equipment (including steppers) to 3μm line widths.	25 (1,000)	3
VC-C	Appropriate standard for optical microscopes to 1000x, lithography and inspection equipment (including moderately sensitive electron microscopes) to 1μm detail size. TFT-LCD stepper/scanner processes.	12.5 (500)	1-3
VC-D	Suitable in most instances for demanding equipment, including many electron microscopes (SEMs and TEMs) and E-Beam systems.	6.25 (250)	0.1-0.3
VC-E	A challenging criterion to achieve. Assumed to be adequate for the most demanding of sensitive systems including long path, laser-based, small target systems, E-Beam lithography systems working at nanometer scales, and other systems requiring extraordinary dynamic stability.	3.12 (125)	< 0.1
VC-F	Appropriate for extremely quiet research spaces; generally difficult to achieve in most instances, especially cleanrooms. Not recommended for use as a design criterion, only for evaluation.	1.56 (62.5)	N/A
VC-G	Appropriate for extremely quiet research spaces; generally difficult to achieve in most instances, especially cleanrooms. Not recommended for use as a design criterion, only for evaluation.	0.78 (31.3)	N/A

Notes:

1. As measured in one-third octave bands of frequency over the frequency 8 to 80 Hz (VC-A and VC-B) or 1 to 80 Hz (VC-C through VC-G).

2. The detail size refers to the width in the case of microelectronics fabrication, the particle (cell) size in the case of medical and pharmaceutical research, etc.
