Installation Report

DVIA-M Series

04-07-2026

Kunshan DeKaiYiTe ZEISS Sigma 360 DVIA-ML1000 (260110R1-2) Installation Report

DVIA-M Series

Installation Report

DVIA-ML1000

260110R1-2

Kunshan DeKaiYiTe

ZEISS

Sigma 360

FE-SEM

Prepared by

Engineer: Chaewon Lee

Tuning date: 26.03.20

Report written date: 26.04.07

Overview

The DVIA-ML1000 active vibration isolation platform is appropriately installed and functioning as intended.

Vibration Isolation System Information

Model: DVIA-ML1000

Serial Number: 260110R1-2

Engineer

Chaewon Lee DAEIL SYSTEMS

Tuning Date

March 20, 2026

End User

-Kunshan DeKaiYiTe

Number of Tuning Trial

1st

Location

N/A

Equipment

Manufacturer: ZEISS

Equipment: FE-SEM

Model: Sigma 360

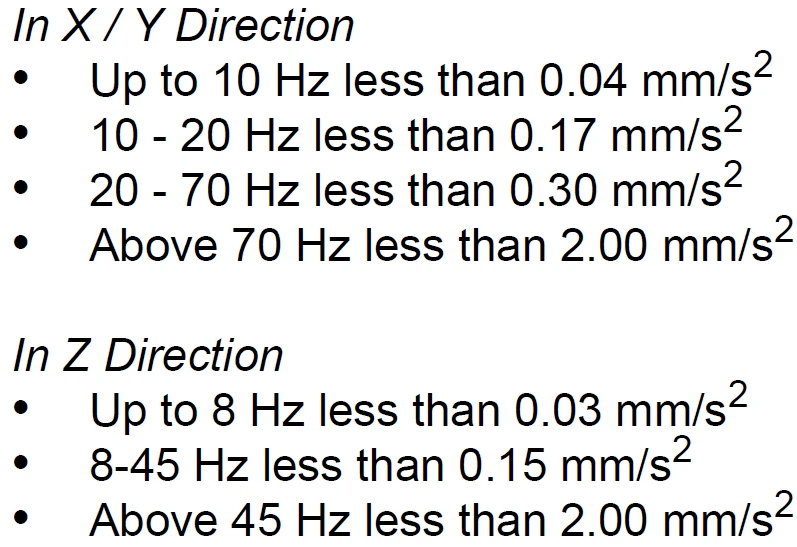

Vibration specification

Equipment Condition

The equipment is turned on/IDLE

Tuning Request

N/A

Measurement Summary

Measurement location	Status	Direction	Vibration specification	Floor vibration	DVIA-ML1000	Floor result	Platform result
1.Floor 2.DVIA-ML1000	Equipment is Turned on/IDLE	Vertical	Refer to item 9	VC-C @ 25 Hz	VC-G @ 25 Hz	✗ FAIL	✓ PASS
		Left to Right	Refer to item 9	VC-C @ 2.5 Hz	VC-G @ 2.5 Hz	✗ FAIL	✓ PASS
		Front to Back	Refer to item 9	VC-C @ 3.15 Hz	VC-G @ 3.15 Hz	✗ FAIL	✓ PASS

Measurement Data Obtained via UI Program

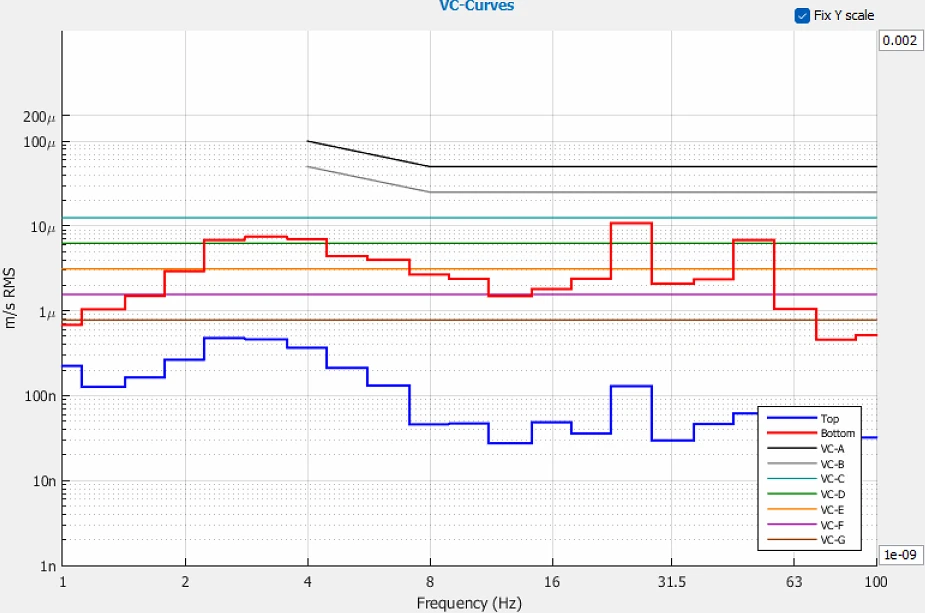

Vertical VC Curves

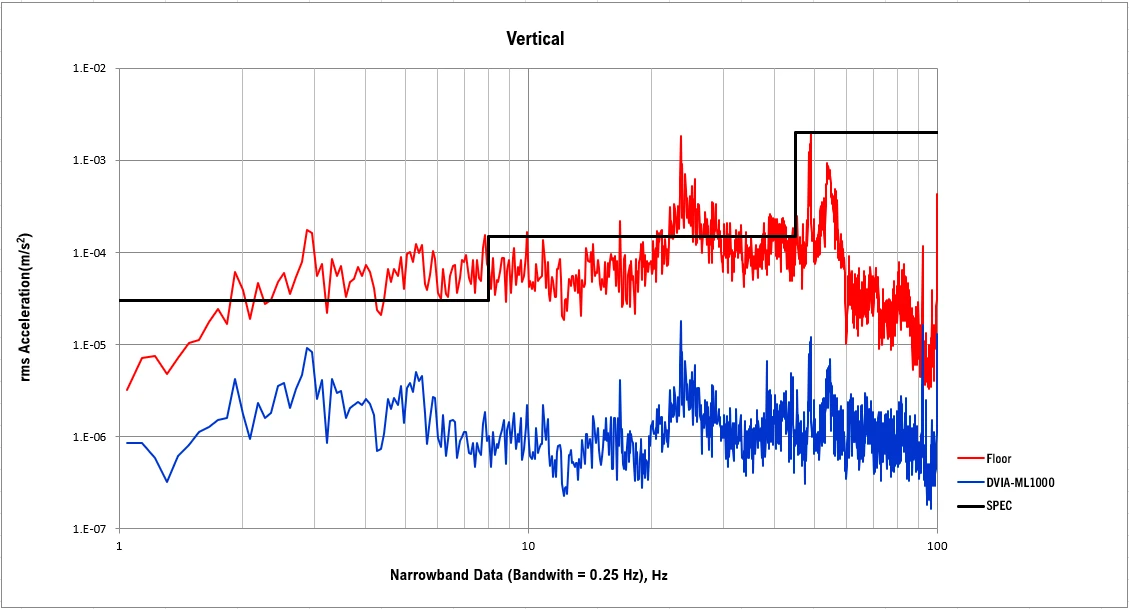

Vertical Autospectrum

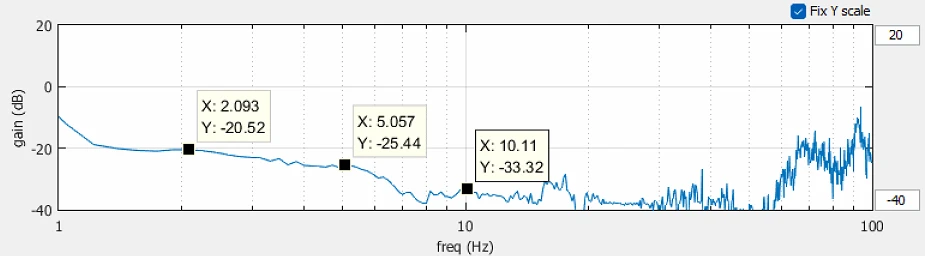

Vertical Transmissibility

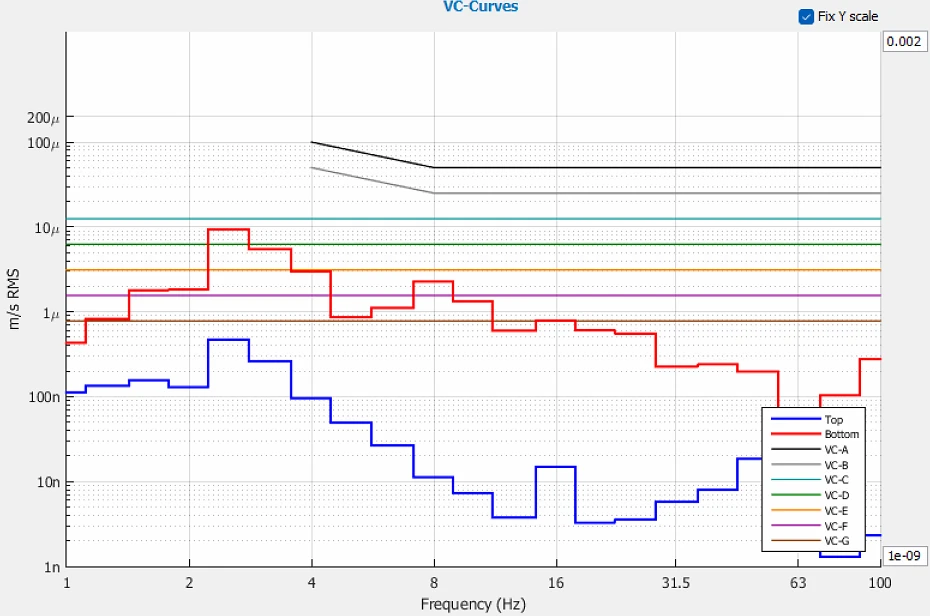

Left to Right VC curves

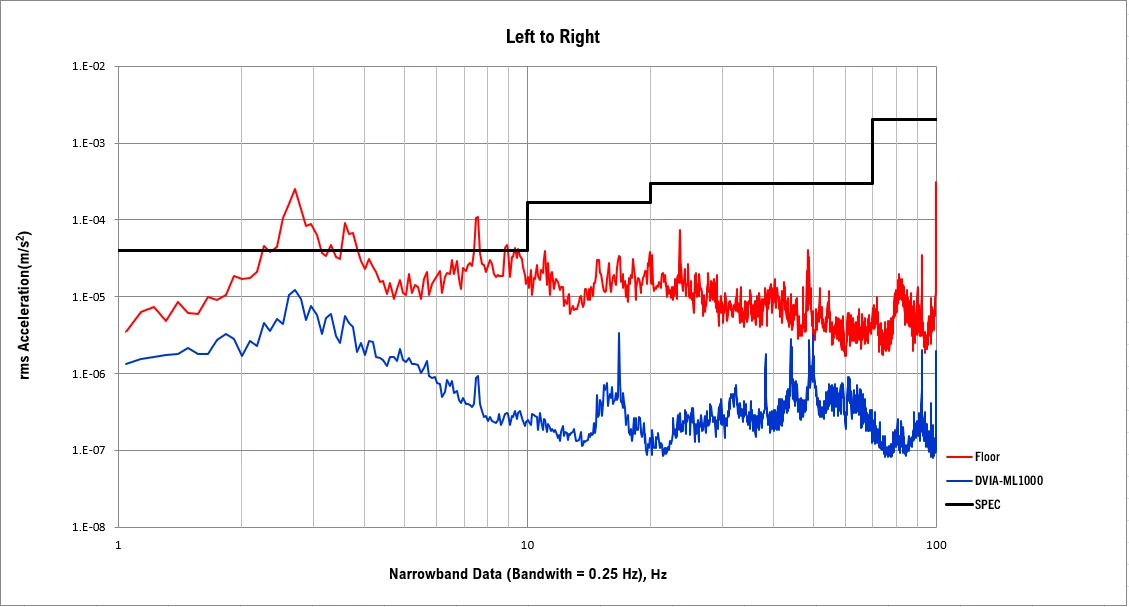

Left to Right Autospectrum

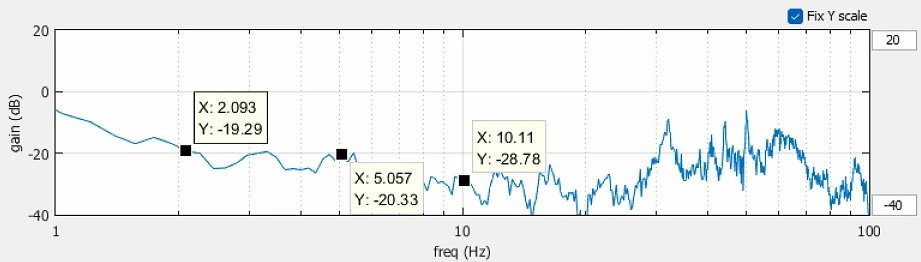

Left to Right Transmissibility

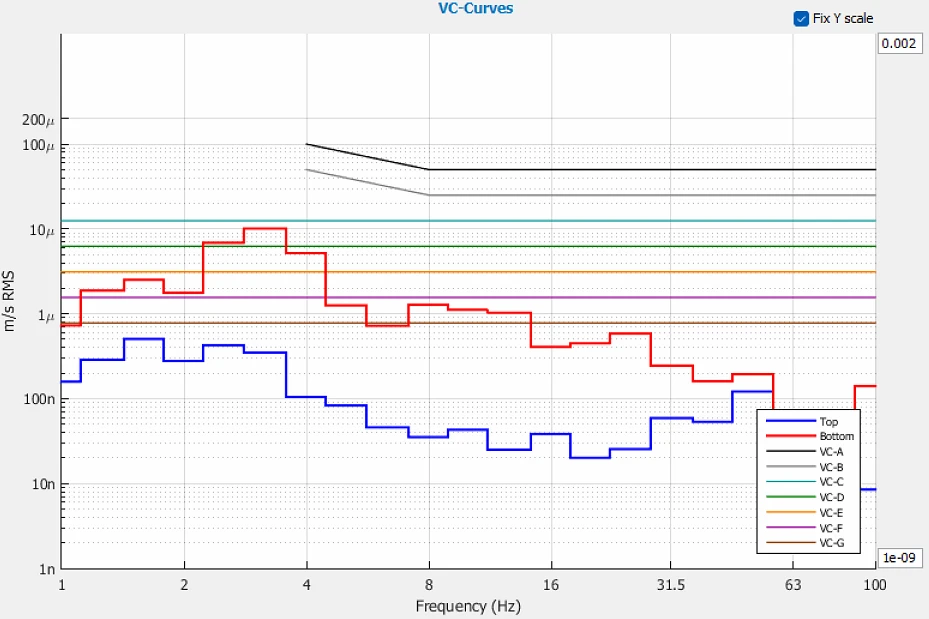

Front to Back VC Curves

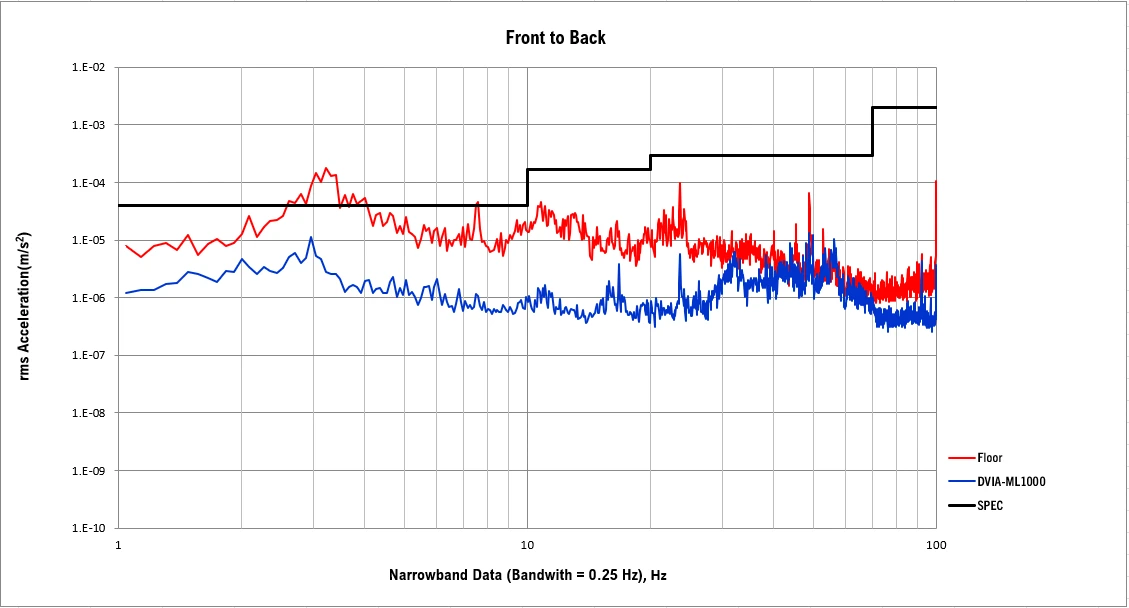

Front to Back Autospectrum

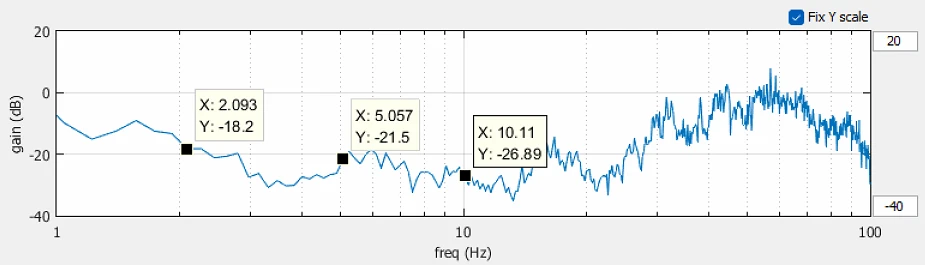

Front to Back Transmissibility

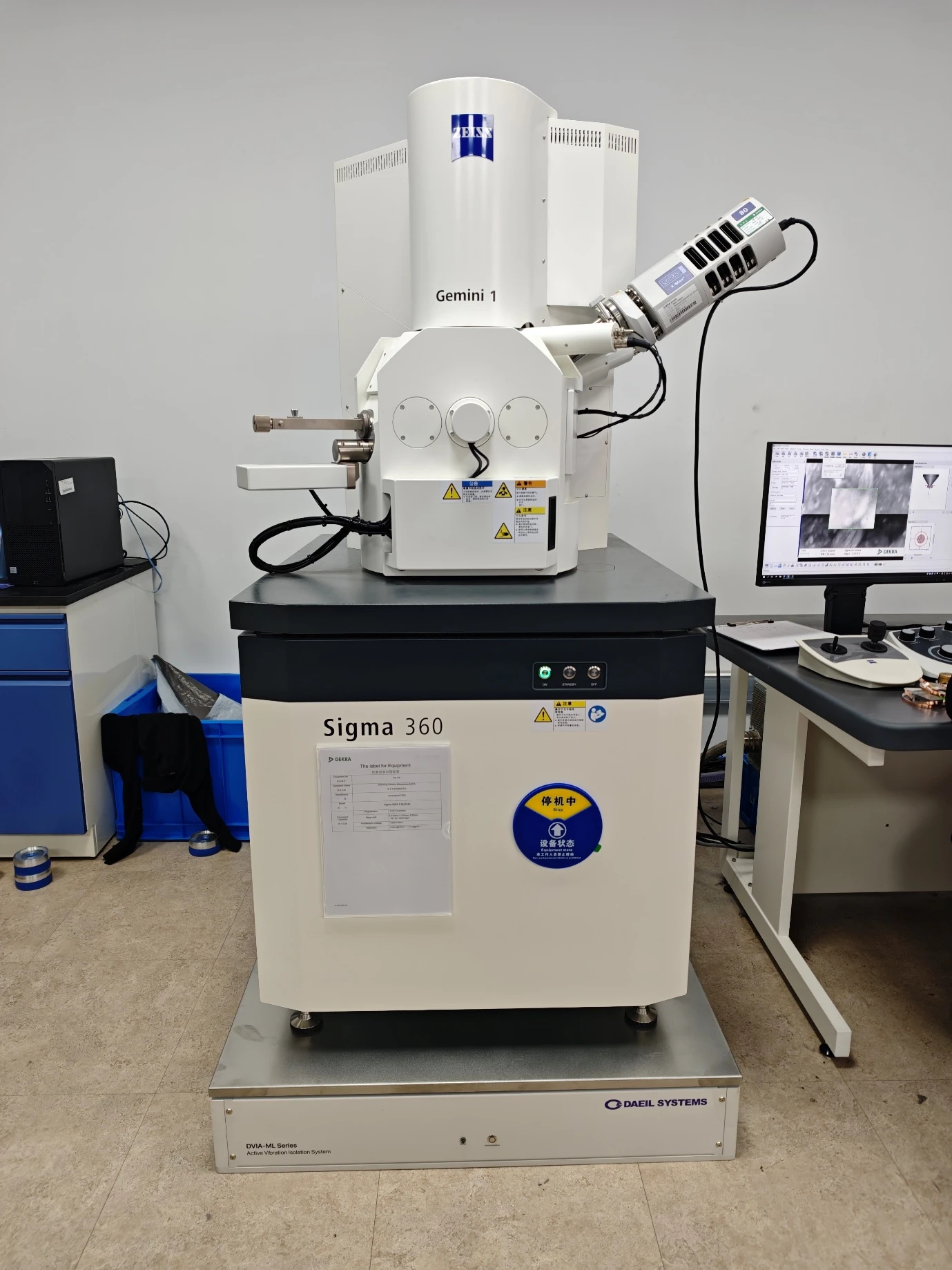

Equipment picture

Reference

Generic Vibration Criteria

Criterion Curve	Description	Amplitude μm/s (µin/s)	Detail Size μm
Workshop (ISO)	Distinctly perceptible vibration. Appropriate to workshops and non-sensitive areas.	800 (32,000)	N/A
Office (ISO)	Perceptible vibration. Appropriate to offices and non-sensitive areas.	400 (16,000)	N/A
Residential Area (ISO)	Barely perceptible vibration. Appropriate to sleep areas in most instances.	200 (8,000)	75
Operating Theatre (ISO)	Vibration not perceptible. Suitable for surgical suites, microscopes to 100x.	100 (4,000)	25
VC-A	Adequate for optical microscopes to 400x, microbalances, optical balances.	50 (2,000)	8
VC-B	Appropriate for inspection and lithography equipment to 3μm line widths.	25 (1,000)	3
VC-C	Appropriate for optical microscopes to 1000x, lithography equipment to 1μm.	12.5 (500)	1 - 3
VC-D	Suitable for demanding equipment including electron microscopes (SEMs/TEMs).	6.25 (250)	0.1 - 0.3
VC-E	For the most demanding systems including E-Beam lithography at nanometer scales.	3.12 (125)	< 0.1
VC-F	For extremely quiet research spaces. Not recommended as design criterion.	1.56 (62.5)	N/A
VC-G	For extremely quiet research spaces. Not recommended as design criterion.	0.78 (31.25)	N/A
