Installation Report
DVIA-M Series
04-23-2026

Gränges Aluminium Thermo Fisher Apreo 2 C SEM DVIA-ML1000 (251218R1-2) Installation Report

DVIA-M Series
Installation Report
Gränges Aluminium
Thermo Fisher Scientific
Apreo 2 C
SEM
Shanghai
DVIA-ML1000

Contents

Overview

The DVIA-ML1000 active vibration isolation platform is appropriately installed and functioning as intended.

Vibration Isolation System Information

Model: DVIA-ML1000

Serial Number: 251218R1-2

Engineer

Chaewon Lee DAEIL SYSTEMS

Tuning Date

April 9, 2026

Report written date

April 23, 2026

End User

Gränges Aluminium

Number of Tuning Trial

1st

Location

Shanghai, China

Equipment

Manufacturer: Thermo Fisher Scientific

Equipment: SEM

Model: Apreo 2 C

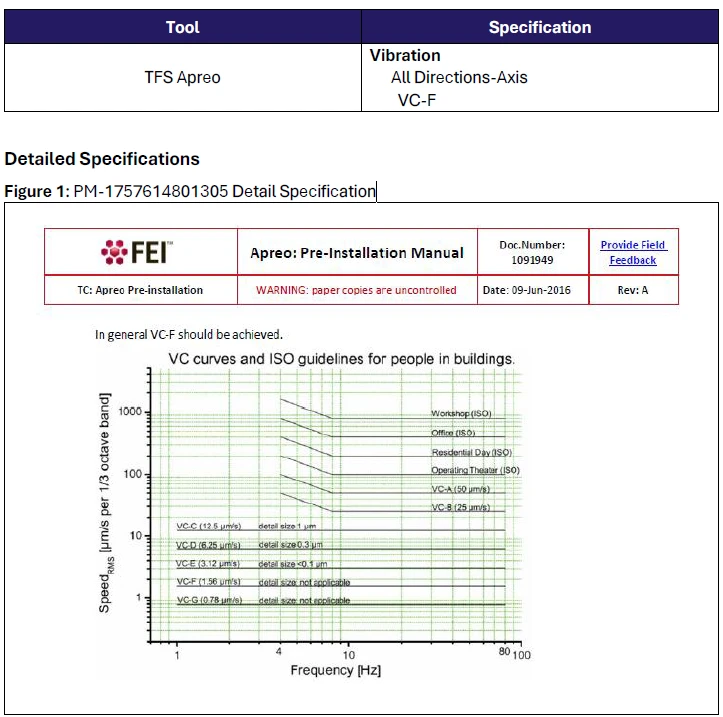

Vibration specification

Equipment Condition

The equipment is turned on/IDLE

Tuning Request

N/A

Measurement Summary

Measurement PointStatusAxisVibration SpecificationFloorDVIA-ML1000FloorDVIA-ML1000
1.Floor 2.DVIA-ML1000Equipment is Turned on/IDLEVerticalVC - FVC-B @ 6.3 HzVC-F @ 6.3 Hz✗ FAIL✓ PASS
1.Floor 2.DVIA-ML1000Equipment is Turned on/IDLELeft to RightVC - FVC-E @ 3.15 HzVC-G @ 3.15 Hz✗ FAIL✓ PASS
1.Floor 2.DVIA-ML1000Equipment is Turned on/IDLEFront to BackVC - FVC-E @ 3.15 HzVC-G @ 3.15 Hz✗ FAIL✓ PASS

Data and Image

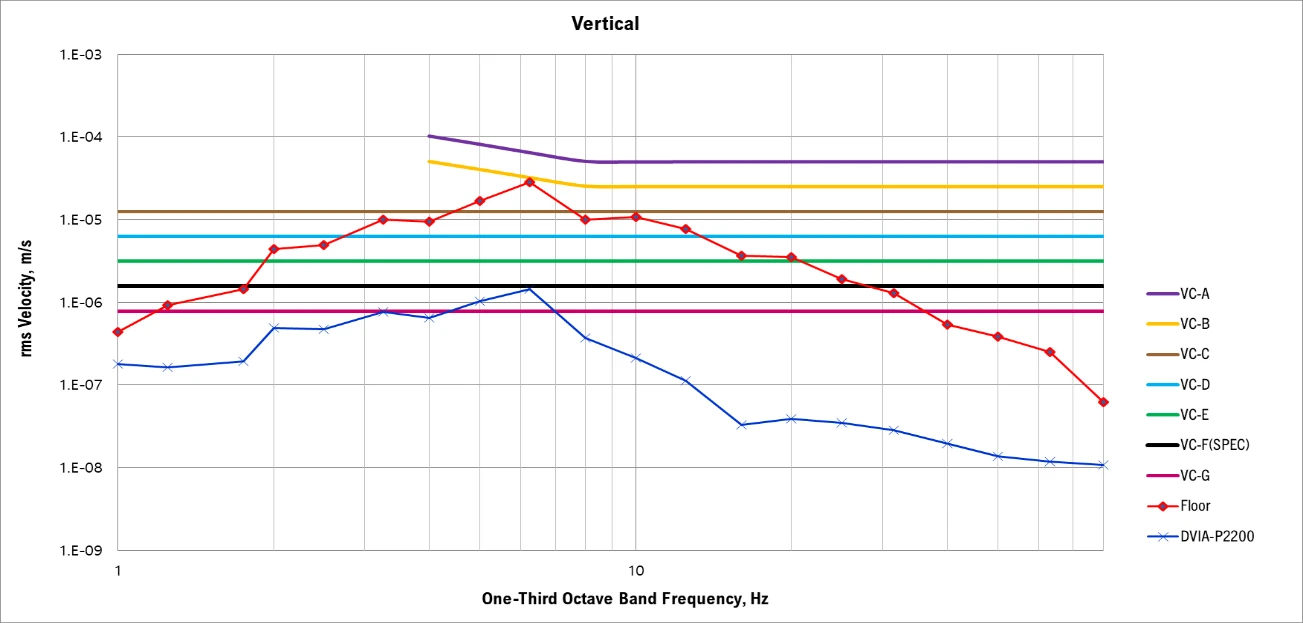

Vertical VC Curves

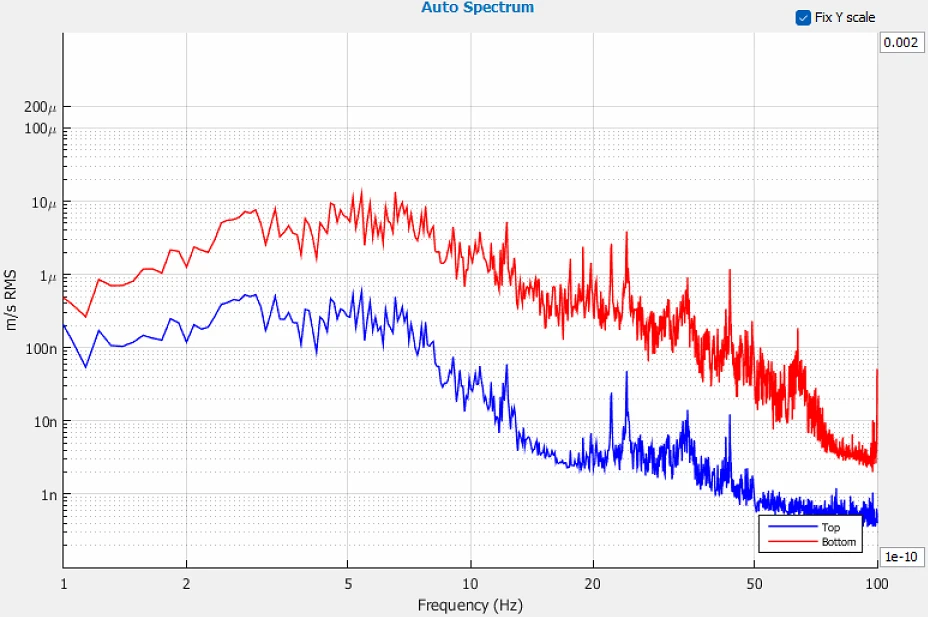

Vertical Autospectrum

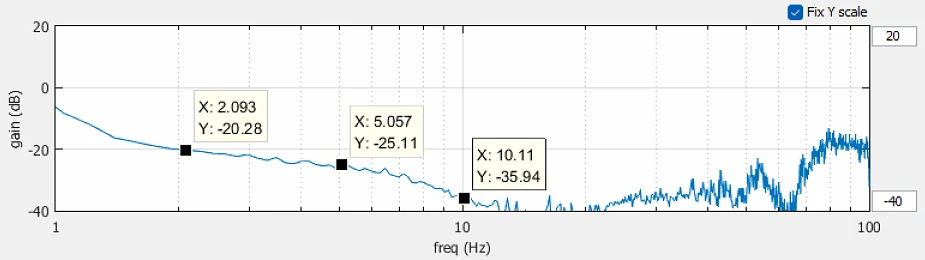

Vertical Transmissibility

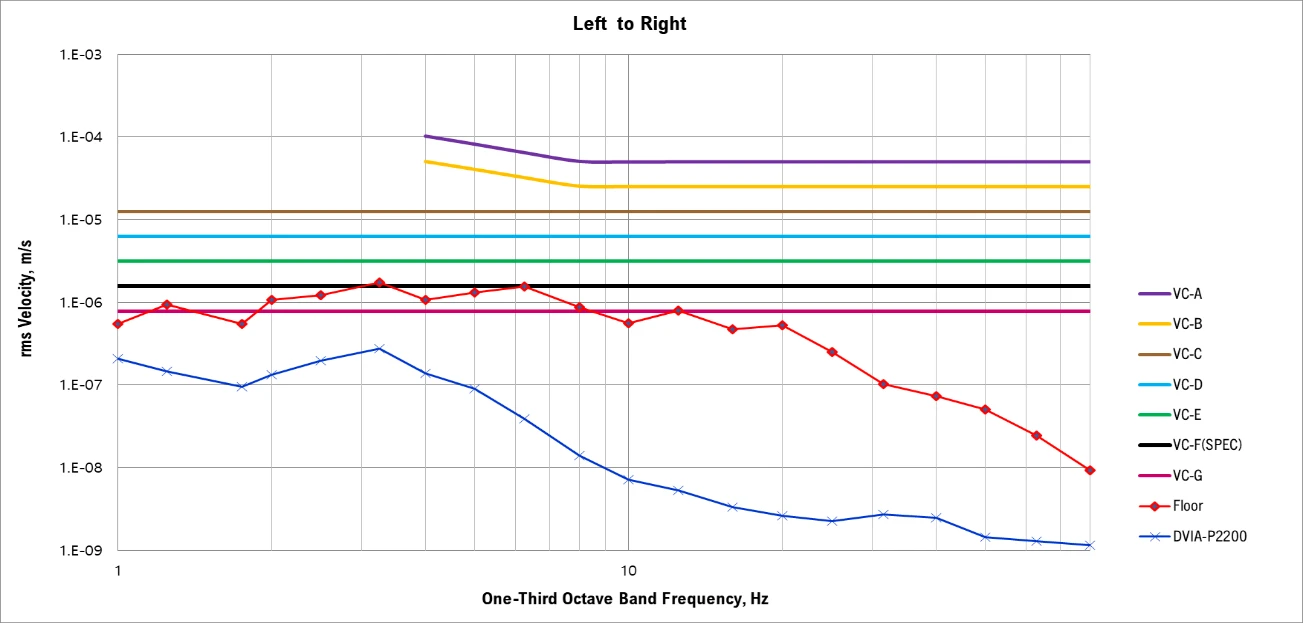

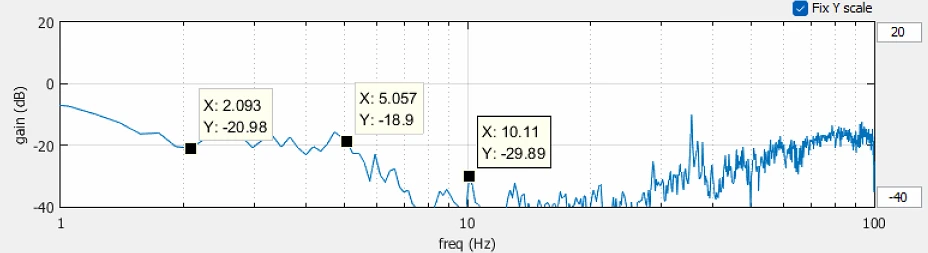

Left to Right VC curves

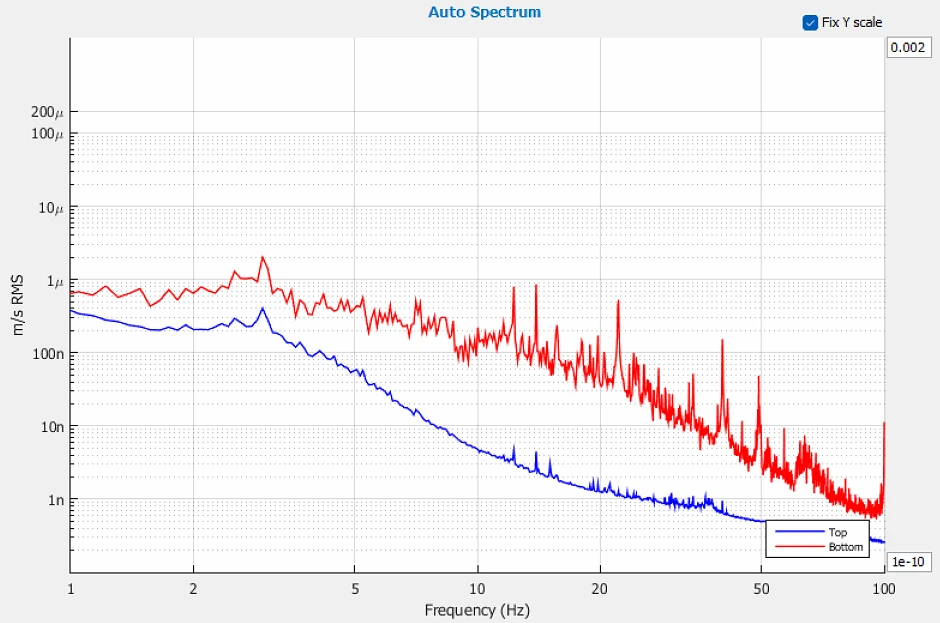

Left to Right Autospectrum

Left to Right Transmissibility

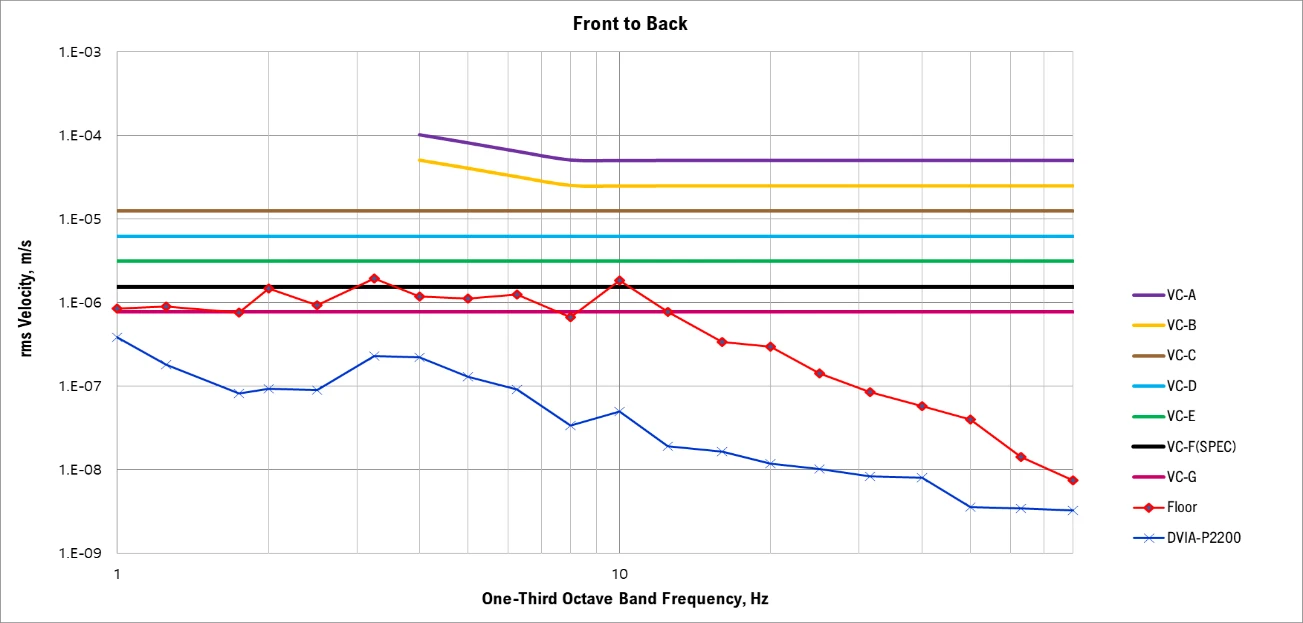

Front to Back VC Curves

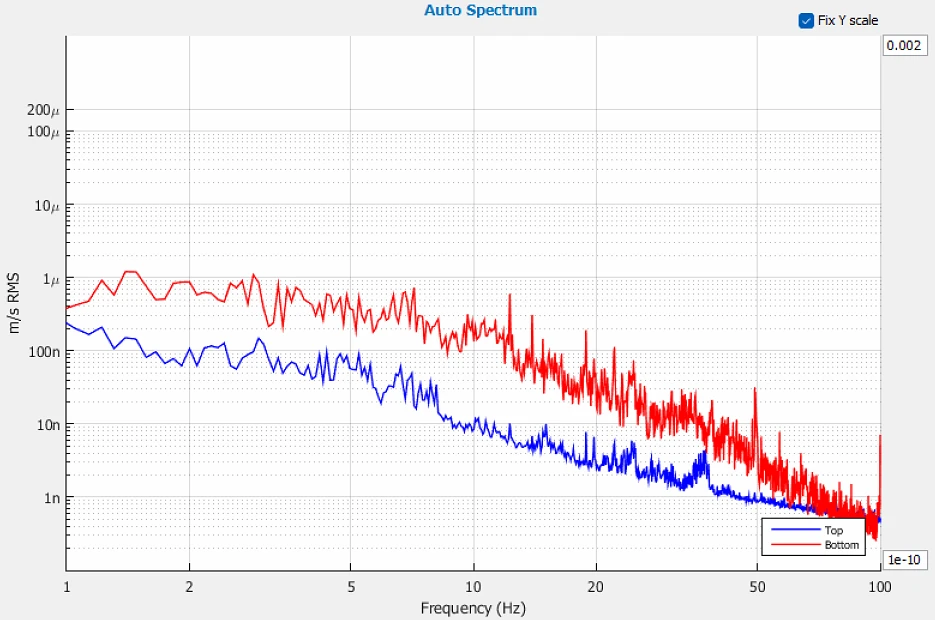

Front to Back Autospectrum

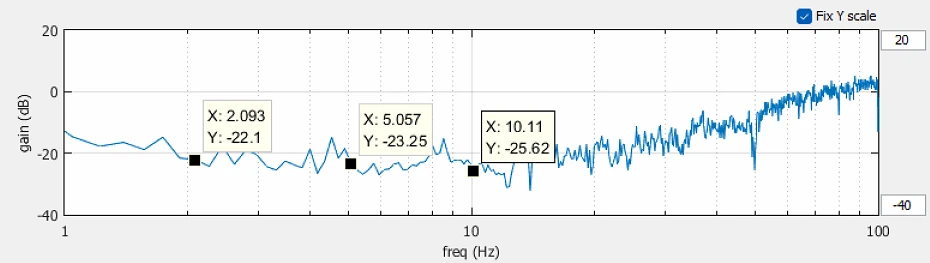

Front to Back Transmissibility

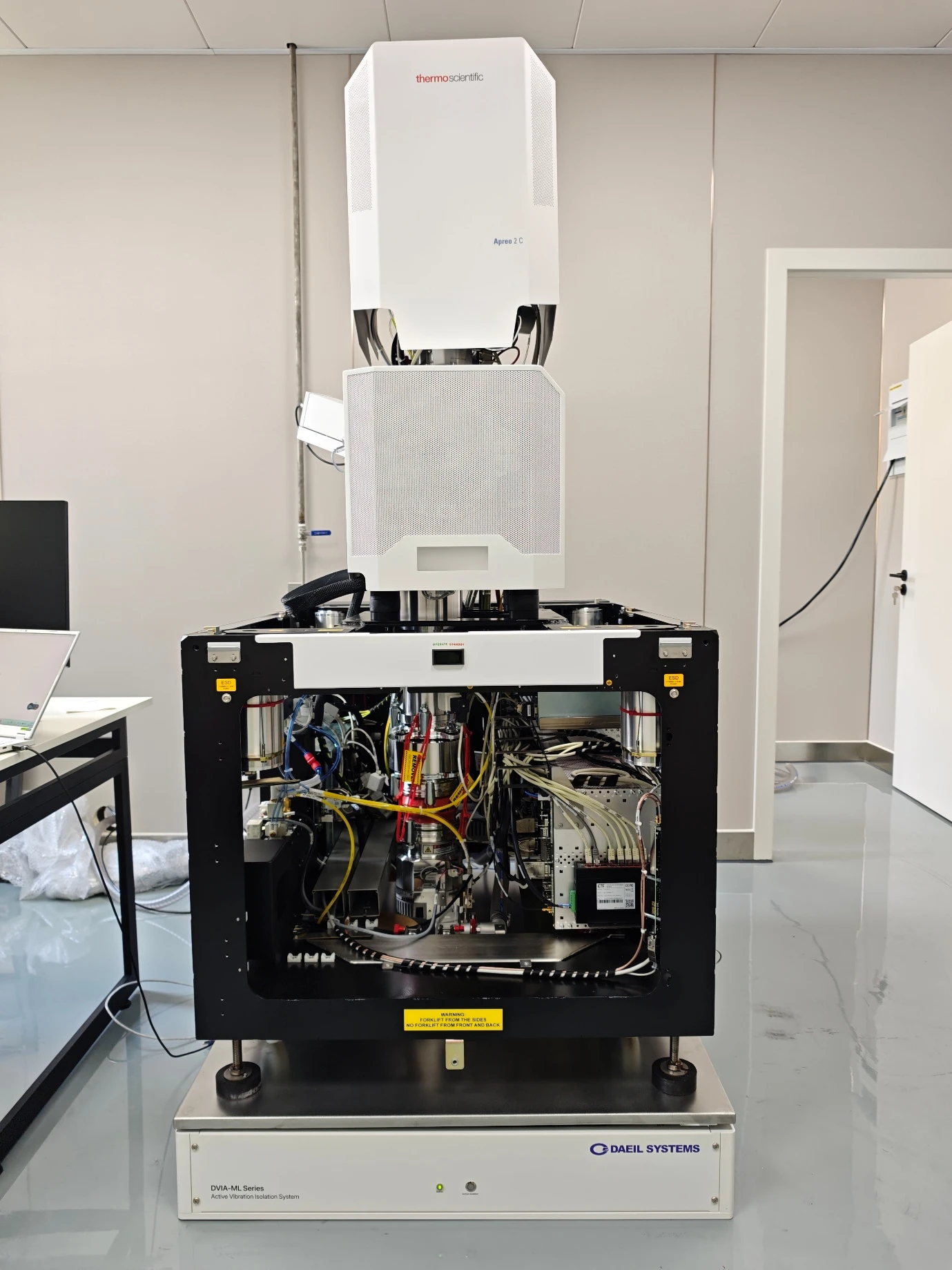

Equipment picture

Reference

Criterion CurveDescriptionAmplitude
μm/s (µin/s)		Detail Size
μm
Workshop (ISO)Distinctly perceptible vibration. Appropriate to workshops and non-sensitive areas.800 (32,000)N/A
Office (ISO)Perceptible vibration. Appropriate to offices and non-sensitive areas.400 (16,000)N/A
Residential Area (ISO)Barely perceptible vibration. Appropriate to sleep areas in most instances.200 (8,000)75
Operating Theatre (ISO)Vibration not perceptible. Suitable for surgical suites, microscopes to 100x.100 (4,000)25
VC-AAdequate for optical microscopes to 400x, microbalances, optical balances.50 (2,000)8
VC-BAppropriate for inspection and lithography equipment to 3μm line widths.25 (1,000)3
VC-CAppropriate for optical microscopes to 1000x, lithography equipment to 1μm.12.5 (500)1 - 3
VC-DSuitable for demanding equipment including electron microscopes (SEMs/TEMs).6.25 (250)0.1 - 0.3
VC-EFor the most demanding systems including E-Beam lithography at nanometer scales.3.12 (125)< 0.1
VC-FFor extremely quiet research spaces. Not recommended as design criterion.1.56 (62.5)N/A
VC-GFor extremely quiet research spaces. Not recommended as design criterion.0.78 (31.25)N/A

Notes:

- As measured in one-third octave bands over 8-80 Hz (VC-A/B) or 1-80 Hz (VC-C through VC-G).

- Detail size refers to width in microelectronics fabrication or particle size in medical research.
