Tier-1 Semiconductor Icheon Applied Materials PROVision 10 DVIA-P7000 Installation Report
Contents
Overview
Tuning and vibration measurement were performed on the DVIA-P7000 installed at Tier-1 Semiconductor Icheon Campus M16 10th floor C2 bay 6MHTC201.
Tuning and vibration measurement were conducted with the equipment Turned off.
Data are presented as VC Curves, along with reference materials for vibration level assessment.
Vibration Isolation System Information
Model: DVIA-P7000
Serial Number: 251027R7
Engineer
Chaewon Lee from DAEIL SYSTEMS Field Engineering, Sungyun Jung from Development Team
Inspection Date
January 20, 2026
Installation Site
Tier-1 Semiconductor Icheon Campus M16 10th floor C2 bay (6MHTC201)
End User
Tier-1 Semiconductor
Customer Equipment
Manufacturer: Applied Materials
Equipment: 3E eBeam Metrology
Model: PROVision 10

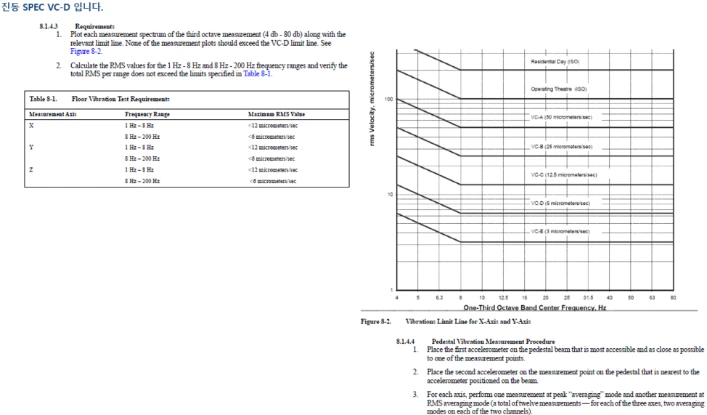

Equipment specification
Equipment Status
장비 제진대 위에 안착 및 Turned off
Measuring Equipment
10.1) Data Physics DAQ
Hardware: QUATTRO, Serial Number: 22436
Software: SignalCalc ACE
10.2) Accelerometer
PCB Accelerometer
Model: 393B05
Measuring Set-up
F Span: 200 Hz
Lines: 3200
Averaging: Spectrum Averaging
Engineering Units: m/s
Window: Hanning
Overlap: Max
Conclusion
After equipment installation was completed, the mechanical installation condition of the vibration isolation platform was inspected, and basic utility configuration required for platform operation—including facility air (CDA) and power cabling—was carried out.
After verifying sensor and actuator signal states, initial control parameter setup and first-pass tuning suited to the site environment were performed.
Under DVIA-P7000 Active On conditions, it was finally confirmed that the equipment-required vibration specification is satisfied in all directions.
Measurement Data
| Measuring Point | Vibration Spec | Direction | Floor | DVIA-P7000 | Floor | DVIA-P7000 |
|---|---|---|---|---|---|---|
| SK하이닉스 M16 10층 C2 bay(6MHTC201) 1. 바닥진동 2. DVIA-P7000 | VC-D | Vertical | VC-D @ 6.3 Hz | VC-G @ 6.3 Hz | ✓ PASS | ✓ PASS |
| Left to Right | VC-C @ 3.15 Hz | VC-E @ 3.15 Hz | ✗ FAIL | ✓ PASS | ||
| Front to Back | VC-C @ 3.15 Hz | VC-E @ 3.15 Hz | ✗ FAIL | ✓ PASS |
Data and Image

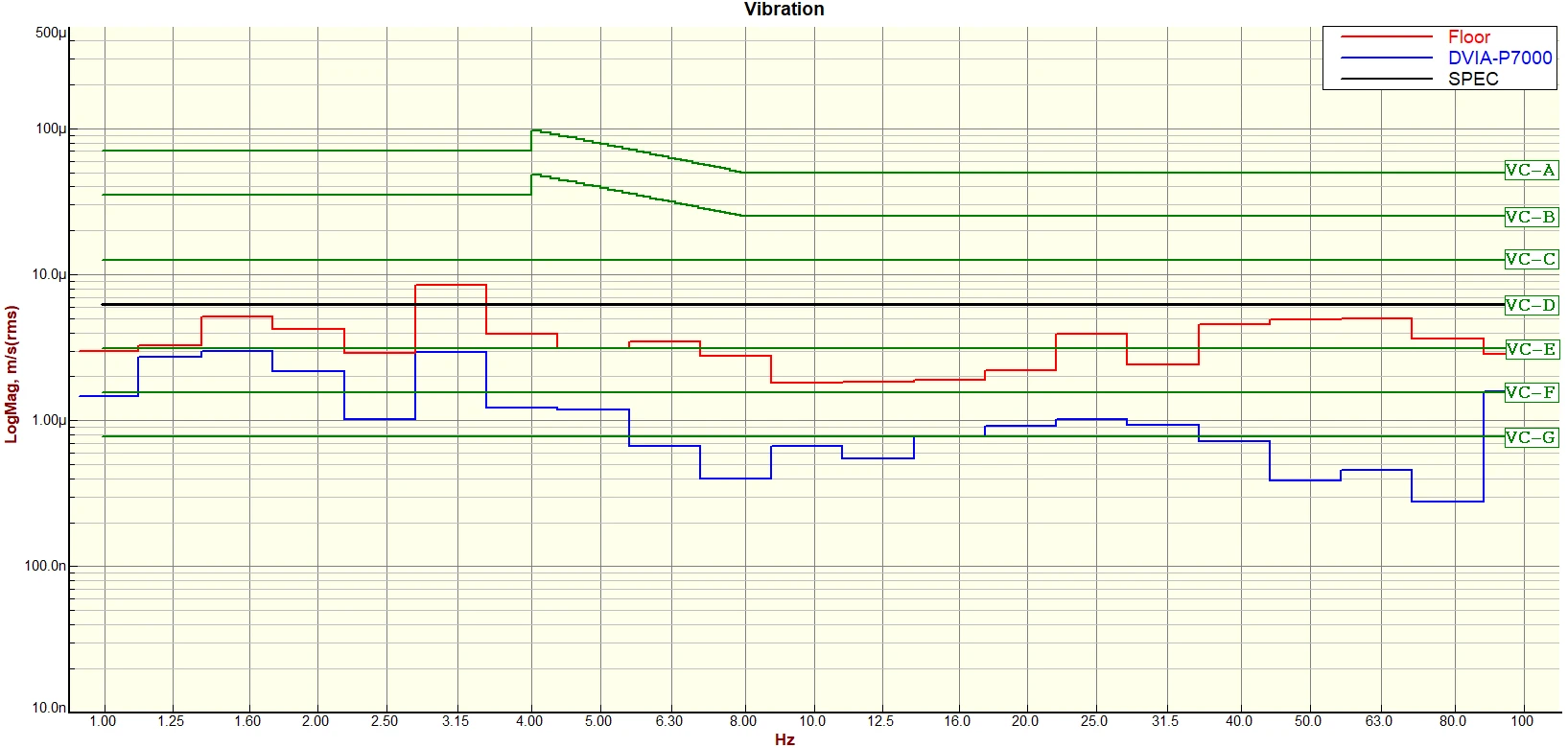

Vertical VC Curves

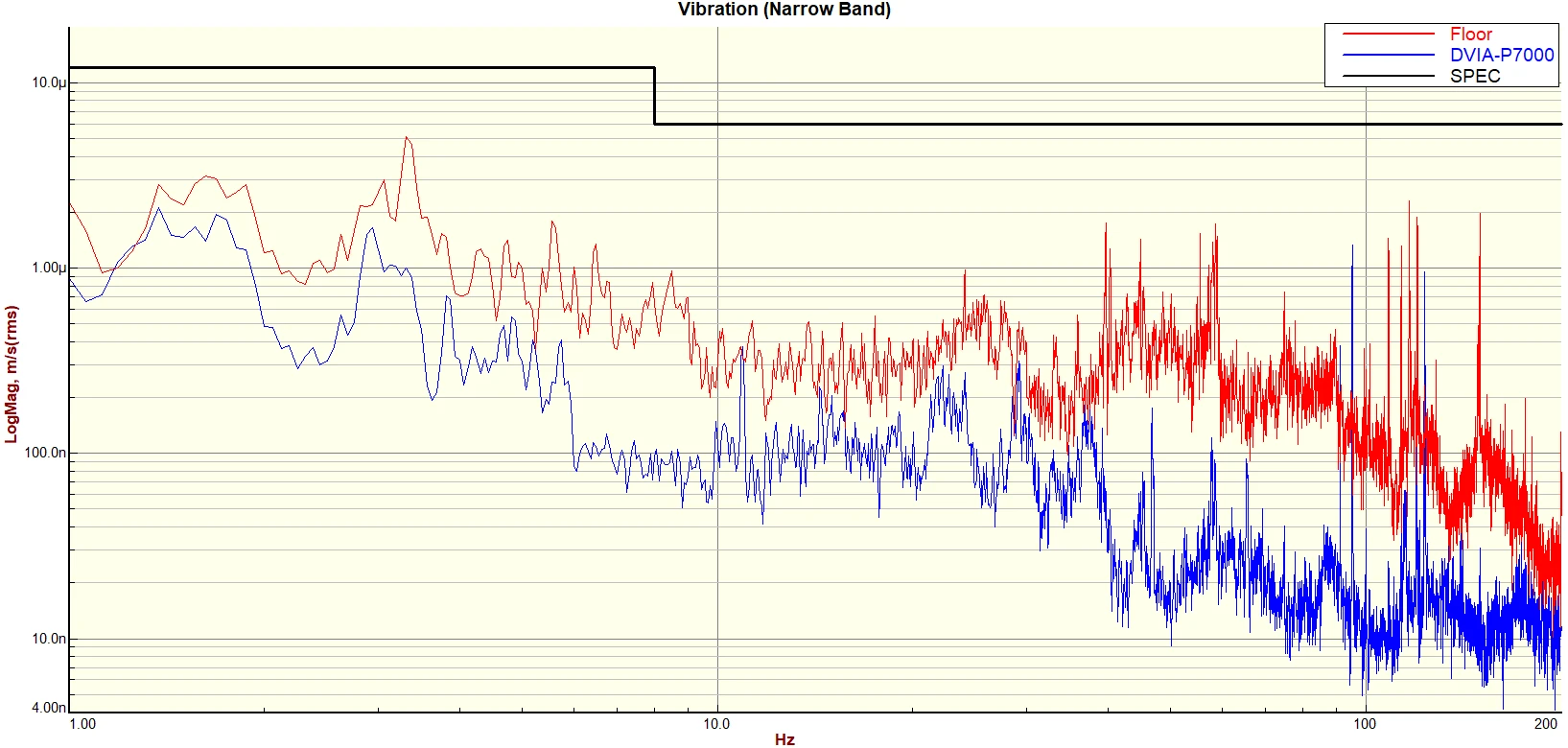

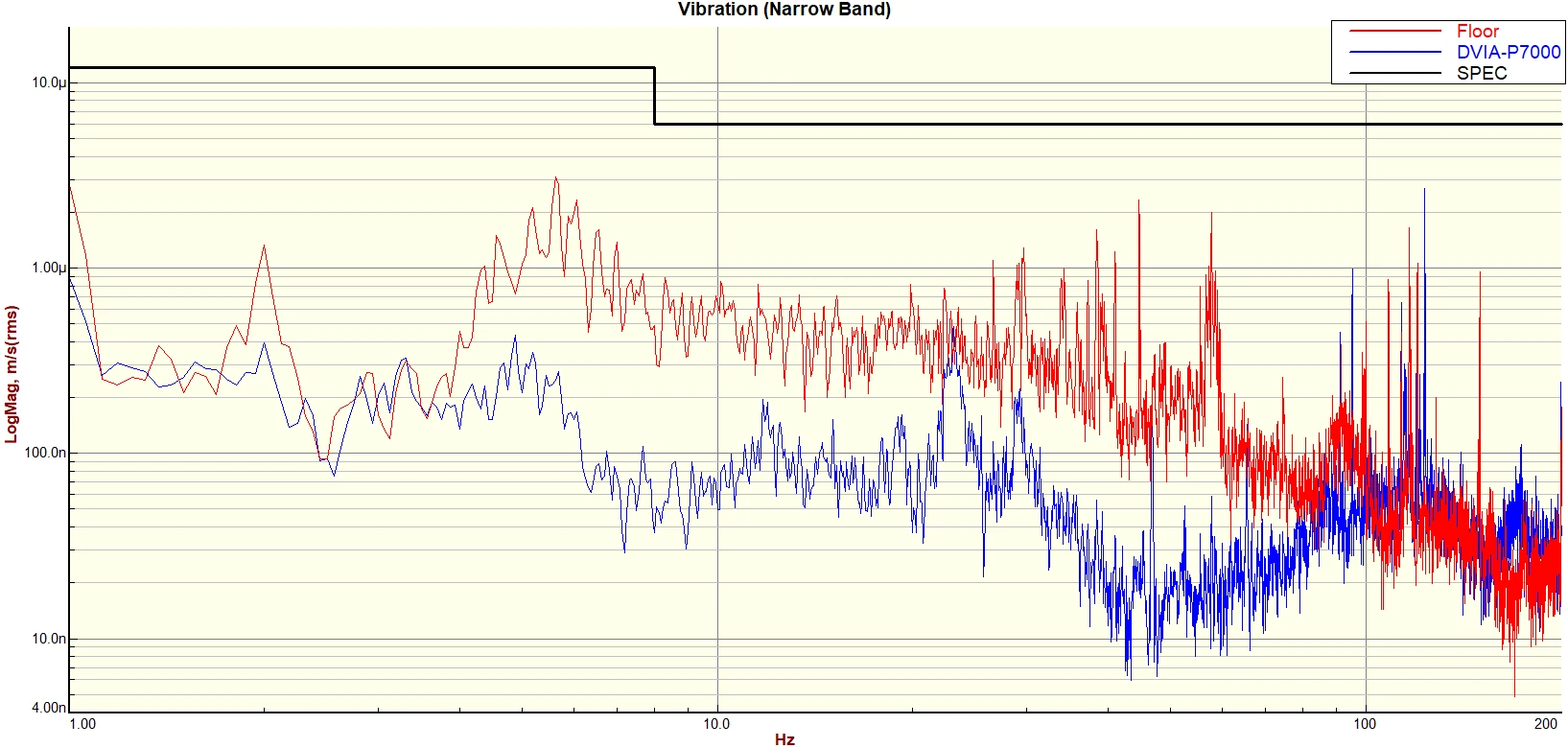

Vertical Autospectrum
Vertical Transmissibility

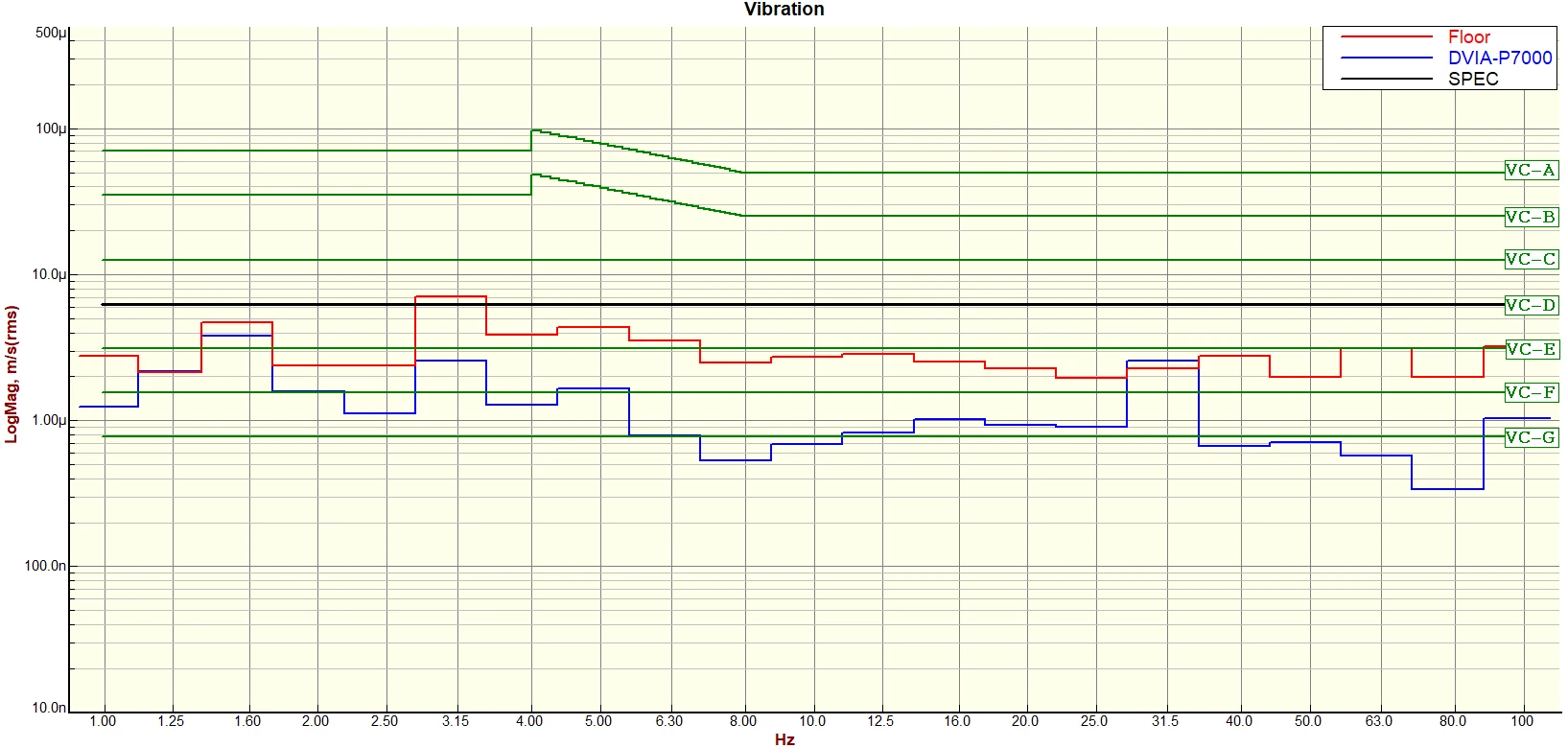

Left to Right VC Curves

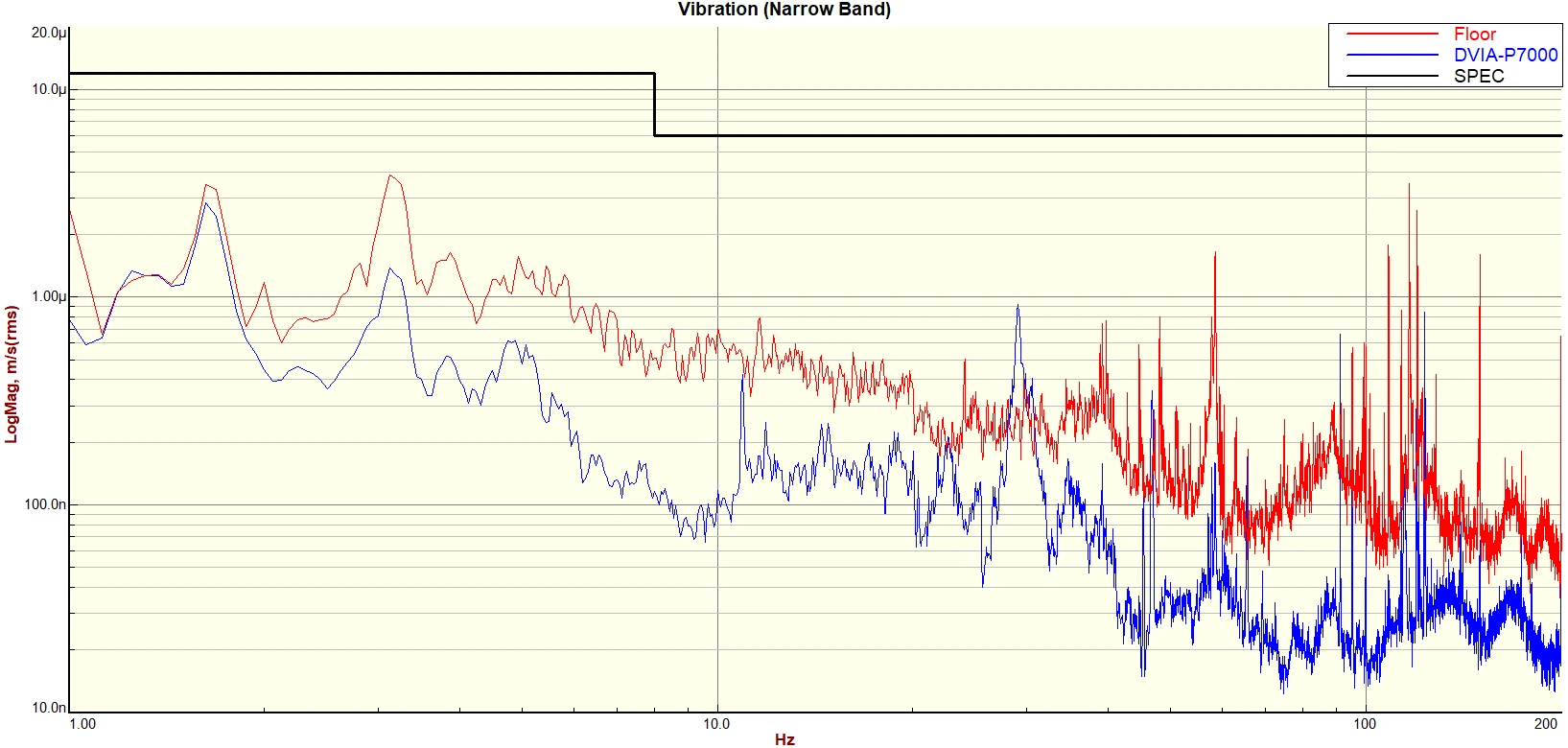

Left to Right Autospectrum

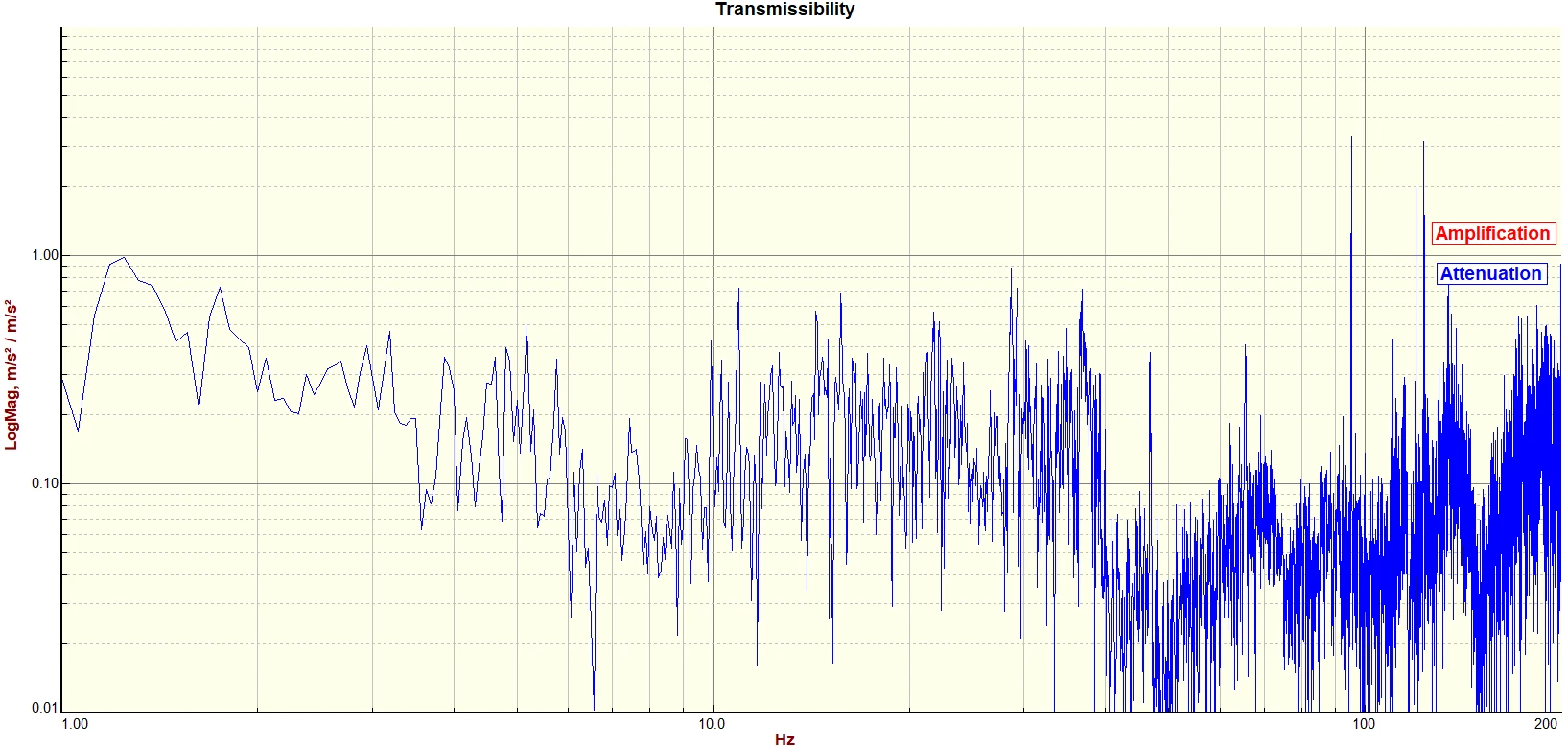

Left to Right Transmissibility

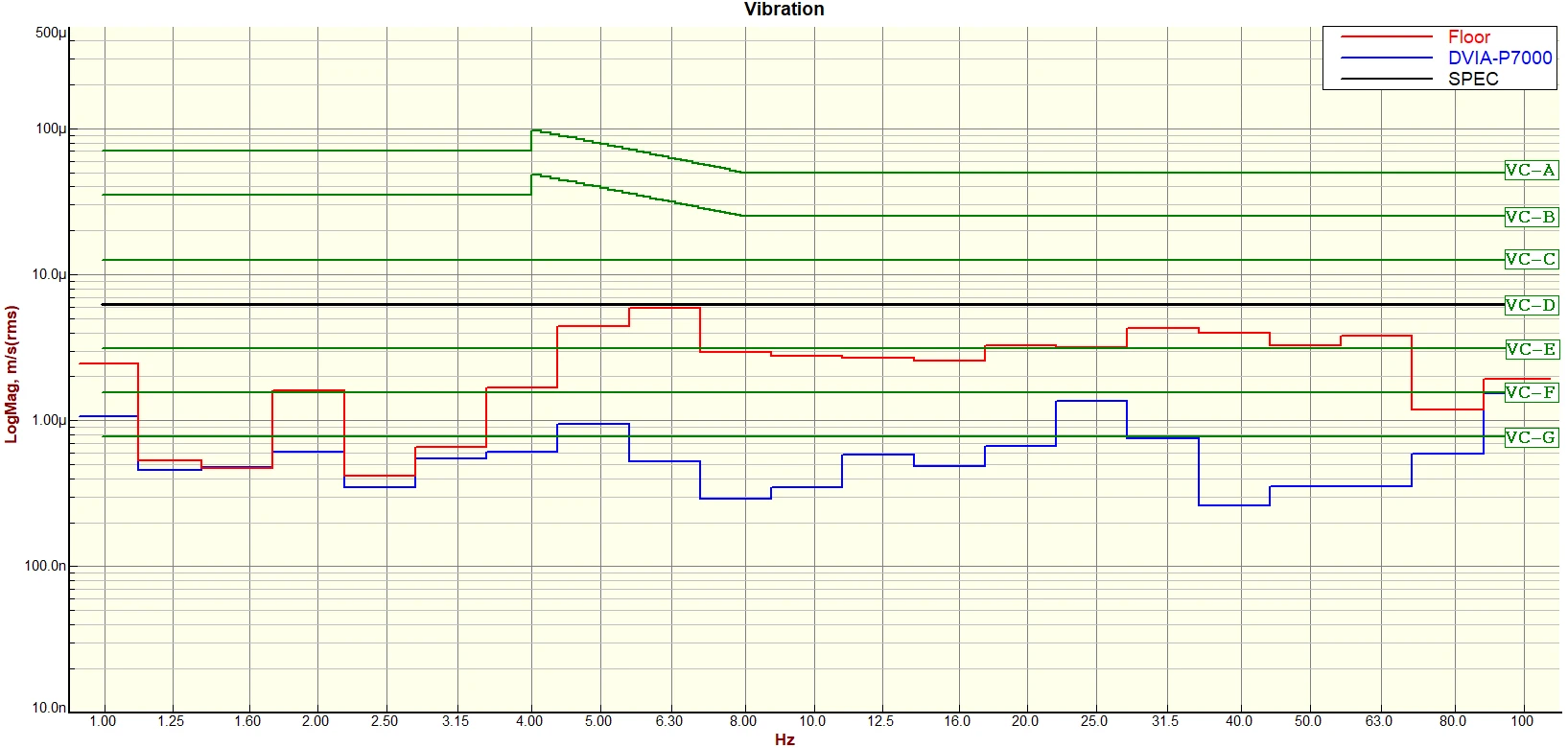

Front to Back VC Curves
Front to Back Autospecturm

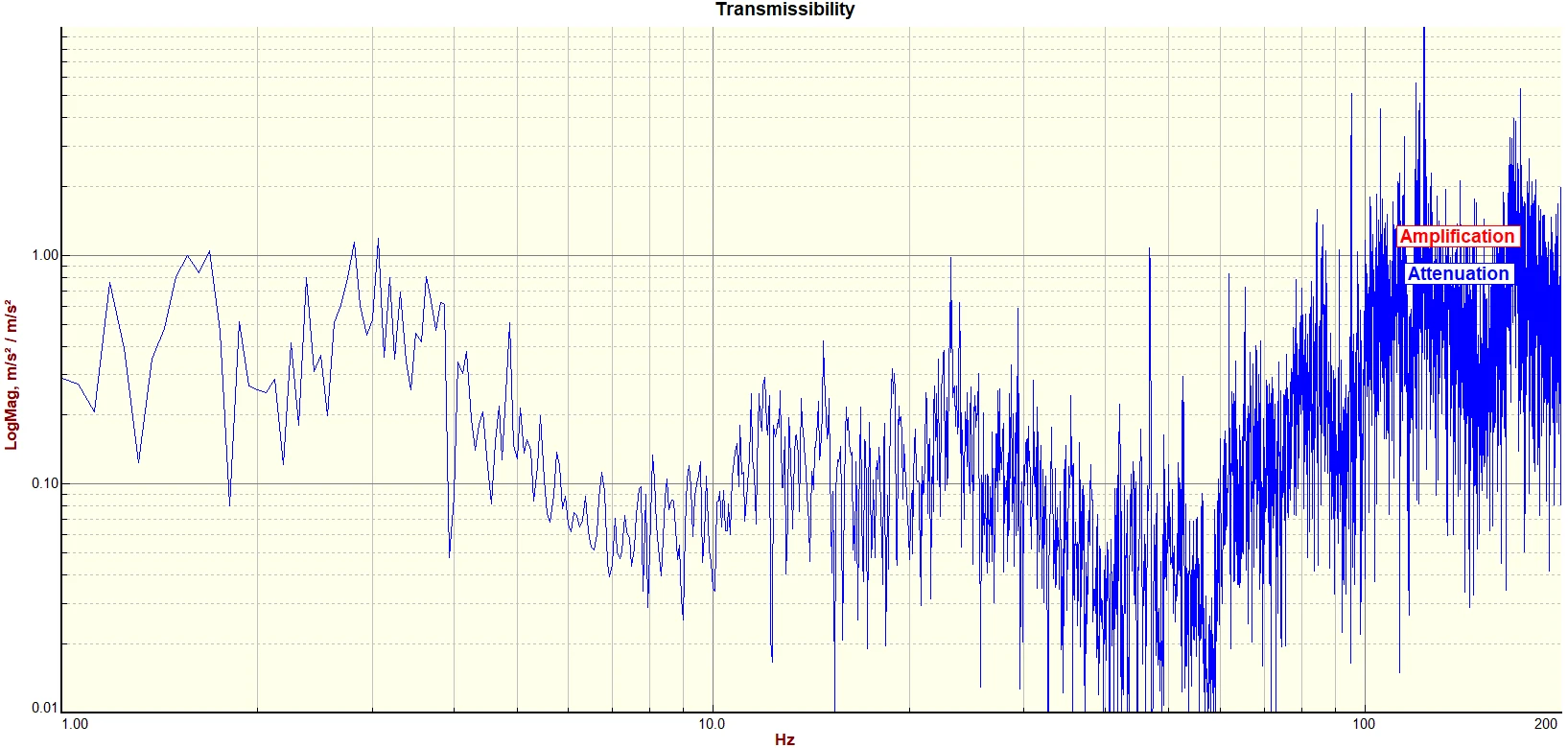

Front to Back Transmissibility
Reference
Generic Vibration Criteria
Notes:
1. VC-A/B is measured in 1/3 octave bands from 8-80 Hz, VC-C through VC-G from 1-80 Hz.
2. Detail size refers to line widths in microelectronics manufacturing or particle sizes in medical research.
