Tomocube Holotomography DVIA-MO1000 (250805R6) Installation Report
Contents
Overview
Tuning and vibration measurement were performed for the DVIA-MO1000 installed at Tomocube's new headquarters.
Tuning and vibration measurement were conducted with the equipment in installation / Turned off state.
Data are presented as VC curves, and reference material is provided for vibration levels.
Vibration Isolation System Info
Model: DVIA-MO1000
Serial Number: 250805R6
Engineer
Chaewon Lee, DAEIL SYSTEMS
Tuning Date
September 29, 2025
Report written date
September 29, 2025
End User
Tomocube Co., Ltd.
Number of Tuning Trial
N/A
Location
JUNHYUNG Co., Ltd. 2F DEMO room
Equipment
Manufacturer: Tomocube
Equipment: Holotomography
Model: HT-R1 Rev3 Demo-001
Equipment specification
VC-G
Equipment Condition
Equipment installation and Turned off
Tuning Request
N/A
Measurement Device
10.1) Data Physics DAQ
Hardware: QUATTRO, Serial Number: 22436
Software: SignalCalc ACE
10.2) Accelerometer
PCB Accelerometer
Model: 393B05
Measurement Setup
F Span: 200 Hz
Lines: 3200
Engineering Units: m/s
Window: Hanning
Averaging: FFT Spectrum Averaging
Averaging mode: Exponential, 40
Conclusion
Vibration specifications are met in all directions.
Measurement Summary
| Measurement site | State | Direction | Specification | Measured | Floor | DVIA-MO1000 |
|---|---|---|---|---|---|---|
| Tomocube new headquarters Demo room | Equipment installation / Turned off | Vertical | VC-G vs VC-B @ 8 Hz | VC-G @ 8 Hz | ✗ FAIL | ✓ PASS |
| Tomocube new headquarters Demo room | Equipment installation / Turned off | Left to Right | VC-E vs VC-G @ 2 Hz | VC-G @ 2 Hz | ✗ FAIL | ✓ PASS |
| Tomocube new headquarters Demo room | Equipment installation / Turned off | Front to Back | VC-E vs VC-G @ 10 Hz | VC-G @ 10 Hz | ✗ FAIL | ✓ PASS |
Data and Image

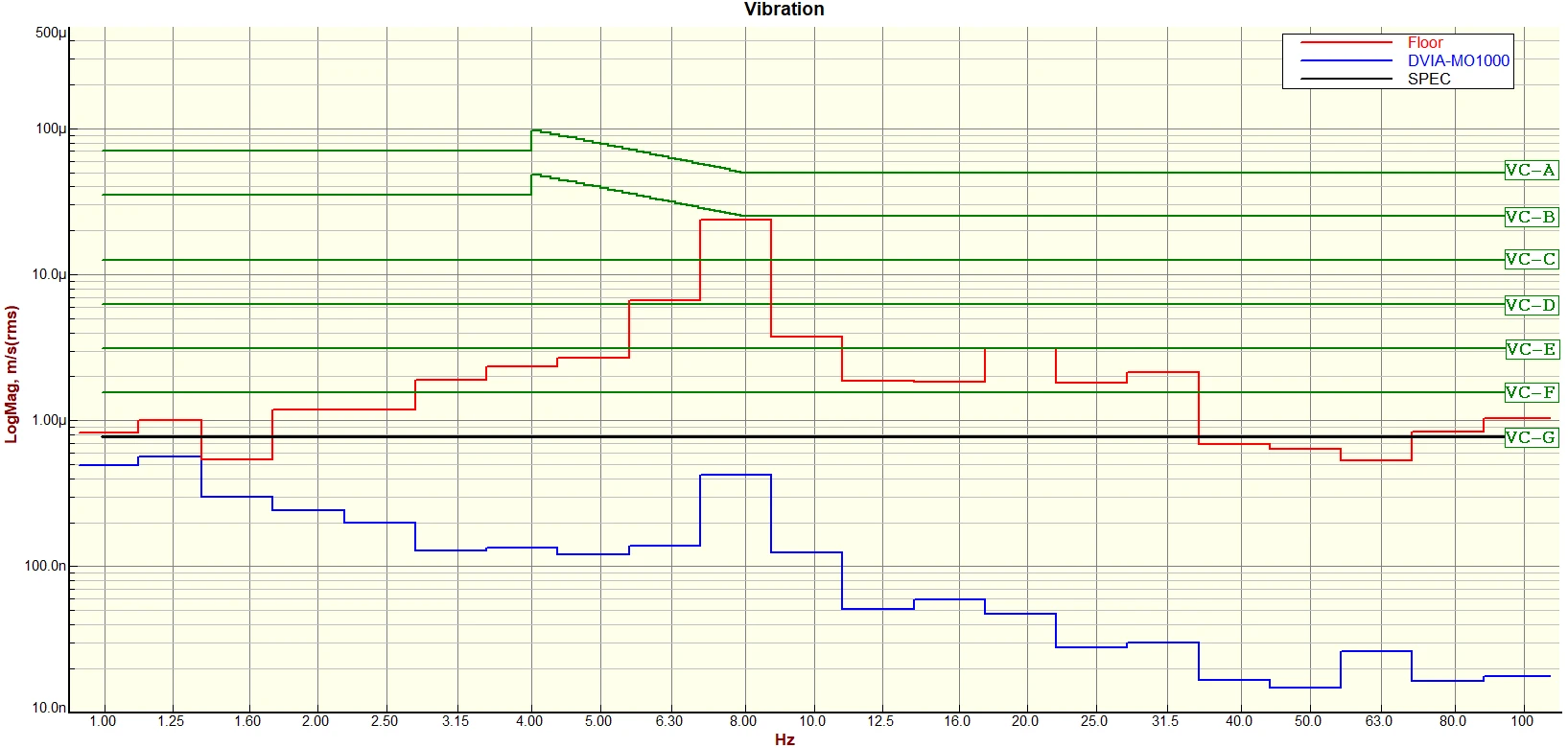

Vertical VC Curves

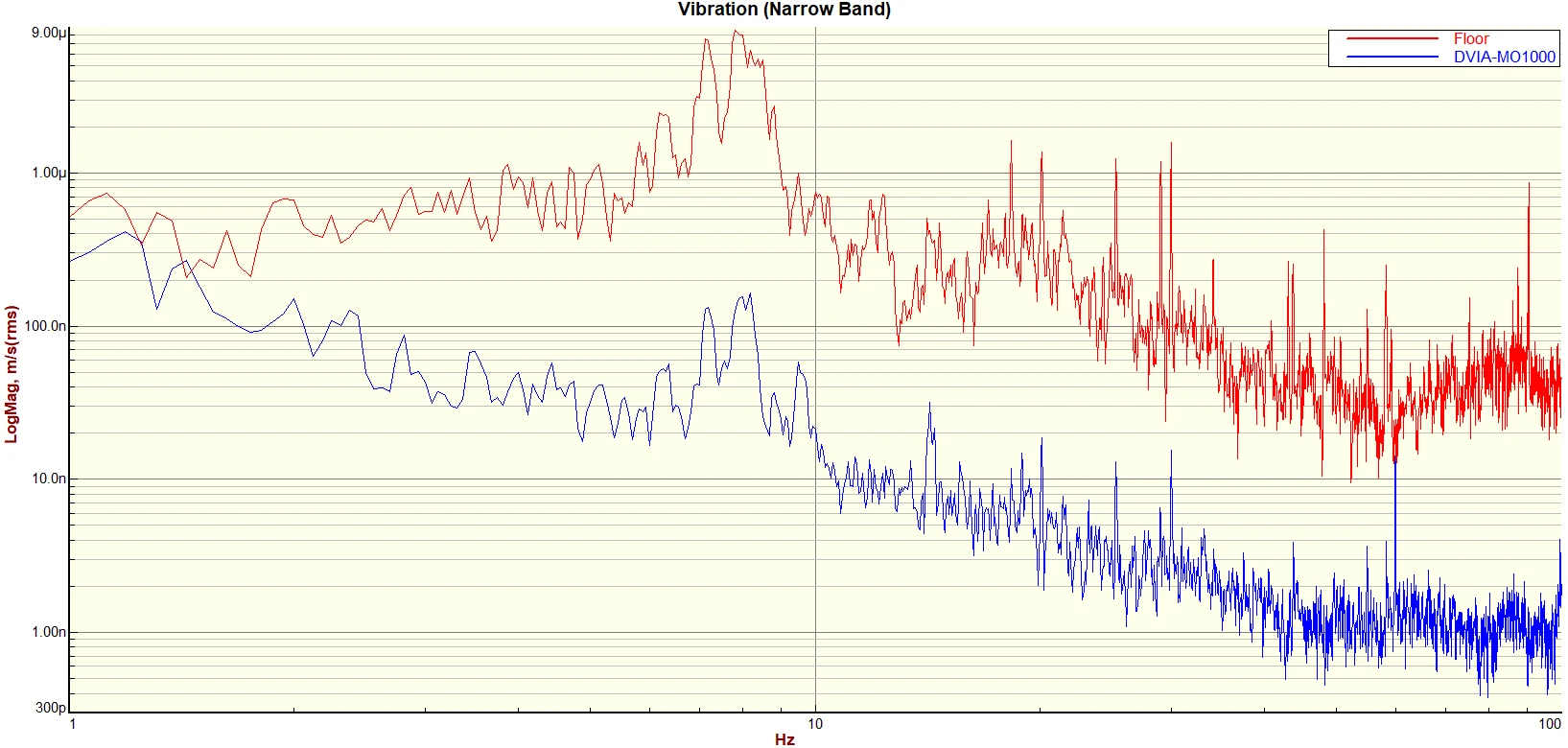

Vertical Autospectrum

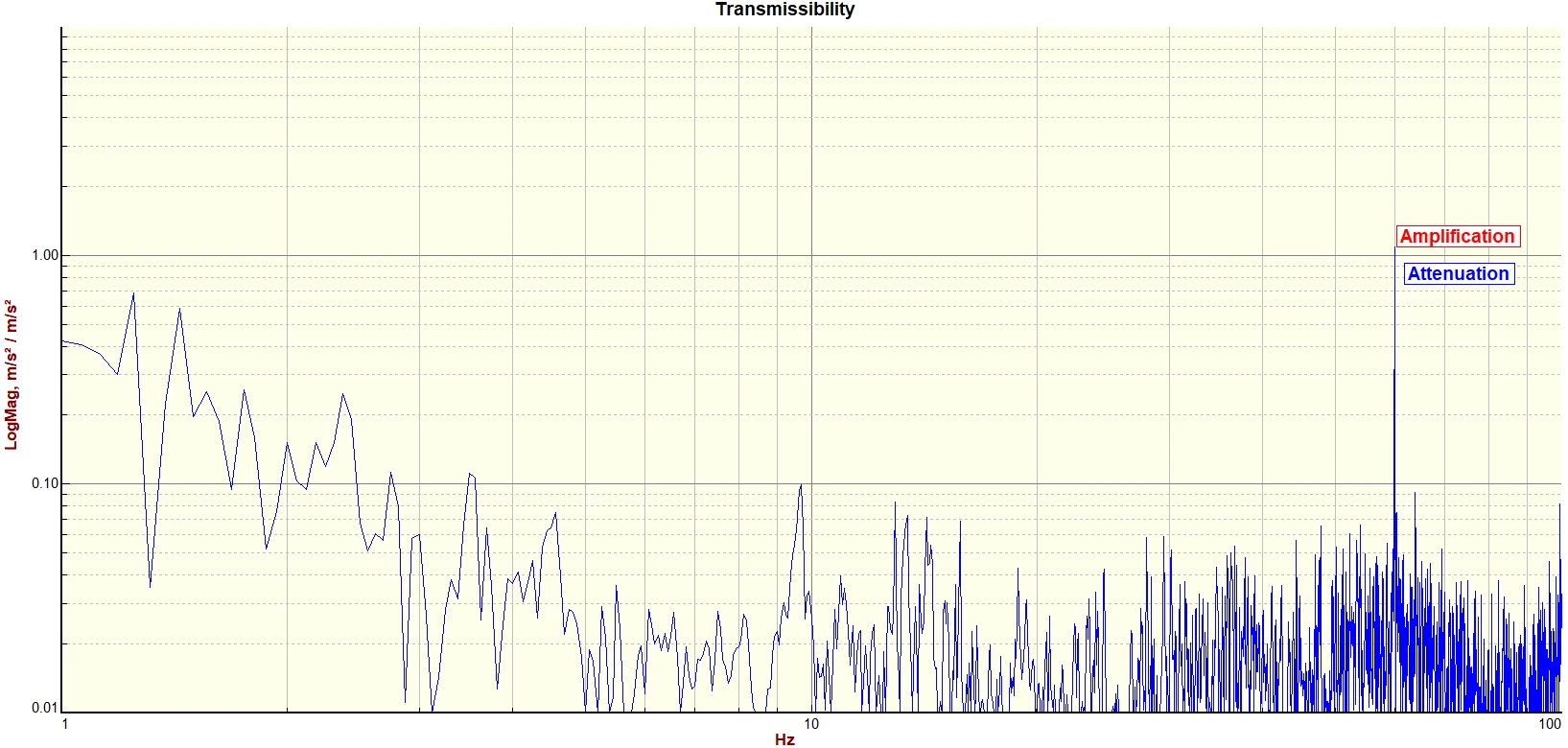

Vertical Transmissibility

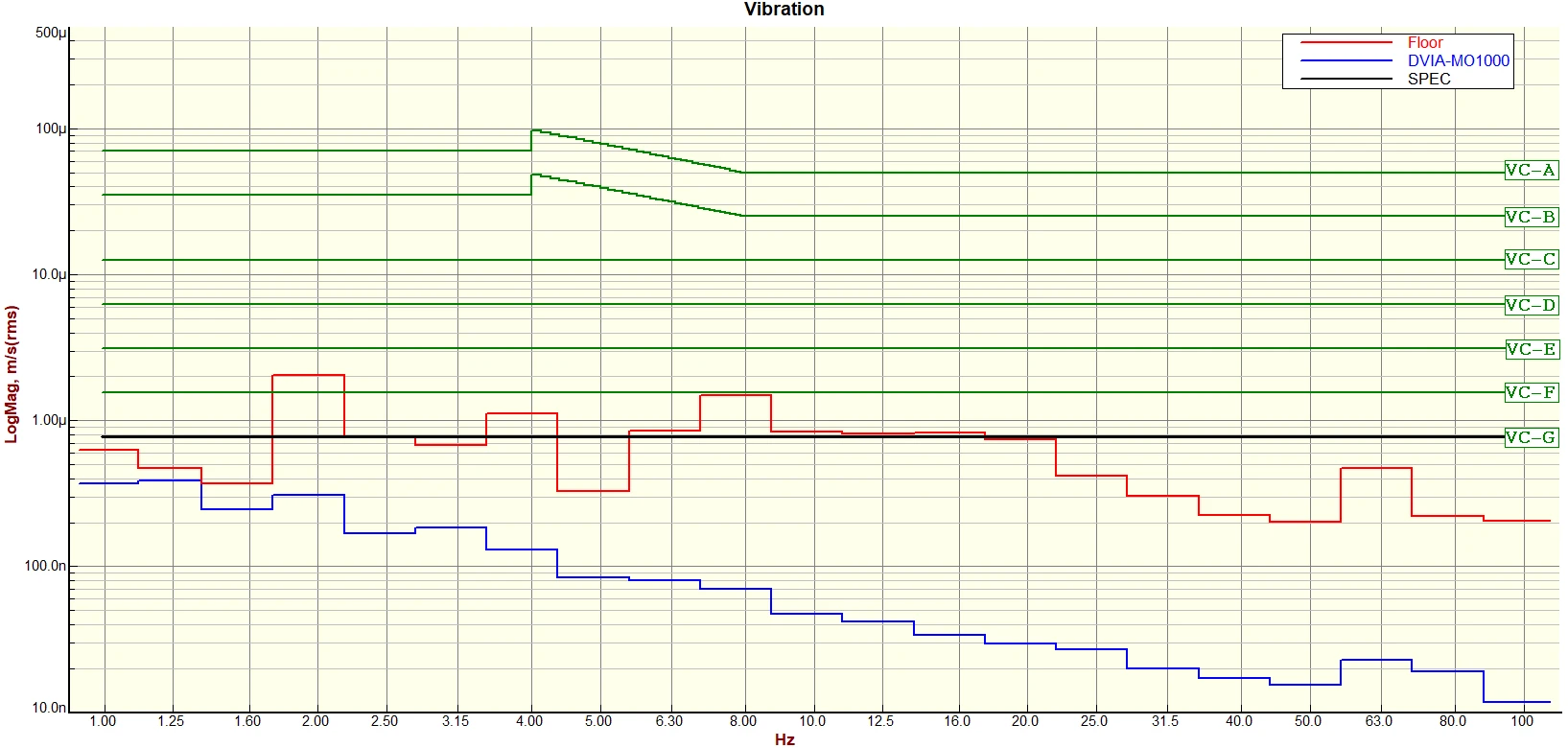

Left to Right VC Curves

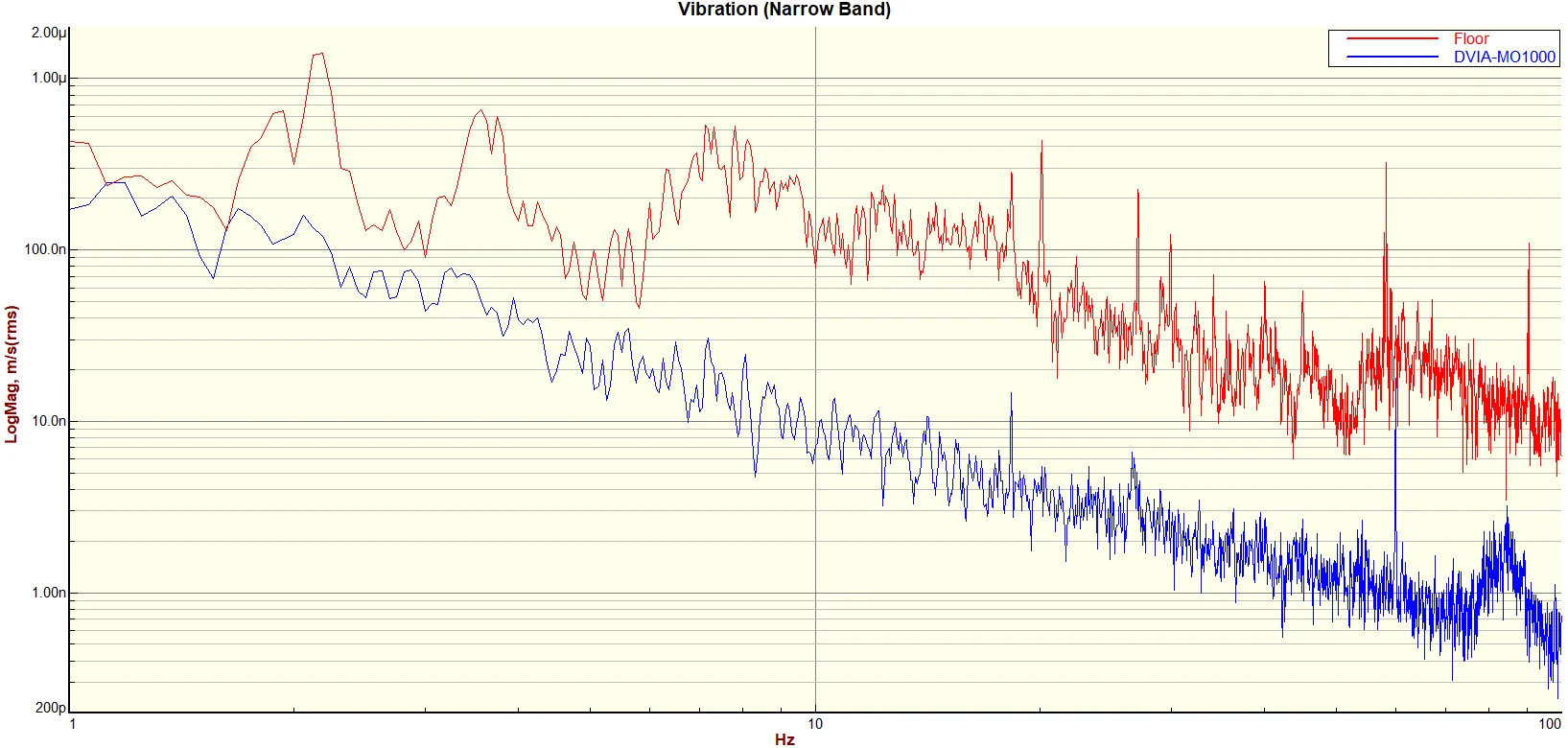

Left to Right Autospectrum
Left to Right Transmissibility
Front to Back VC Curves

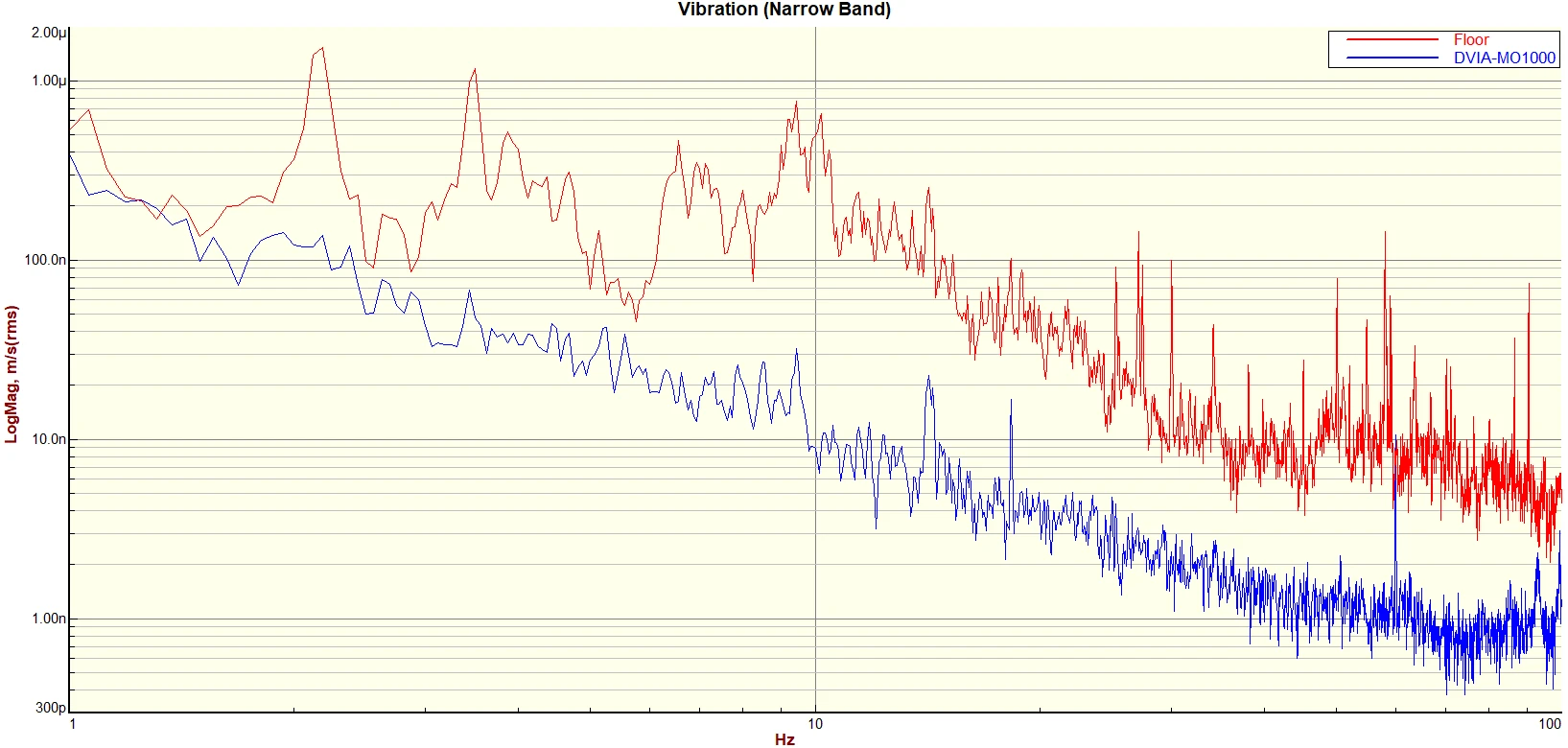

Front to Back Autospectrum

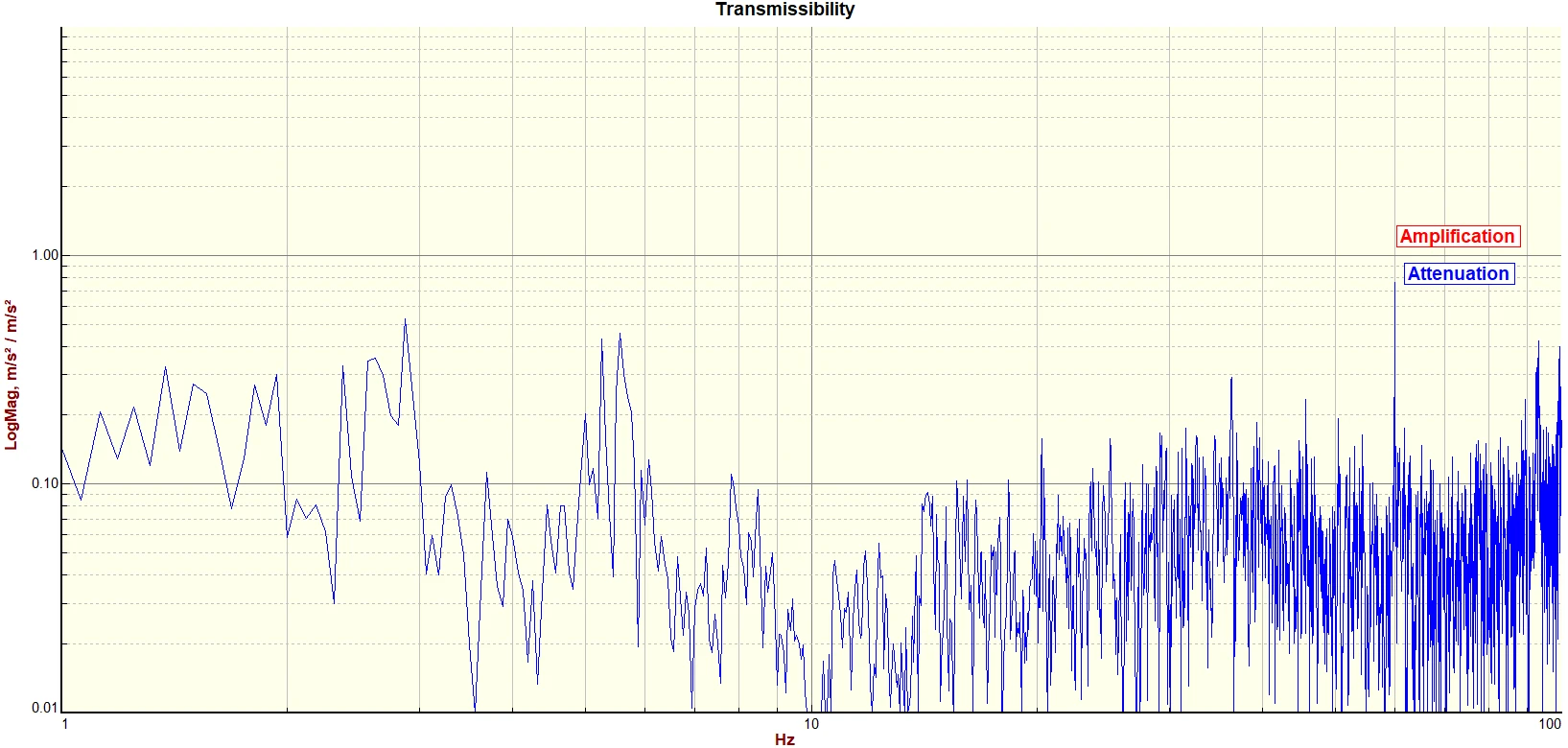

Front to Back Transmissibility

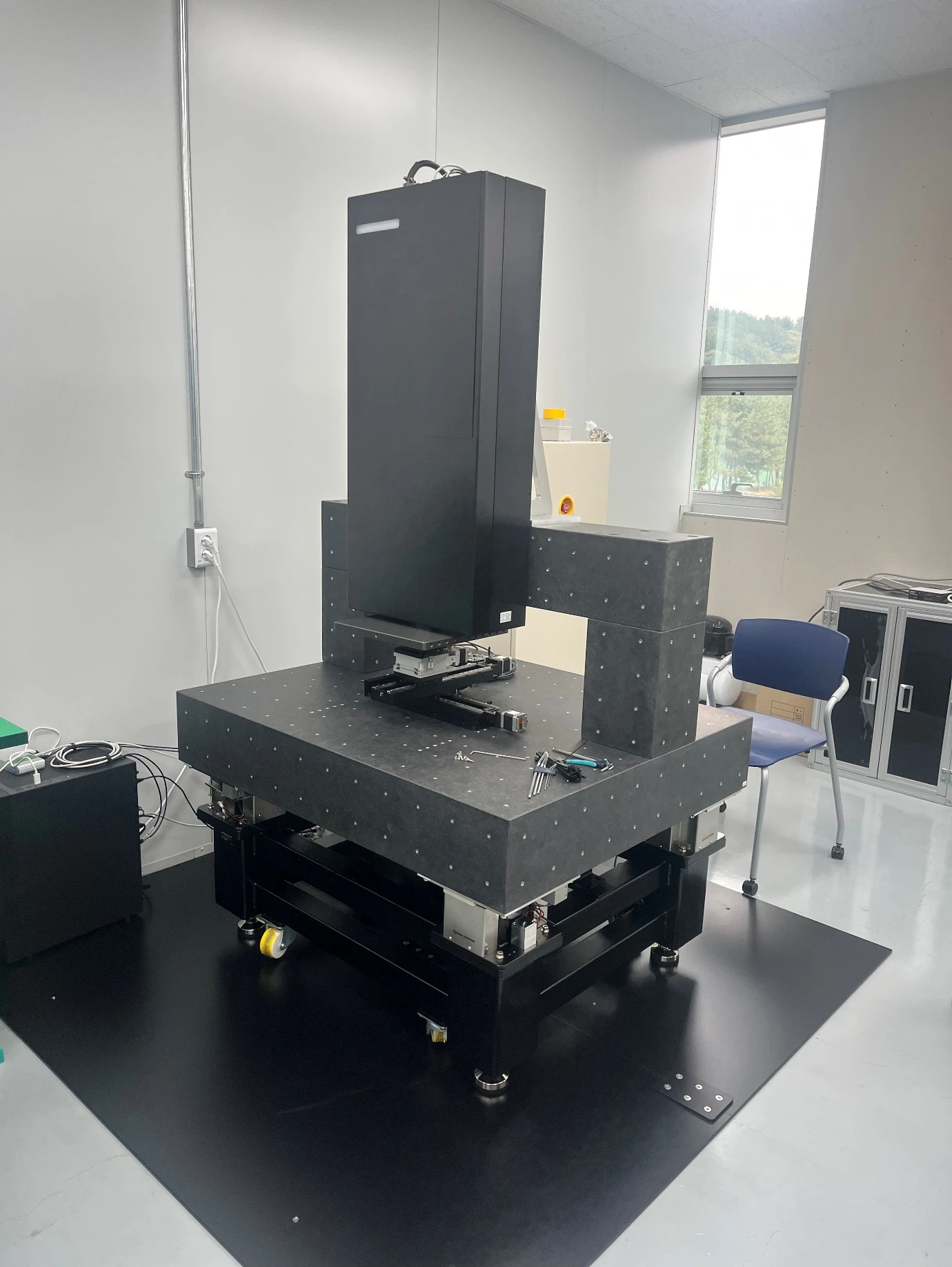

Equipment picture
Reference
[IMAGE:](https://cxdukqxqwnvvplsuvcki.supabase.co/storage/v1/object/public/casestudies/250805r6-tomocube-holotomography-dvia-mo1000-installation-report/dvia-mo1000-reference-generic-vc.webp)
