YIMO ZEISS GeminiSEM 560 FE-SEM DVIA-MB1000 (250714R3) Installation Report

DVIA-M Series

Installation Report

YIMO

ZEISS

GeminiSEM 560

FE-SEM

DVIA-MB1000

Overview

The DVIA-MB1000 active vibration isolation platform is appropriately installed and functioning as intended.

Model: DVIA-MB1000

Serial Number: 250714R3

Chaewon Lee, DAEIL SYSTEMS

November 17, 2025

November 17, 2025

N/A

1st

N/A

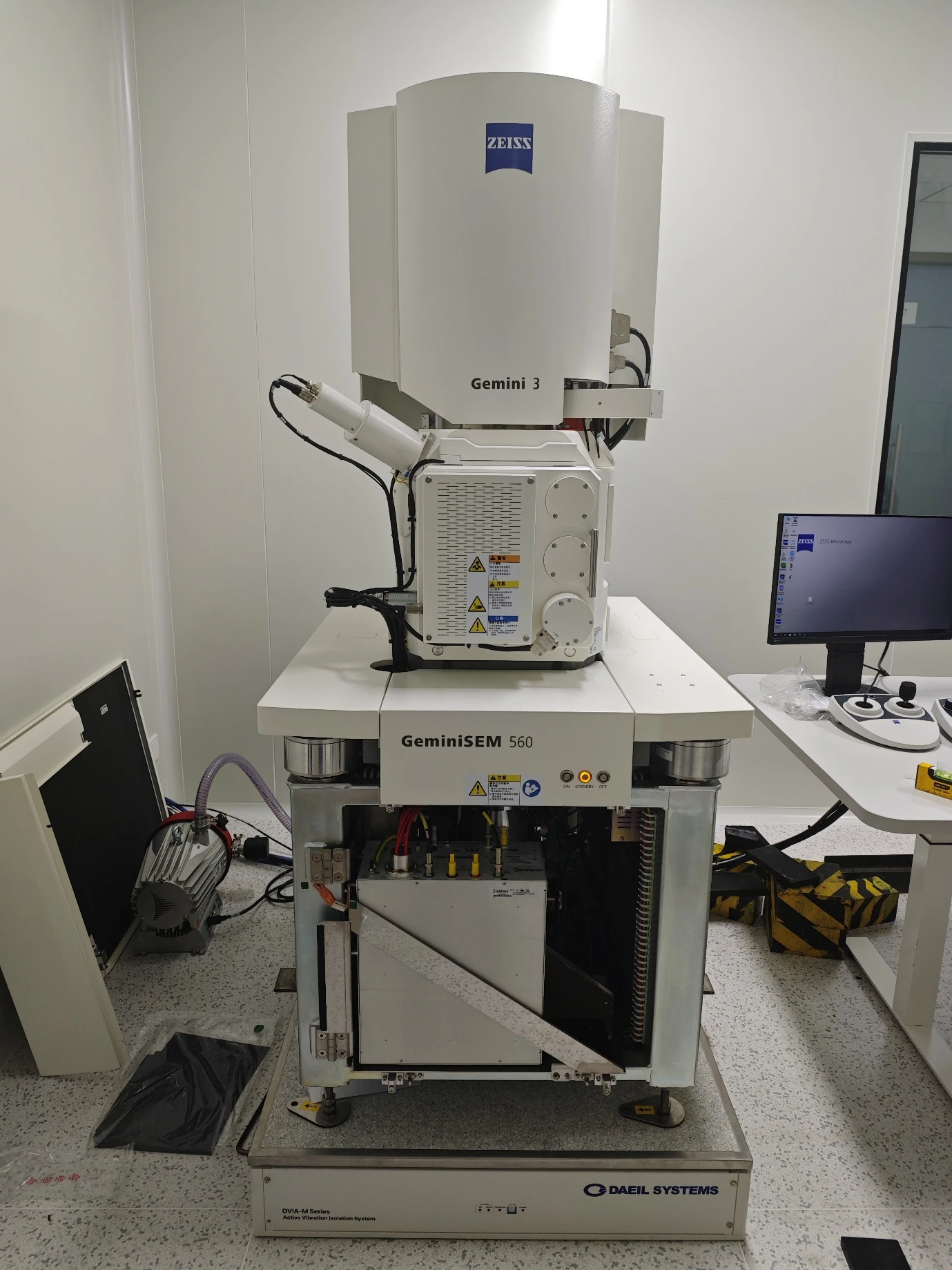

Manufacturer: ZEISS

Equipment: FE-SEM

Model: GeminiSEM 560

The equipment is installed/IDLE

N/A

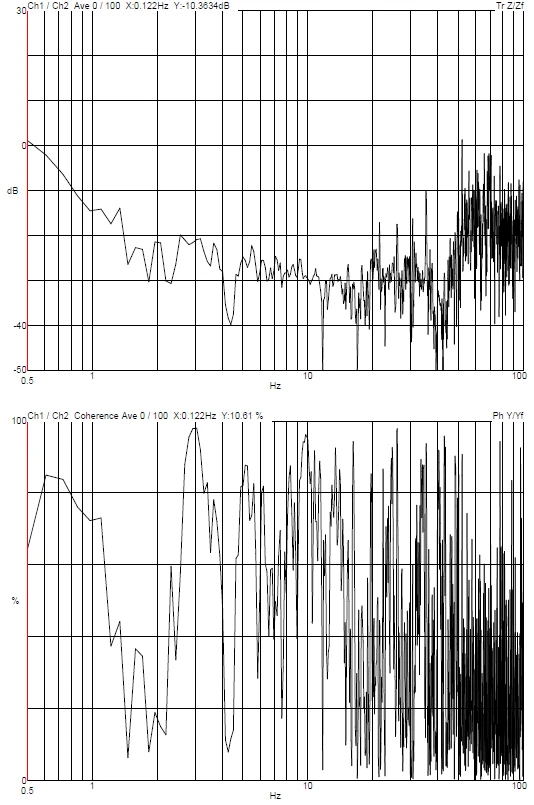

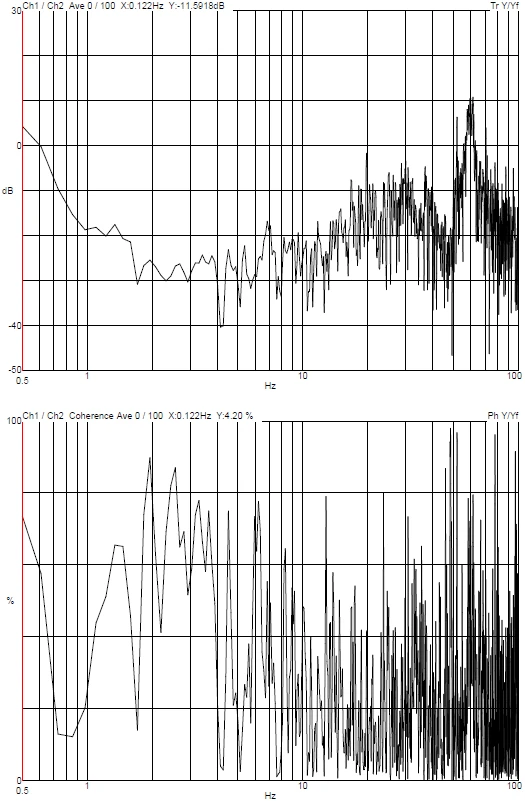

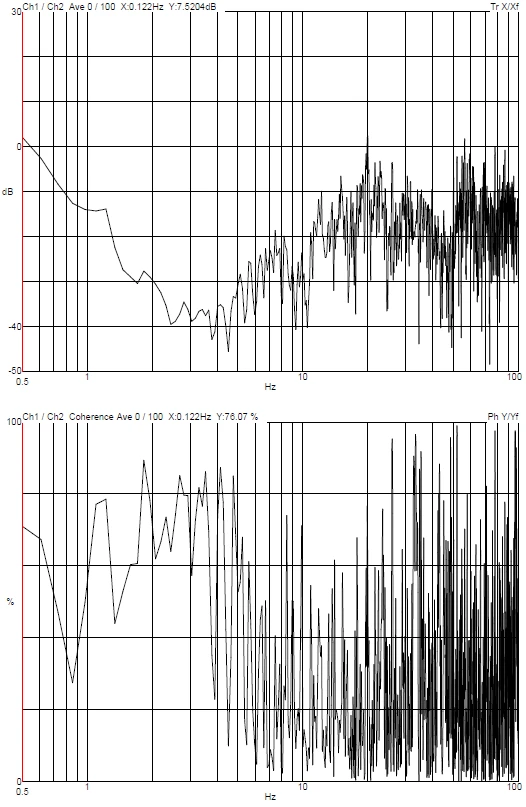

Criterion Curve	Description	Amplitude μm/s (µin/s)	Detail Size μm
Workshop (ISO)	Distinctly perceptible vibration. Appropriate to workshops and non-sensitive areas.	800 (32,000)	N/A
Office (ISO)	Perceptible vibration. Appropriate to offices and non-sensitive areas.	400 (16,000)	N/A
Residential Area (ISO)	Barely perceptible vibration. Appropriate to sleep areas in most instances.	200 (8,000)	75
Operating Theatre (ISO)	Vibration not perceptible. Suitable for surgical suites, microscopes to 100x.	100 (4,000)	25
VC-A	Adequate for optical microscopes to 400x, microbalances, optical balances.	50 (2,000)	8
VC-B	Appropriate for inspection and lithography equipment to 3μm line widths.	25 (1,000)	3
VC-C	Appropriate for optical microscopes to 1000x, lithography equipment to 1μm.	12.5 (500)	1 - 3
VC-D	Suitable for demanding equipment including electron microscopes (SEMs/TEMs).	6.25 (250)	0.1 - 0.3
VC-E	For the most demanding systems including E-Beam lithography at nanometer scales.	3.12 (125)	< 0.1
VC-F	For extremely quiet research spaces. Not recommended as design criterion.	1.56 (62.5)	N/A
VC-G	For extremely quiet research spaces. Not recommended as design criterion.	0.78 (31.25)	N/A
