Installation Report

05-08-2025

Seoul National University DVIA-MO1000 (250310R6) Installation Report

DVIA-M Series

Installation Report

Seoul National University

DVIA-MO1000

250310R6

Overview

N/A

Vibration Isolation System Information

Model: DVIA-MO1000

Serial Number: 250310R6

Engineer

이채원

Tuning Date

25.04.30

Report written date

25.05.08

End User

서울대학교

Location

N/A

Equipment

N/A

Equipment Condition

N/A

Measurement Summary

Measurement site	State	Direction	Floor	DVIA-MO1000
삼성리더스타워 1104호 1. Floor 2. DVIA-MO1000	장비 미설치	Vertical	VC-B @ 12.5 Hz	VC-G @ 12.5 Hz
		Left to Right	VC-D @ 1 Hz	VC-G @ 1 Hz
		Front to Back	VC-C @ 1 Hz	VC-E @ 1 Hz

Data and Image

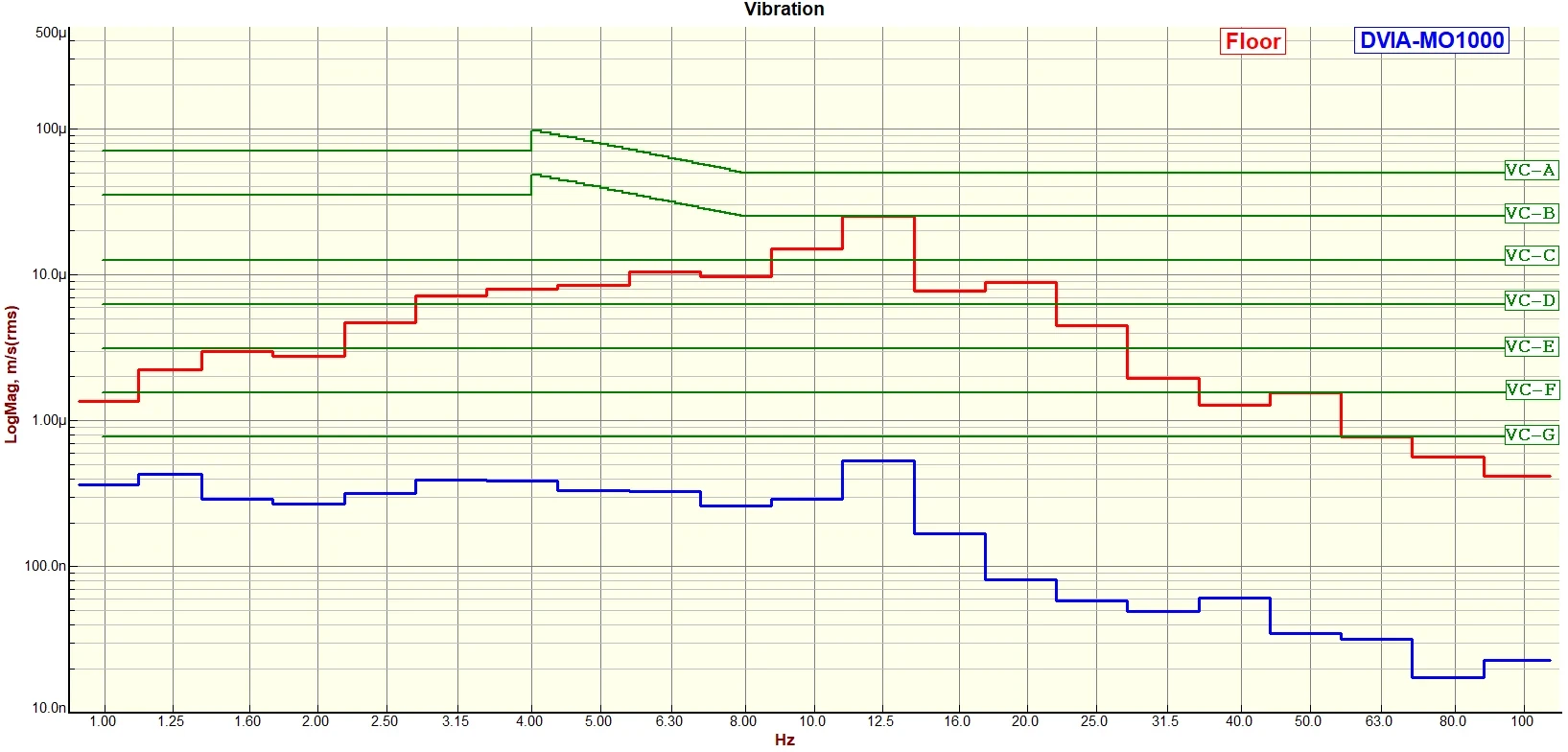

Vertical VC Curves

Image 1 — Seoul National University DVIA-MO1000 (250310R6) Installation Report

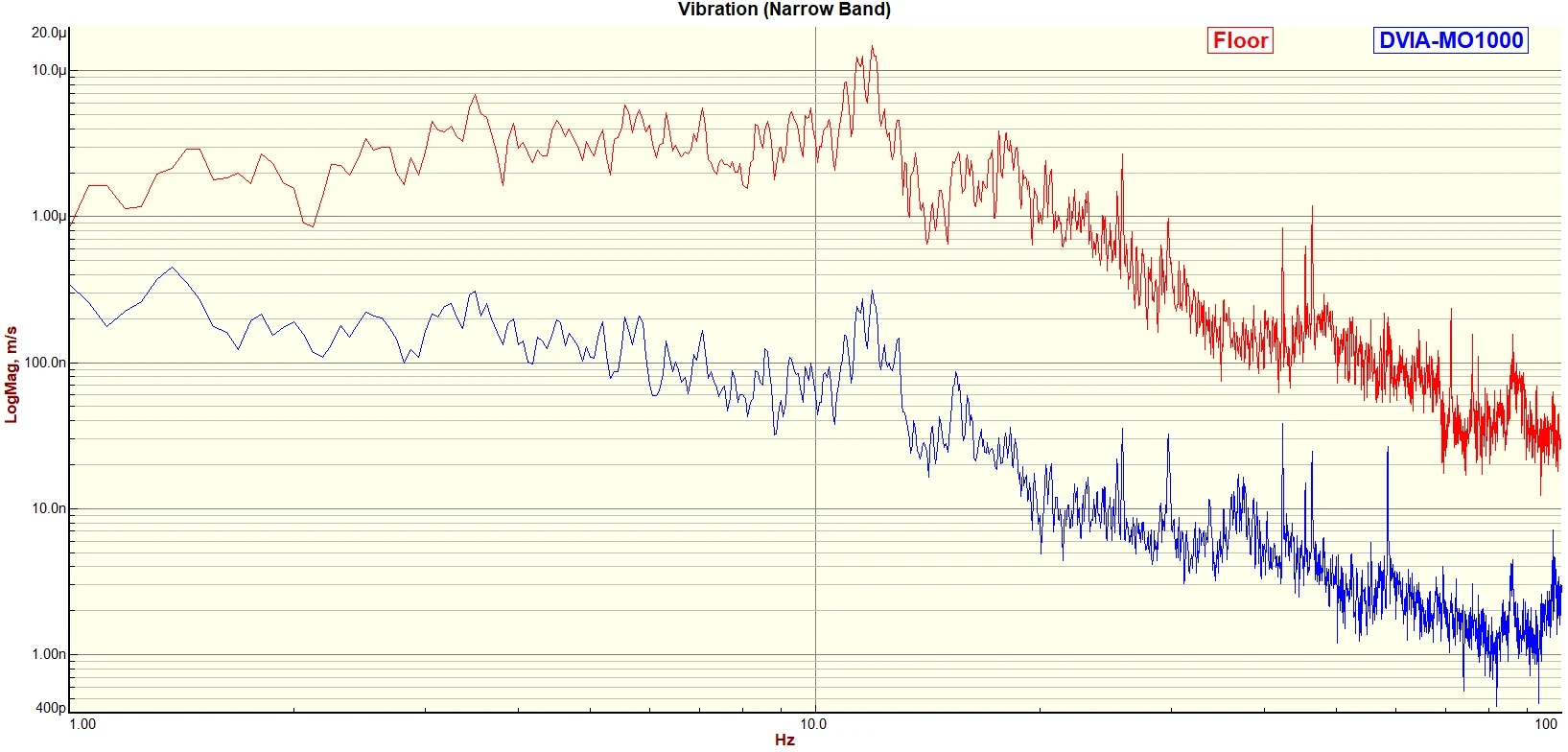

Vertical Autospectrum

Image 2 — Seoul National University DVIA-MO1000 (250310R6) Installation Report

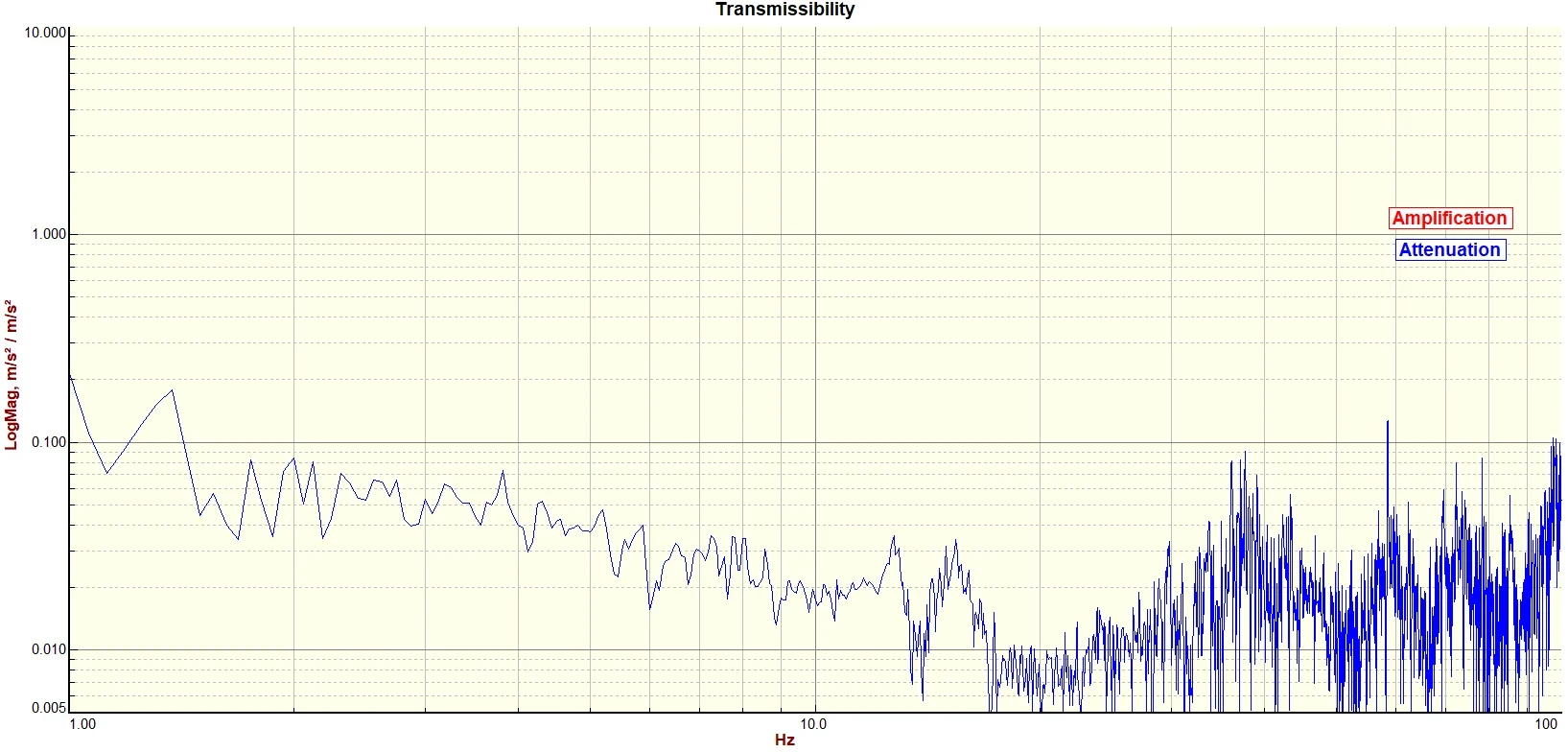

Vertical Transmissibility

Image 3 — Seoul National University DVIA-MO1000 (250310R6) Installation Report

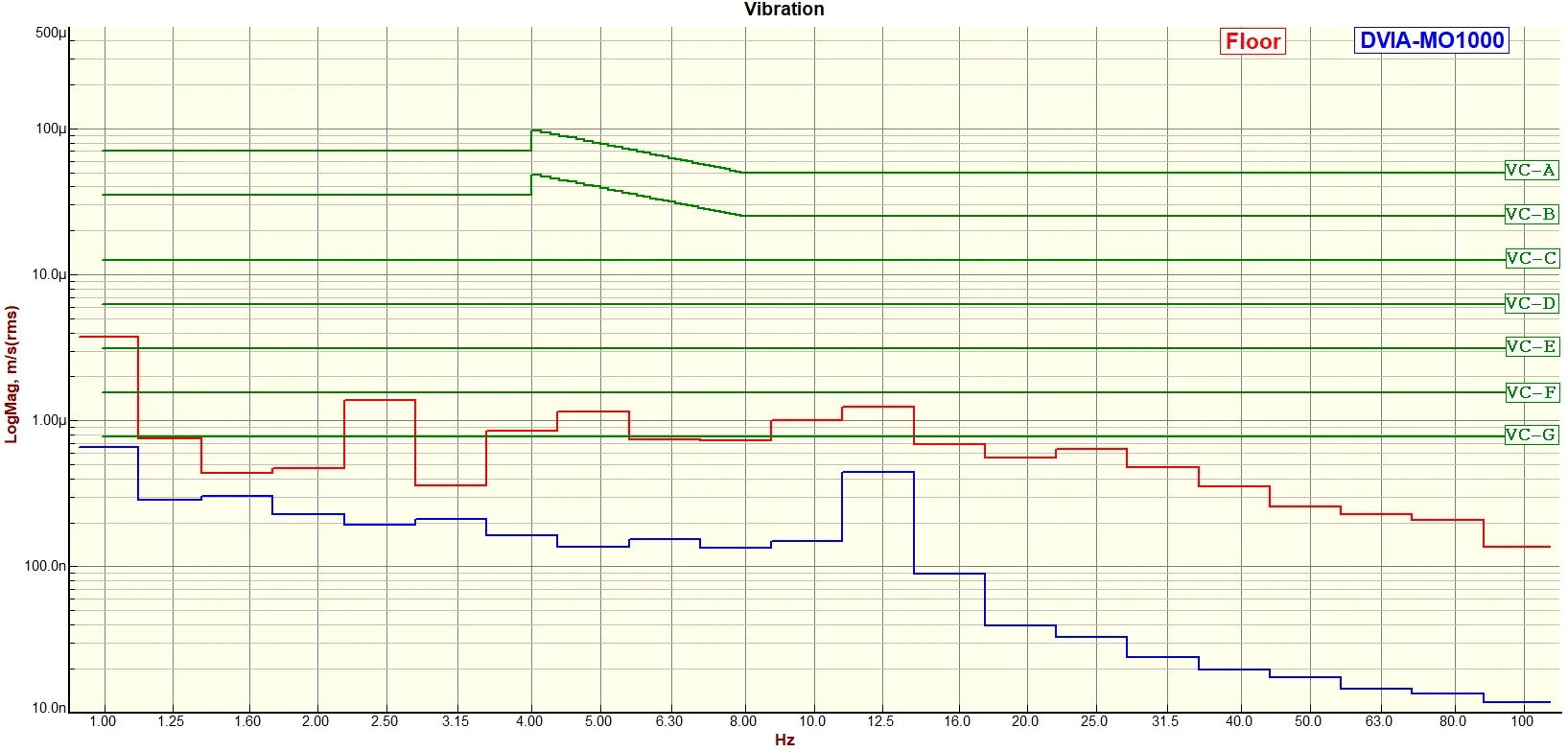

Left to Right VC Curves

Image 4 — Seoul National University DVIA-MO1000 (250310R6) Installation Report

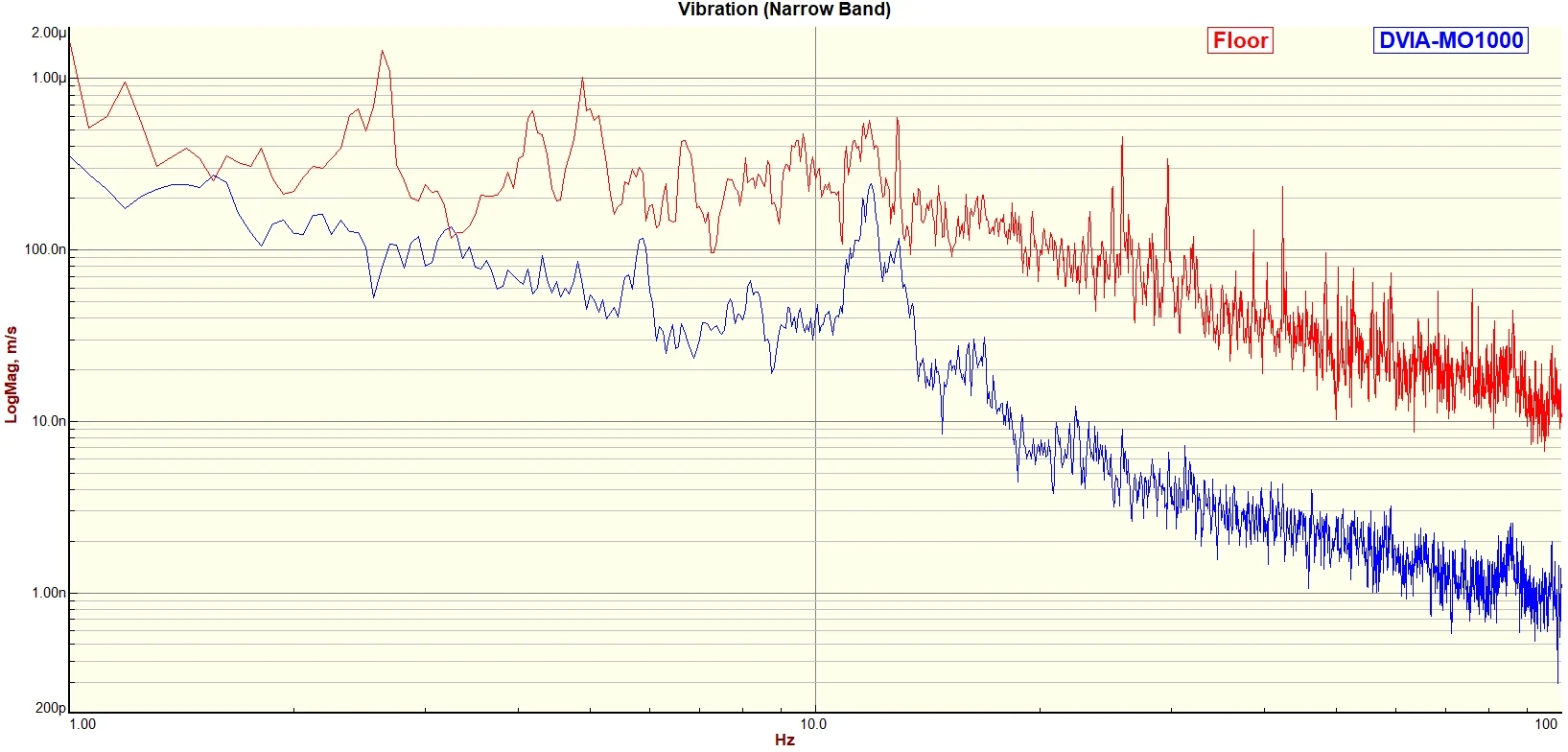

Left to Right Autospectrum

Image 5 — Seoul National University DVIA-MO1000 (250310R6) Installation Report

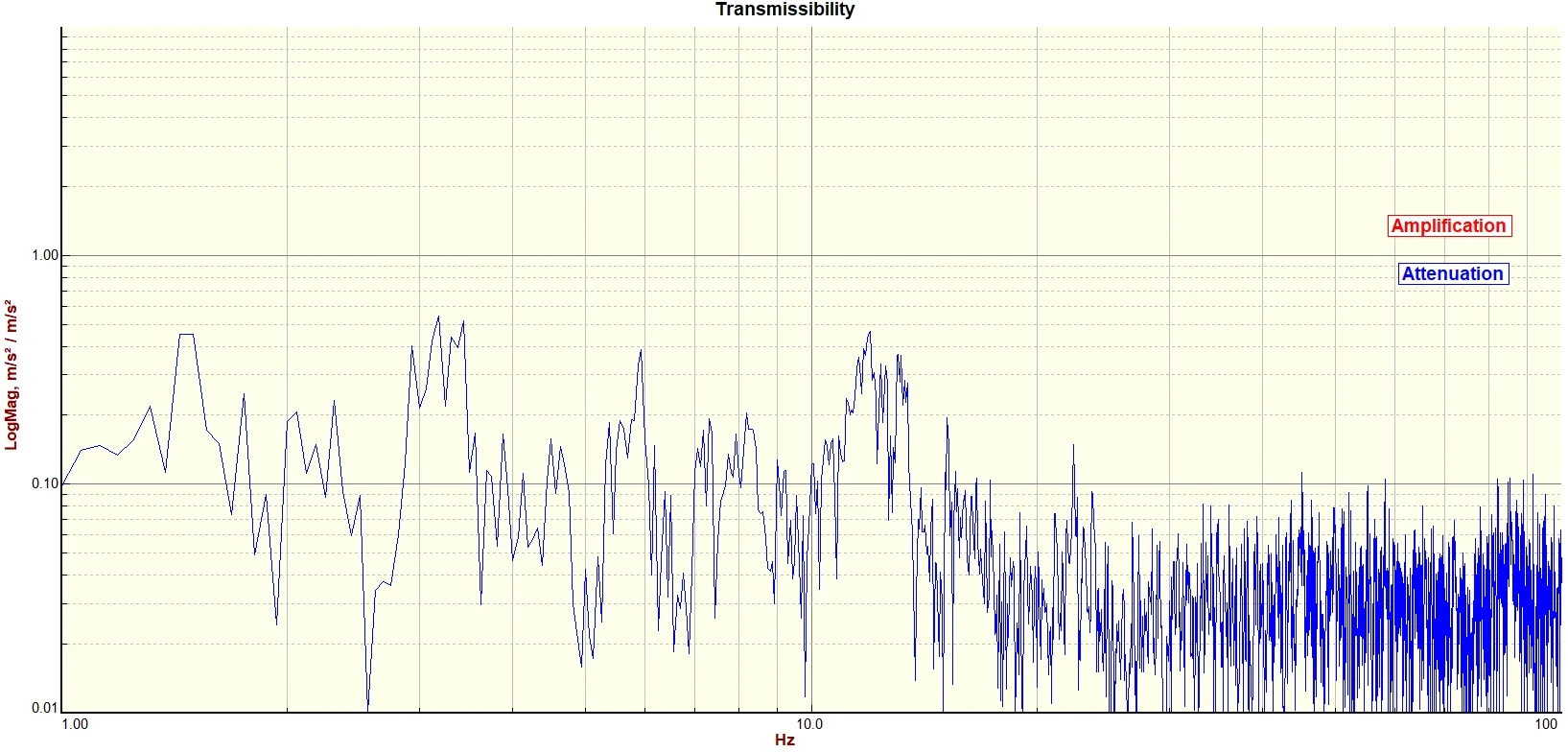

Left to Right Transmissibility

Image 6 — Seoul National University DVIA-MO1000 (250310R6) Installation Report

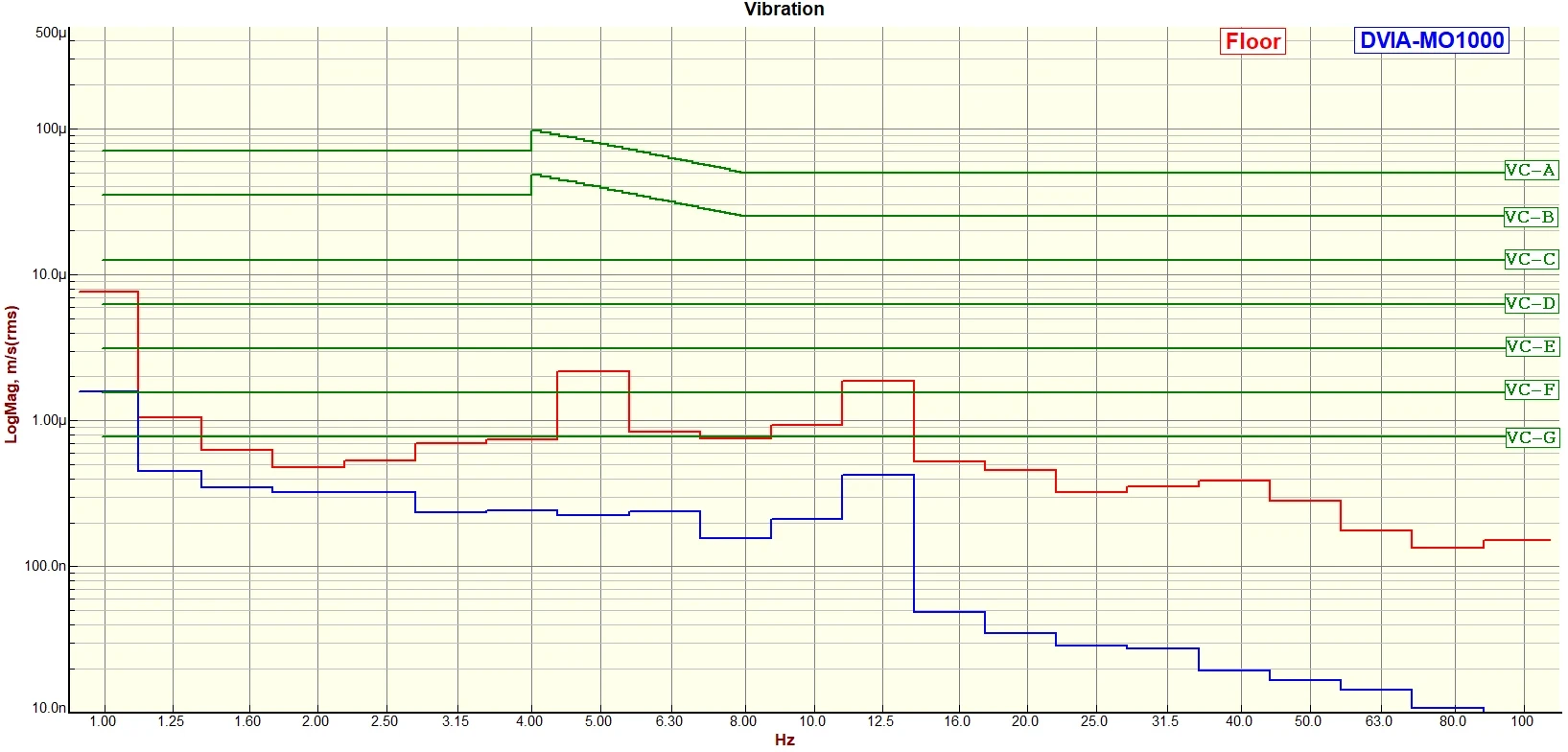

Front to Back VC Curves

Image 7 — Seoul National University DVIA-MO1000 (250310R6) Installation Report

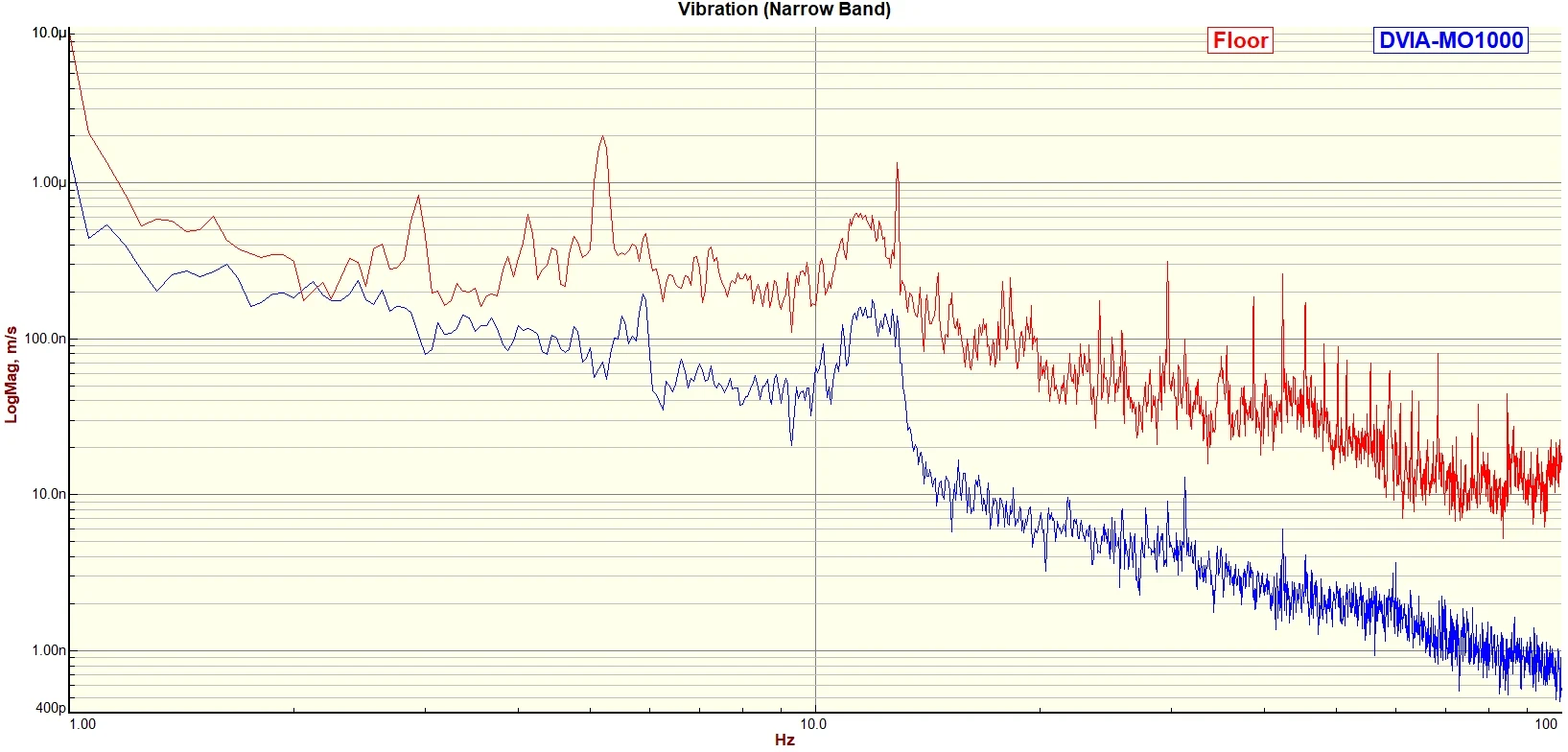

Front to Back Autospectrum

Image 8 — Seoul National University DVIA-MO1000 (250310R6) Installation Report

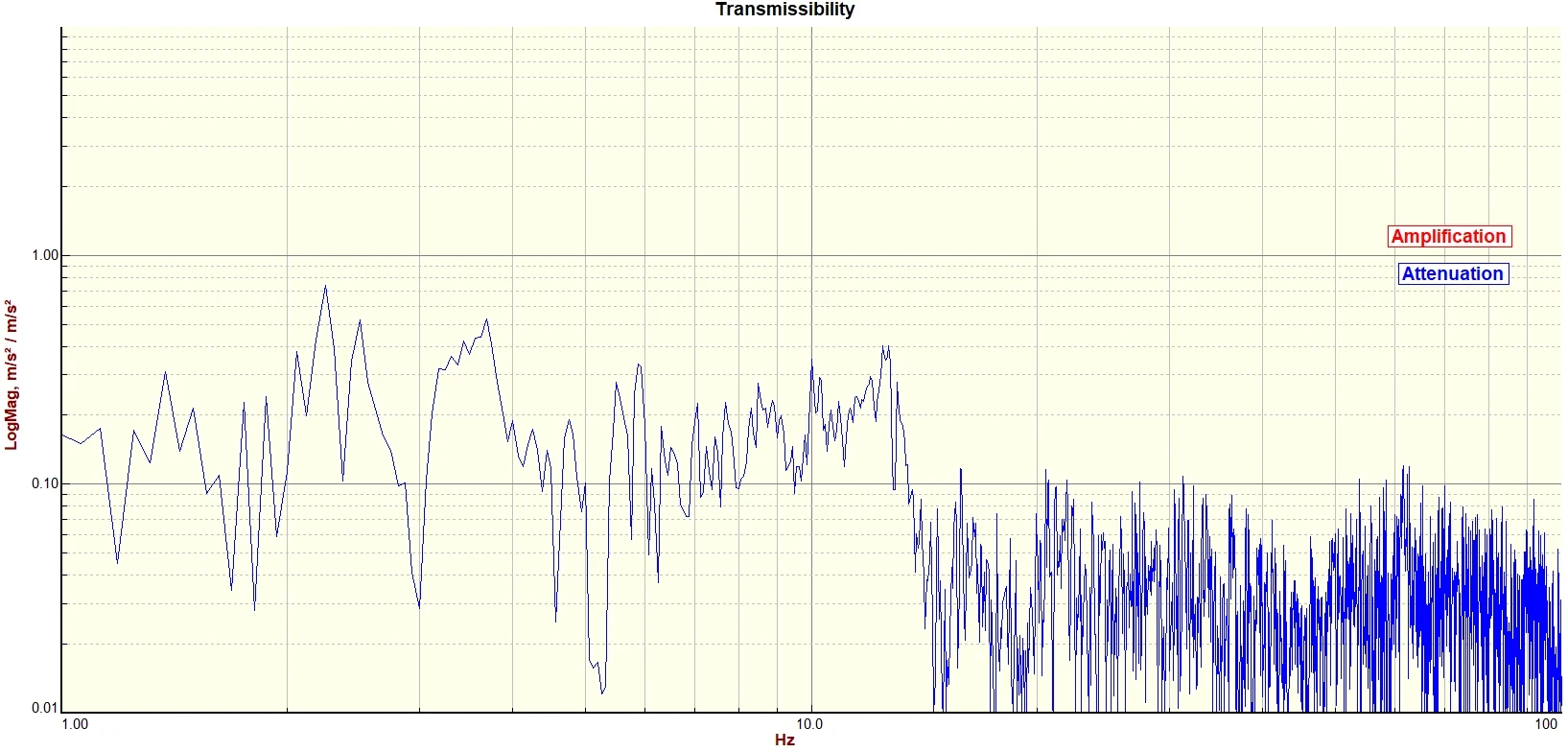

Front to Back Transmissibility

Image 9 — Seoul National University DVIA-MO1000 (250310R6) Installation Report

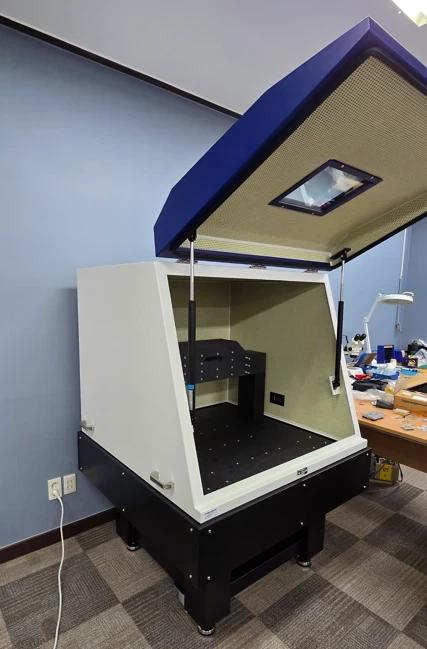

Equipment picture

Image 10 — Seoul National University DVIA-MO1000 (250310R6) Installation Report

Reference

Generic Vibration Criteria

Criterion Curve	Description	Amplitude µm/s (µin/s)	Detail Size µm
Workshop (ISO)	Distinctly perceptible vibration. Appropriate to workshops and non-sensitive areas.	800 (32,000)	N/A
Office (ISO)	Perceptible vibration. Appropriate to offices and non-sensitive areas.	400 (16,000)	N/A
Residential Area (ISO)	Barely perceptible vibration. Appropriate to sleep areas in most instances.	200 (8,000)	75
Operating Theatre (ISO)	Vibration not perceptible. Suitable for surgical suites, microscopes to 100x.	100 (4,000)	25
VC-A	Adequate for optical microscopes to 400x, microbalances, optical balances.	50 (2,000)	8
VC-B	Appropriate for inspection and lithography equipment to 3μm line widths.	25 (1,000)	3
VC-C	Appropriate for optical microscopes to 1000x, lithography equipment to 1μm.	12.5 (500)	1 - 3
VC-D	Suitable for demanding equipment including electron microscopes (SEMs/TEMs).	6.25 (250)	0.1 - 0.3
VC-E	For the most demanding systems including E-Beam lithography at nanometer scales.	3.12 (125)	< 0.1
VC-F	For extremely quiet research spaces. Not recommended as design criterion.	1.56 (62.5)	N/A
VC-G	For extremely quiet research spaces. Not recommended as design criterion.	0.78 (31.25)	N/A

Notes:

- As measured in one-third octave bands over 8-80 Hz (VC-A/B) or 1-80 Hz (VC-C through VC-G).

- Detail size refers to width in microelectronics fabrication or particle size in medical research.
