Tier-1 Semiconductor Cheonan C5 ZEISS X-ray Microscope Versa 630 DVIA-ML3000 (250225R3) Installation Report
Contents
Overview
Tuning and vibration measurement were performed on the DVIA-ML3000 installed at Tier-1 Semiconductor Cheonan Campus C5 1st floor analysis laboratory.
Tuning and vibration measurement were conducted with 장비 Turned on/IDLE.
Data are presented as VC Curves, and reference information on vibration levels is provided.
Vibration Isolation System Info
Model: DVIA-ML3000
Serial Number: 250225R3
Engineer
Chaewon Lee — DAEIL SYSTEMS field engineer
Tuning Date
June 2, 2025
Report written date
June 9, 2025
End User
Tier-1 Semiconductor
Installation Site
Tier-1 Semiconductor Cheonan Campus C5 1st floor analysis laboratory
Equipment Condition
장비 Turned on/IDLE
Customer Equipment
Manufacturer: ZEISS
Equipment: X-ray Microscope
Model: Versa 630
Measuring Equipment
9.1) Data Physics DAQ
Hardware: QUATTRO, Serial Number: 22436
Software: SignalCalc ACE
9.2) Accelerometer
PCB Accelerometer
Model: 393B05
Measurement Setup
F Span: 200 Hz
Lines: 3200
Engineering Units: m/s
Window: Hanning
Averaging: FFT Spectrum Averaging
Averaging mode: Exponential, 40
Equipment Vibration Specification
Conclusion
All directions satisfy the specification.
With the isolator turned off, the customer's equipment showed blurry X-ray images. After isolator tuning, with the customer's equipment turned on, X-ray images were confirmed to be captured normally.
Measurement Data
| Measurement Point | Status | Axis | Vibration specification | Floor | DVIA-ML3000 | Result | Result |
|---|---|---|---|---|---|---|---|
| Tier-1 Semiconductor Cheonan Campus C5 1st floor analysis laboratory 1. Floor 2. DVIA-ML3000 | 장비 Turned on/IDLE | Vertical | VC-C | VC-C @ 12.5 Hz | VC-G @ 12.5 Hz | ✓ PASS | ✓ PASS |
| Left to Right | VC-D @ 50 Hz | VC-G @ 50 Hz | ✓ PASS | ✓ PASS | |||
| Front to Back | VC-E @ 50 Hz | VC-G @ 50 Hz | ✓ PASS | ✓ PASS |
Data and Image

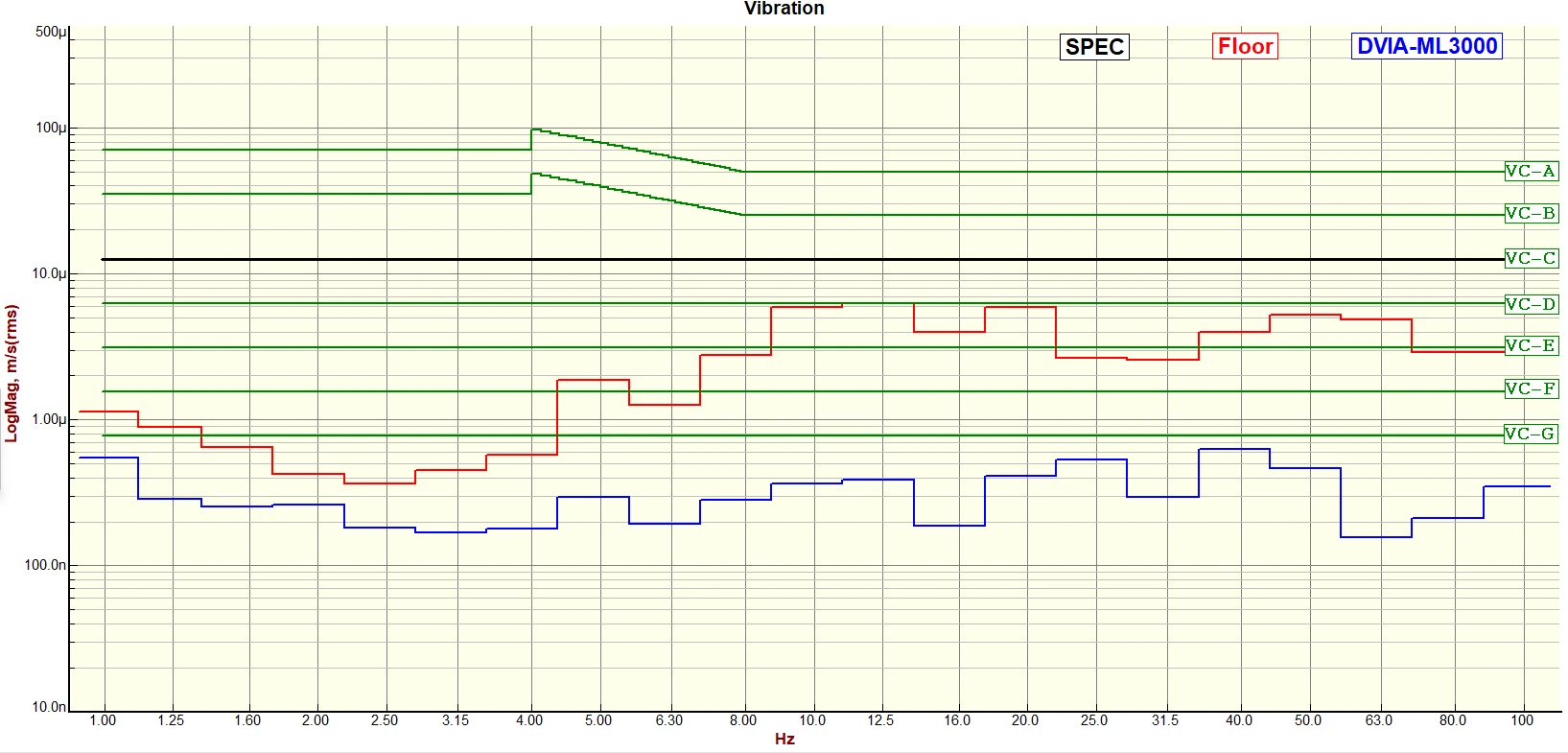

Vertical VC Curves

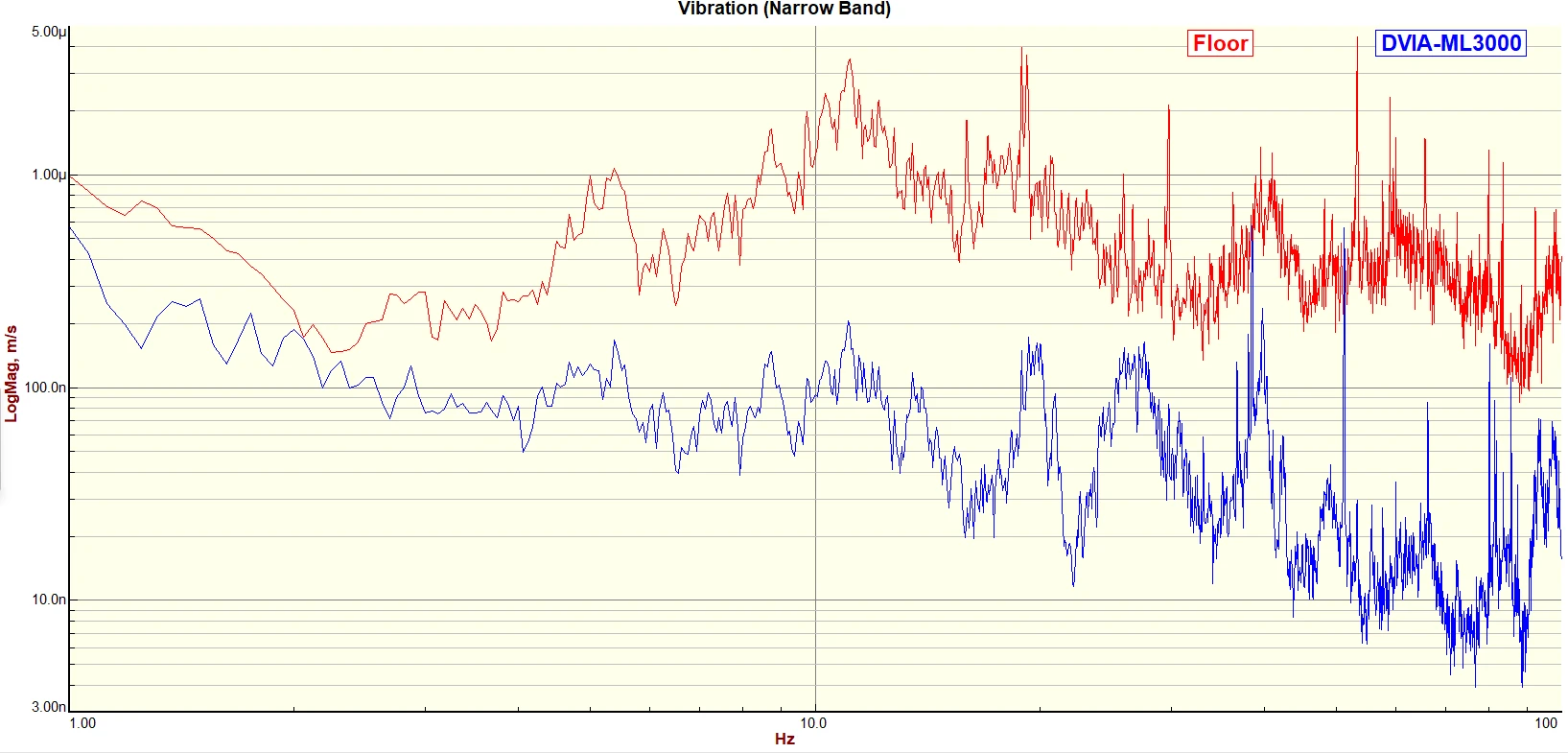

Vertical Autospectrum

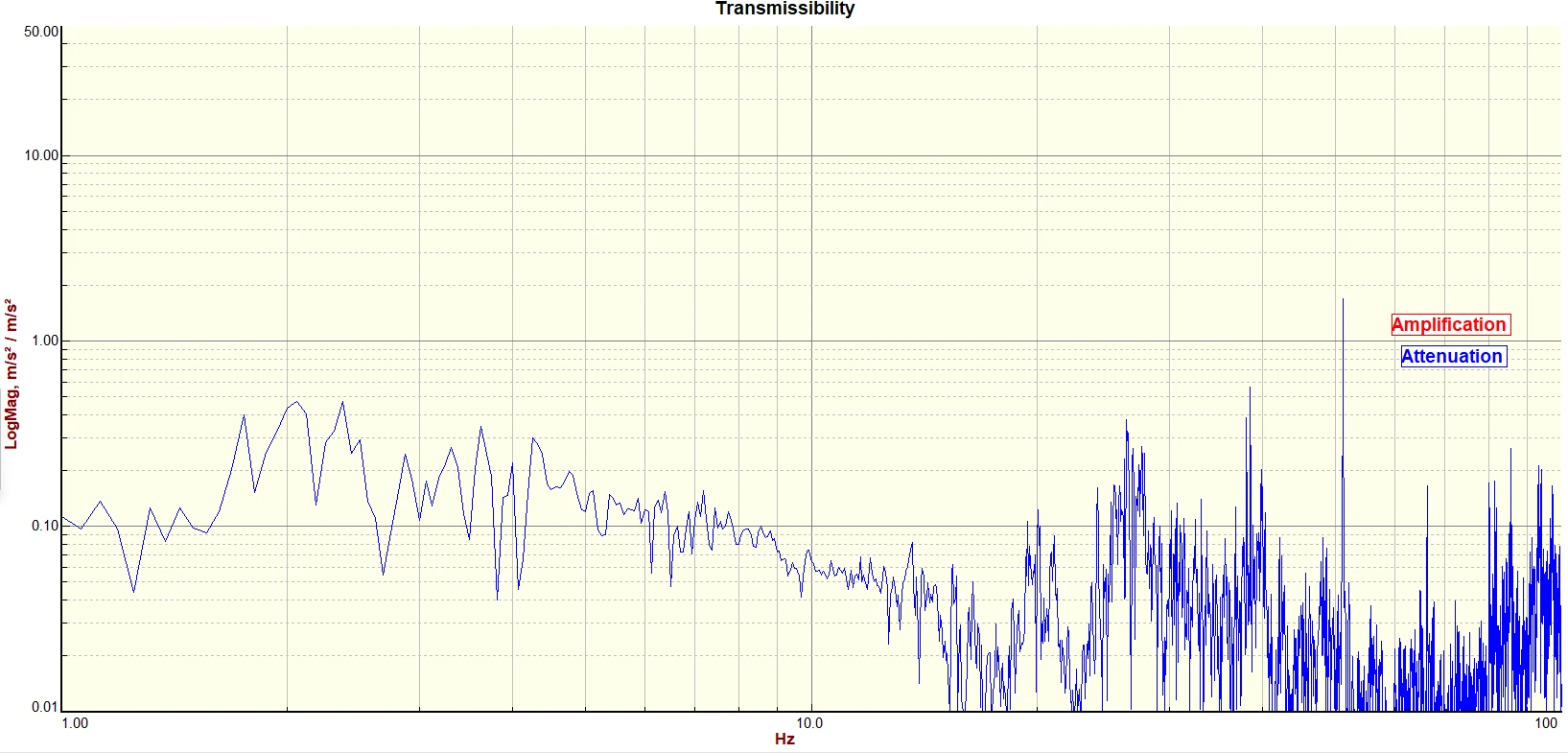

Vertical Transmissibility

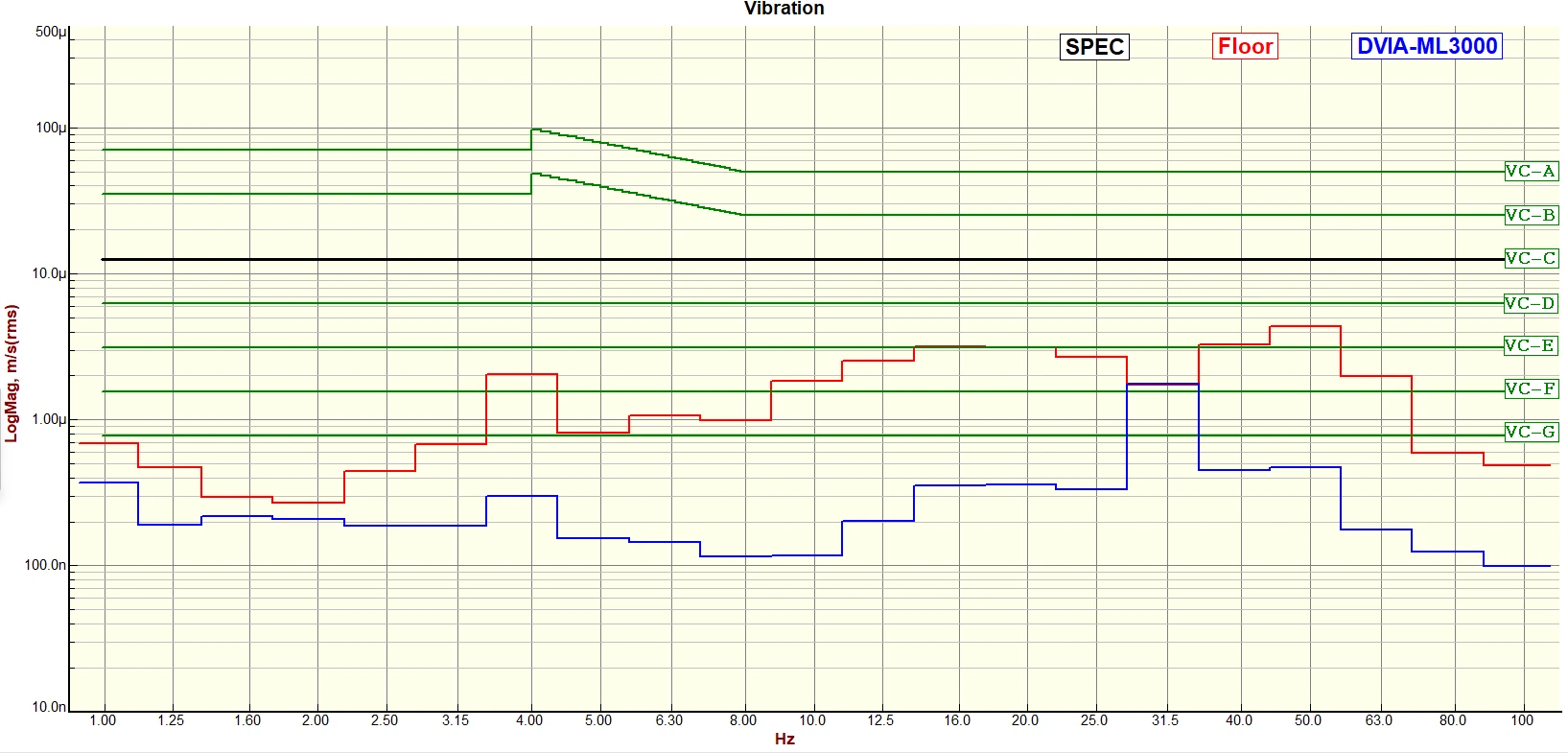

Left to Right VC Curves

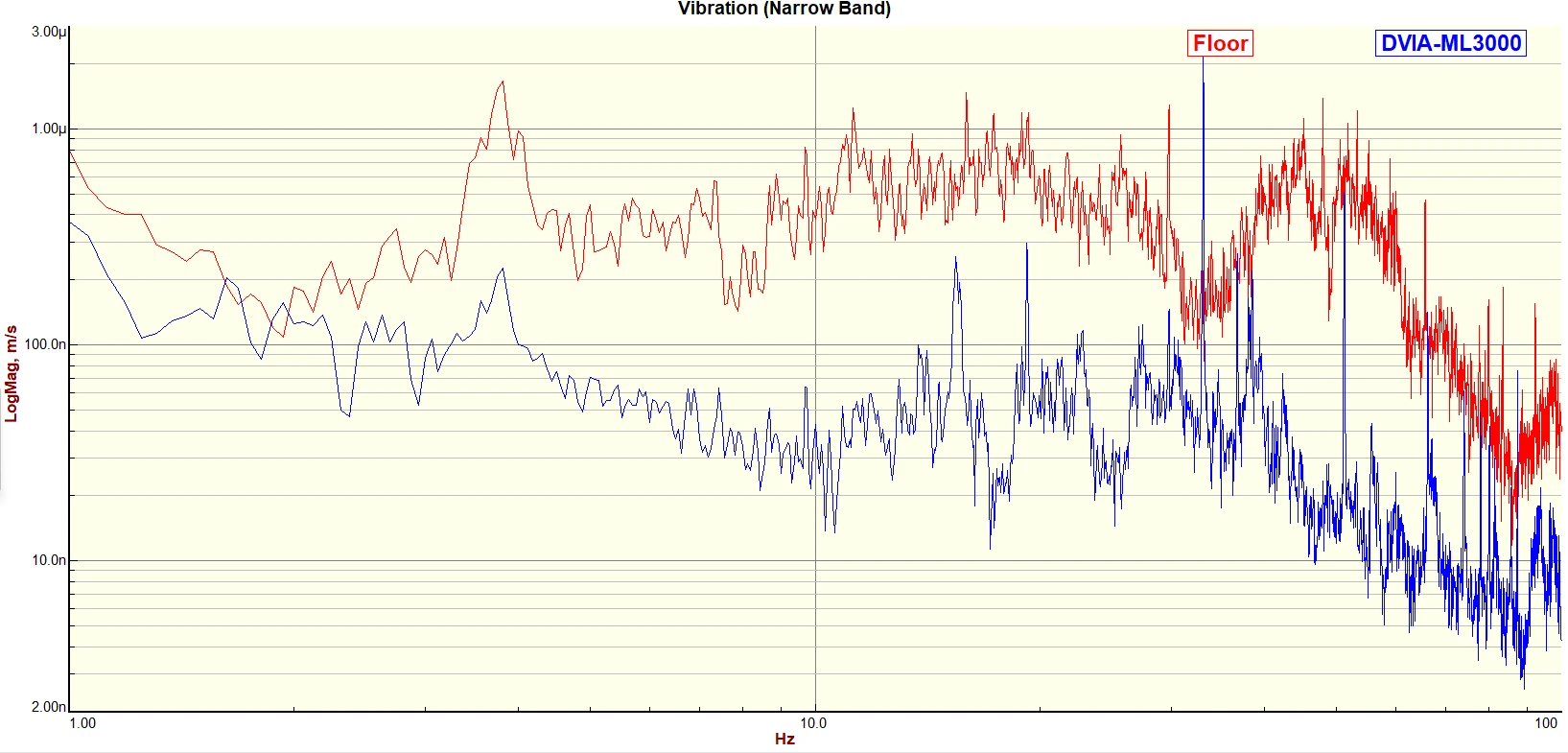

Left to Right Autospectrum

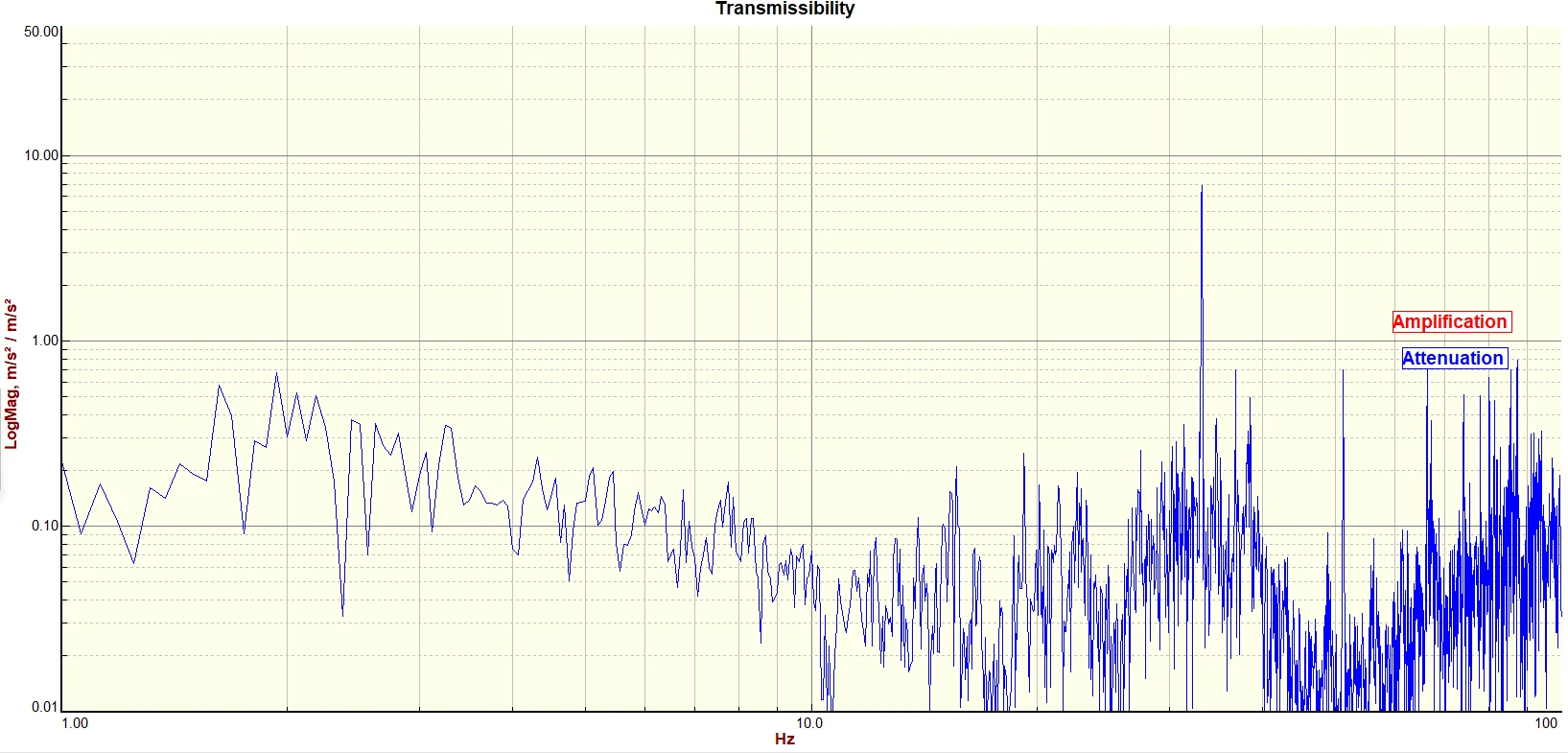

Left to Right Transmissibility

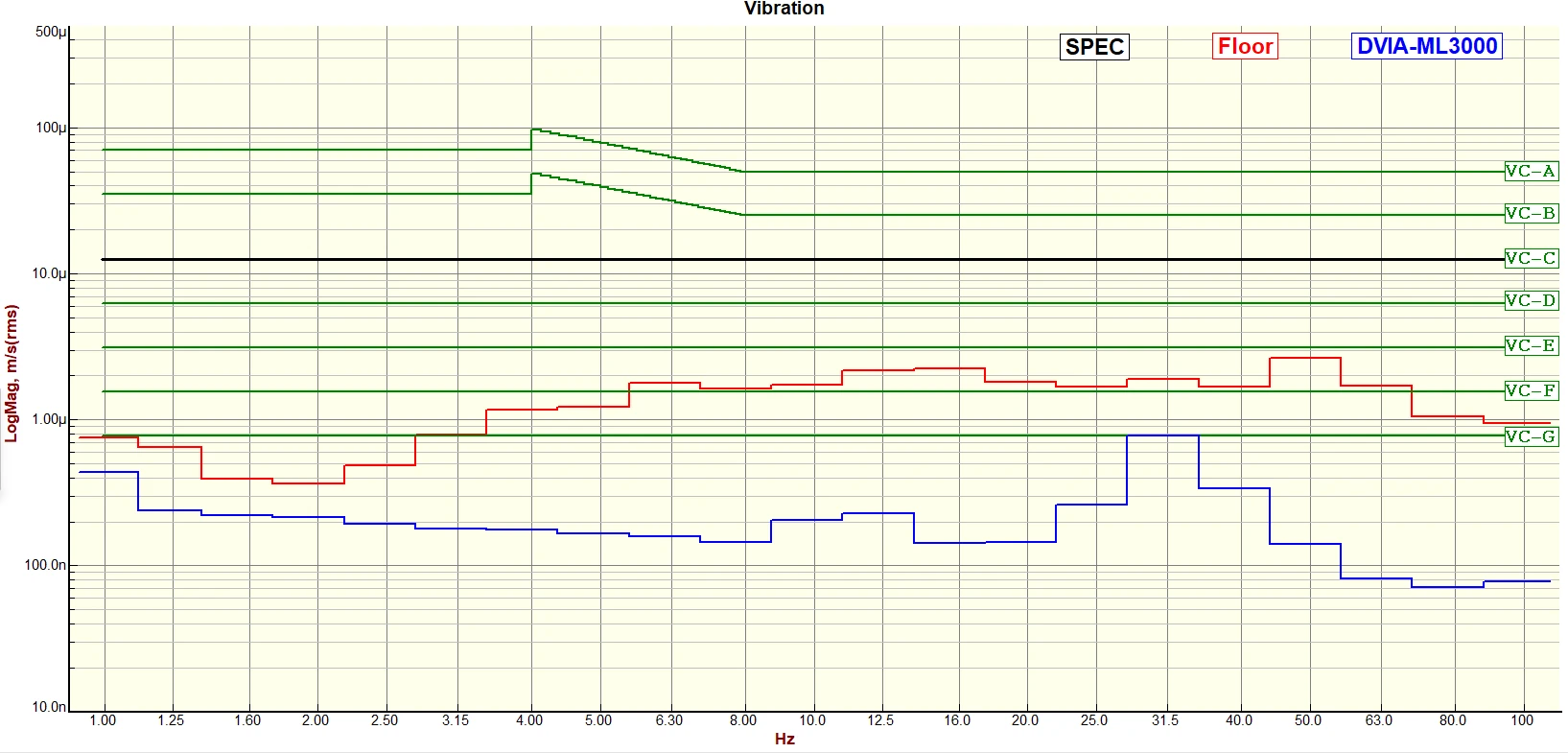

Front to Back VC Curves

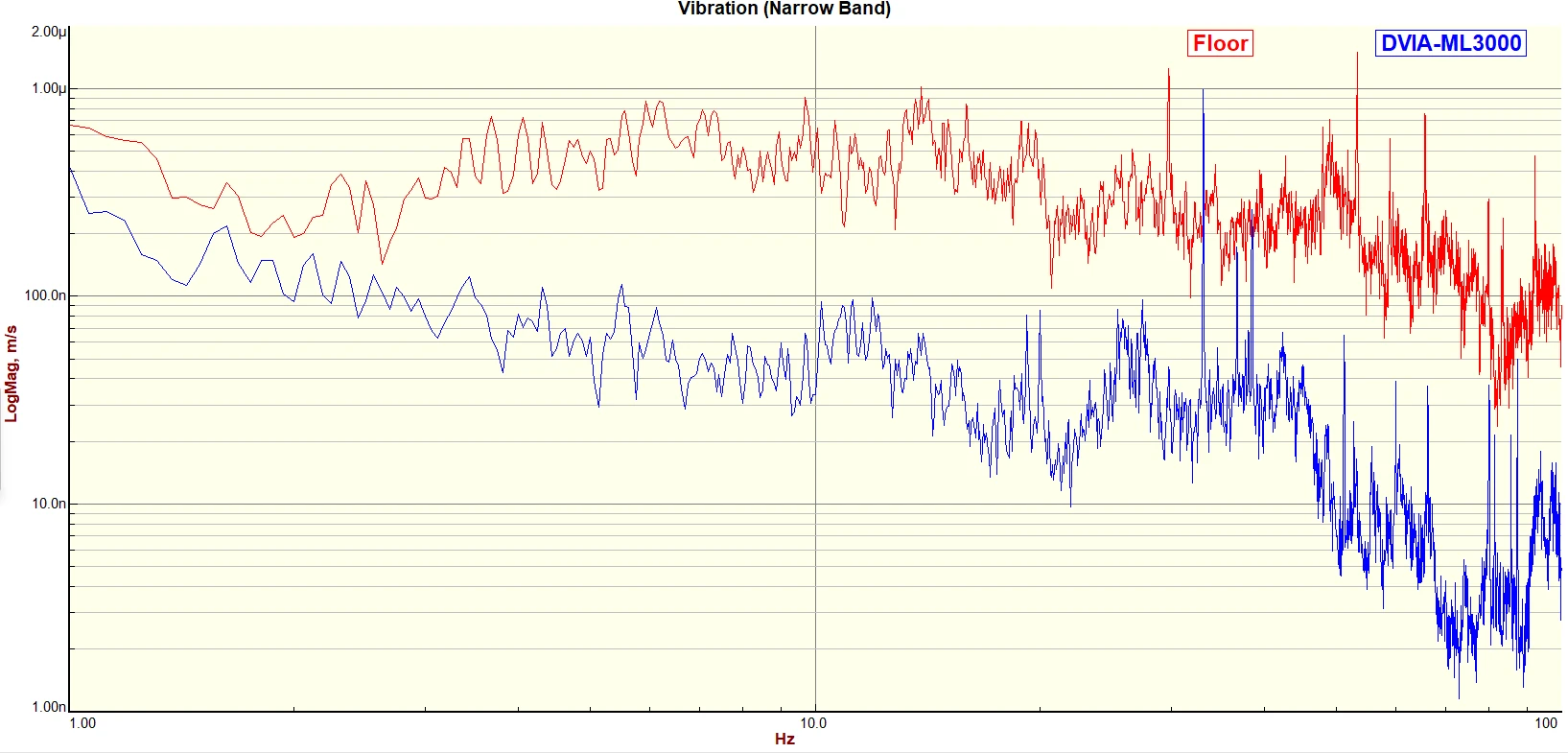

Front to Back Autospectrum

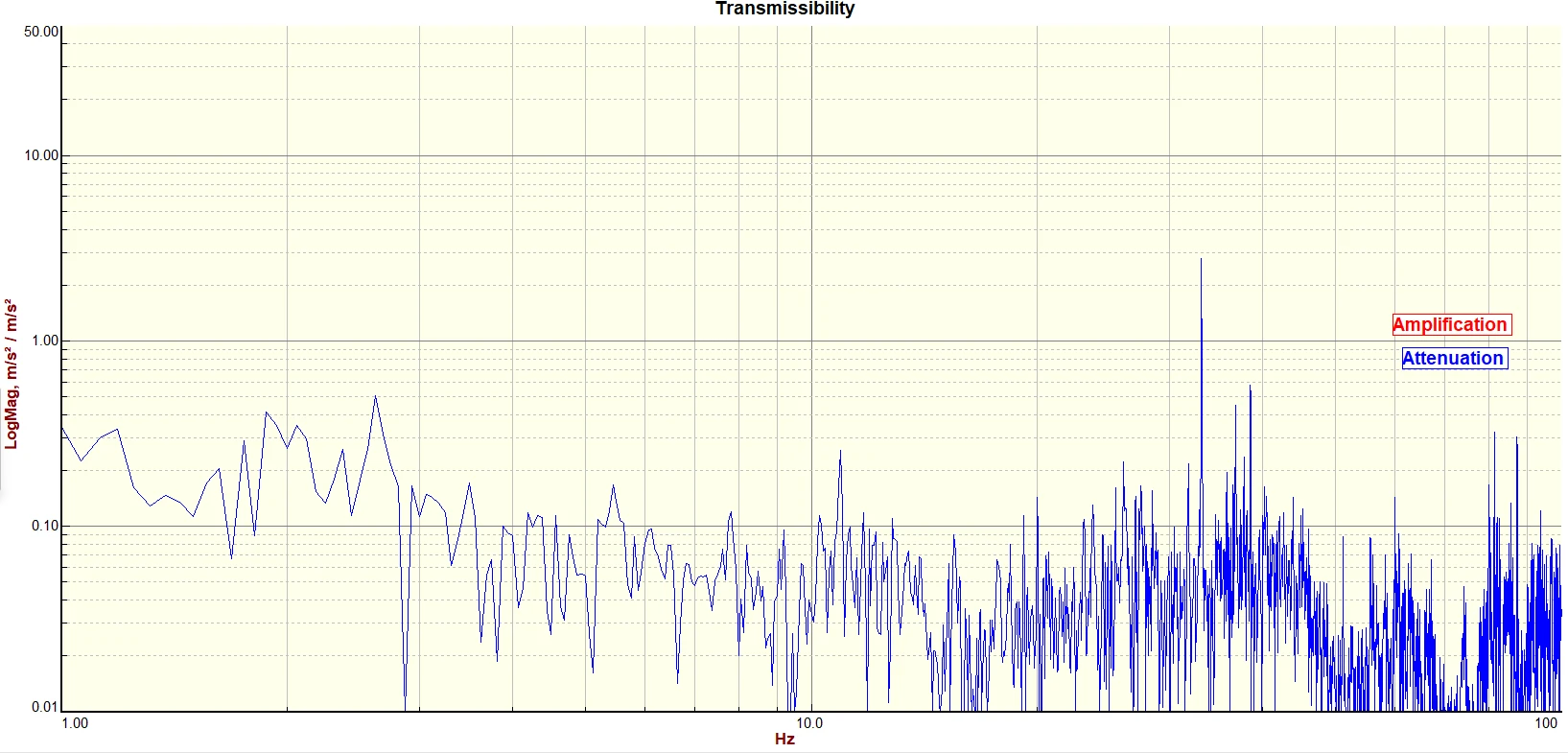

Front to Back Transmissibility
Reference
Generic Vibration Criteria
Notes:
- As measured in one-third octave bands over 8-80 Hz (VC-A/B) or 1-80 Hz (VC-C through VC-G).
- Detail size refers to width in microelectronics fabrication or particle size in medical research.
