KIMM Self-made DVIA-P550 Installation Report
Contents
Overview
Tuning and vibration measurement were performed on the DVIA-P550 installed at KIMM L2 building 1F lab.
Tuning and vibration measurement were conducted due to equipment setup changes.
Tuning and vibration measurement were conducted with the equipment Turned on/IDLE.
Data are presented as VC Curves, along with reference materials for vibration level assessment.
Vibration Isolation System Information
Model: DVIA-P550
Serial Number: 250210R2-1
Engineer
Chaewon Lee from DAEIL SYSTEMS
Measurement Date
February 24, 2026
Installation Site
KIMM L2 building 1F lab
End User
KIMM (Korea Institute of Machinery & Materials)
Equipment Information
Manufacturer: Self-made
Equipment: Self-made
Model: Self-made
Equipment Specifications
N/A
Equipment Status
Equipment Turned on/IDLE
Measuring Equipment
10.1) Data Physics DAQ
Hardware: QUATTRO, Serial Number: 22436
Software: SignalCalc ACE
10.2) Accelerometer
PCB Accelerometer
Model: 393B05
Measuring Set-up
F Span: 200 Hz
Lines: 3200
Engineering Units: m/s
Window: Hanning
Averaging: FFT Spectrum Averaging
Averaging mode: Exponential, 40
Conclusion
Vertical: Vibration is attenuated from VC-C to VC-F at 31.5 Hz.
Left to Right: Vibration is attenuated from VC-D to VC-G at 20 Hz.
Front to Back: Vibration is attenuated from VC-C to VC-F at 31.5 Hz.
Measurement Data
| Measuring Point | Status | Direction | Floor Vibration | DVIA-P550 |
|---|---|---|---|---|
| KIMM L2 building 1F lab 1. Floor Vibration 2. DVIA-P550 | Turned on/IDLE | Vertical | VC-C @ 31.5 Hz | VC-F @ 31.5 Hz |
| Left to Right | VC-D @ 20 Hz | VC-G @ 20 Hz | ||
| Front to Back | VC-C @ 31.5 Hz | VC-F @ 31.5 Hz |
Data and Image

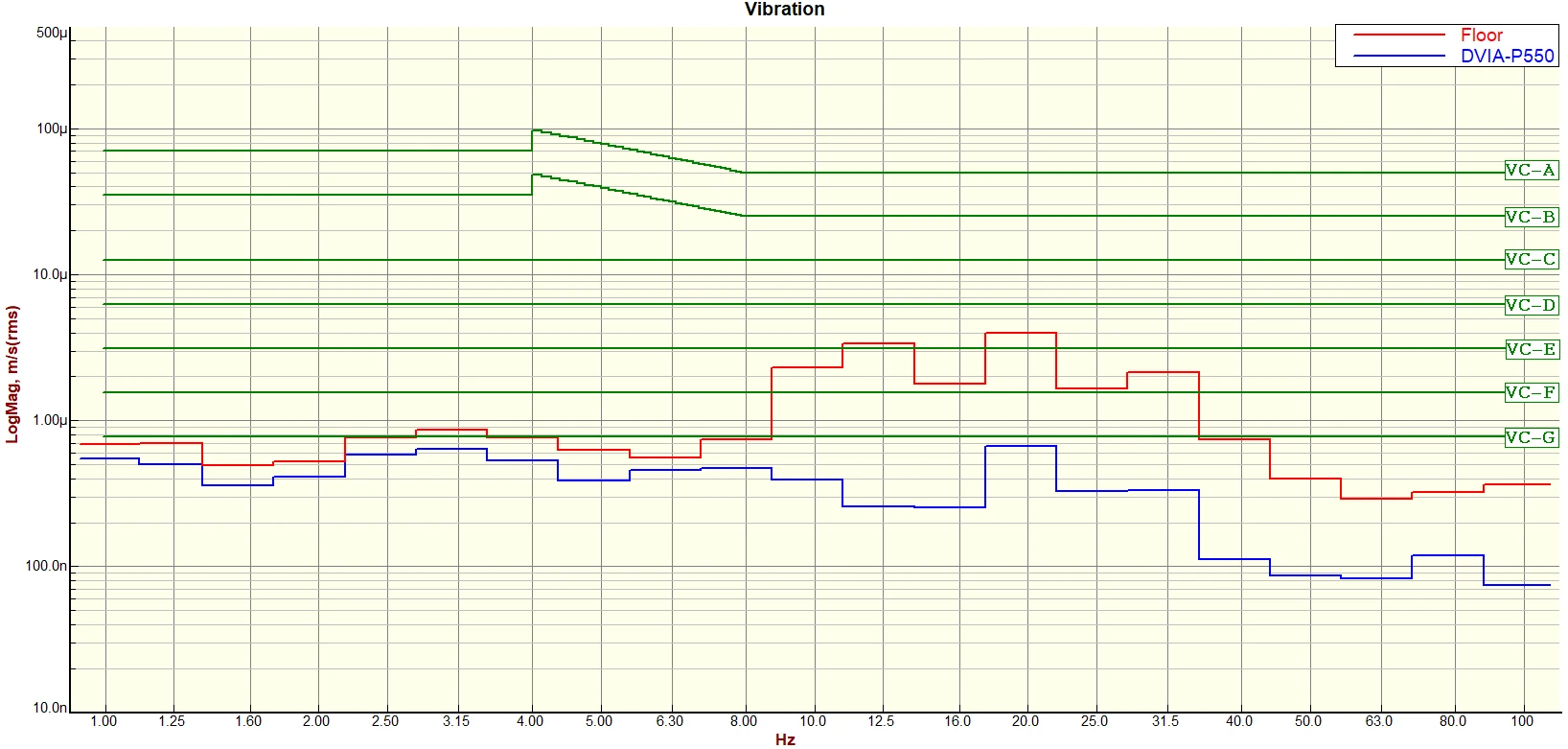

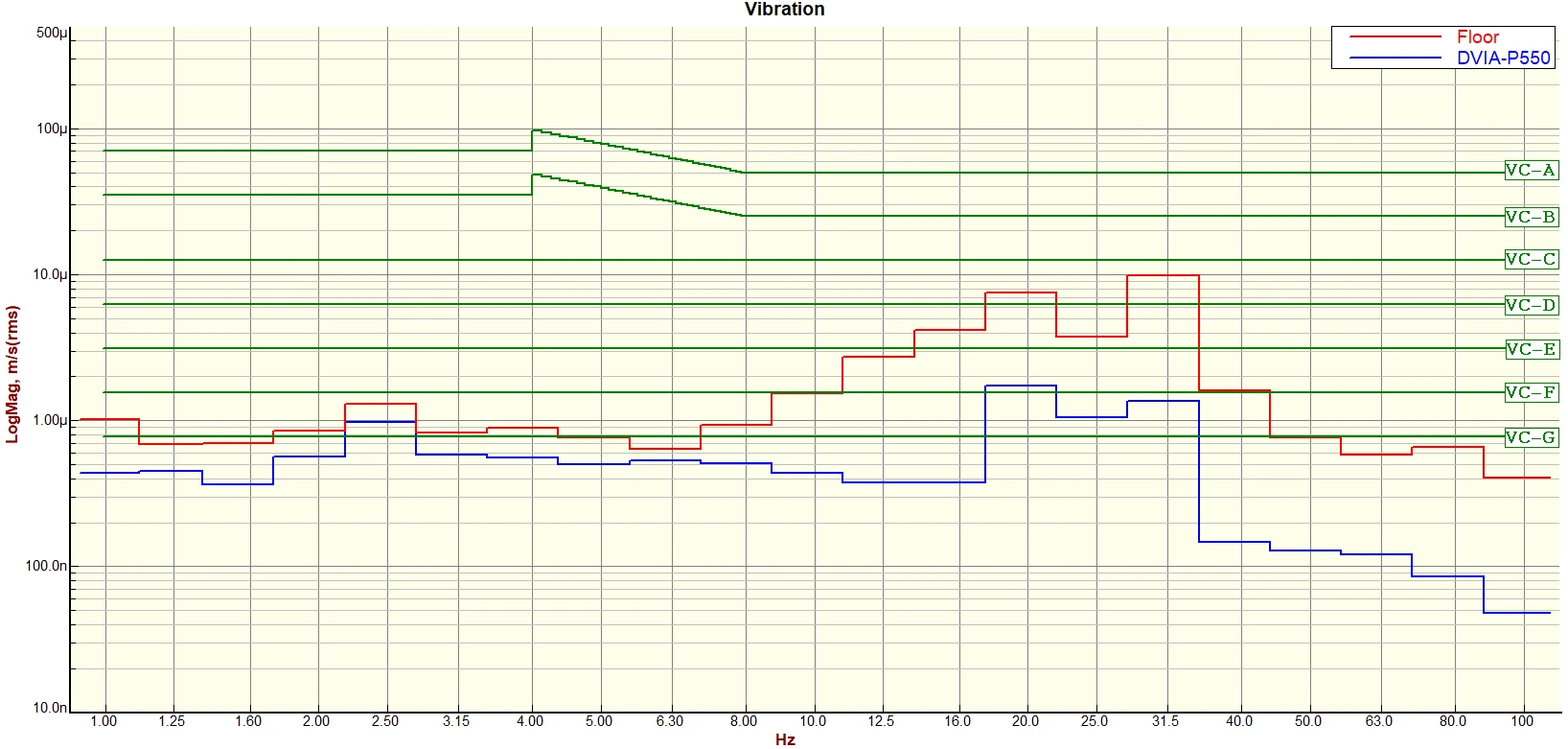

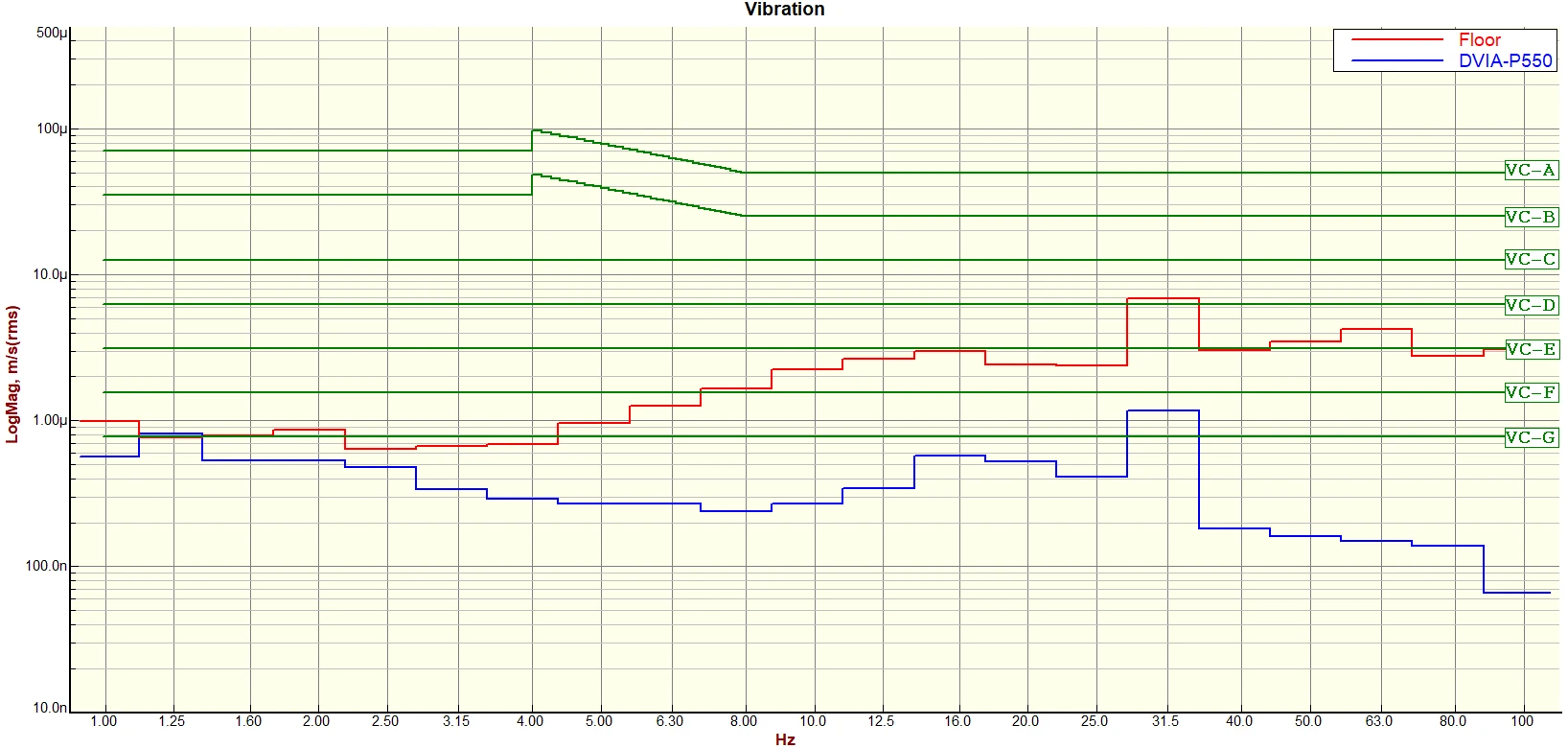

Vertical VC Curves

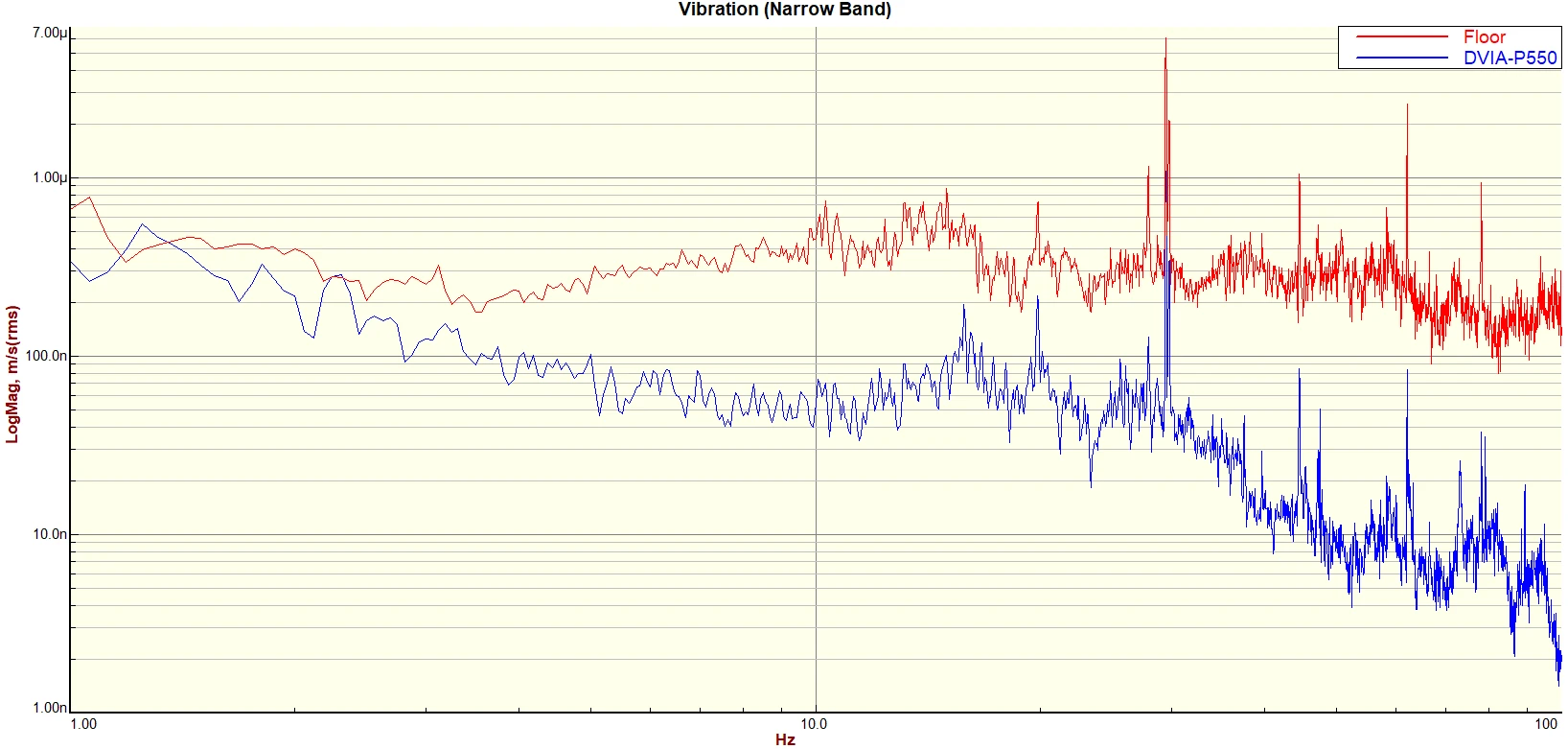

Vertical Autospectrum

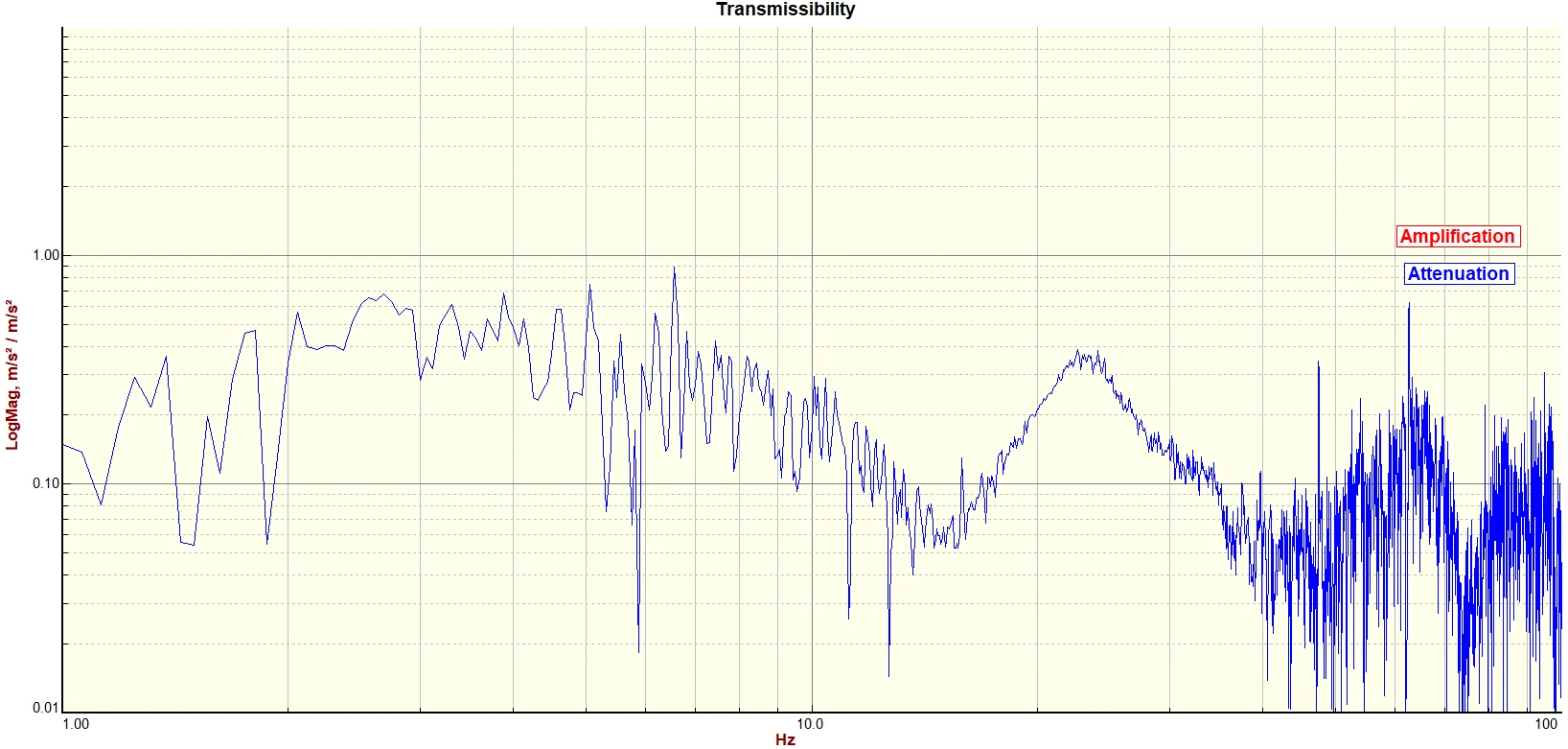

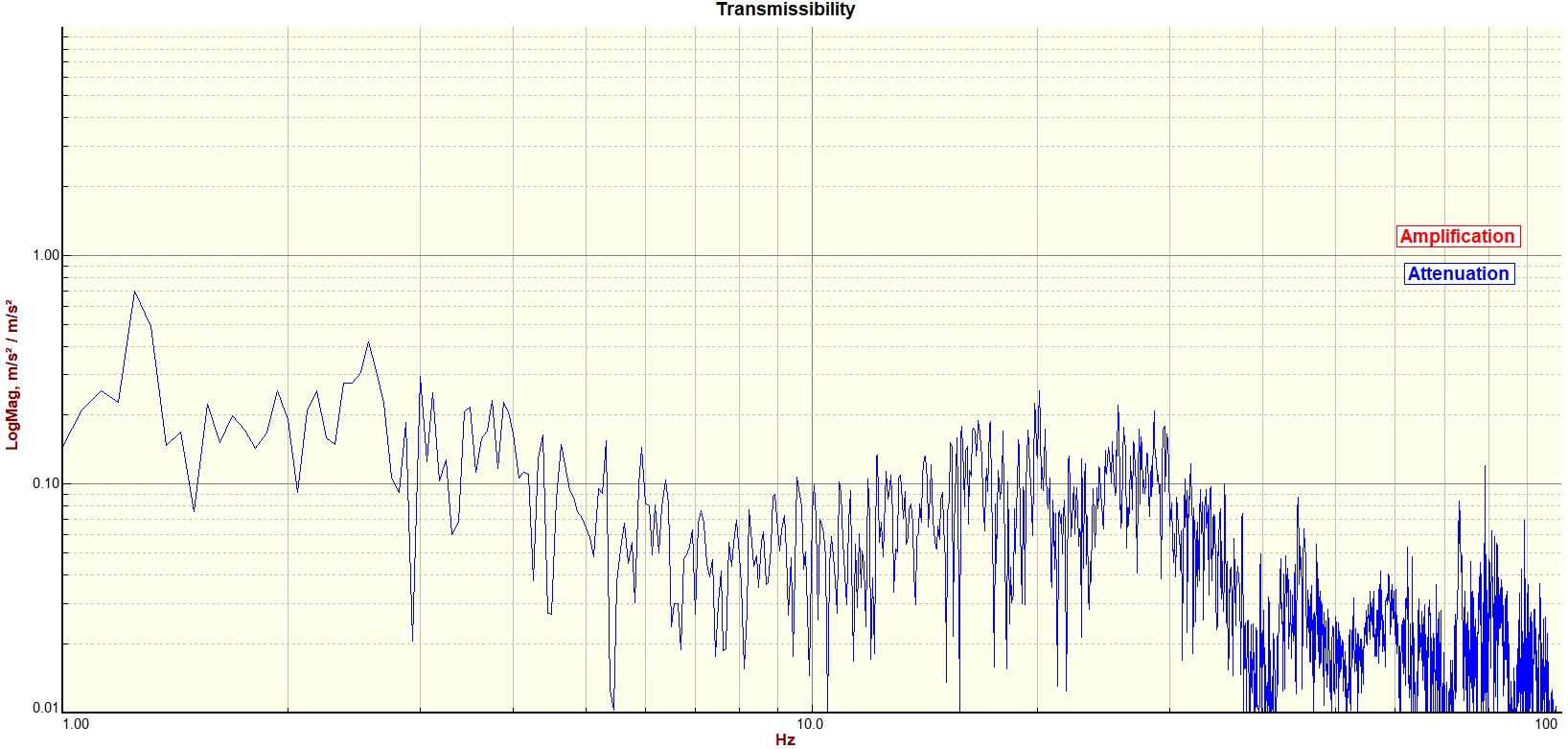

Vertical Transmissibility

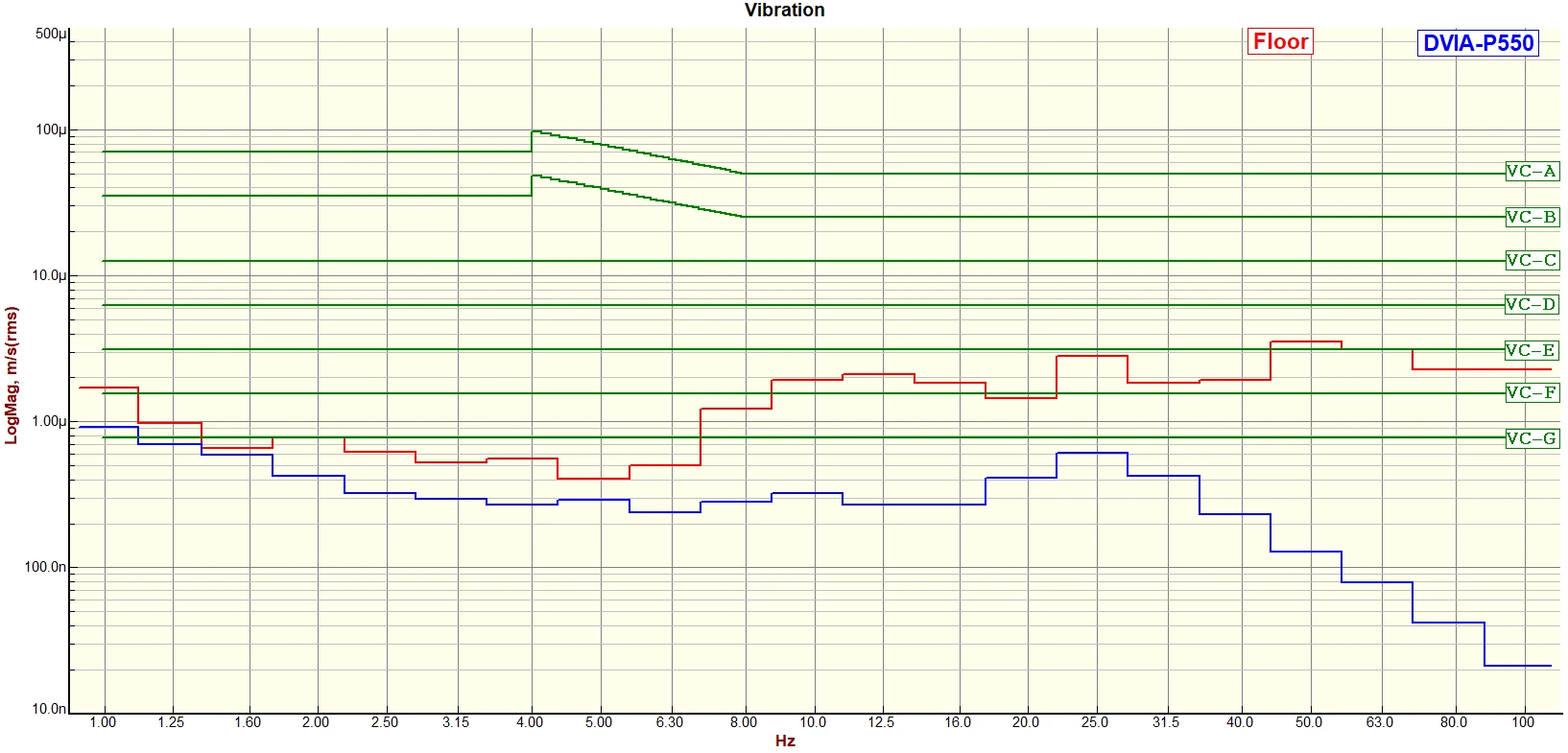

Left to Right VC Curves

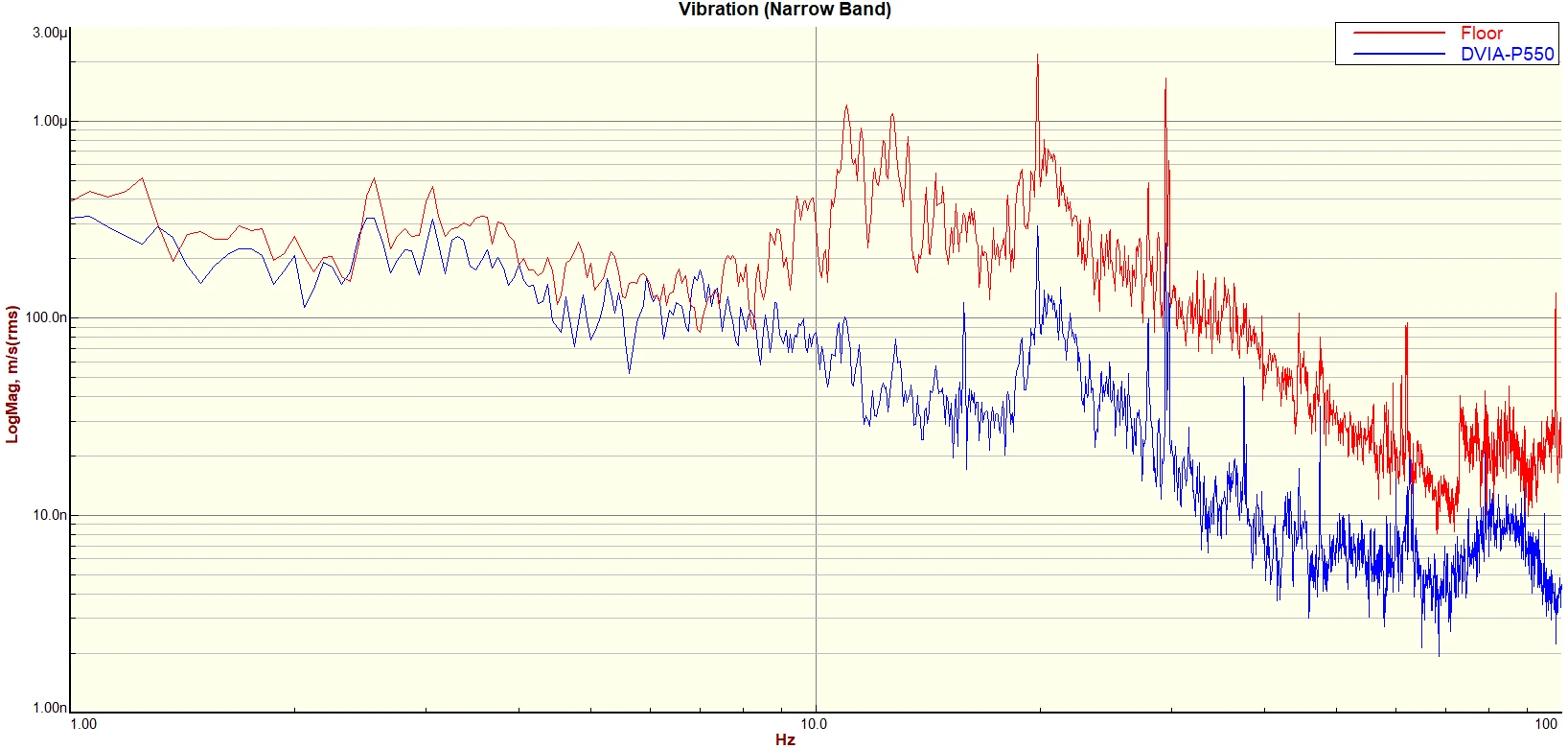

Left to Right Autospectrum

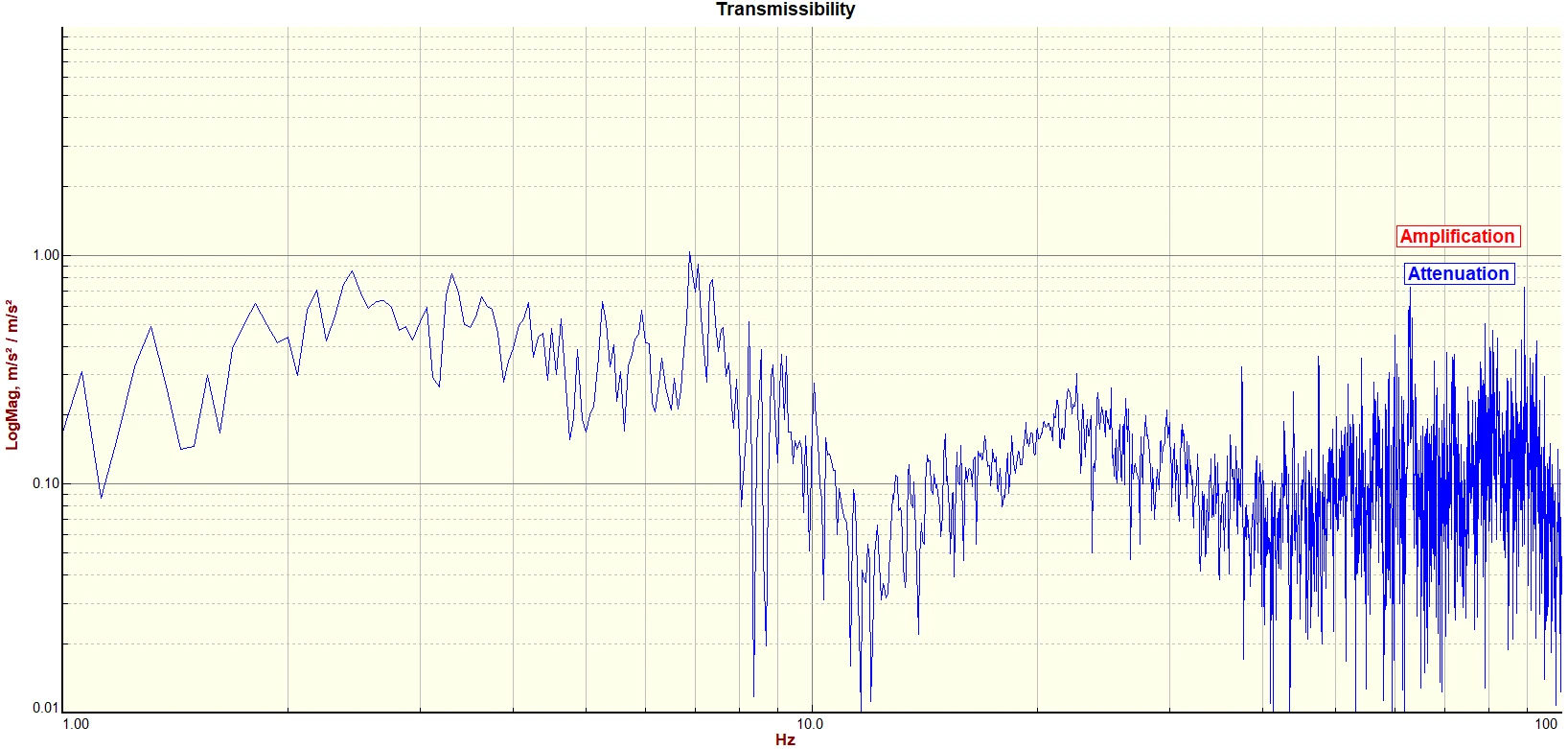

Left to Right Transmissibility

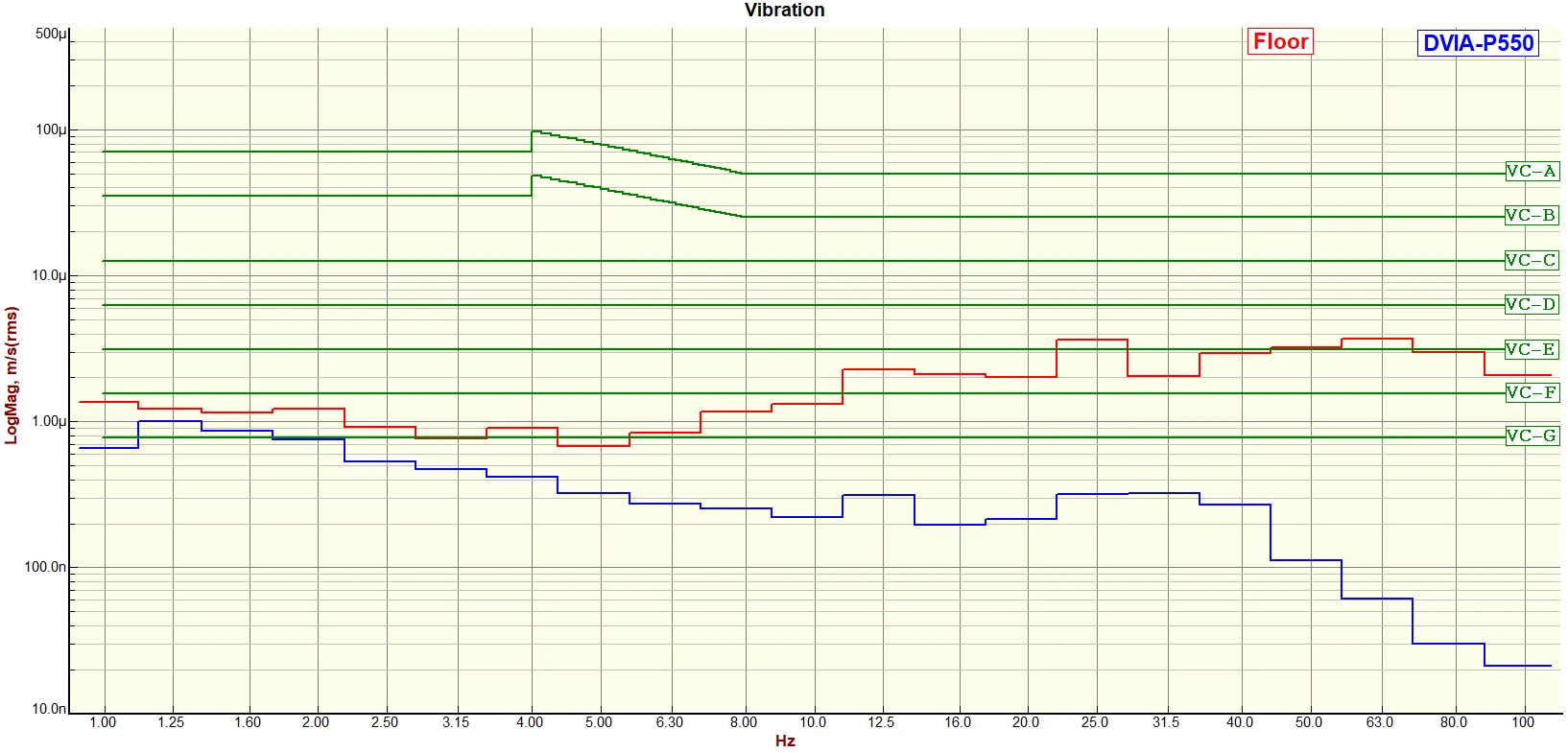

Front to Back VC Curves

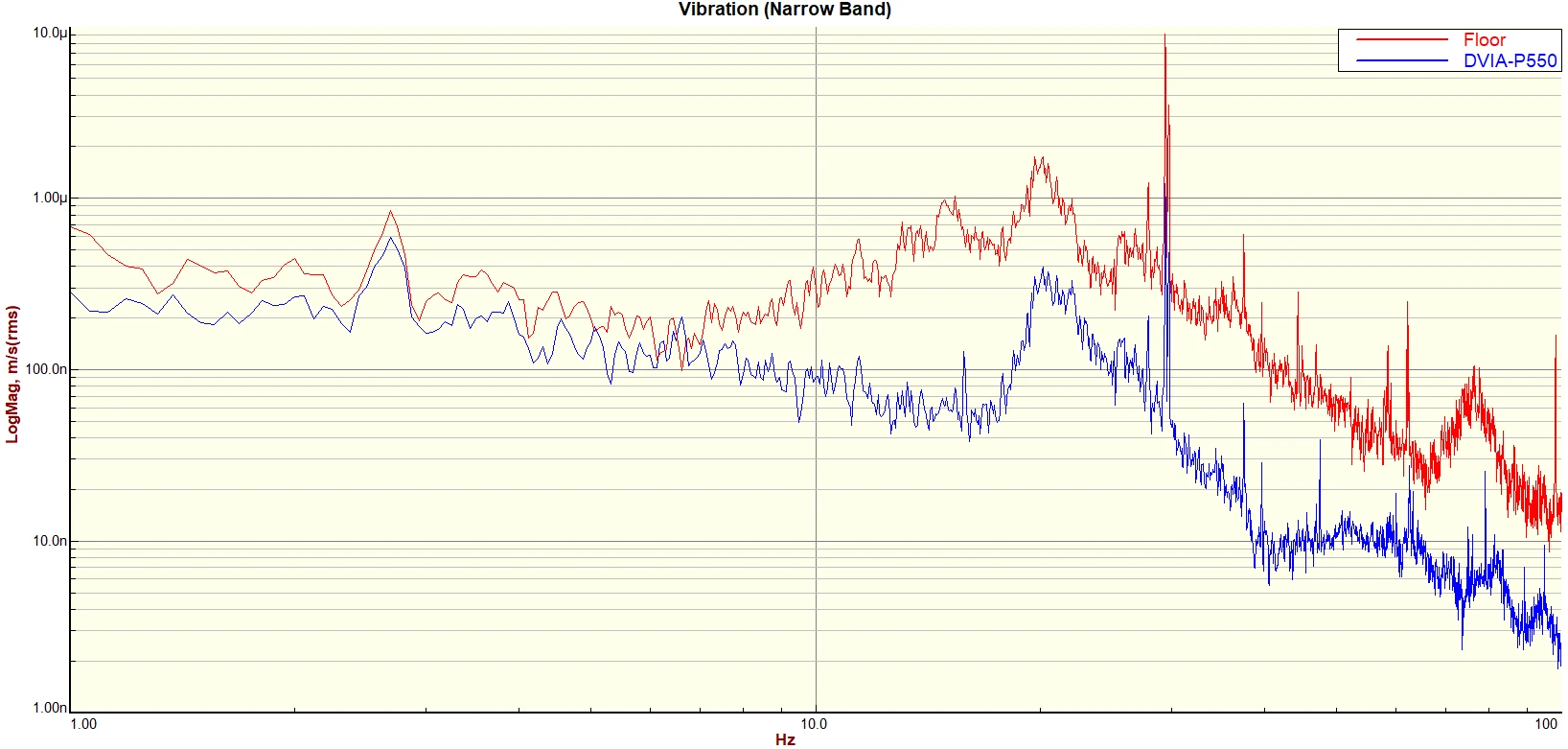

Front to Back Autospecturm
Front to Back Transmissibility
Reference
Generic Vibration Criteria
Notes:
1. VC-A/B is measured in 1/3 octave bands from 8-80 Hz, VC-C through VC-G from 1-80 Hz.
2. Detail size refers to line widths in microelectronics manufacturing or particle sizes in medical research.
