LB Semicon Pyeongtaek P2 Line Nordson Integra 4800 DVIA-P2200 Installation Report
Contents
Overview
Tuning and vibration measurement were performed on the DVIA-P2200 installed at LB Semicon Pyeongtaek P2 line.
Tuning and vibration measurement were conducted before the equipment was placed.
Data are presented as VC Curves together with reference materials on vibration levels.
Vibration Isolation System Information
Model: DVIA-P2200
Serial Number: 21223R2
Engineer
Chaewon Lee and Jonghwa Seo from DAEIL SYSTEMS
Measurement Date
February 7, 2025
Installation Site
LB Semicon Pyeongtaek P2 line
End User
LB Semicon
Equipment Status
장비 미설치
Equipment Information
Manufacturer: Nordson
Equipment: Auto Shear
Model: Integra 4800
Vibration Specifications
VC-B
Measuring Equipment
10.1) Data Physics DAQ
-Hardware: QUATTRO, Serial Number: 22436
-Software: SignalCalc ACE
10.2) Accelerometer
PCB Accelerometer
Model: 393B05
Measuring Set-up
F Span: 200
Lines: 3200
Engineering Units: m/s
Window: Hanning
Averaging: FFT Spectrum Averaging
Average Mode: Exponential, 40
Conclusion
The vibration specification was met in every direction.
Measurement Data
| Measuring Point | Status | Specification | Direction | Measurement Data | Result | ||
|---|---|---|---|---|---|---|---|
| Floor | DVIA-P2200 | Floor | DVIA-P2200 | ||||
| LB Semicon Pyeongtaek P2 line 1. Floor 2. DVIA-P2200 | 장비 미설치 | VC-B | Vertical | VC-A @ 8 Hz | VC-D @ 8 Hz | ✗ FAIL | ✓ PASS |
| Left to Right | VC-C @ 63 Hz | VC-G @ 63 Hz | ✓ PASS | ✓ PASS | |||
| Front to Back | VC-A @ 31.5 Hz | VC-D @ 31.5 Hz | ✗ FAIL | ✓ PASS | |||
Data and Image

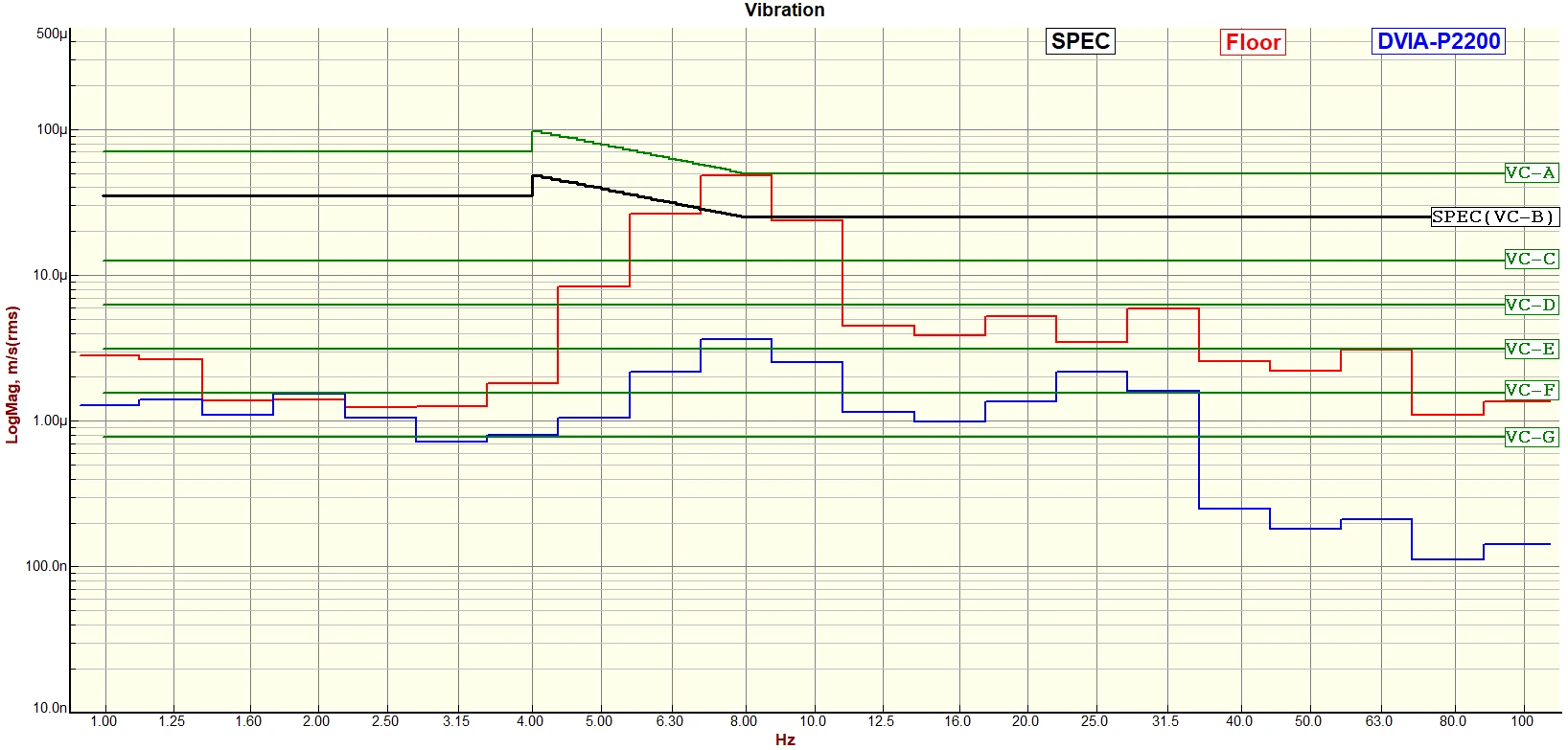

Vertical VC Curves

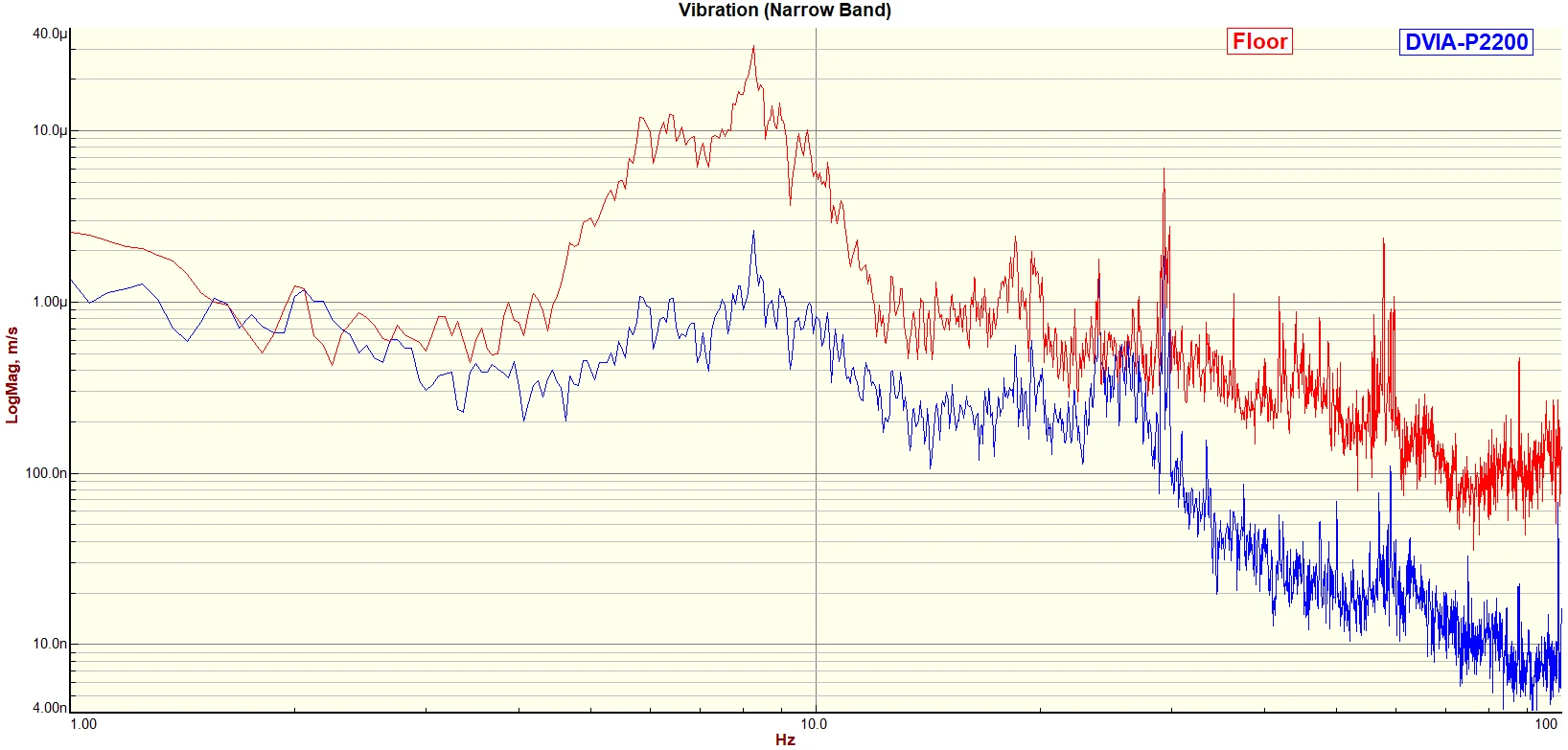

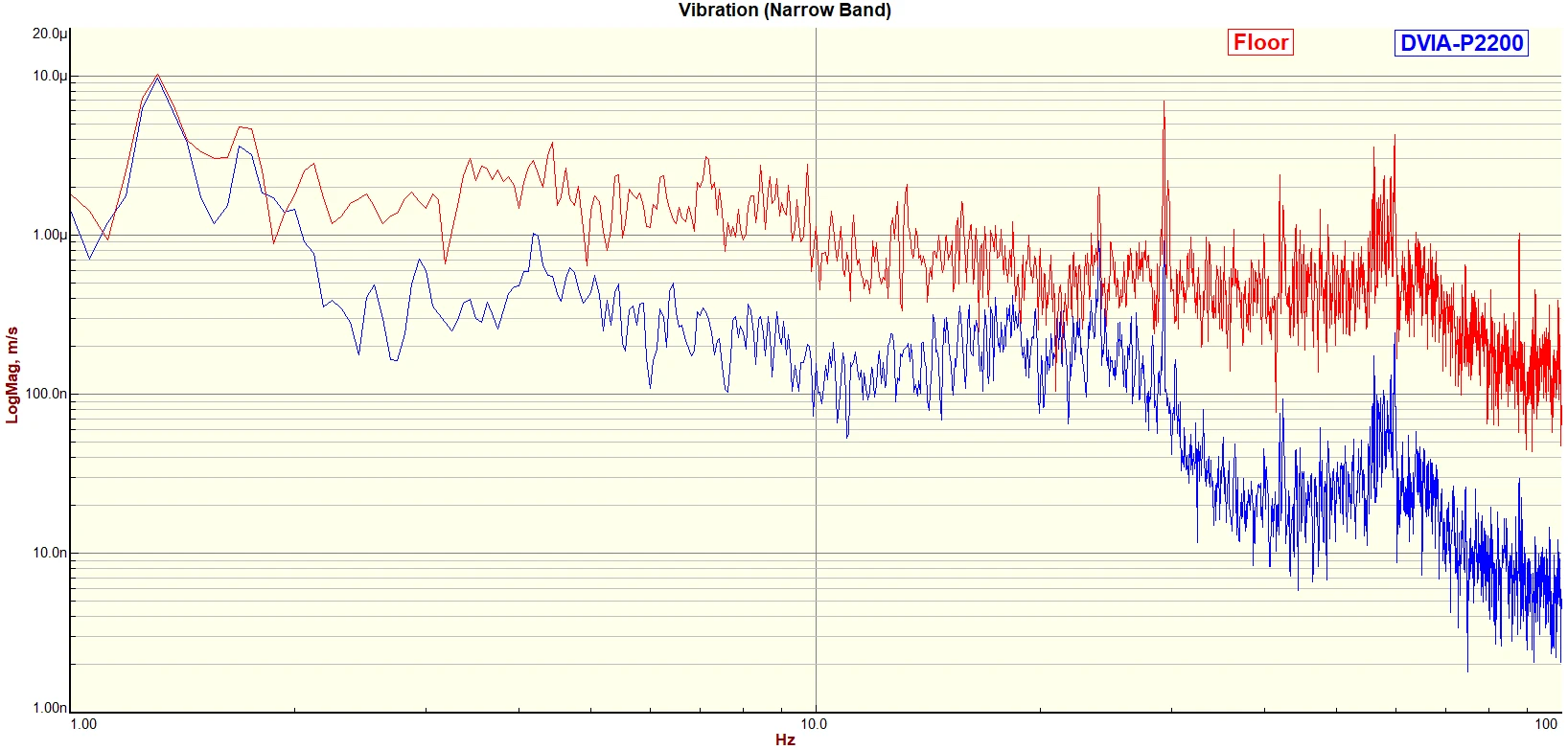

Vertical Autospectrum

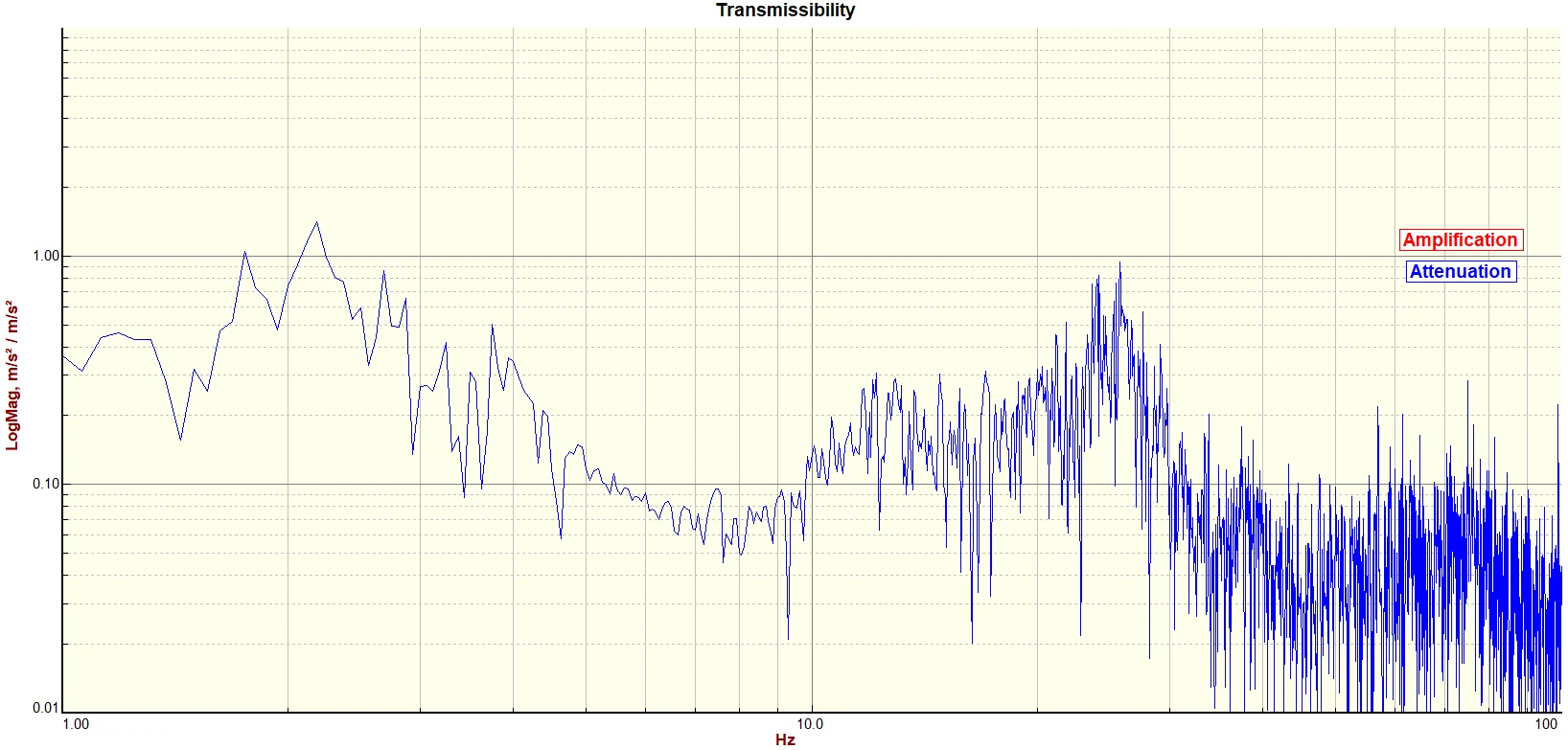

Vertical Transmissibility

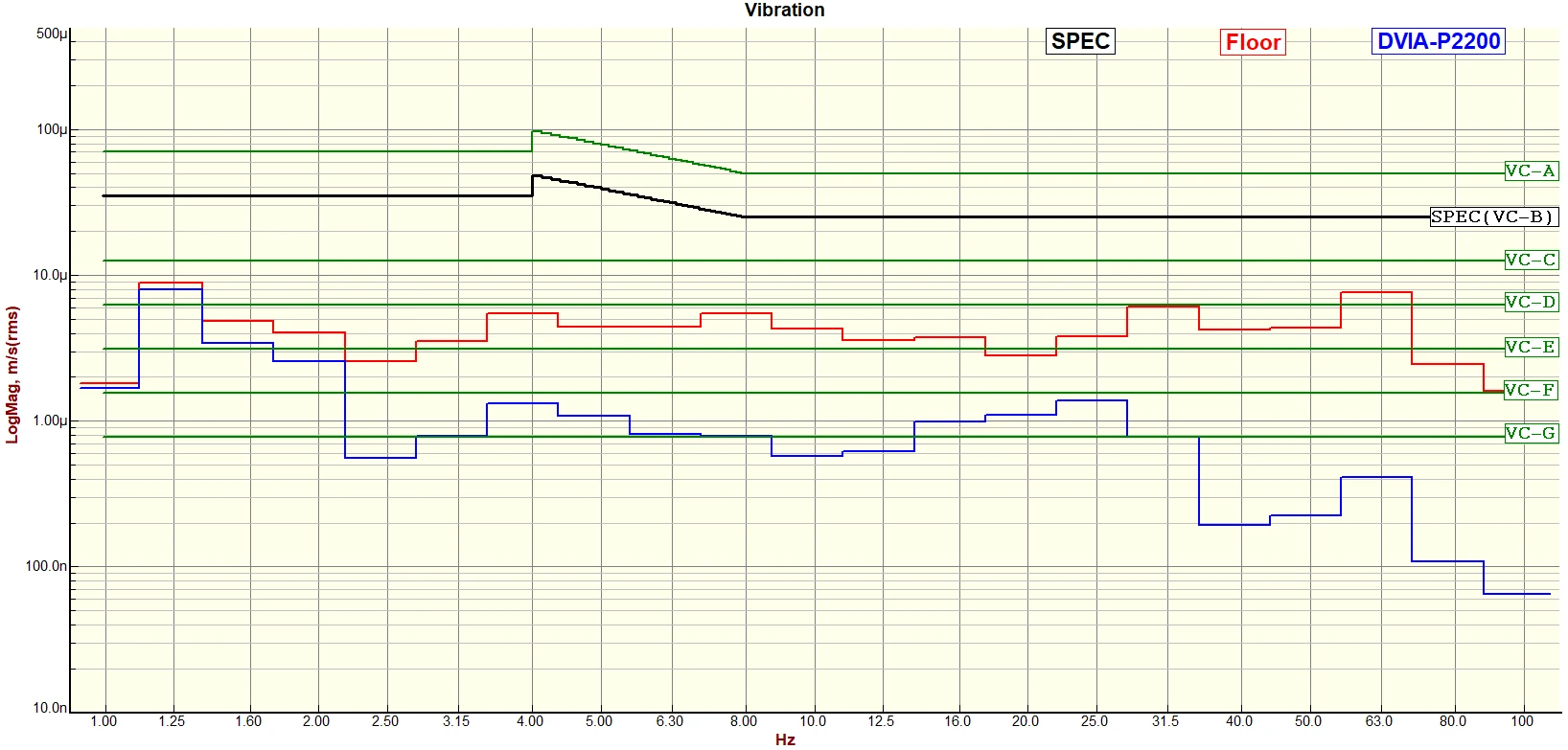

Left to Right VC Curves

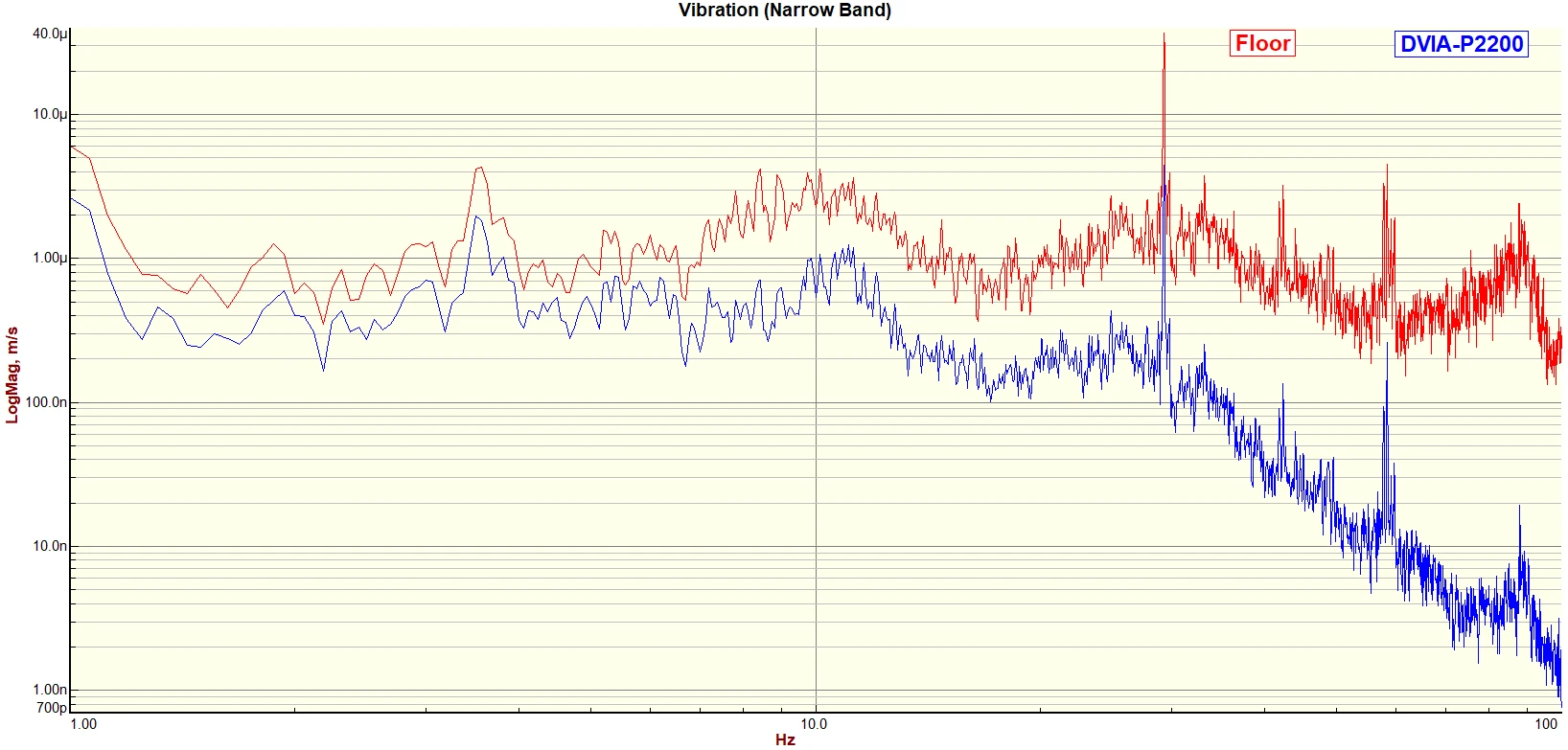

Left to Right Autospectrum

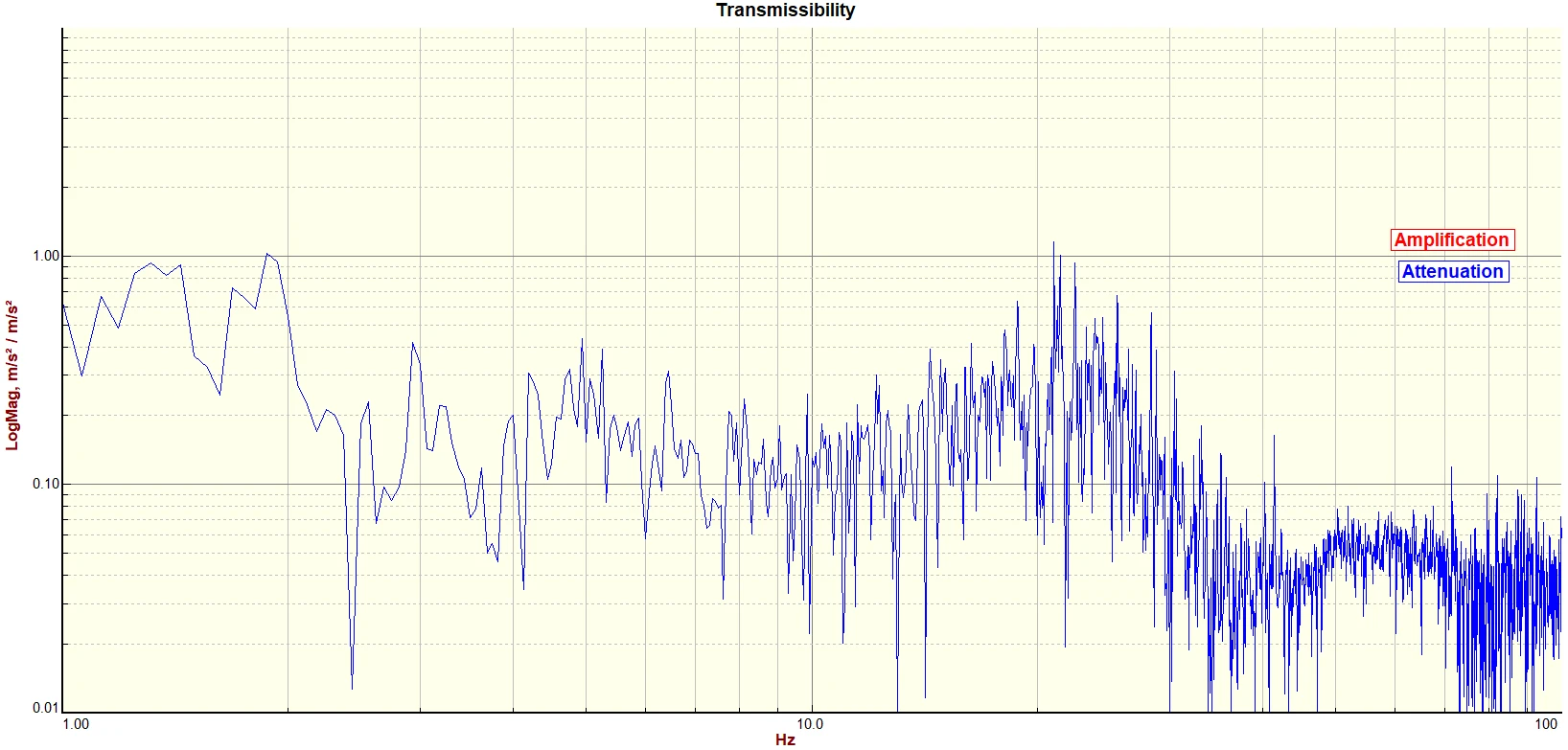

Left to Right Transmissibility

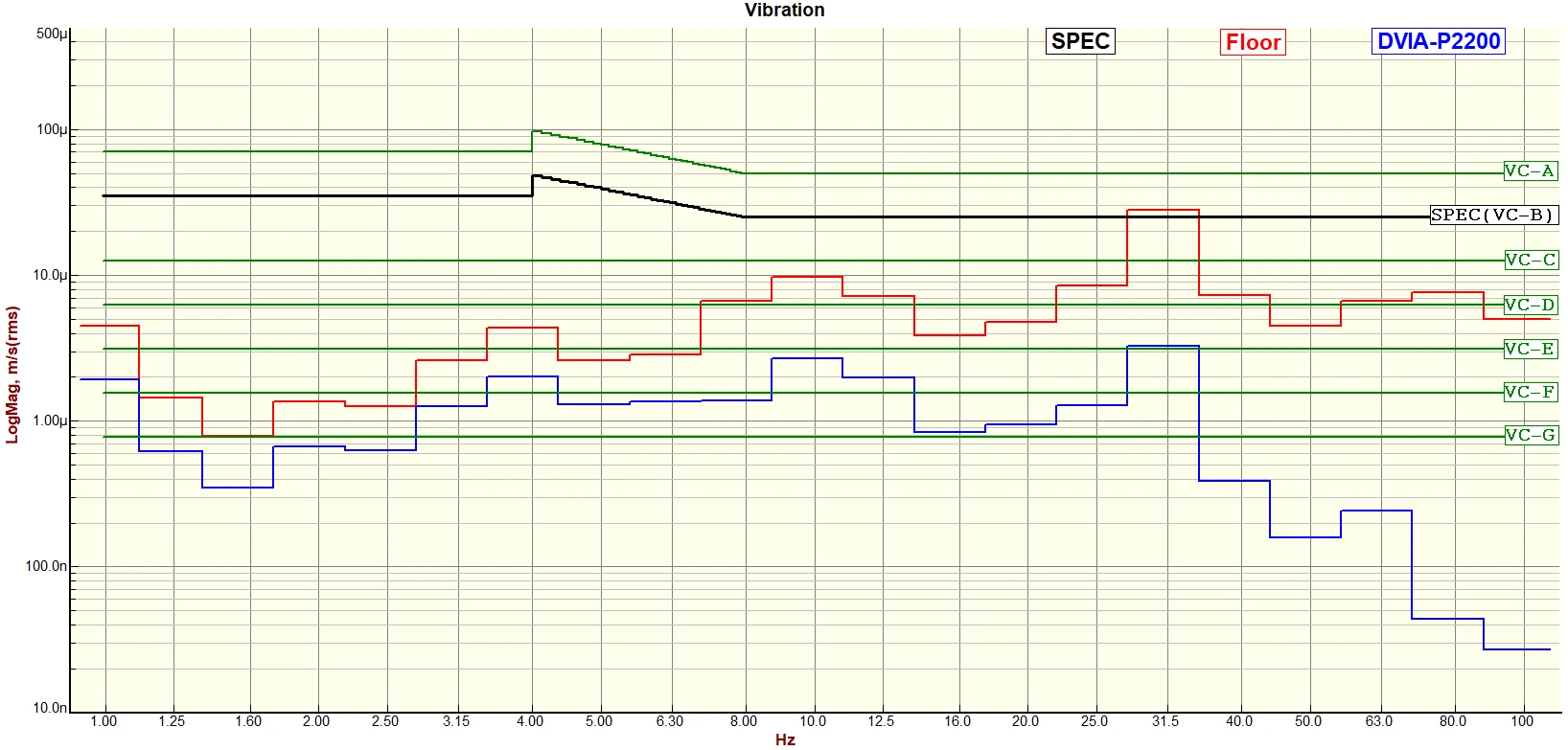

Front to Back VC Curves
Front to Back Autospecturm

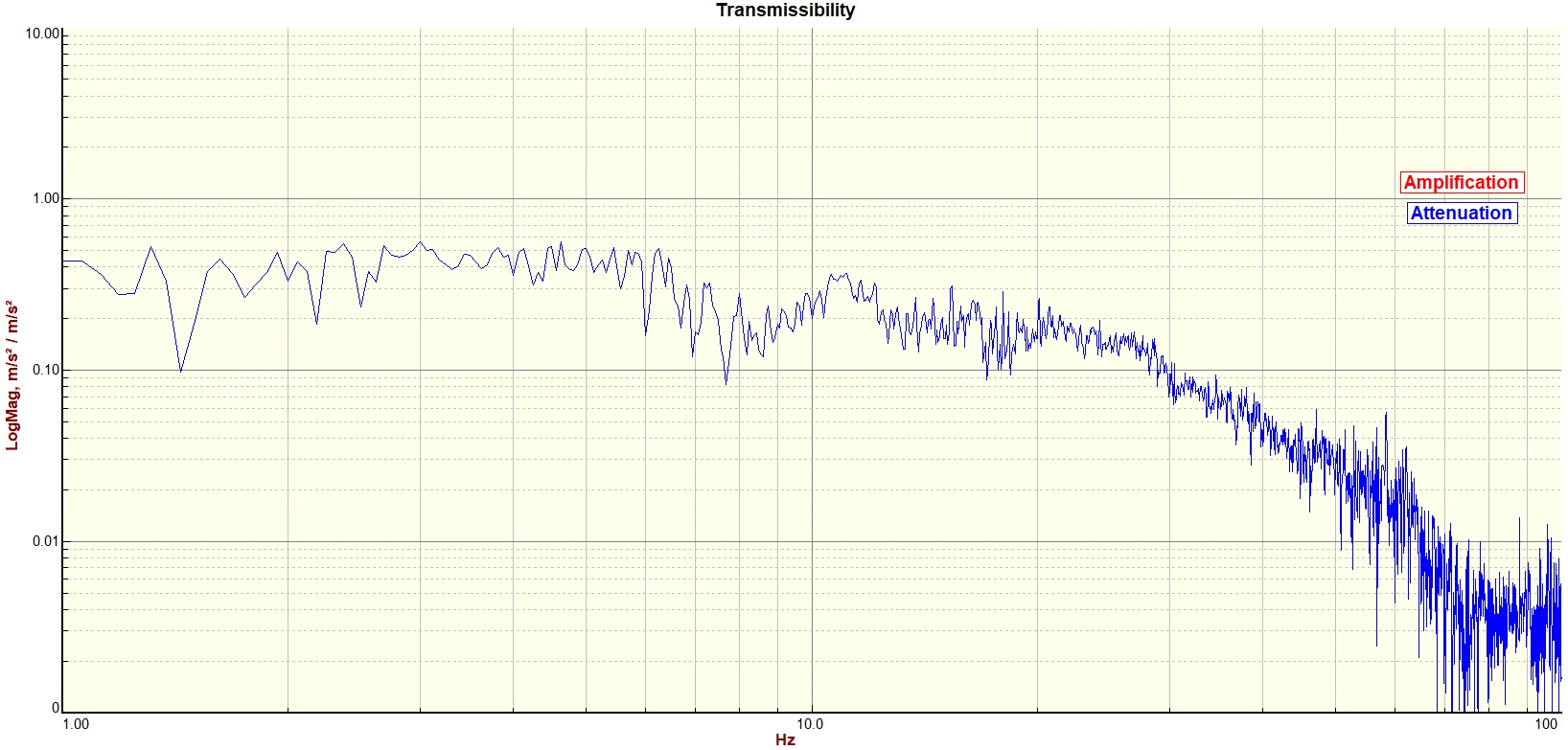

Front to Back Transmissibility
Reference
Notes:
1. VC-A/B is measured in 1/3 octave bands from 8-80 Hz, VC-C through VC-G from 1-80 Hz.
2. Detail size refers to line widths in microelectronics manufacturing or particle sizes in medical research.
