Installation Report
DVIA-ML Series
09-15-2025

Tier-1 Semiconductor Thermo Fisher Scientific S/TEM Spectra 300 DVIA-ML3000 (241119R1) Installation Report

DVIA-ML Series
Installation Report
YIMO
Tier-1 Semiconductor
Thermo Fisher Scientific
S/TEM
Spectra 300
Beijing
DVIA-ML3000
241119R1

Contents

Overview

The DVIA-M3000 active vibration isolation platform is appropriately installed and functioning as intended.

Vibration Isolation System Information

Model: DVIA-ML3000

Serial Number: 241119R1

Engineer

Chaewon Lee DAEIL SYSTEMS

Tuning Date

September 15, 2025

End User

Tier-1 Semiconductor

Number of Tuning Trial

2nd

Location

Beijing

Equipment

Manufacturer: Thermo Fisher Scientific

Equipment: S/TEM

Model: Spectra 300

Equipment Condition

The equipment is Turned on/IDLE

Tuning Request

N/A

Data and Image

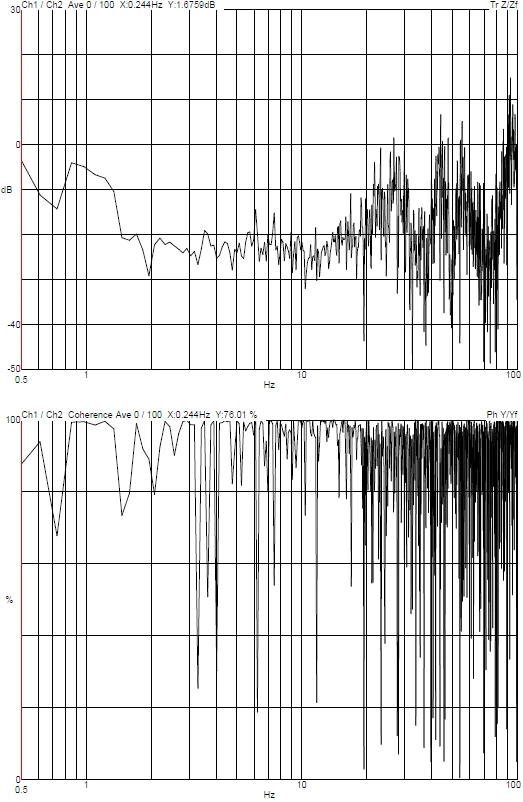

Vertical Transmissibility

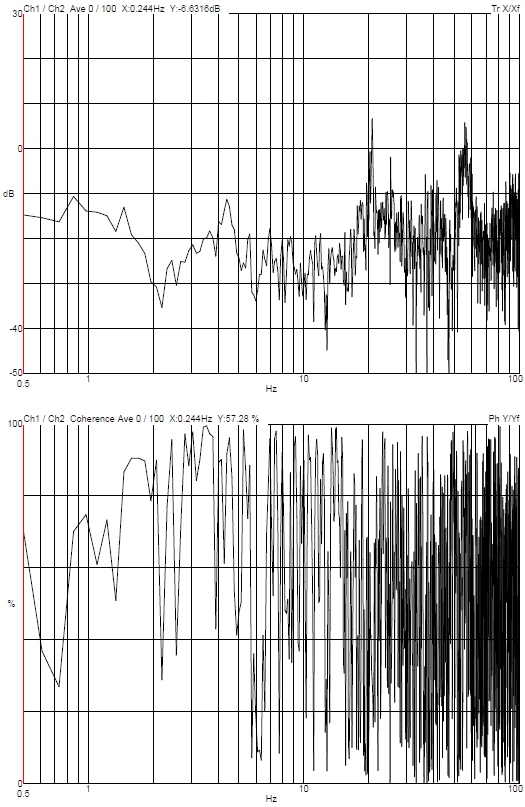

Left to Right Transmissibility

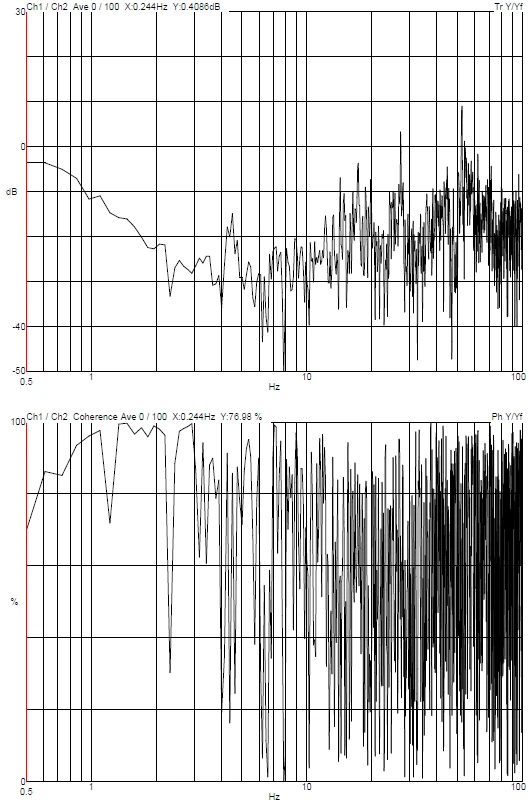

Front to Back Transmissibility

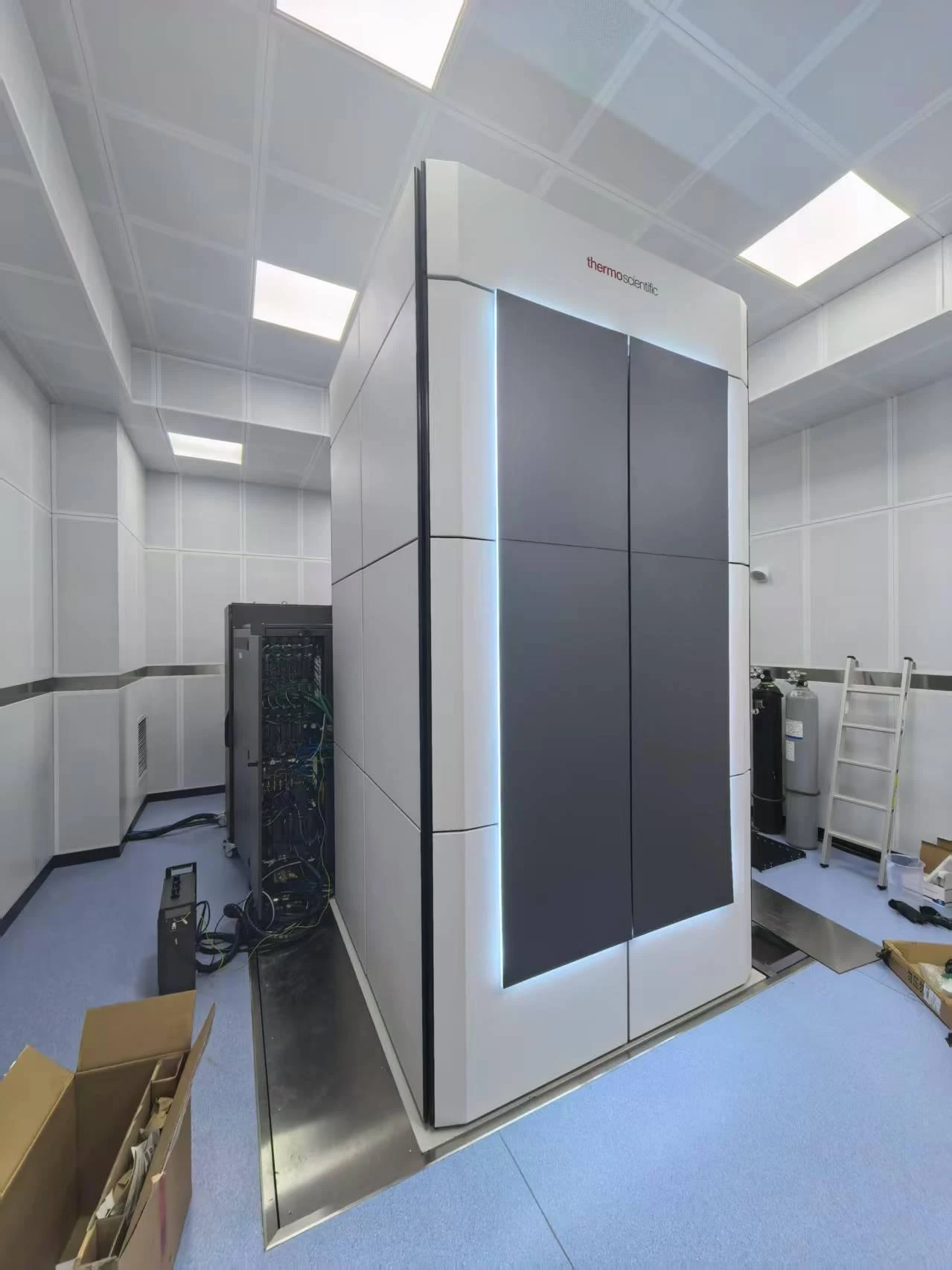

Equipment picture

Reference

Generic Vibration Criteria

Criterion CurveDescriptionAmplitude
μm/s (µin/s)		Detail Size
μm
Workshop (ISO)Distinctly perceptible vibration. Appropriate to workshops and non-sensitive areas.800 (32,000)N/A
Office (ISO)Perceptible vibration. Appropriate to offices and non-sensitive areas.400 (16,000)N/A
Residential Area (ISO)Barely perceptible vibration. Appropriate to sleep areas in most instances.200 (8,000)75
Operating Theatre (ISO)Vibration not perceptible. Suitable for surgical suites, microscopes to 100x.100 (4,000)25
VC-AAdequate for optical microscopes to 400x, microbalances, optical balances.50 (2,000)8
VC-BAppropriate for inspection and lithography equipment to 3μm line widths.25 (1,000)3
VC-CAppropriate for optical microscopes to 1000x, lithography equipment to 1μm.12.5 (500)1 - 3
VC-DSuitable for demanding equipment including electron microscopes (SEMs/TEMs).6.25 (250)0.1 - 0.3
VC-EFor the most demanding systems including E-Beam lithography at nanometer scales.3.12 (125)< 0.1
VC-FFor extremely quiet research spaces. Not recommended as design criterion.1.56 (62.5)N/A
VC-GFor extremely quiet research spaces. Not recommended as design criterion.0.78 (31.25)N/A

Notes:

- As measured in one-third octave bands over 8-80 Hz (VC-A/B) or 1-80 Hz (VC-C through VC-G).

- Detail size refers to width in microelectronics fabrication or particle size in medical research.
