ZEISS FE-SEM Sigma 360 DVIA-ML1000 (241108R2-1) Installation Report

DVIA-M Series

Installation Report

ZEISS

FE-SEM

Sigma 360

DVIA-ML1000

241108R2-1

Overview

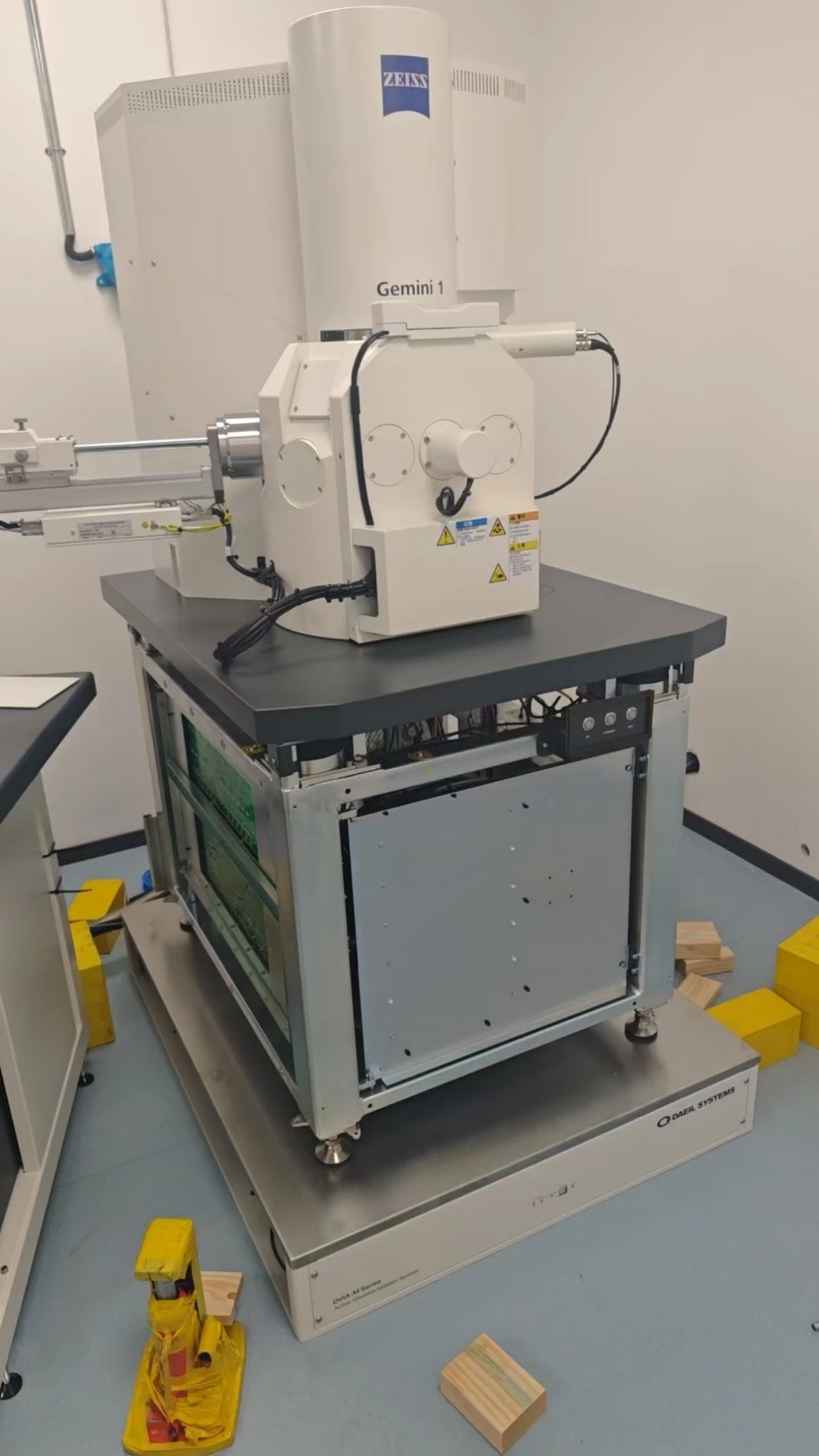

The DVIA-ML1000 active vibration isolation platform is appropriately installed and functioning as intended.

Model: DVIA-ML1000

Serial Number: 241108R2-1

Chaewon Lee

25.12.01

25.12.05

N/A

1st

N/A

Manufacturer: ZEISS

Equipment: FE-SEM

Model: Sigma 360

The equipment is installed/Turned off

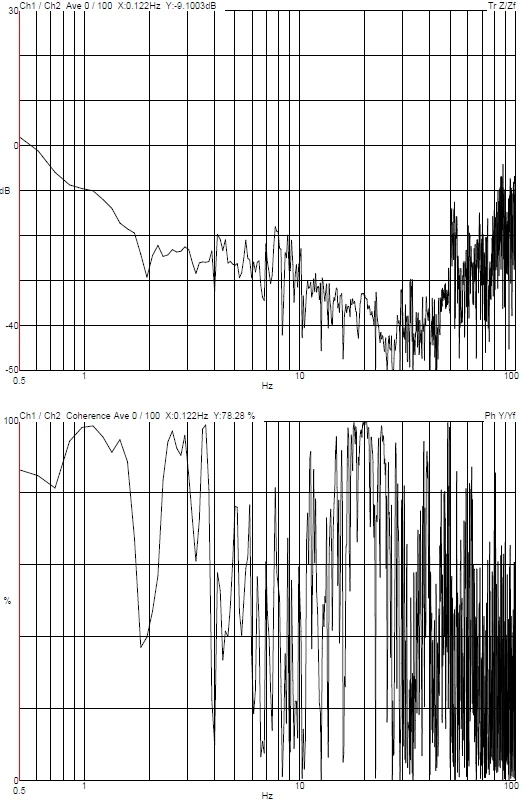

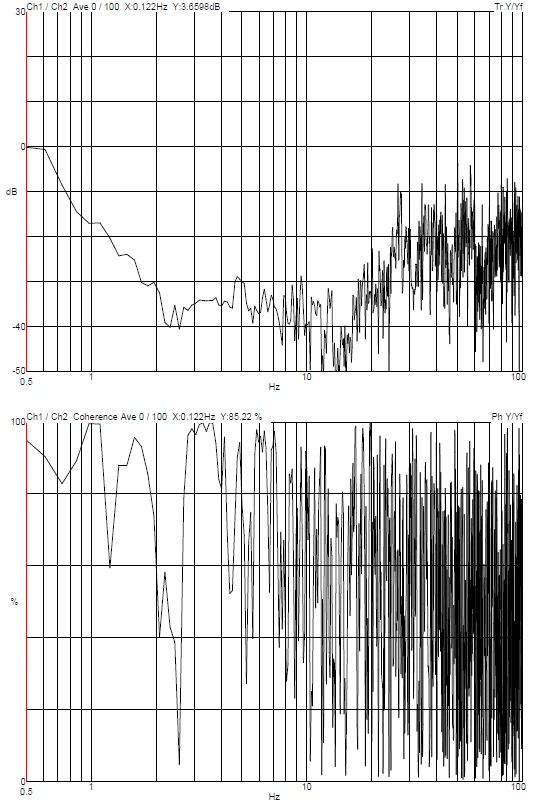

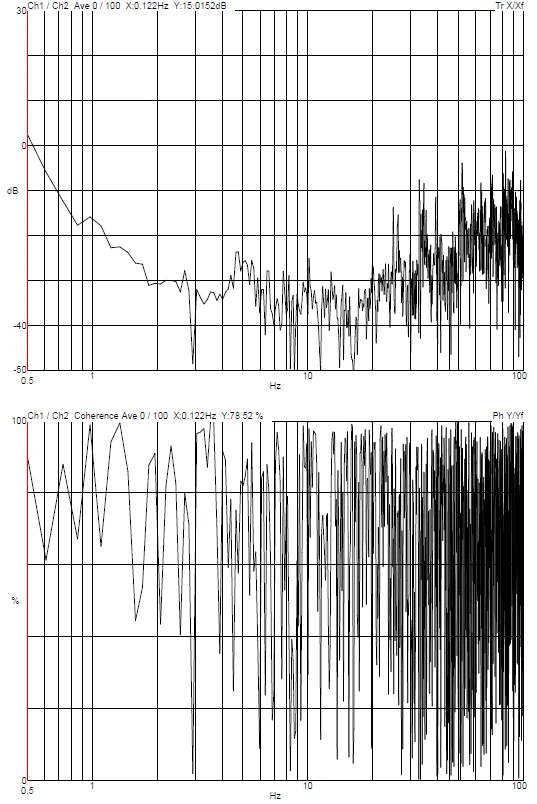

Data and Image

Generic Vibration Criteria

Criterion Curve	Description	Amplitude μm/s (µin/s)	Detail Size μm
Workshop (ISO)	Distinctly perceptible vibration. Appropriate to workshops and non-sensitive areas.	800 (32,000)	N/A
Office (ISO)	Perceptible vibration. Appropriate to offices and non-sensitive areas.	400 (16,000)	N/A
Residential Area (ISO)	Barely perceptible vibration. Appropriate to sleep areas in most instances.	200 (8,000)	75
Operating Theatre (ISO)	Vibration not perceptible. Suitable for surgical suites, microscopes to 100x.	100 (4,000)	25
VC-A	Adequate for optical microscopes to 400x, microbalances, optical balances.	50 (2,000)	8
VC-B	Appropriate for inspection and lithography equipment to 3μm line widths.	25 (1,000)	3
VC-C	Appropriate for optical microscopes to 1000x, lithography equipment to 1μm.	12.5 (500)	1 - 3
VC-D	Suitable for demanding equipment including electron microscopes (SEMs/TEMs).	6.25 (250)	0.1 - 0.3
VC-E	For the most demanding systems including E-Beam lithography at nanometer scales.	3.12 (125)	< 0.1
VC-F	For extremely quiet research spaces. Not recommended as design criterion.	1.56 (62.5)	N/A
VC-G	For extremely quiet research spaces. Not recommended as design criterion.	0.78 (31.25)	N/A
