Fudan University JEOL STEM ARM200 DVIA-ML3000 (241021R4) Installation Report

DVIA-ML Series

Installation Report

Fudan University

JEOL

STEM

ARM200

Shanghai

Overview

The DVIA-ML3000 active vibration isolation platform is appropriately installed and functioning as intended.

Model: DVIA-ML3000

Serial Number: 241021R4

Chaewon Lee, Jonghwa Suh from DAEIL SYSTEMS

March 4, 2025

Fudan University

1st

Shanghai

Manufacturer: JEOL

Equipment: STEM

Model: ARM200

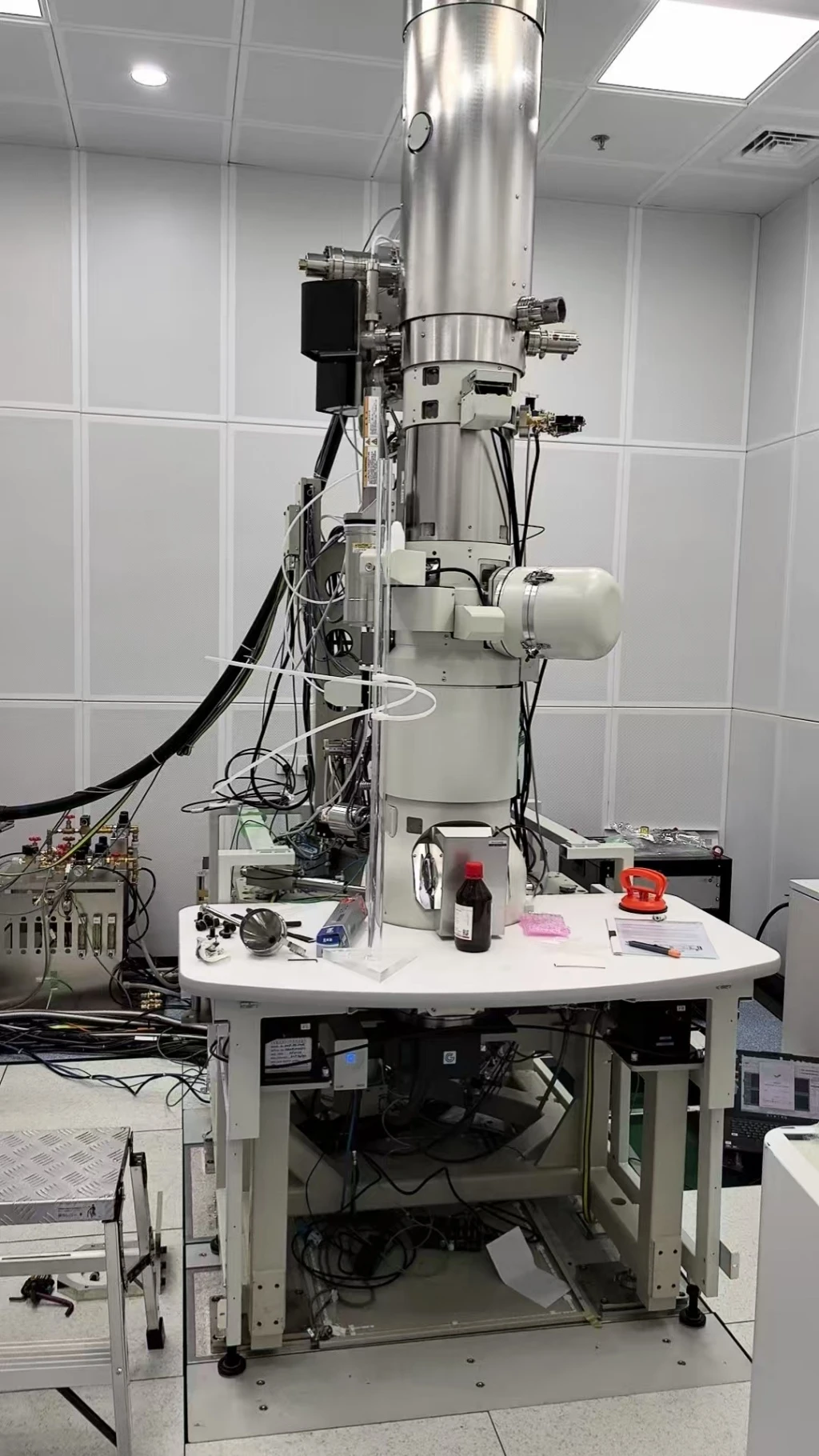

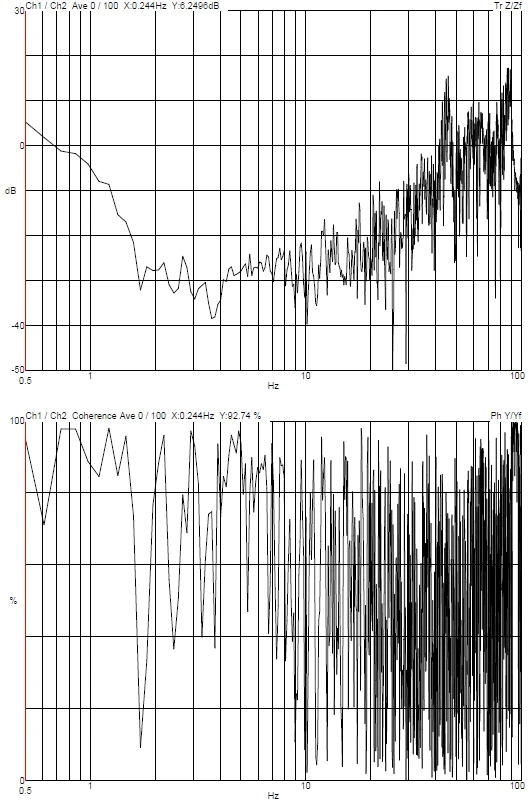

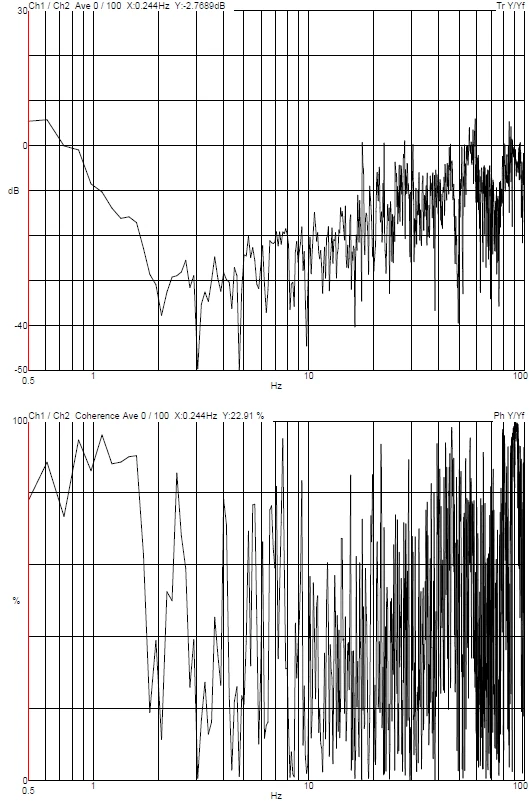

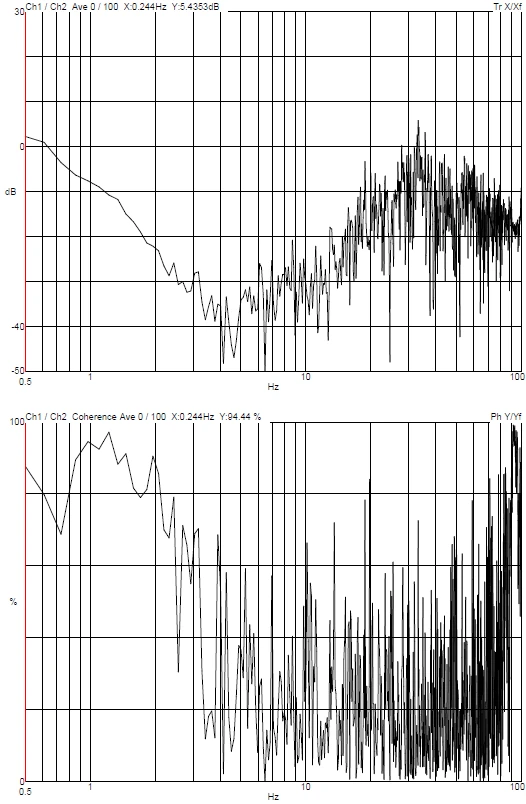

The equipment is installed / Turned off

Criterion Curve	Description	Amplitude μm/s (µin/s)	Detail Size μm
Workshop (ISO)	Distinctly perceptible vibration. Appropriate to workshops and non-sensitive areas.	800 (32,000)	N/A
Office (ISO)	Perceptible vibration. Appropriate to offices and non-sensitive areas.	400 (16,000)	N/A
Residential Area (ISO)	Barely perceptible vibration. Appropriate to sleep areas in most instances.	200 (8,000)	75
Operating Theatre (ISO)	Vibration not perceptible. Suitable for surgical suites, microscopes to 100x.	100 (4,000)	25
VC-A	Adequate for optical microscopes to 400x, microbalances, optical balances.	50 (2,000)	8
VC-B	Appropriate for inspection and lithography equipment to 3μm line widths.	25 (1,000)	3
VC-C	Appropriate for optical microscopes to 1000x, lithography equipment to 1μm.	12.5 (500)	1 - 3
VC-D	Suitable for demanding equipment including electron microscopes (SEMs/TEMs).	6.25 (250)	0.1 - 0.3
VC-E	For the most demanding systems including E-Beam lithography at nanometer scales.	3.12 (125)	< 0.1
VC-F	For extremely quiet research spaces. Not recommended as design criterion.	1.56 (62.5)	N/A
VC-G	For extremely quiet research spaces. Not recommended as design criterion.	0.78 (31.25)	N/A
