Installation Report
DVIA-M Series
06-20-2024
Thermo Fisher Scientific Helios 5 UX DVIA-M1000 (230908R3-3) Installation Report
DVIA-M Series
Installation Report
Thermo Fisher Scientific
Helios 5 UX
DVIA-M1000
230908R3-3
Contents
(MB1000_ 230908R3-3 Set-up)
Site checklist
| Target equipment | Thermo Fisher Helios 5 UX |
|---|---|
| Place of installation | N/A |
| Remark | Good Performance |
| END USER | N/A |
Operator and dates
Operator: Byeonghun Cho
Date of setup: 24.06.20
Date of reporting: 24.06.20
Date of business trip : 17.12.27~17.12.29
Overview

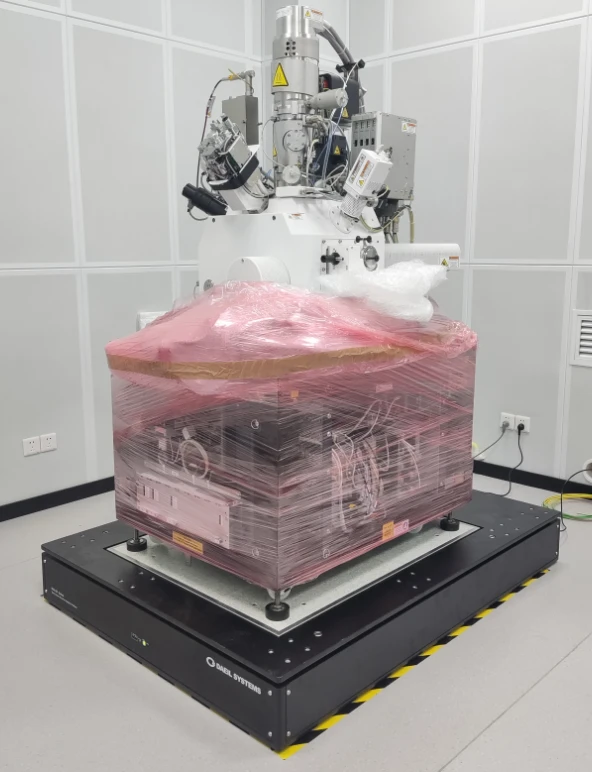

The DVIA-M1000 active vibration isolation platform is appropriately installed and functioning as intended.
Measurement date: 2024.06.17 (Monday)
Operator: Byeonghun Cho from DAEIL SYSTEMS
Place of measurement: N/A
Equipment Model: Thermo Fisher Helios 5 UX
5.
Vibration Spec

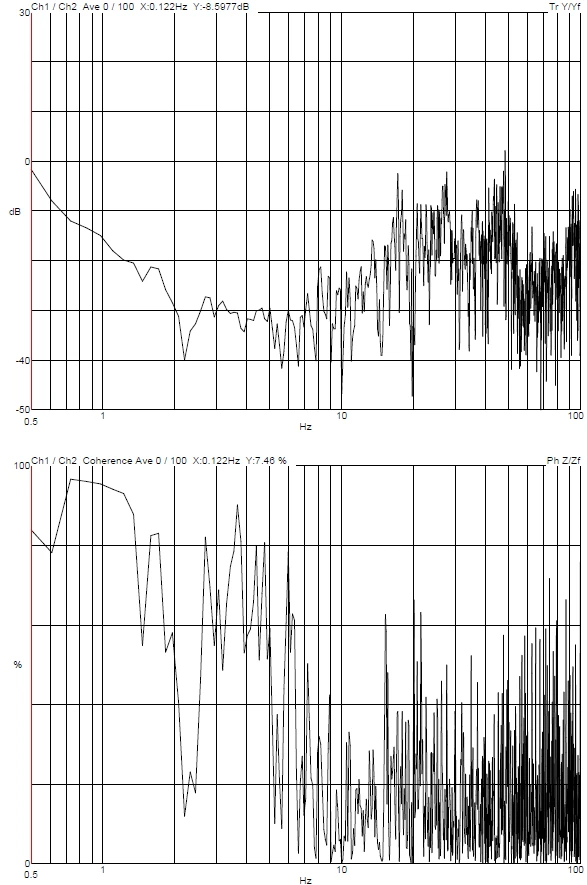

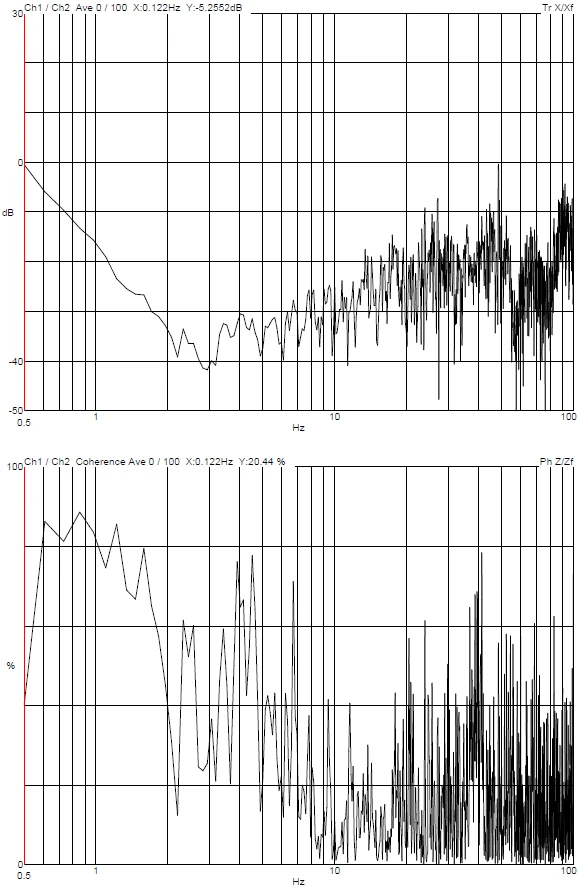

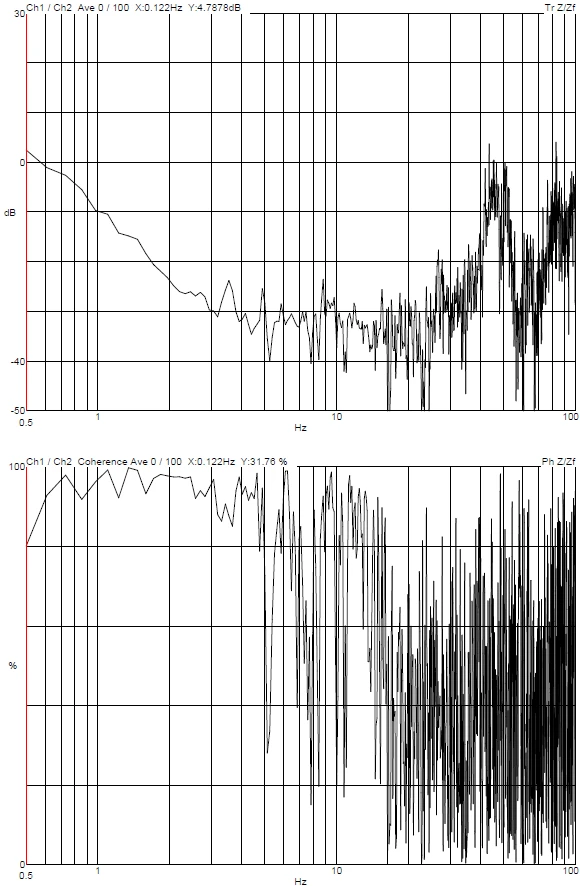

M1000 internal program performance measurement result
Vertical
Left to Right
Front to Back
