Installation Report
DVIA-M Series
09-01-2025

Chinese Academy of Sciences Institute of Semiconductors Thermo Fisher Helios 5 CX DVIA-M1000 (250619R4) Installation Report

DVIA-M Series
Installation Report
YIMO
Thermo Fisher Scientific
FIB-SEM
Helios 5 CX
DVIA-M1000
Chinese Academy of Sciences
Beijing

Contents

Overview

The DVIA-M1000 active vibration isolation platform is appropriately installed and functioning as intended.

Vibration Isolation System Information

Model: DVIA-M1000

Serial Number: 250619R4

Engineer

Chaewon Lee DAEIL SYSTEMS

Tuning Date

August 25, 2025

Report written date

September 01, 2025

End User

Institute of Semiconductors, Chinese Academy of Sciences

Number of Tuning Trial

1st

Location

Beijing

Equipment

Manufacturer: Thermo Fisher Scientific

Equipment: FIB-SEM

Model: Helios 5 CX

Equipment Condition

The equipment is installed/Turned off

Tuning Request

Data and Image

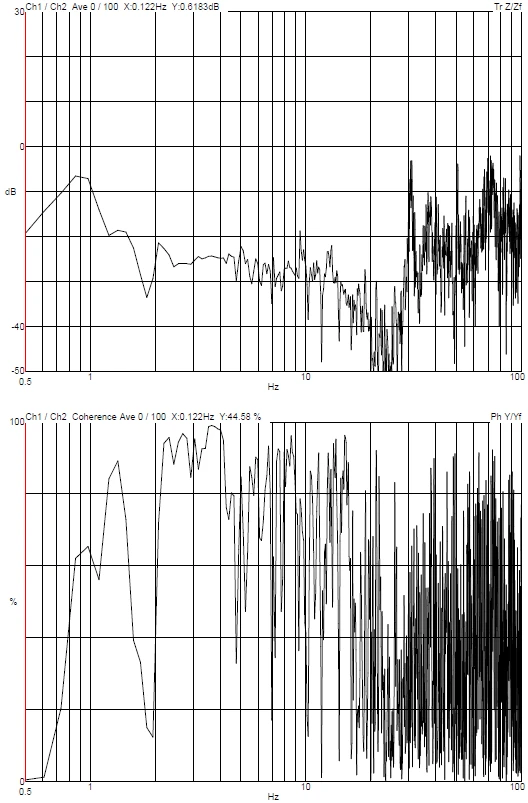

Vertical Transmissibility

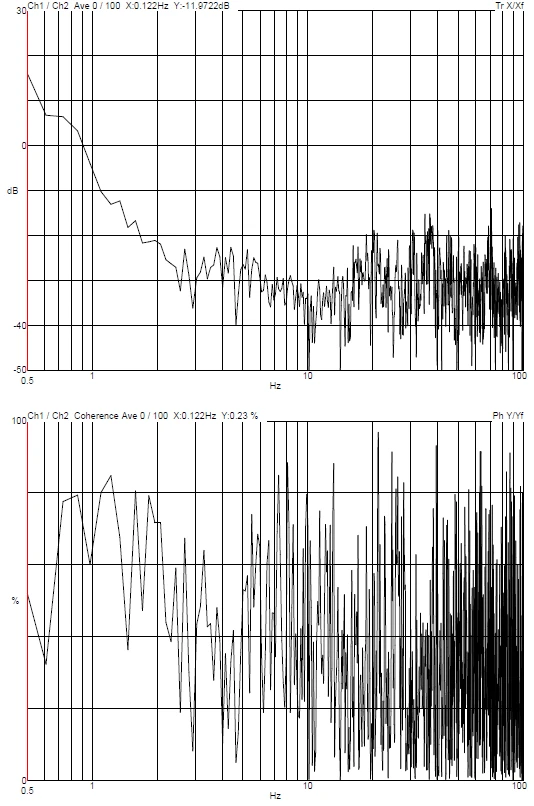

Left to Right Transmissibility

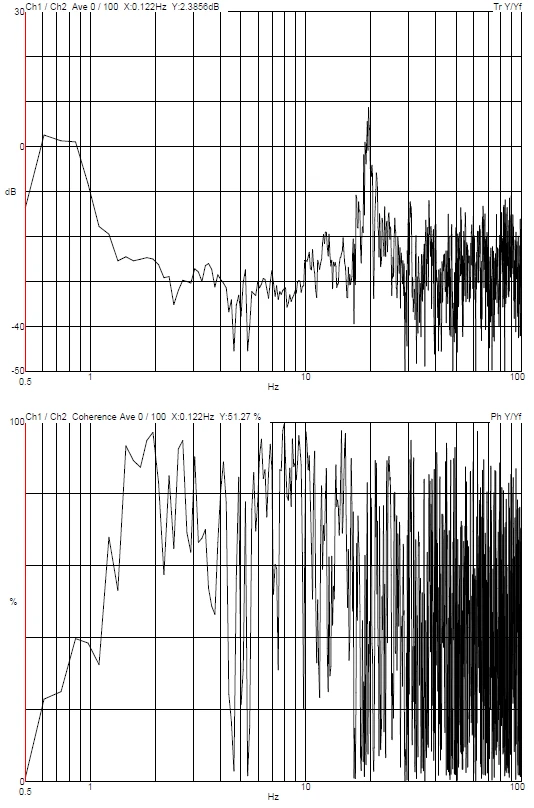

Front to Back Transmissibility

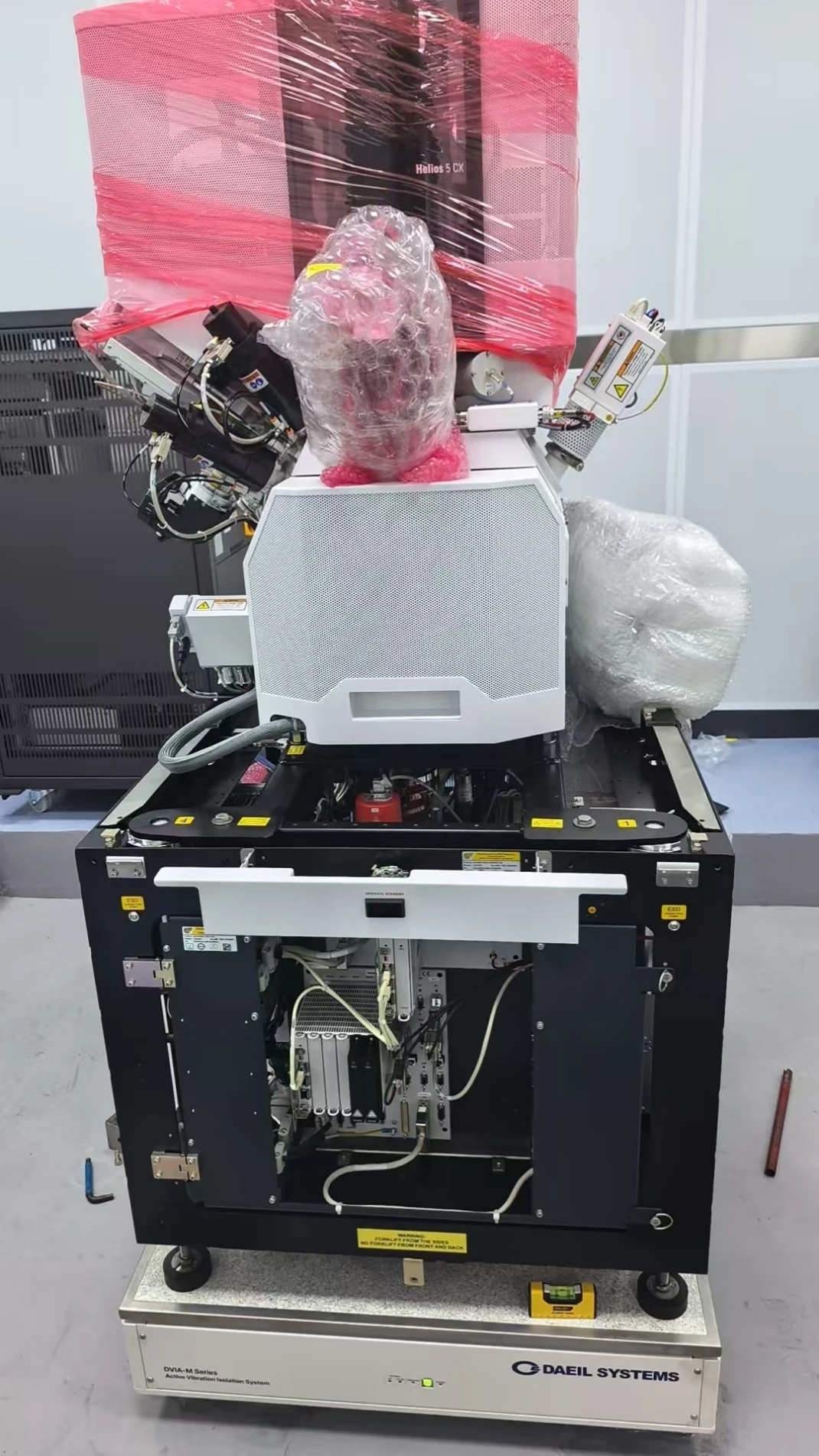

Equipment picture

Reference

Generic Vibration Criteria

Criterion CurveDescriptionAmplitude
μm/s (µin/s)		Detail Size
μm
Workshop (ISO)Distinctly perceptible vibration. Appropriate to workshops and non-sensitive areas.800 (32,000)N/A
Office (ISO)Perceptible vibration. Appropriate to offices and non-sensitive areas.400 (16,000)N/A
Residential Area (ISO)Barely perceptible vibration. Appropriate to sleep areas in most instances.200 (8,000)75
Operating Theatre (ISO)Vibration not perceptible. Suitable for surgical suites, microscopes to 100x.100 (4,000)25
VC-AAdequate for optical microscopes to 400x, microbalances, optical balances.50 (2,000)8
VC-BAppropriate for inspection and lithography equipment to 3μm line widths.25 (1,000)3
VC-CAppropriate for optical microscopes to 1000x, lithography equipment to 1μm.12.5 (500)1 - 3
VC-DSuitable for demanding equipment including electron microscopes (SEMs/TEMs).6.25 (250)0.1 - 0.3
VC-EFor the most demanding systems including E-Beam lithography at nanometer scales.3.12 (125)< 0.1
VC-FFor extremely quiet research spaces. Not recommended as design criterion.1.56 (62.5)N/A
VC-GFor extremely quiet research spaces. Not recommended as design criterion.0.78 (31.25)N/A

Notes:

- As measured in one-third octave bands over 8-80 Hz (VC-A/B) or 1-80 Hz (VC-C through VC-G).

- Detail size refers to width in microelectronics fabrication or particle size in medical research.

Share this Case Study

Case Study Information

Category
Installation Report
SeriesDVIA-M Series
Date09-01-2025
Tags
DVIA-M Series
Installation Report
YIMO
Thermo Fisher Scientific
FIB-SEM
Helios 5 CX
DVIA-M1000
Chinese Academy of Sciences
Beijing

Related Case Studies

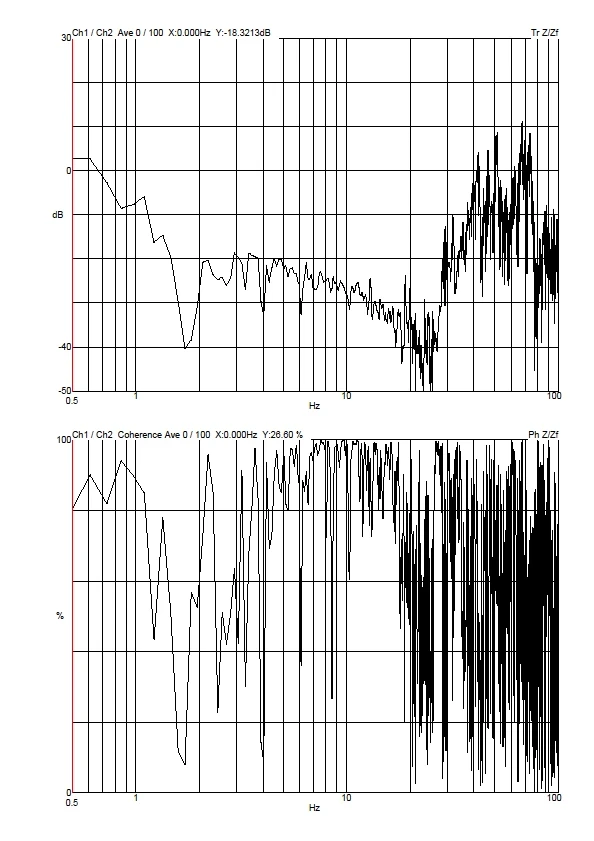

YIMO Thermo Fisher Scientific FIB-SEM Apreo 2S DVIA-M1000 (241226R2) Installation Report
DVIA-M Series

YIMO Thermo Fisher Scientific FIB-SEM Apreo 2S DVIA-M1000 (241226R2) Installation Report

04-10-2025Read more

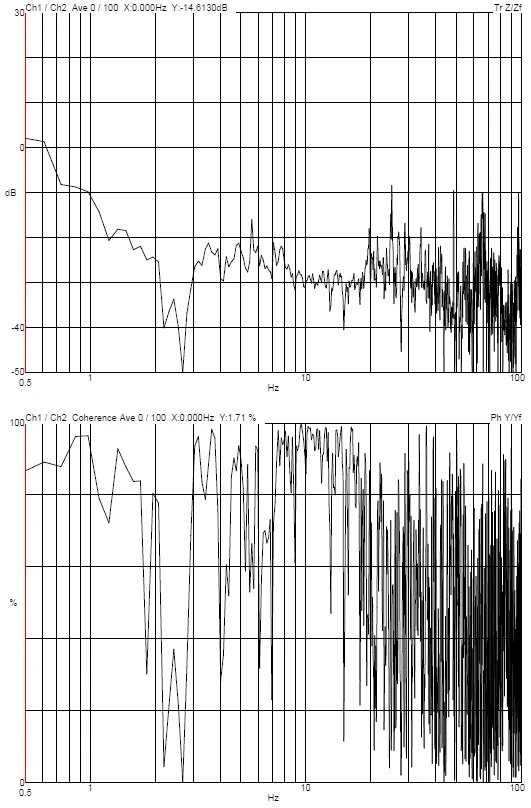

YIMO Thermo Fisher Scientific FIB-SEM Apreo ChemSEM DVIA-M1000 (250211R3) Installation Report
DVIA-M Series

YIMO Thermo Fisher Scientific FIB-SEM Apreo ChemSEM DVIA-M1000 (250211R3) Installation Report

05-07-2025Read more

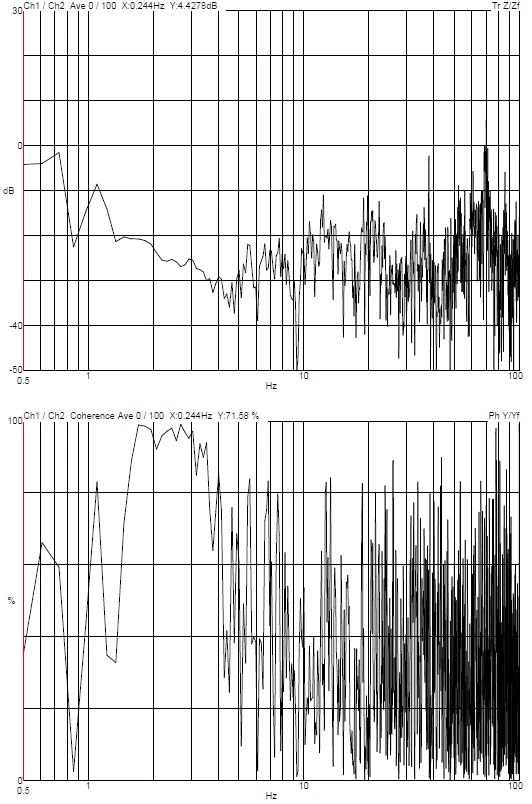

YIMO Beijing Qiyuan Lab ZEISS FIB-SEM Crossbeam 550 DVIA-M1000 (240509R6) Installation Report
