ZEISS Crossbeam 550 DVIA-M1000 (230324R4) Installation Report
DVIA-M Series
Installation Report
DVIA-M1000
230324R4
ZEISS
Crossbeam 550
Shenzhen
Contents
Site checklist
| Target equipment | Crossbeam550 |
|---|---|
| Place of installation | Shenzhen |
| Remark | Good Performance |
| END USER | N/A |
Operator and dates
Operator: Lee, Young Ha
Date of setup: 23.07.20
Date of reporting: 23.07.24
Date of business trip : 17.12.27~17.12.29
Overview
The DVIA-M1000 active vibration isolation platform is appropriately installed and functioning as intended.
Measurement date: 2023.07.20 (Thursday)
Operator: DAEIL SYSTEMS, Youngha Lee
Place of measurement: Shenzhen
Equipment Model: Crossbeam550
5.
M1000 internal program performance measurement result

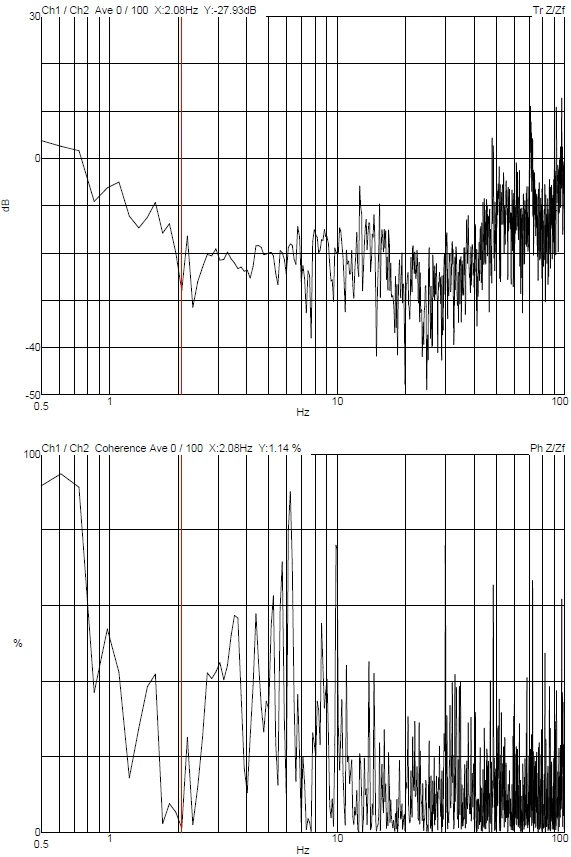

Z axis

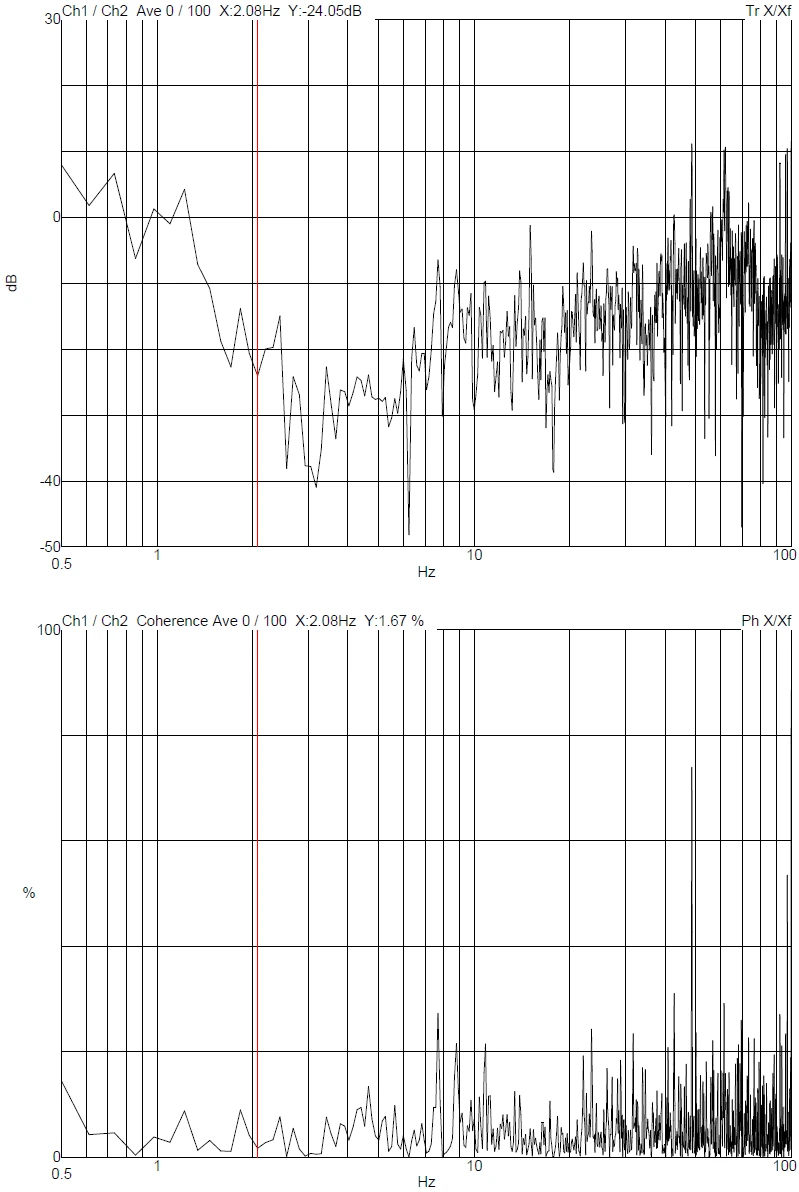

X axis

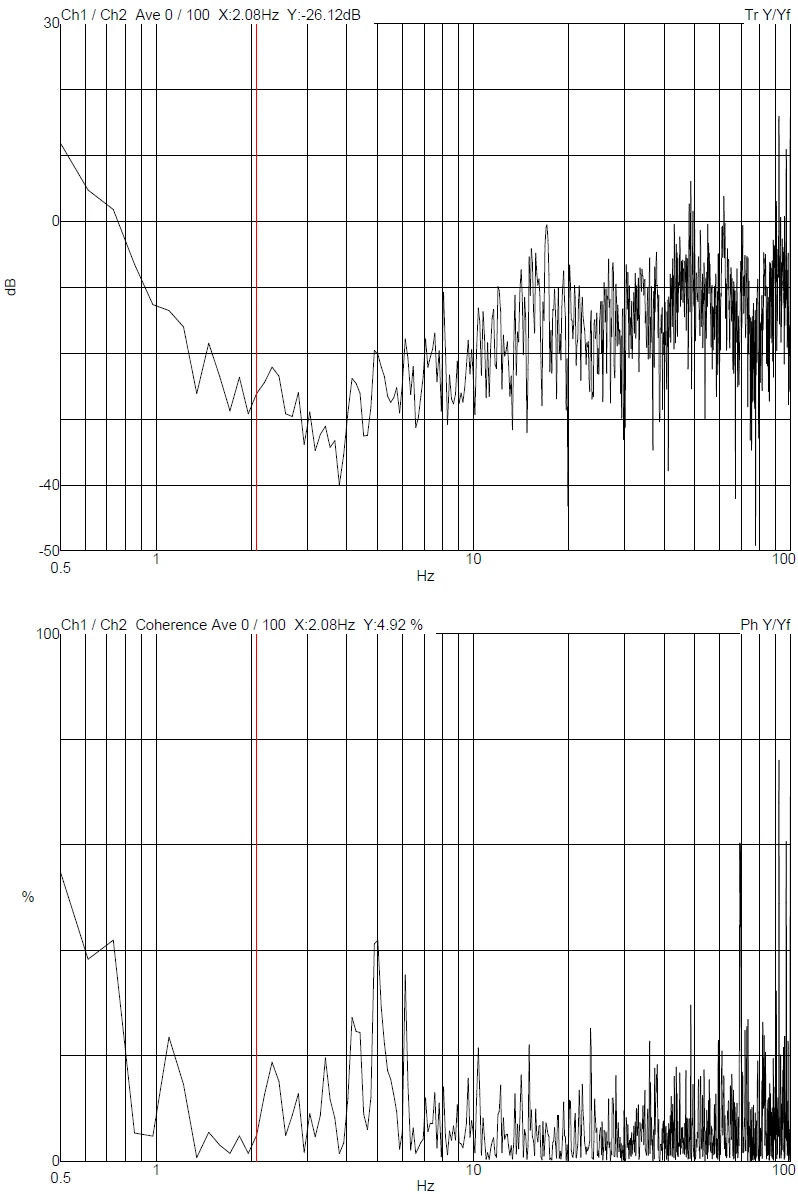

Y axis
