Installation Report
DVIA-P Series
05-19-2023
Tan Kah Kee Innovation Laboratory Bonder DVIA-P7000 (221018R3) Installation Report
DVIA-P Series
Installation Report
Tan Kah Kee Innovation Laboratory
DVIA-P7000
221018R3
Bonder
Xiamen
Contents
Tan Kah Kee Innovation Laboratory (P7000_221018R3 Set up)
Site checklist
| Target equipment | Bonder |
|---|---|
| Place of installation | XIAMEN |
| Remark | Good Performance |
| END USER | TAN KAH KEE INNOVATION LABORATORY |
Operator and dates
Operator: Lee, Young Ha
Date of setup: 23.05.17
Date of reporting: 23.05.19
Date of business trip : 17.12.27~17.12.29
Overview
The DVIA-P7000 active vibration isolation platform is appropriately installed and functioning as intended. (prior to equipment installation).
Measurement date
Measurement date: 2023.05.17 (Wednesday)
Operator
Operator: DAEIL SYSTEMS, Youngha Lee
Place of measurement
Place of measurement: XIAMEN
Equipment Model
Equipment Model: Bonder
Measurement conditions and results
Summary of measurement results
Equipment is turned off
| Test Condition | VC Curves Z-axis | VC Curves X-axis | VC Curves Y-axis |
|---|---|---|---|
| Floor | D | D | C |
| Active | F | G | E |
Equipment is turned on
| Test Condition | VC Curves Z-axis | VC Curves X-axis | VC Curves Y-axis |
|---|---|---|---|
| Floor | D | D | D |
| Active | D | D | D |
Good omnidirectional performance.
P7000 internal program performance measurement result
(Equipment turn off)

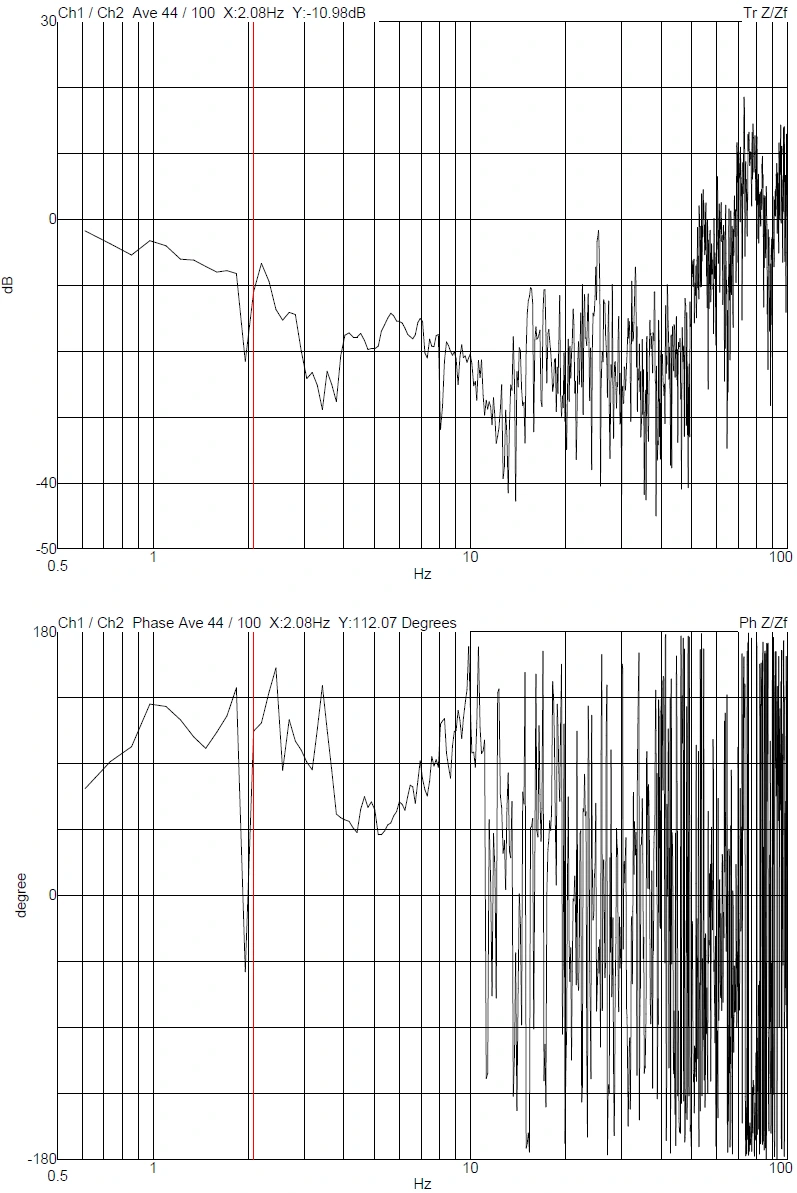

P7000 internal program — Z axis

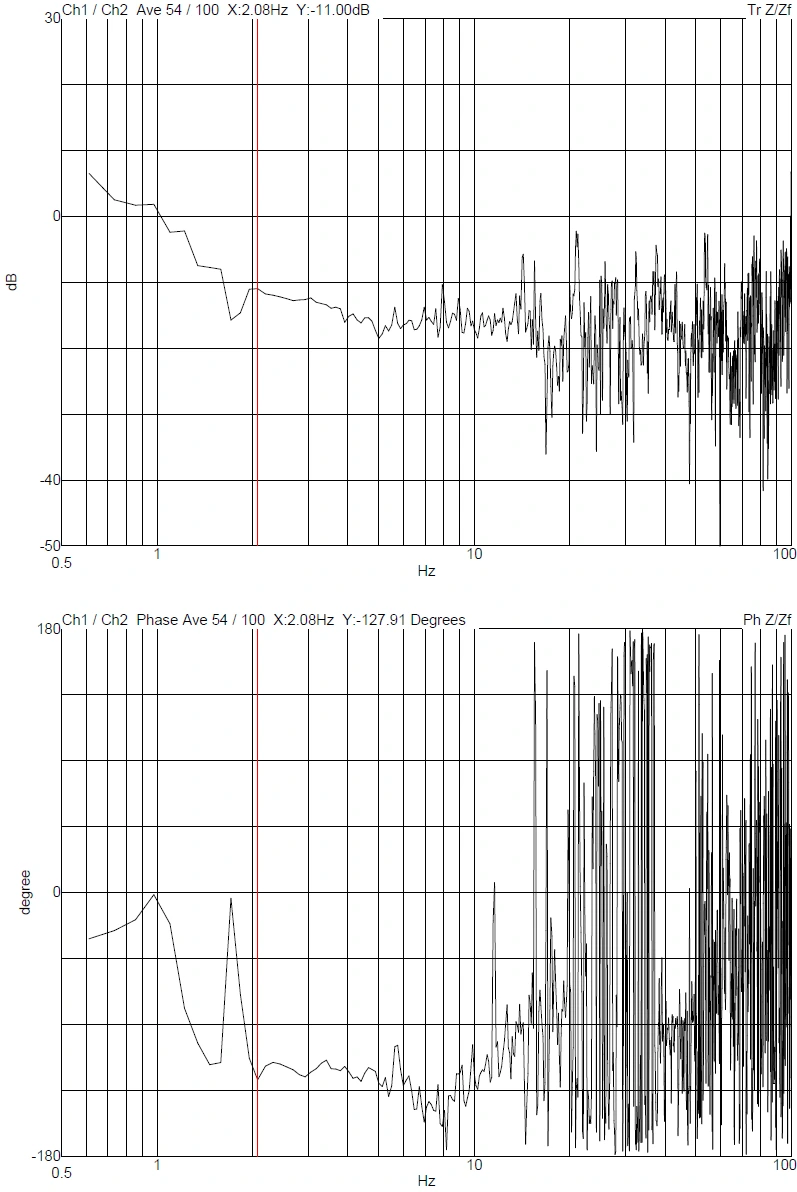

P7000 internal program — X axis

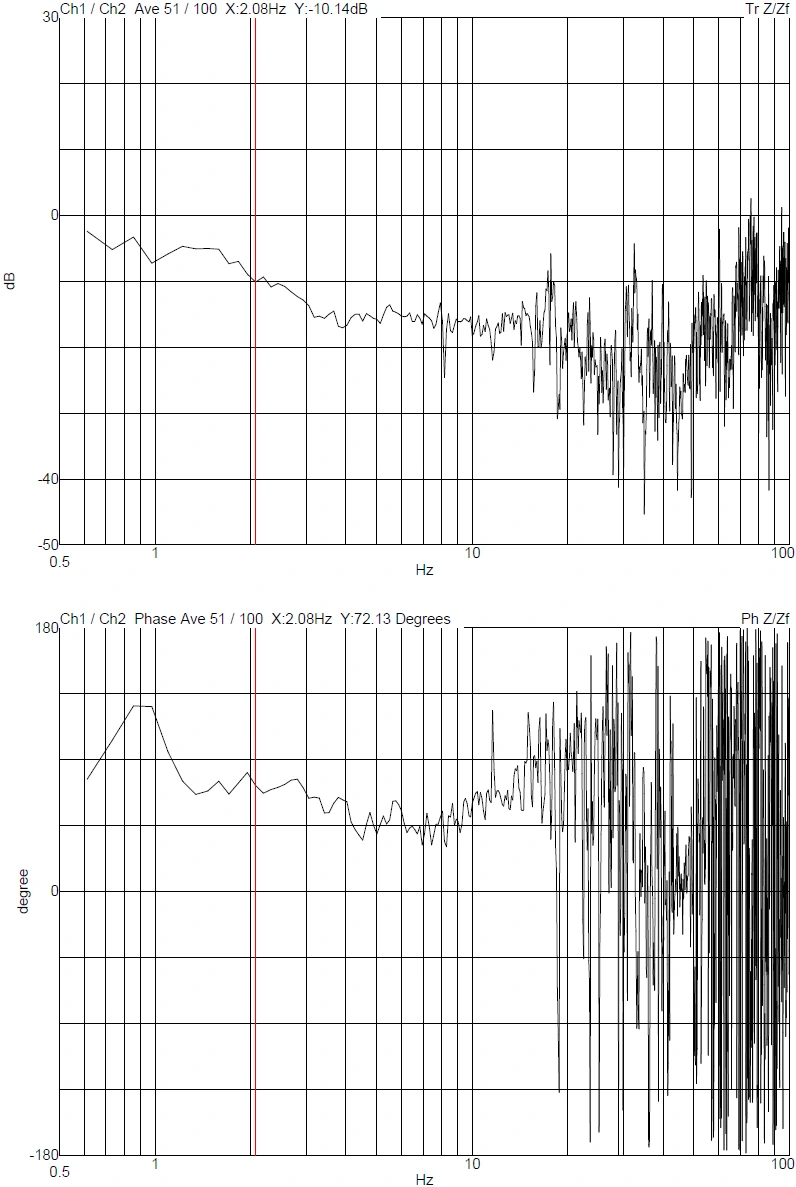

P7000 internal program — Y axis
Octave Band Result
Equipment is turned off.

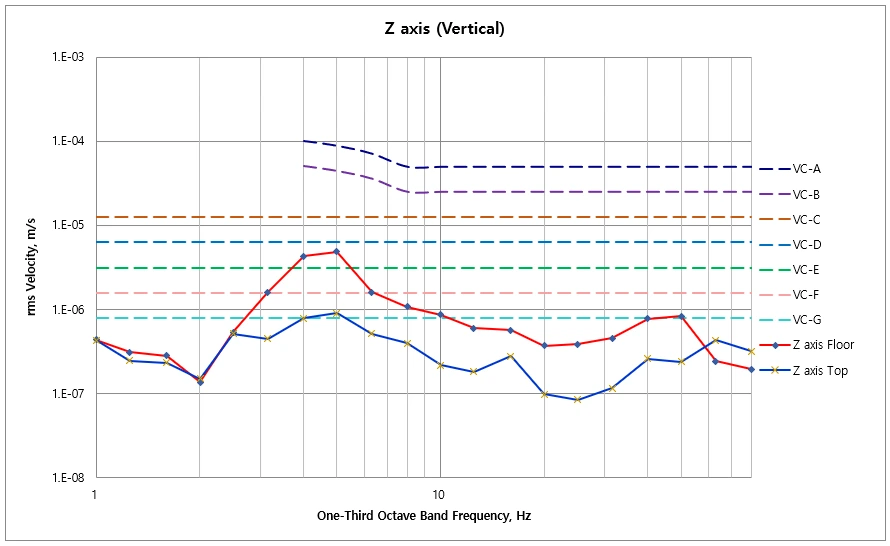

Octave Band Result — Equipment off — Z axis

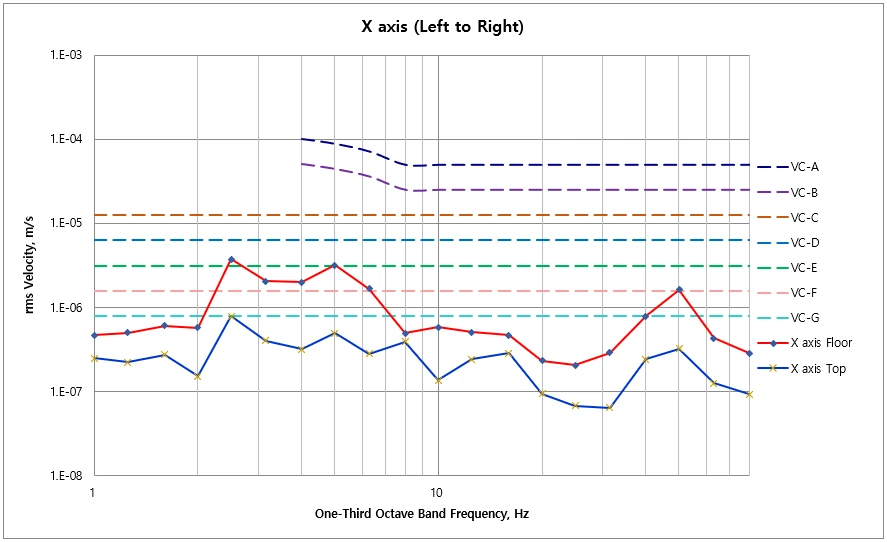

Octave Band Result — Equipment off — X axis

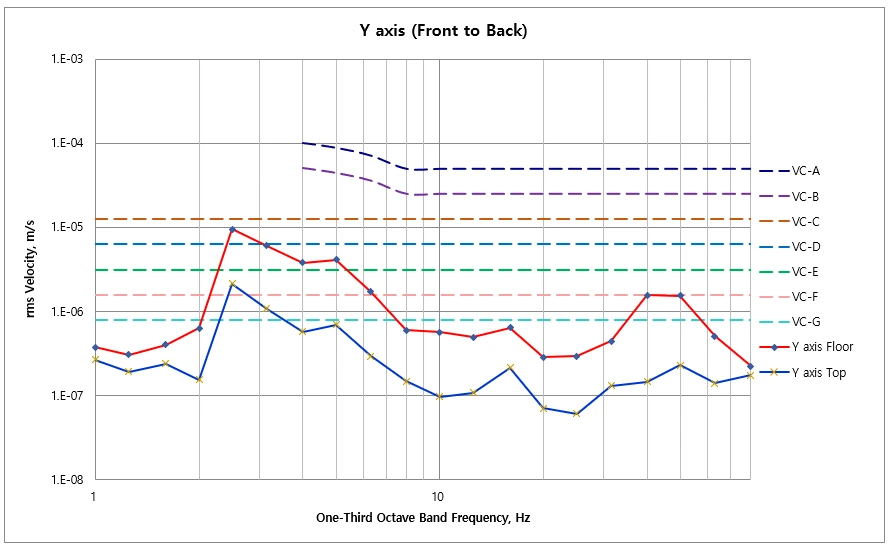

Octave Band Result — Equipment off — Y axis
Equipment is turned on

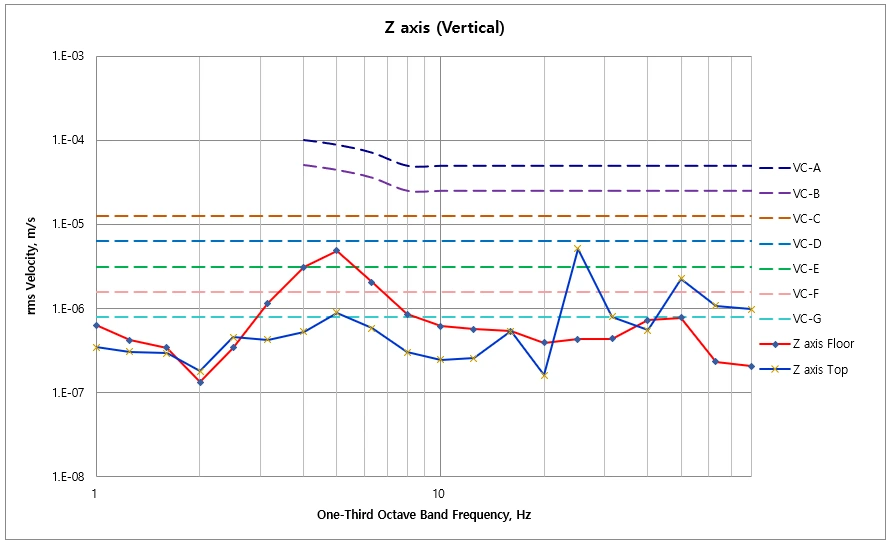

Equipment on — Z axis

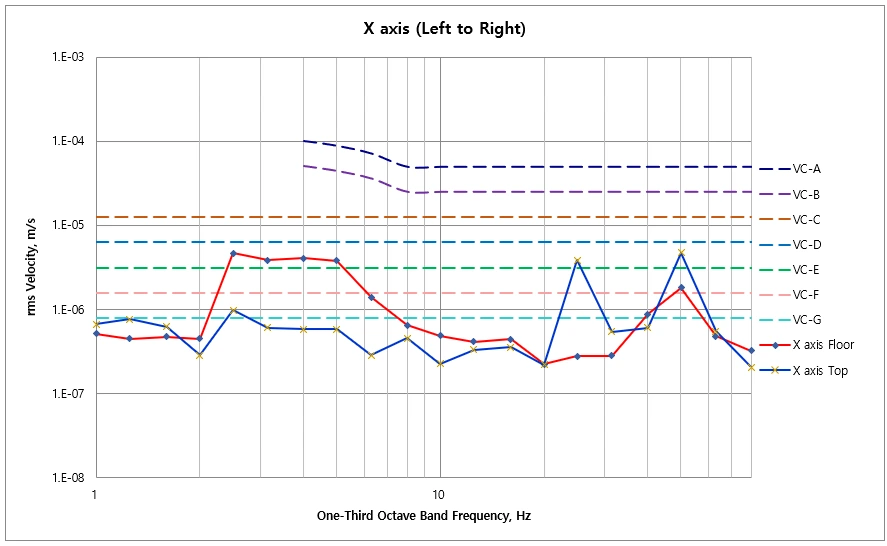

Equipment on — X axis

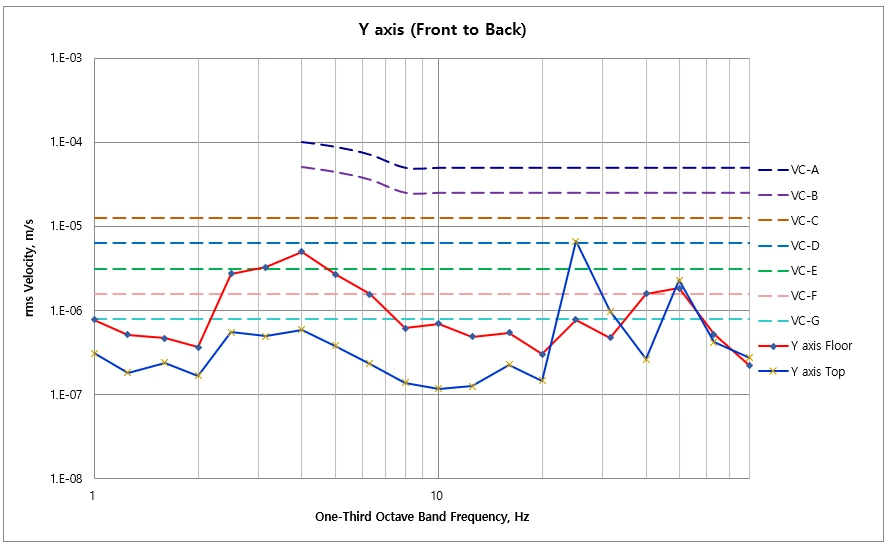

Equipment on — Y axis
