Hallym University JEOL JBX-8100FS DVIA-PB2200 Installation Report
Contents
Overview
SET-UP was performed after equipment placement of the DVIA-PB2200 installed at Hallym University (Chuncheon).
On April 1, 2024, a leak occurred during piping work by JEOL. Before DVIA-PB2200 SET-UP, the status of each unit was checked first.
Vibration from surrounding piping and equipment connected to the JBX-8100FS was significant, and SET-UP was performed with the equipment IDLE. This may affect DVIA-PB2200 performance.
The DRY Air compressor operated on a 10–15 second cycle. It generates strong vibration when operating.
After SET-UP completion, measurement data were plotted on VC Curve graphs.
Measurement date
24.04.02
Report written date
24.04.03
Vibration Isolation System Information
Model: DVIA-PB2200
Serial Number: 220926R2
Engineer
Kim Daehyun, Yoo Hosang, and Park Jongwon from DAEIL SYSTEMS
Installation date
April 2, 2024
Installation Site
Hallym University C/R,
End User
Hallym University
Customer Equipment
JEOL JBX-8100FS

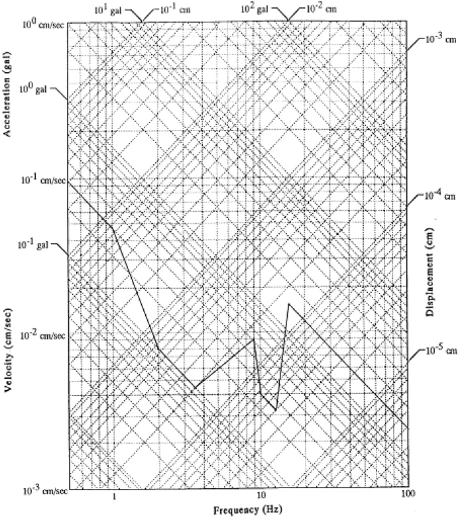

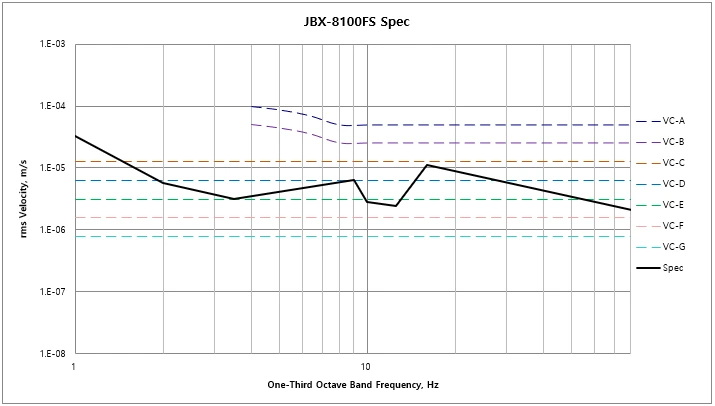

Equipment vibration specification
Equipment Status
Equipment is installed/Idle
Tuning count
2nd tuning
Measuring Equipment
10.1) PULSE 22
-Hardware: Bruel & Kjaer Type 3050-A-040
-Software: LapShop Application (PULSE Lapshop)
10.2) Accelerometer
PCB Accelerometer
Model: 393B05
Measuring Set-up
11.1) Measurement setting
Bandwidth: 0 – 200 Hz
Lines: 801
Analyzer: FFT Spectrum Averaging
Signal Units: m/s2
Spectral Units: rms
11.2) Measurement method
Accelerometers are attached to the upper plate (DVIA-PB2200 top plate) and lower floor for vibration measurement.
Vibration is measured in Vertical, Left to Right, and Front to Back directions.
Conclusion
Vertical, Left to Right, and Front to Back all show resonance peaks at 40 Hz. This appears to be resonance from equipment vibration in the IDLE state and from surrounding equipment.
Except at those frequencies, all bands satisfy the equipment vibration specification.
Measurement Data
| Type | Position | Direction | Specification | Measurement | Result |
|---|---|---|---|---|---|
| Vibration | DVIA-PB200 | Vertical | 3.25E-05 m/s - 5.66E-06 @ 1 Hz - 2 Hz | 2.34E-06 m/s @ 1.25 Hz | ✓ PASS |
| 5.66E-06m/s - 3.18E-06 @ 2 Hz – 3.5 Hz | 1.92E-06 m/s @ 3.15 Hz | ✓ PASS | |||
| 3.18E-06 m/s - 6.36E-06 @ 3.5 Hz - 9 Hz | 1.30E-06 m/s @ 8 Hz | ✓ PASS | |||
| 6.36E-06 m/s – 2.83E-06 @ 9 Hz - 10 Hz | 2.63E-06 m/s @ 10 Hz | ✓ PASS | |||
| 2.83E-06 m/s – 2.40E-06 @ 10 Hz – 12.5 Hz | 1.25E-06 m/s @ 12.5 Hz | ✓ PASS | |||
| 2.40E-06 m/s – 1.13E-05 @ 12.5 Hz - 16 Hz | 9.85E-07 m/s @ 16 Hz | ✓ PASS | |||
| 1.13E-05 m/s – 1.70E-06 @ 16 Hz - 100 Hz | 1.33E-05 m/s @ 40 Hz | ✗ FAIL | |||
| Left to Right | 3.25E-05 m/s - 5.66E-06 @ 1 Hz - 2 Hz | 4.14E-06 m/s @ 1.6 Hz | ✓ PASS | ||
| 5.66E-06m/s - 3.18E-06 @ 2 Hz – 3.5 Hz | 2.40E-06 m/s @ 2 Hz | ✓ PASS | |||
| 3.18E-06 m/s - 6.36E-06 @ 3.5 Hz - 9 Hz | 6.40E-07 m/s @ 5 Hz | ✓ PASS | |||
| 6.36E-06 m/s – 2.83E-06 @ 9 Hz - 10 Hz | 3.57E-07 m/s @ 10 Hz | ✓ PASS | |||
| 2.83E-06 m/s – 2.40E-06 @ 10 Hz – 12.5 Hz | 6.90E-07 m/s @ 12.5 Hz | ✓ PASS | |||
| 2.40E-06 m/s – 1.13E-05 @ 12.5 Hz - 16 Hz | 3.60E-07 m/s @ 16 Hz | ✓ PASS | |||
| 1.13E-05 m/s – 1.70E-06 @ 16 Hz - 100 Hz | 5.36E-06 m/s @ 40 Hz | ✗ FAIL | |||
| Front to Back | 3.25E-05 m/s - 5.66E-06 @ 1 Hz - 2 Hz | 2.25E-06 m/s @ 1 Hz | ✓ PASS | ||
| 5.66E-06m/s - 3.18E-06 @ 2 Hz – 3.5 Hz | 2.61E-06 m/s @ 2.5 Hz | ✓ PASS | |||
| 3.18E-06 m/s - 6.36E-06 @ 3.5 Hz - 9 Hz | 3.96E-07 m/s @ 5 Hz | ✓ PASS | |||
| 6.36E-06 m/s – 2.83E-06 @ 9 Hz - 10 Hz | 4.25E-07 m/s @ 10 Hz | ✓ PASS | |||
| 2.83E-06 m/s – 2.40E-06 @ 10 Hz – 12.5 Hz | 4.94E-07 m/s @ 12.5 Hz | ✓ PASS | |||
| 2.40E-06 m/s – 1.13E-05 @ 12.5 Hz - 16 Hz | 5.49E-07 m/s @ 16 Hz | ✓ PASS | |||
| 1.13E-05 m/s – 1.70E-06 @ 16 Hz - 100 Hz | 6.96E-06 m/s @ 40 Hz | ✗ FAIL |
Data and Image

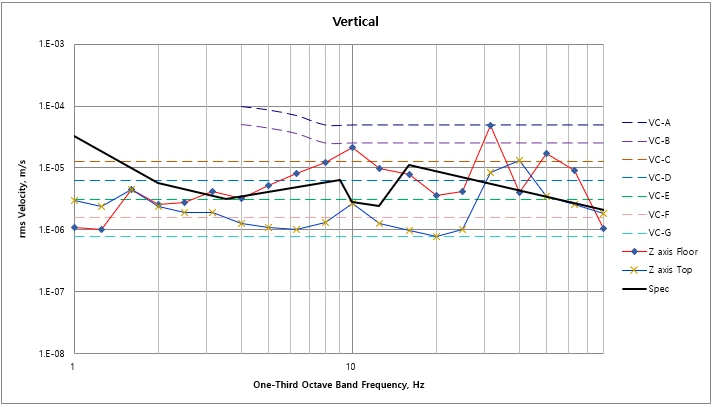

Vertical VC Curves

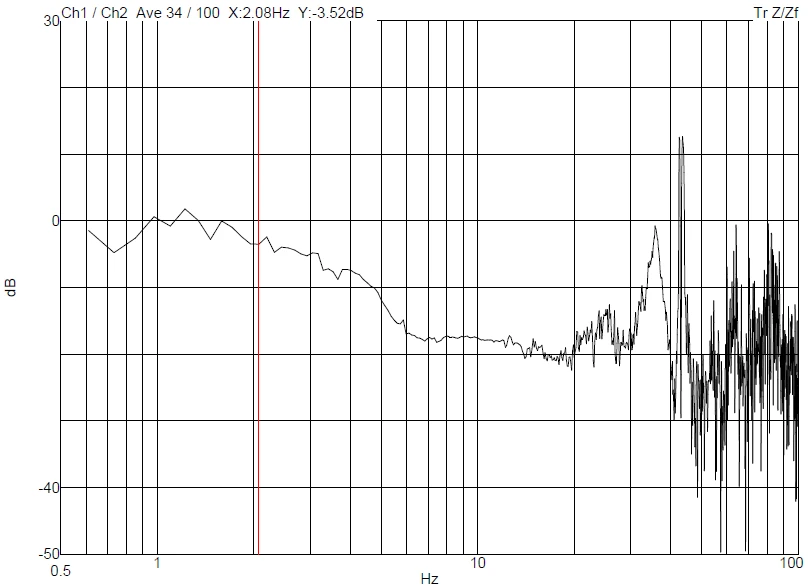

Vertical Transmissibility

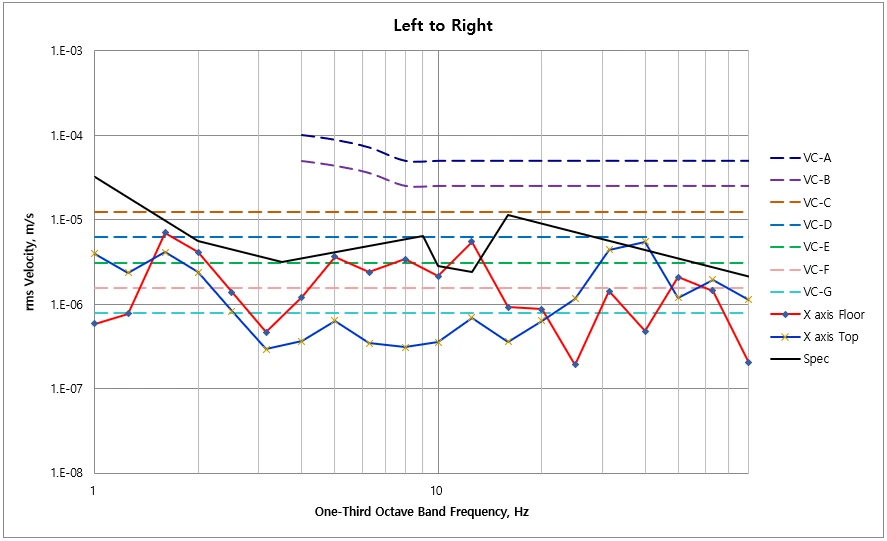

Left to Right VC Curves

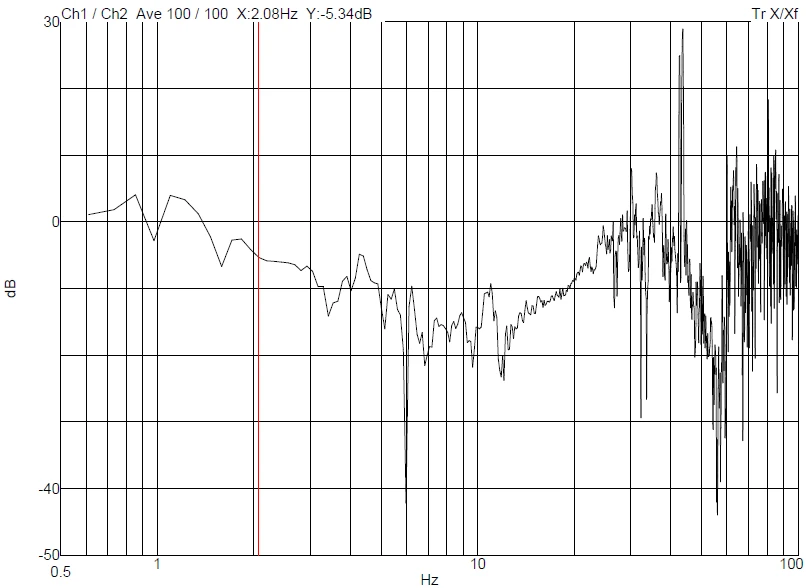

Left to Right Transmissibility

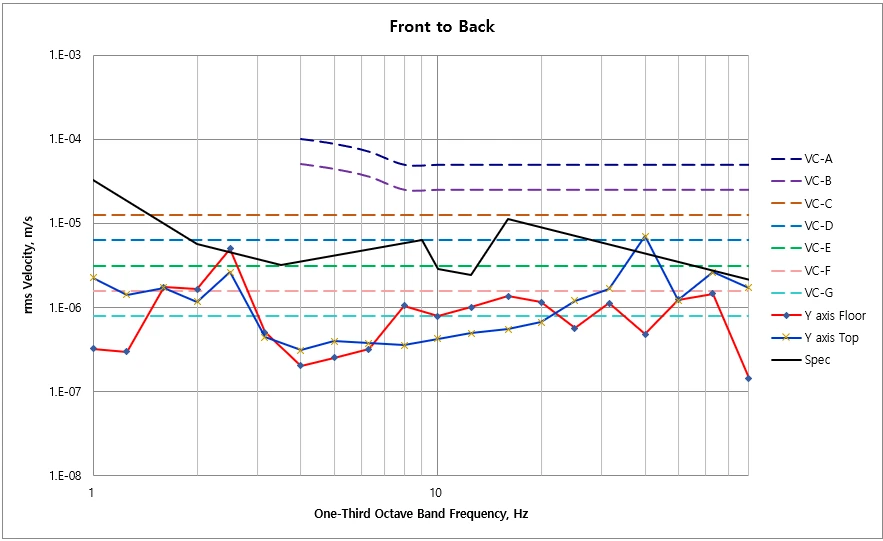

Front to Back VC Curves

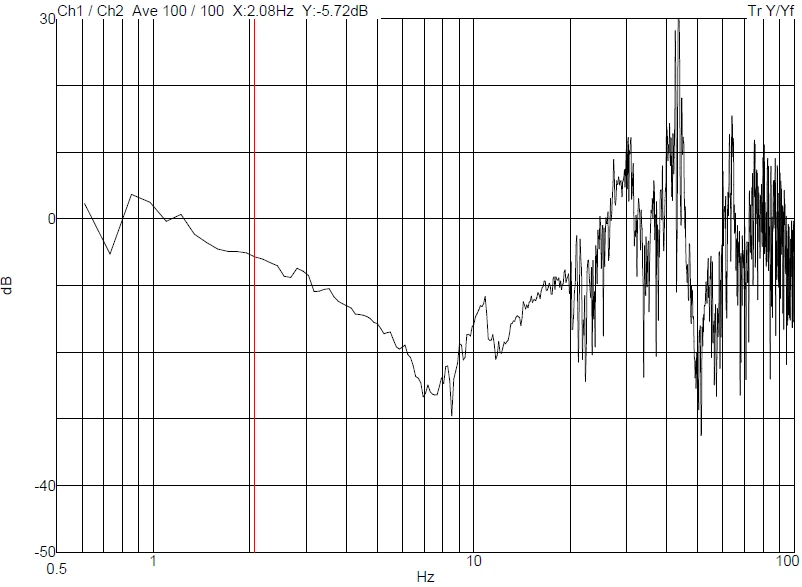

Front to Back Transmissibility
Reference
Generic Vibration Criteria
Notes:
1. VC-A/B is measured in 1/3 octave bands from 8-80 Hz, VC-C through VC-G from 1-80 Hz.
2. Detail size refers to line widths in microelectronics manufacturing or particle sizes in medical research.
