Installation Report
DVIA-M Series
11-08-2023
TUSUR, Tomsk Emcraft Veritas 3100 DVIA-MB1000 Installation Report — 2023.10.27
DVIA-M Series
Installation Report
DVIA-MB1000
Emcraft
Veritas 3100
TUSUR
Tomsk
Russia
220825R6-3
Contents
Prepared for
TUSUR, Tomsk
Overview
The DVIA-MB1000 active vibration isolation platform is appropriately installed and functioning as intended.
System Information
Model: DVIA-MB1000 910x1140mm
Serial Number: 220825R6-3
Engineer
Youngha Lee from DAEIL SYSTEMS
Tuning date
October 27 - October 30, 2023
Report written date
23.11.08
Date of business trip
17.12.27~17.12.29
Location
Tomsk, Russia
Equipment
Emcraft Veritas 3100
Data and Image

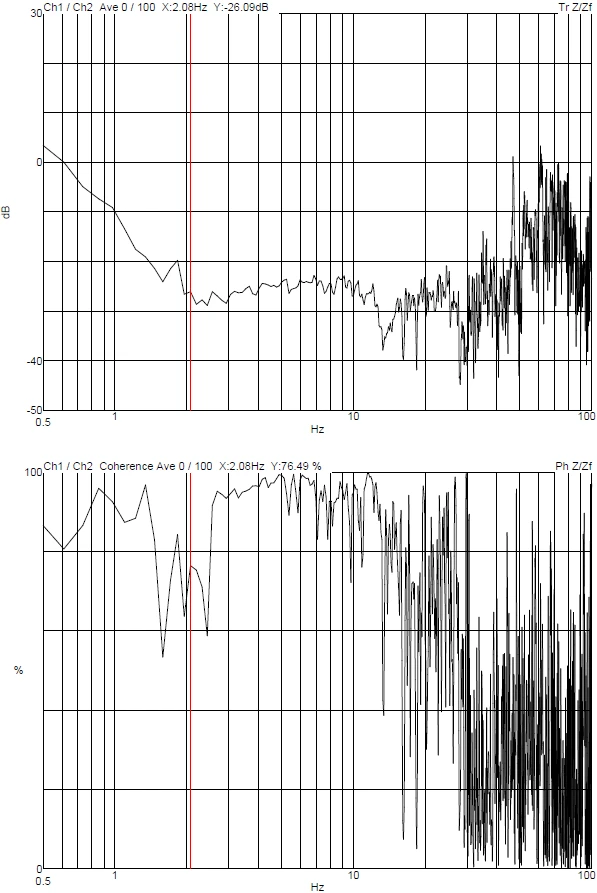

Z-axis (Vertical) Transmissibility

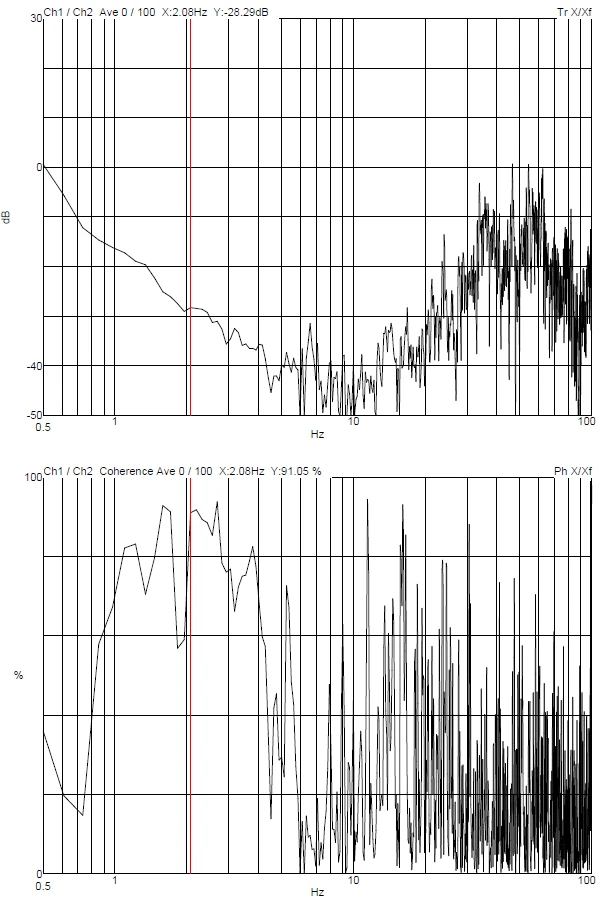

X-axis (Left to Right) Transmissibility

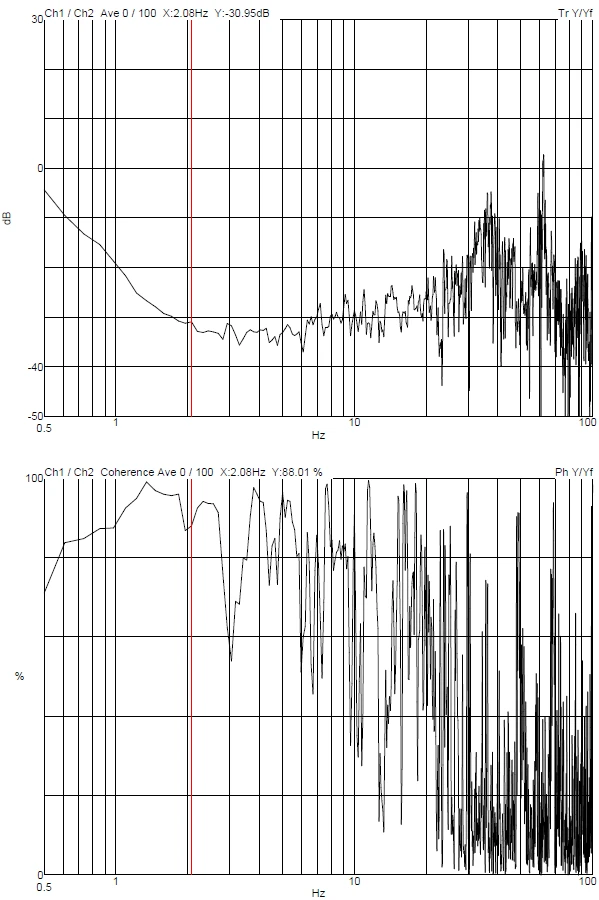

Y-axis (Front to Back) Transmissibility
