Installation Report
DVIA-ULF Series
05-02-2023
Fujian Sanbao Steel Apreo 2C HiVac DVIA-UB700 Installation Report — Fujian
DVIA-U Series
Installation Report
Fujian Sanbao Steel
Thermo Fisher Scientific
Apreo
HiVac
Fujian
DVIA-UB700
220718R9
Contents
Prepared for
Fujian Sanbao Steel Co.,Ltd.
Prepared by
Engineer: Youngha Lee
Tuning date: 23.04.27
Report written date: 23.05.02
Date of business trip : 17.12.27~17.12.29
Overview
The DVIA-UB700 active vibration isolation platform is appropriately installed and functioning as intended.
System Information
Model: DVIA-UB700
Serial Number: 220718R9
Engineer
Youngha Lee, from DAEIL SYSTEMS
Tuning Date
April 27, 2023
Location
FUJIAN, China
Equipment
Apreo 2C HiVac
Summary of Vibration Results
| Measurement Point | Z-axis (Vertical) 1-10 Hz | Z-axis (Vertical) 12.5-80 Hz | X-axis (Left to Right) 1-10 Hz | X-axis (Left to Right) 12.5-80 Hz | Y-axis (Front to Back) 1-10 Hz | Y-axis (Front to Back) 12.5-80 Hz |
|---|---|---|---|---|---|---|
| Floor | A | B | B | C | A | C |
| Active | D | E | C | E | C | F |
Data and Image

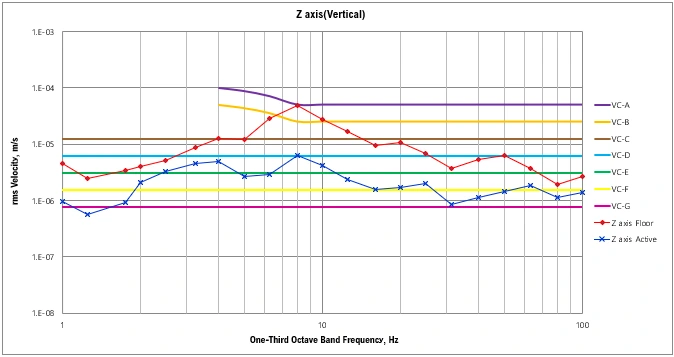

Z-axis (Vertical) VC-Curve

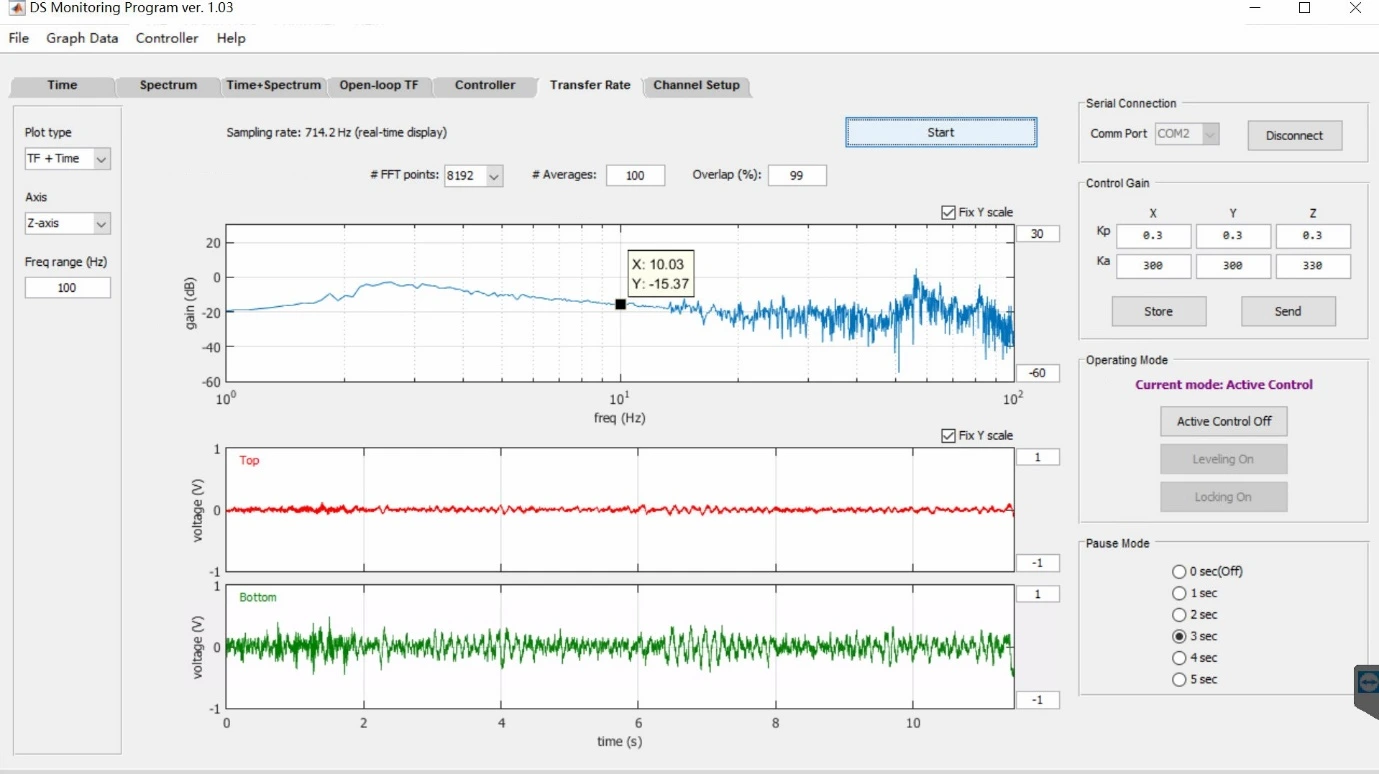

Z-axis (Vertical) Transmissibility

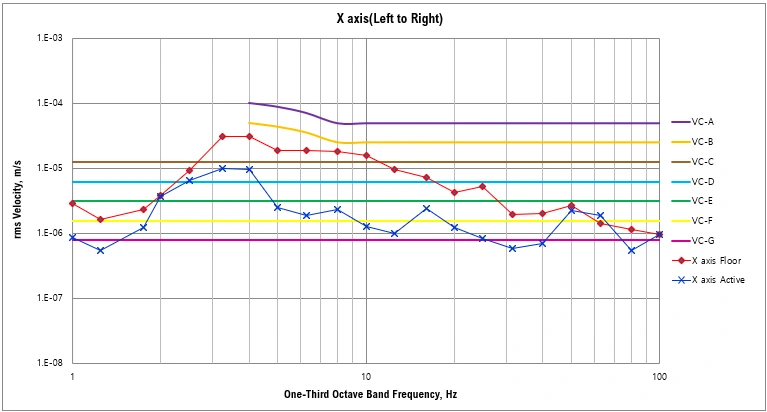

X-axis (Left to Right) VC-Curve

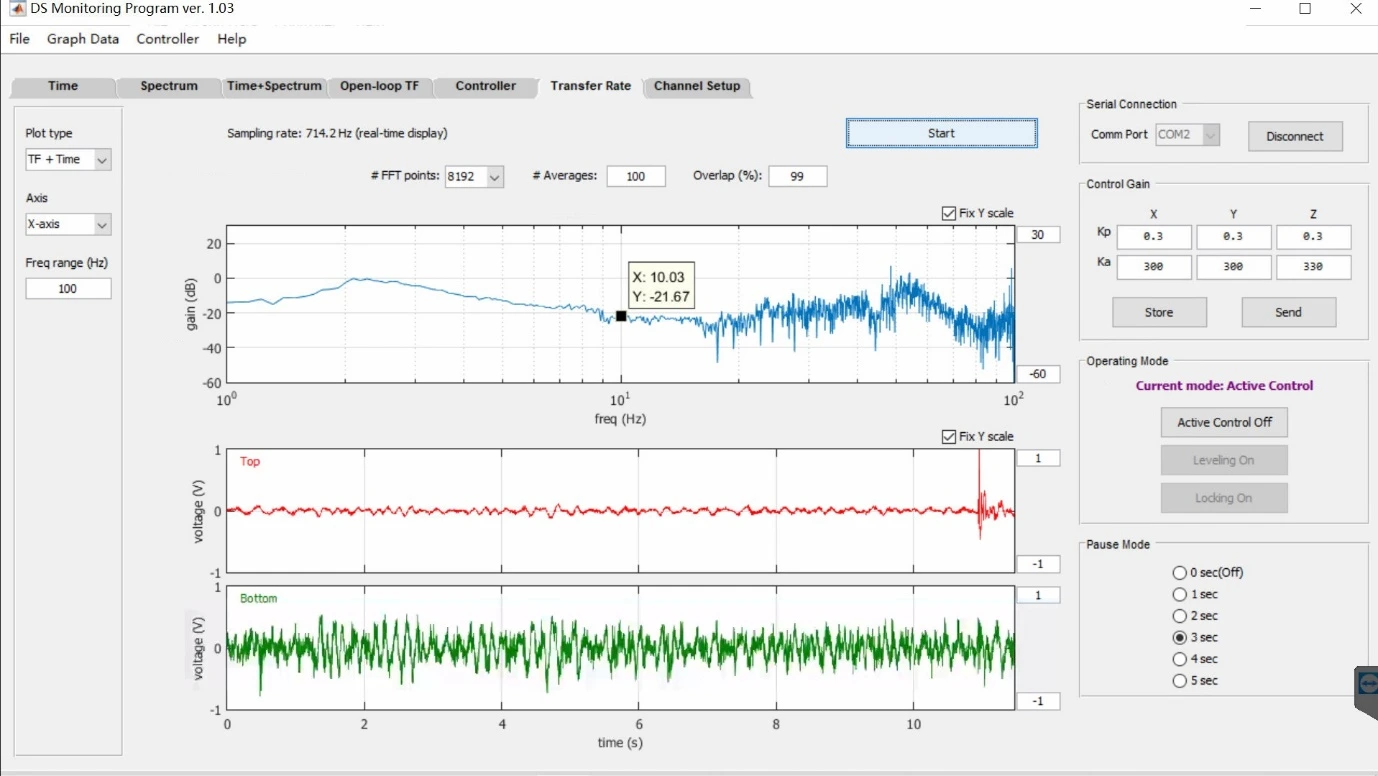

X-axis (Left to Right) Transmissibility

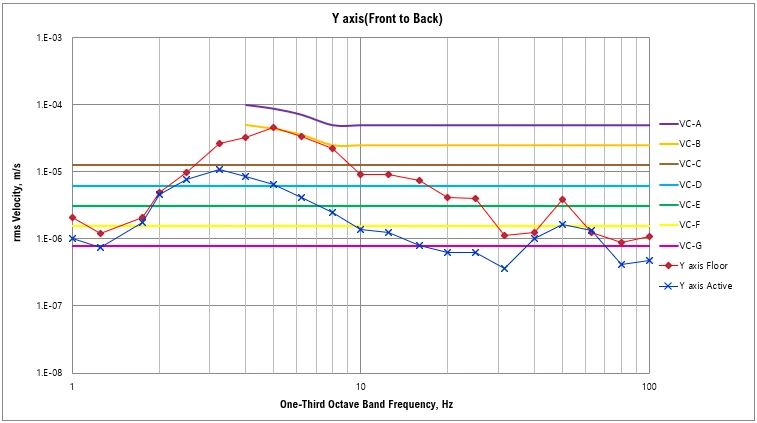

Y-axis (Front to Back) VC-Curve

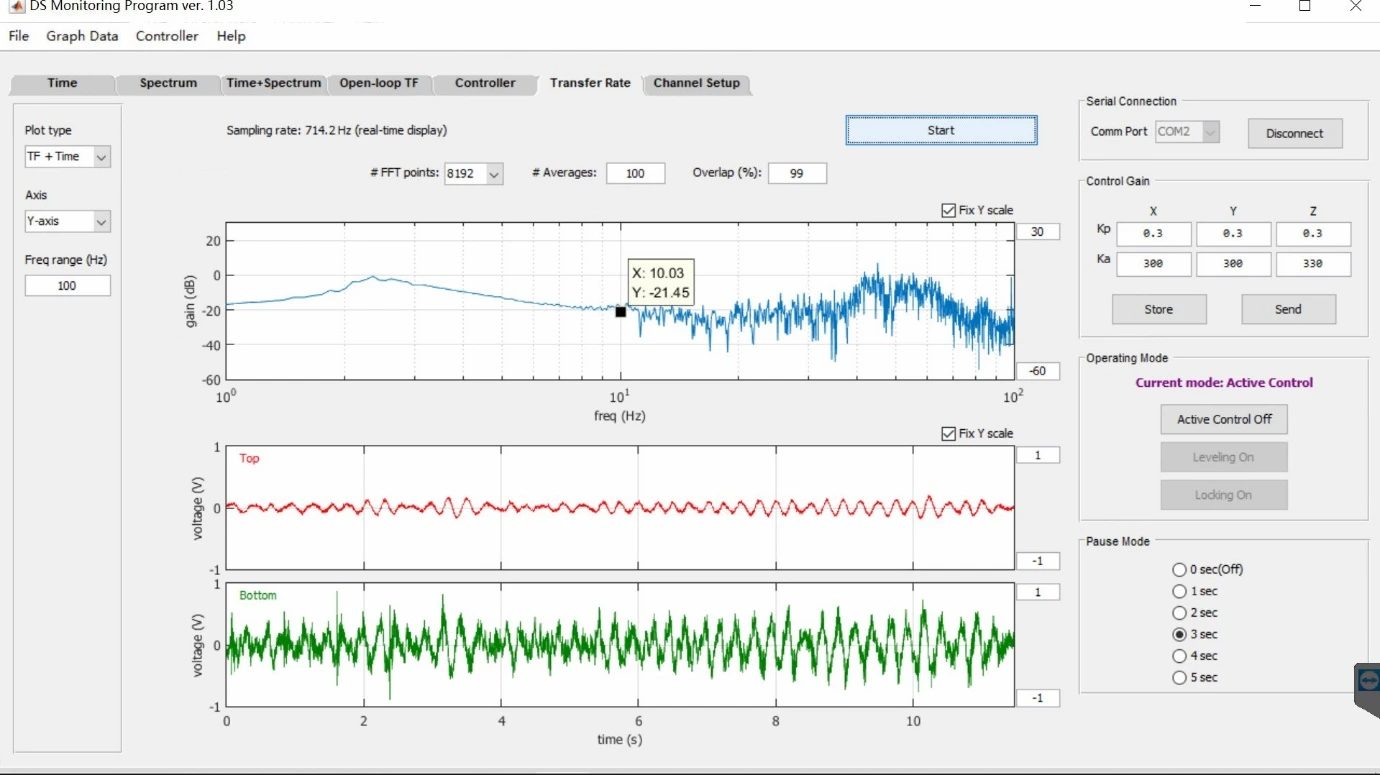

Y-axis (Front to Back) Transmissibility

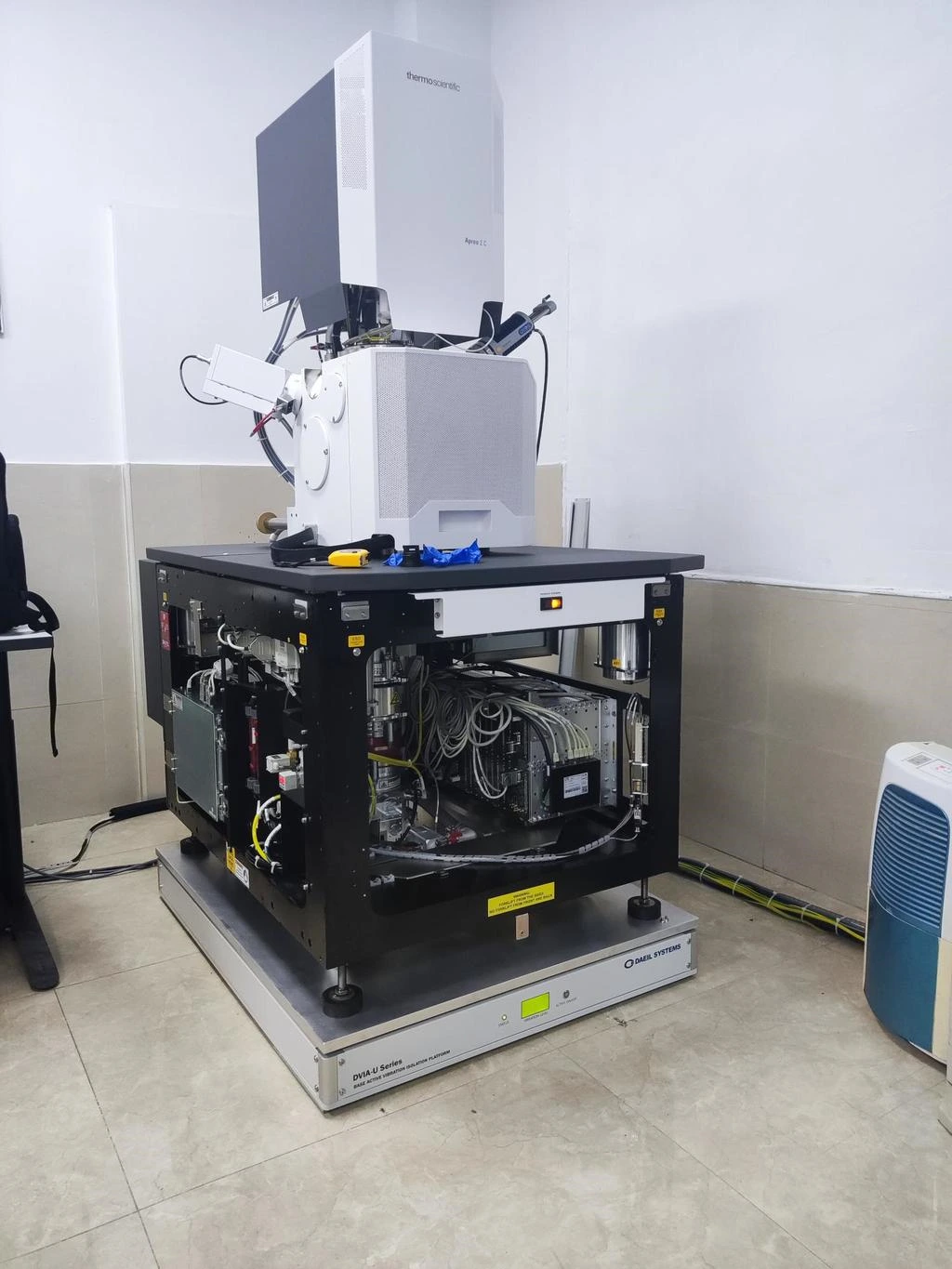

Equipment image
