Installation Report
DVIA-M Series
06-20-2022
DVIA-M1000 Performance Test Report (220520R3)
DVIA-M Series
Installation Report
DVIA-M1000
Performance Test
DAEIL SYSTEMS
220520R3
Contents
Overview
The DVIA-M1000 active vibration isolation platform was tested for performance.
Prepared by
Engineer: Youngha Lee
Tuning date: 22.06.17
Report written date: 22.06.20
Date of business trip: 17.12.27~17.12.29
System information
Model: DVIA-M1000
Serial Number: 220520R3
Engineer Youngha Lee from DAEIL SYSTEMS
Test Date June 17, 2022
Location 2nd Factory, Daeil Systems
Payload 550kg dummy
Summary of Vibration Transmissibility
| Direction | 2Hz | 10Hz |
|---|---|---|
| Z axis | -27.33dB | -43.41dB |
| X axis | -32.11dB | -40.19dB |
| Y axis | -30.23dB | -41.30dB |
Data and Image

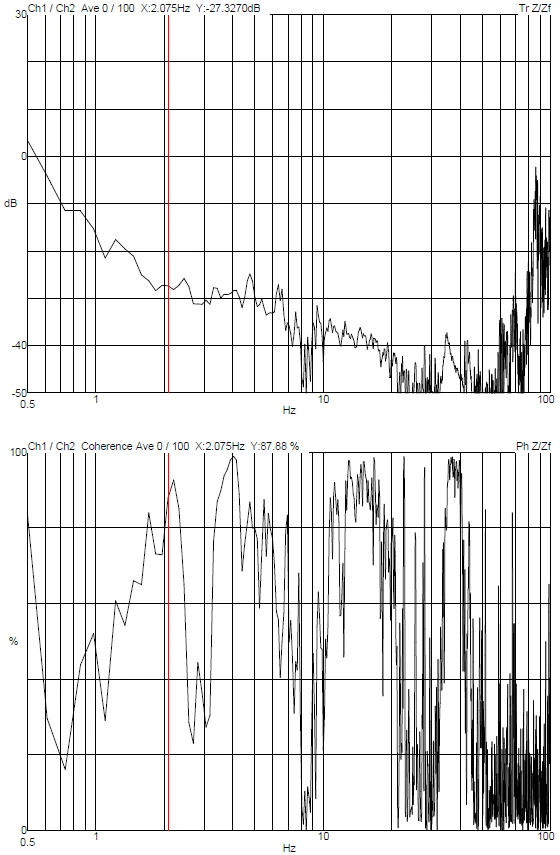

Z-axis (Vertical) Transmissibility

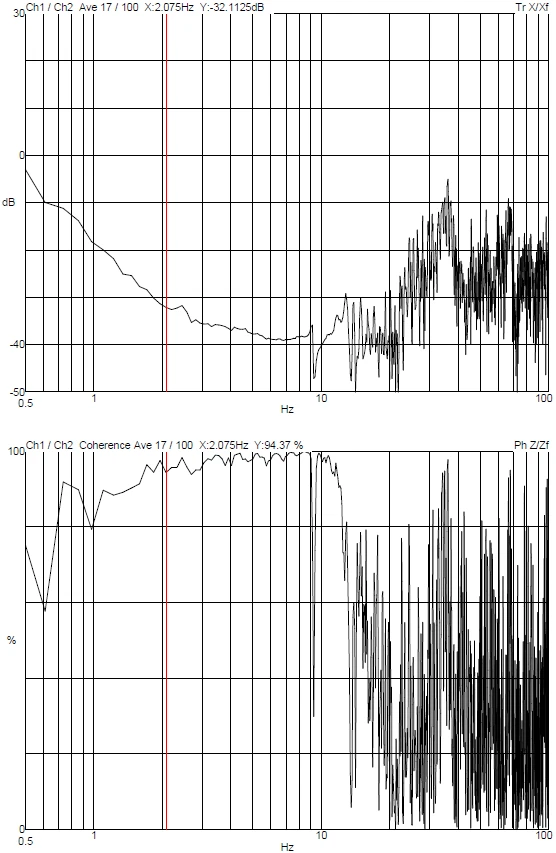

X-axis (Left to Right) Transmissibility

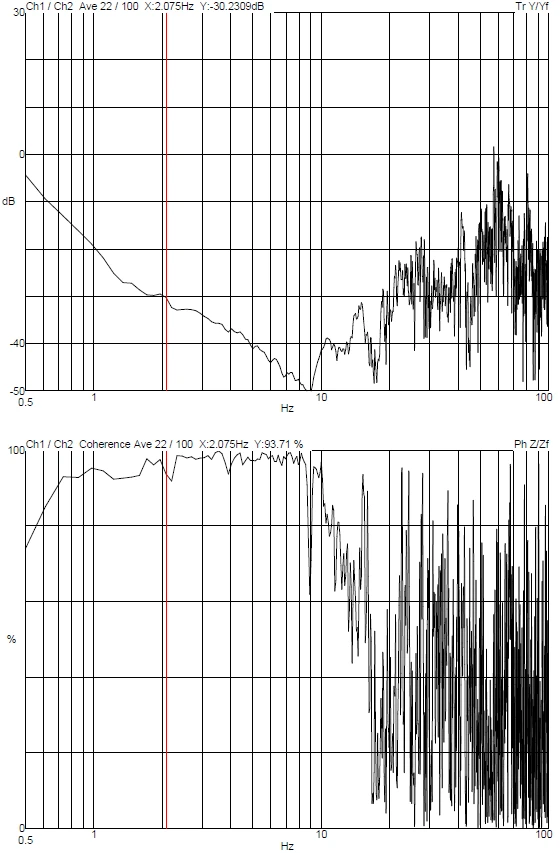

Y-axis (Front to Back) Transmissibility
