Installation Report
DVIA-M Series
01-10-2023
Sigma300 Shenzhen DVIA-M1000 Installation Report (UNITED BLUEOCEAN, SN 220509R2, 2023-01-10)
DVIA-M Series
Installation Report
UNITED BLUEOCEAN
Sigma300
DVIA-M1000
SHENZHEN
Contents
Overview
The DVIA-M1000 active vibration isolation platform is appropriately installed and functioning as intended.
Platform serial: M1000_220509R2 (DVIA-M1000).
Date of setup
23.01.10
Measurement date
2023.01.10 (Tuesday)
Date of reporting
23.01.16
Date of business trip
17.12.27~17.12.29
Operator
DAEIL SYSTEMS, Youngha Lee
Place of measurement
SHENZHEN
Equipment Model
Sigma300
Measurement conditions and results
Summary of measurement results
| Test Condition | VC-Class Z | VC-Class X | VC-Class Y |
|---|---|---|---|
| Floor | B | D | D |
| Above Active | E | F | F |
Good omnidirectional performance.
MB1000 internal program performance measurement result

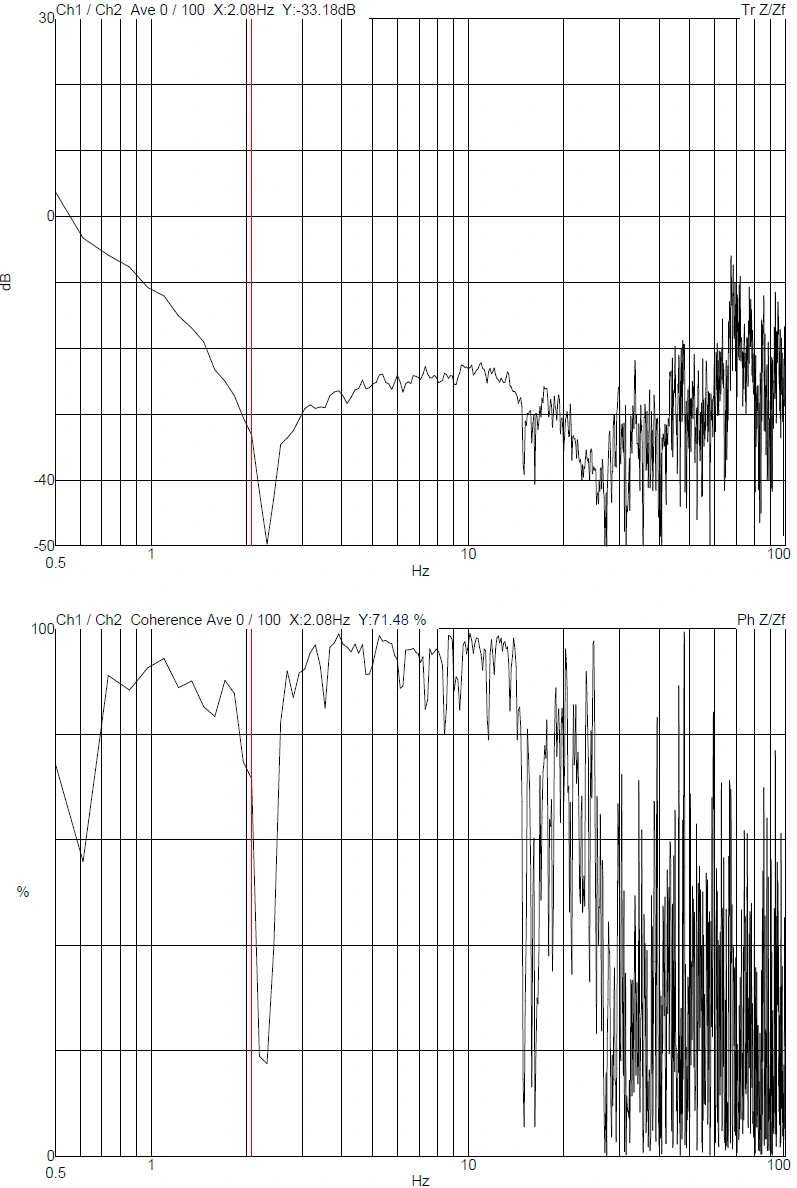

MB1000 internal program — Z axis

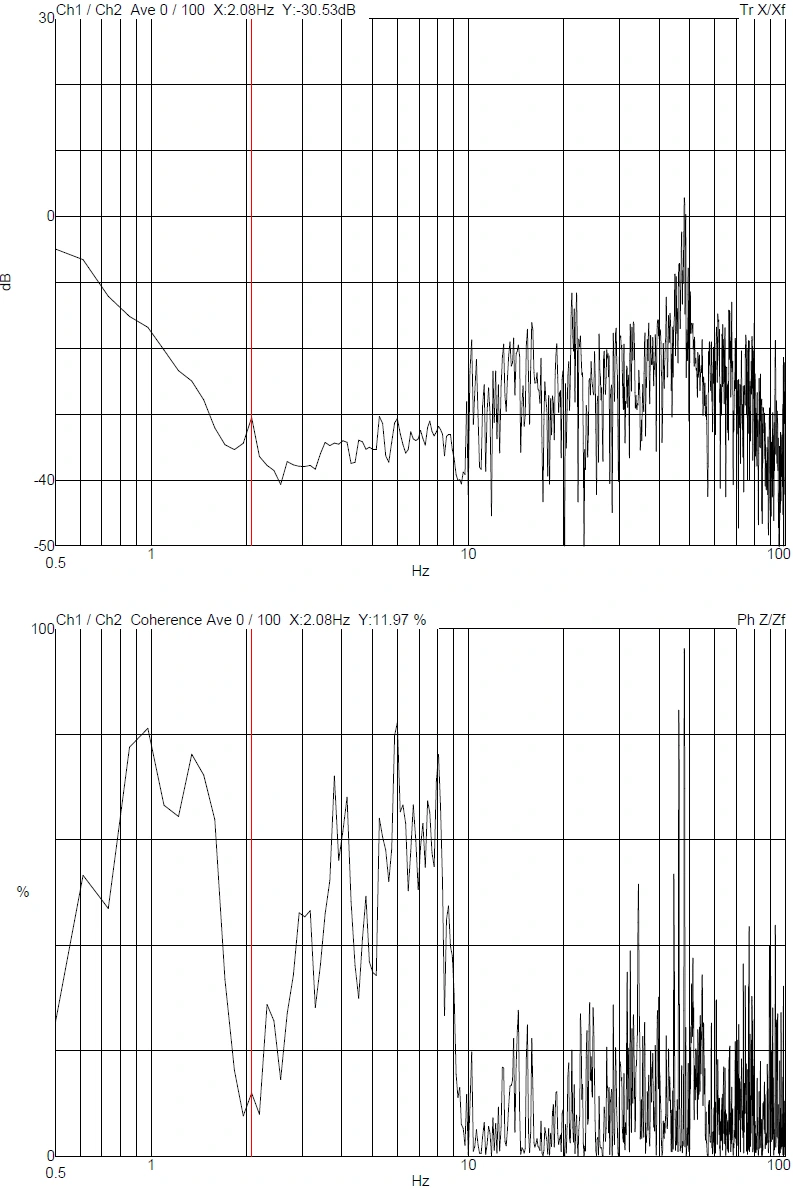

MB1000 internal program — X axis

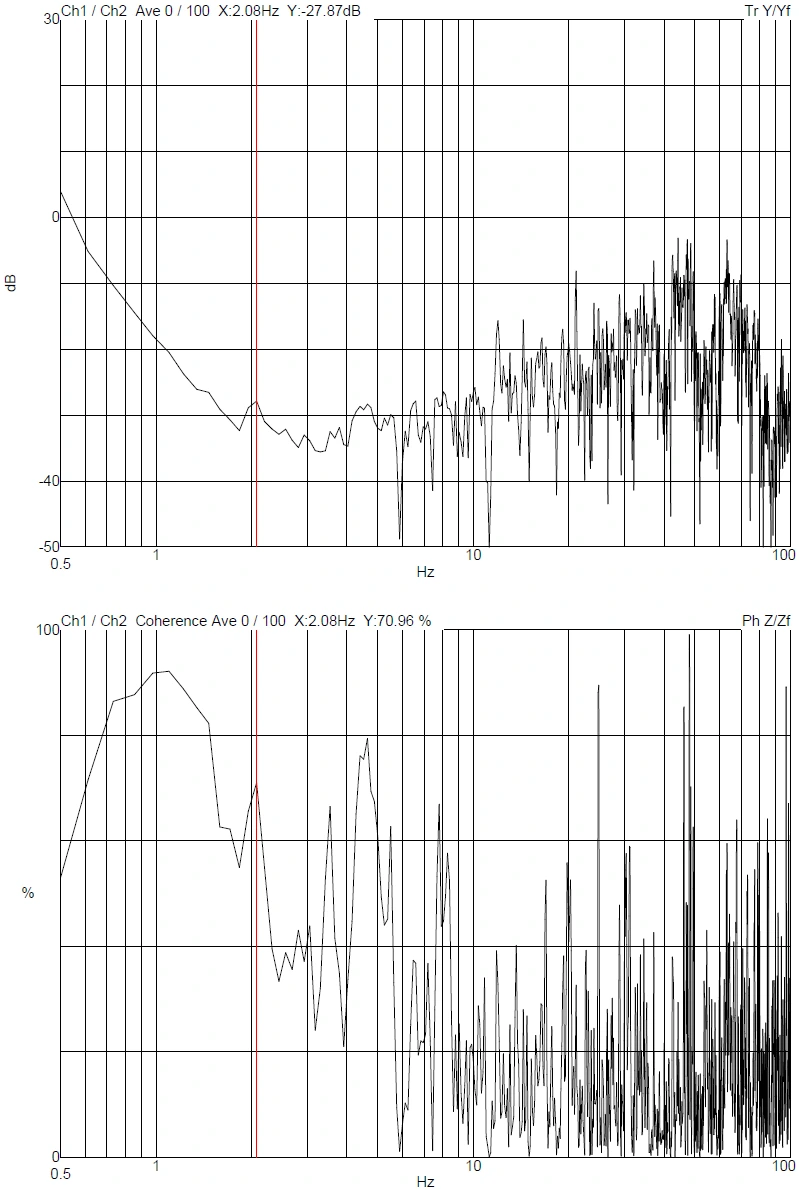

MB1000 internal program — Y axis
Octave Band Result

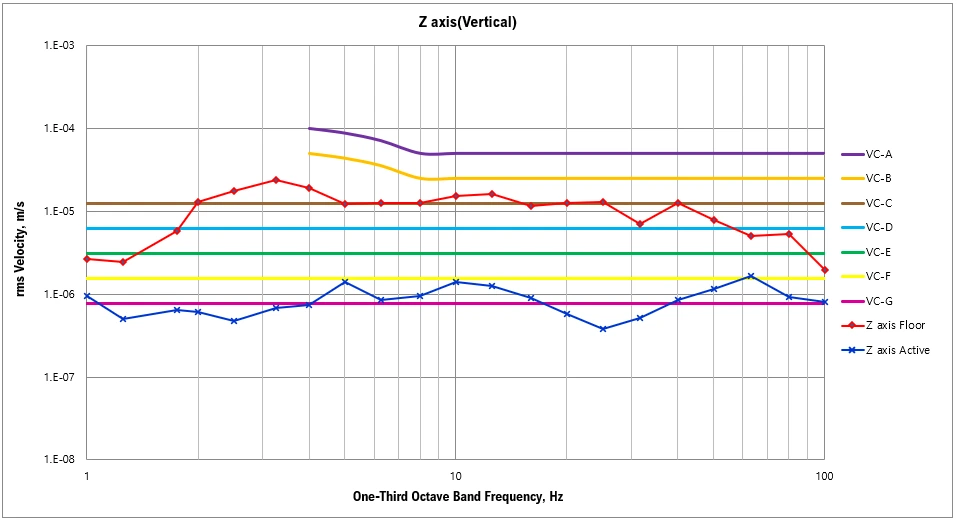

Octave band result — Z axis

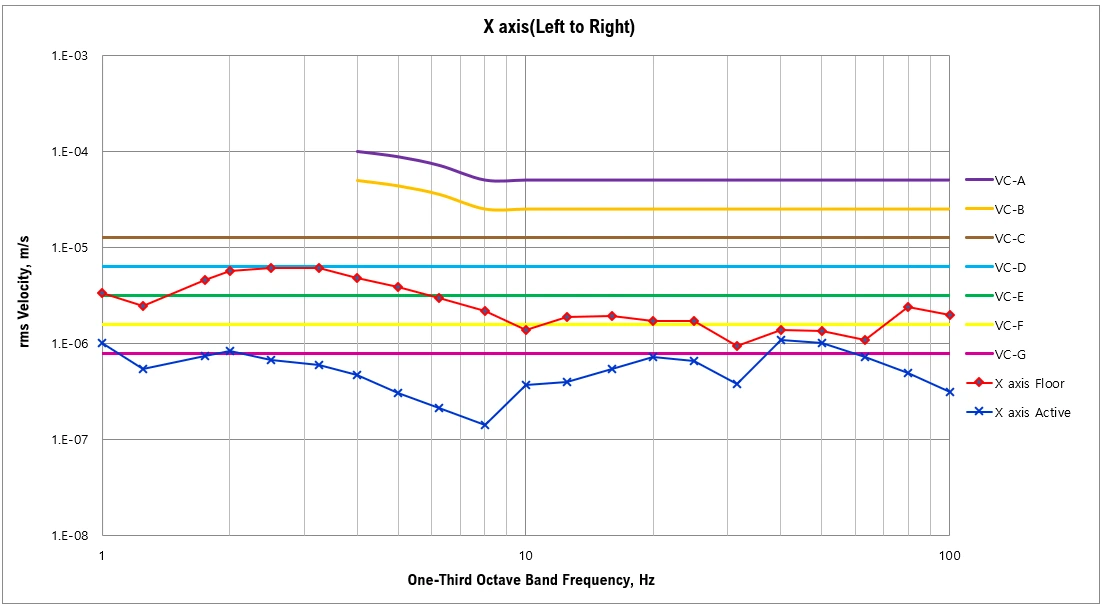

Octave band result — X axis

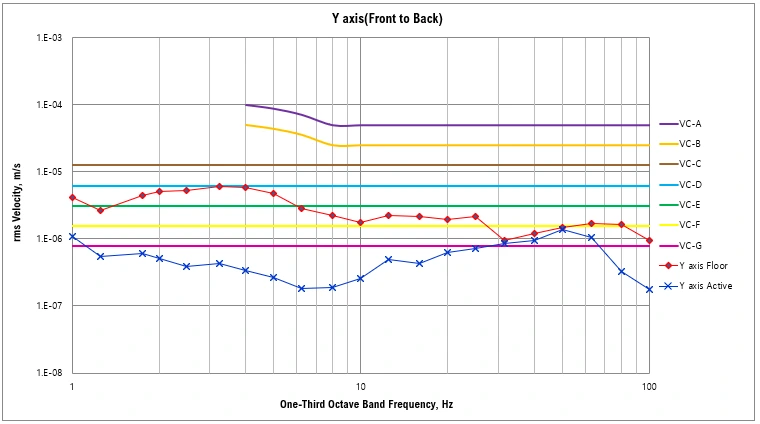

Octave band result — Y axis
