Installation Report
DVIA-M Series
05-16-2026
ZOLIX DVIA-MB1000 (220330R5-3) Shanghai Institute Installation Report
DVIA-M Series
Installation Report
ZOLIX
DVIA-MB1000
Shanghai Institute of Technology and Technology
Contents
Prepared for
Shanghai Institute of Technology and Technology
Engineer: Youngha Lee, Jongwon Park
Tuning date: 23.08.04
Report written date: 23.08.07
Date of business trip: 17.12.27~17.12.29
Overview
Due to the noise phenomenon, the DVIA-MB1000 active vibration isolation platform was re-tuned.
The noise has been removed and it works normally.
System Information
Model: DVIA-MB1000
Serial Number: 220330R5-3
Engineer
Youngha Lee, Jongwon Park from DAEIL SYSTEMS
Tuning Date
August 04, 2023
Location
Shanghai, China
Equipment
Three-axis Vibration Exciter
Data and Image

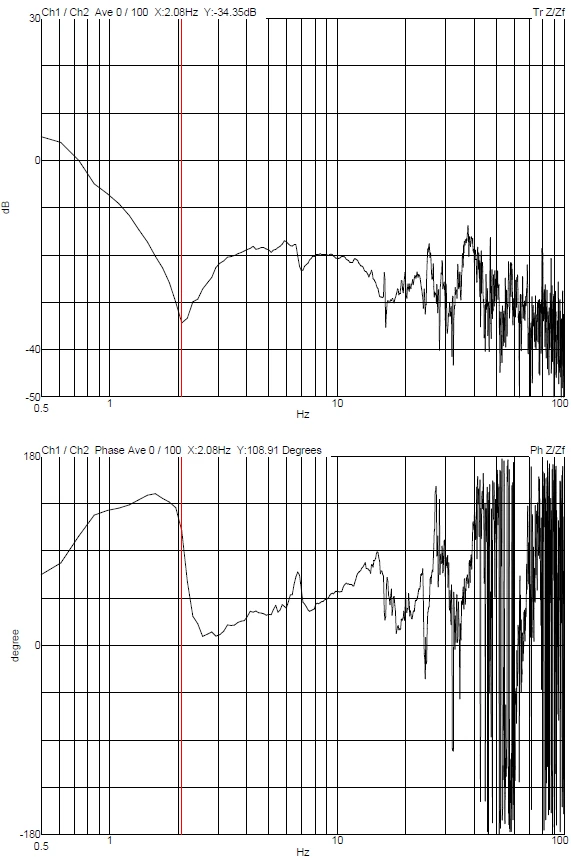

Z-axis (Vertical) Transmissibility

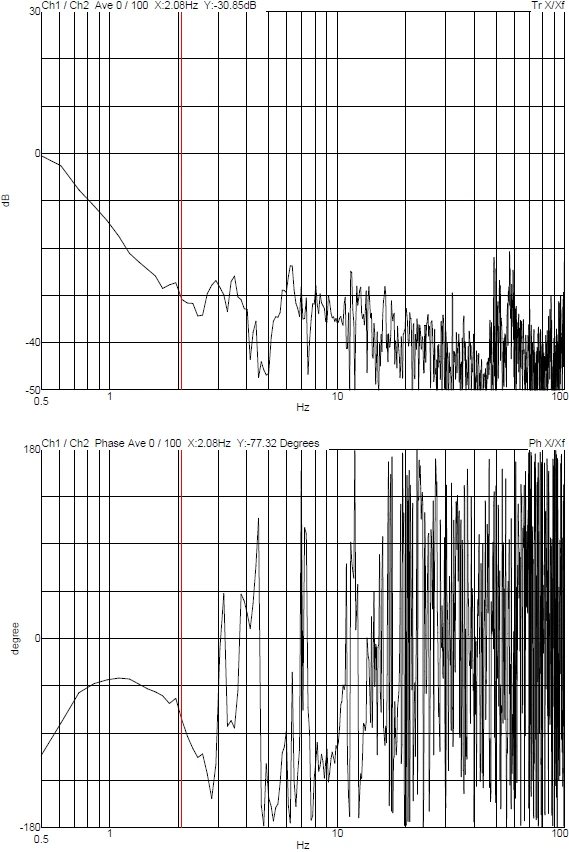

X-axis (Left to Right) Transmissibility

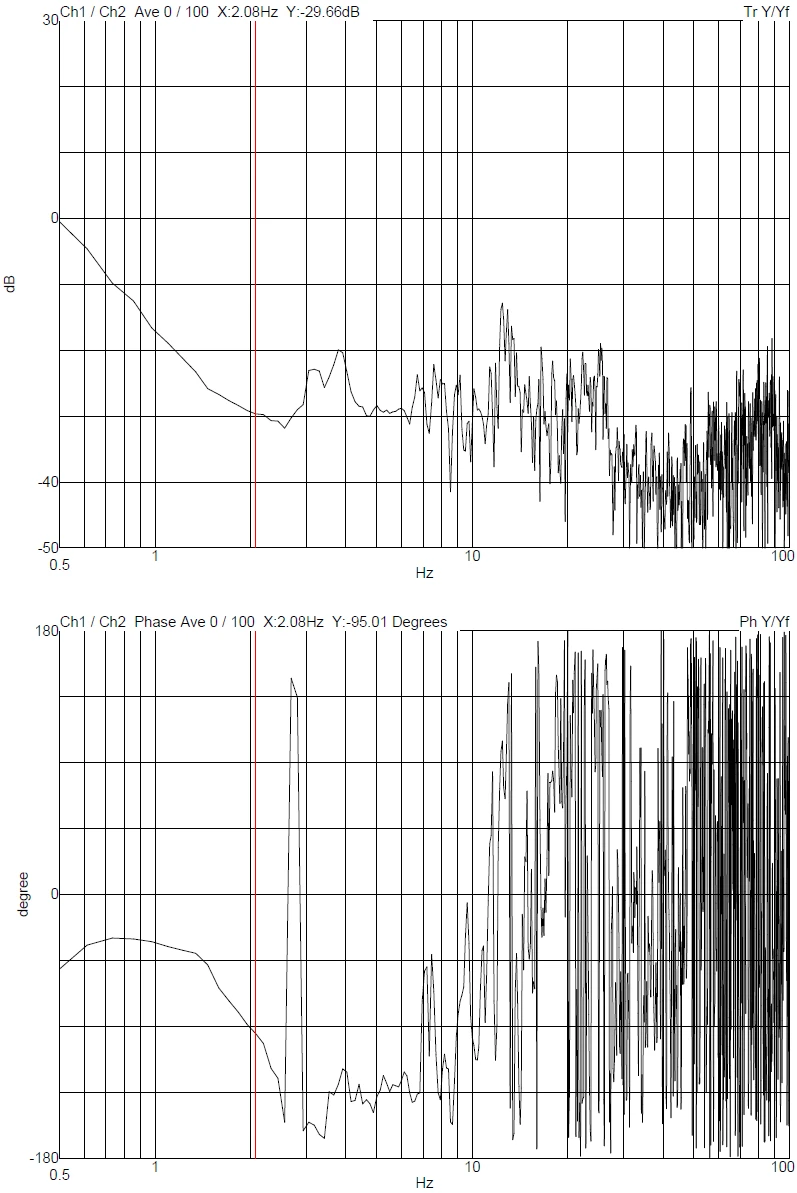

Y-axis (Front to Back) Transmissibility

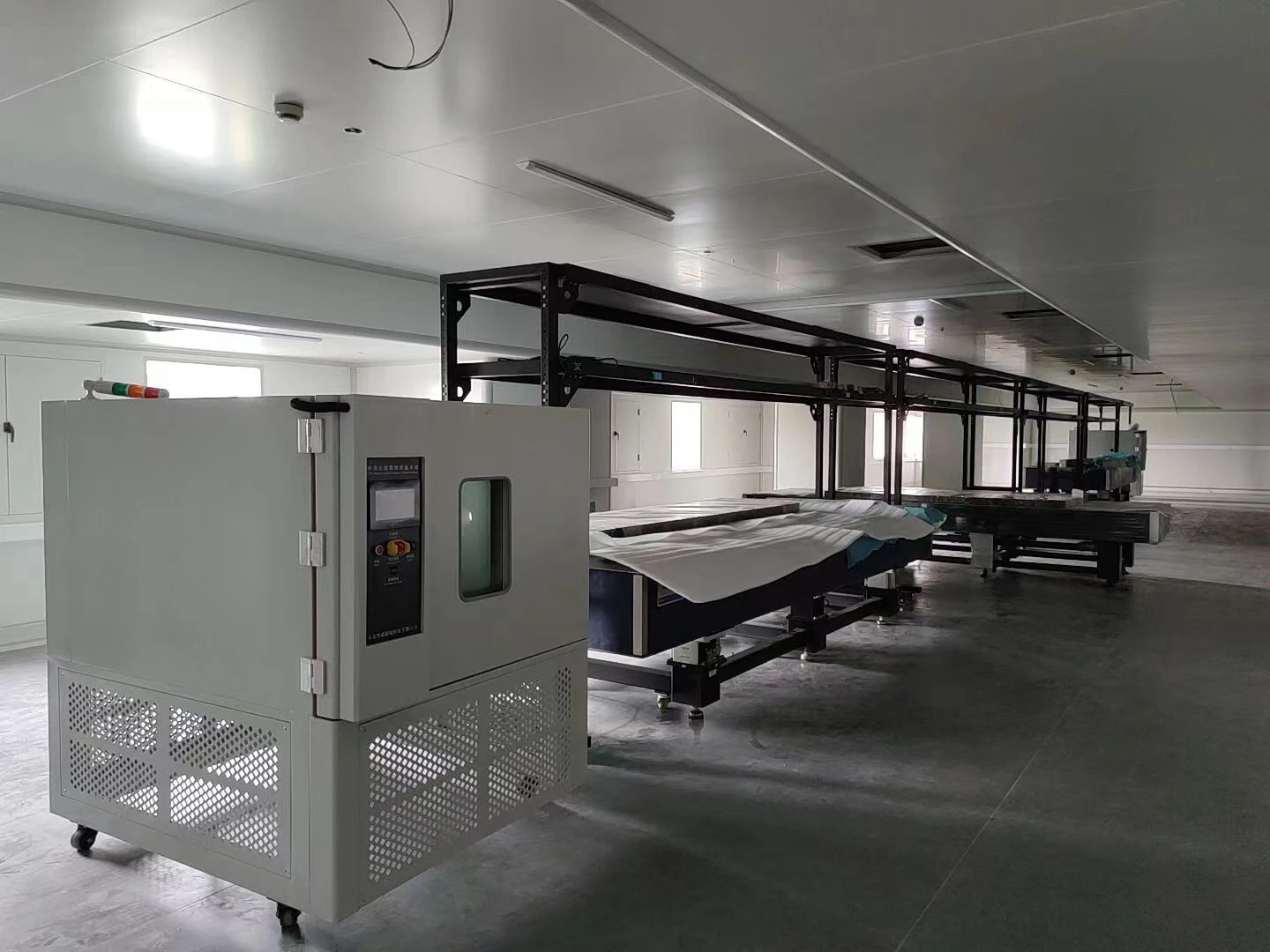

Equipment picture (1)

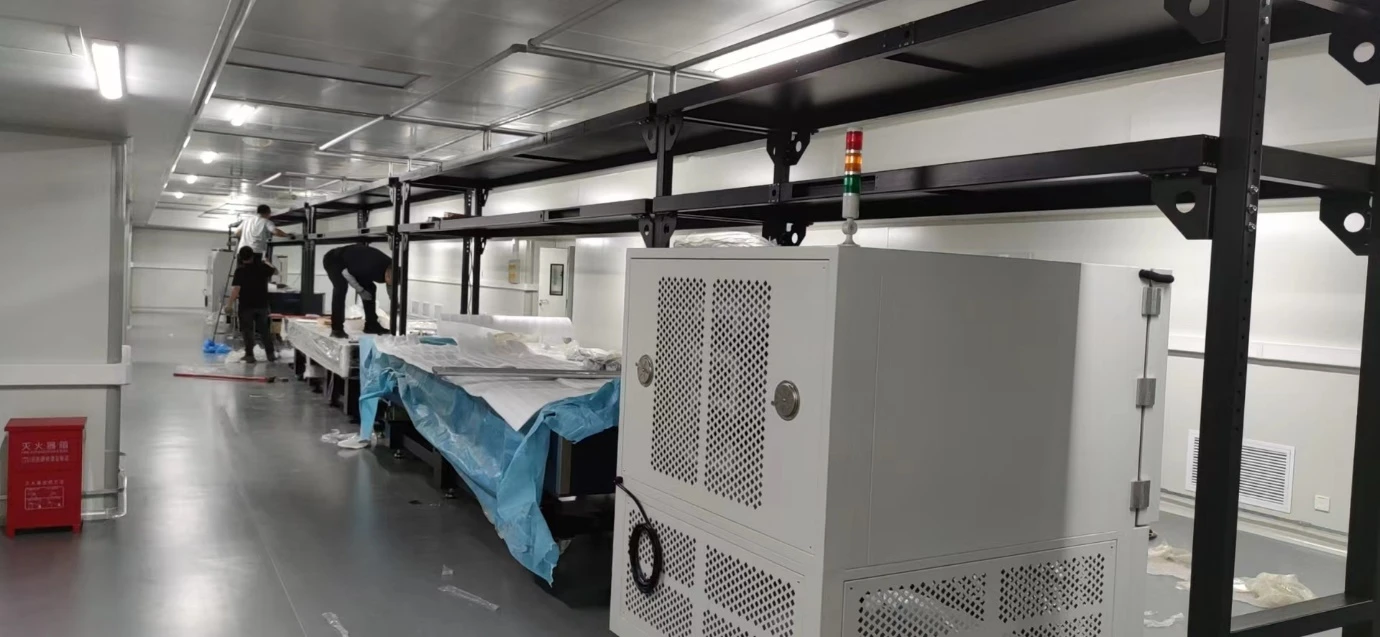

Equipment picture (2)
