Installation Report
DVIA-M Series
05-16-2026
ZOLIX Shanghai Institute of Technology and Technology Three-axis Vibration Exciter DVIA-MB1000 (220330R5-3) Installation Report
DVIA-M Series
Installation Report
ZOLIX
Shanghai Institute of Technology and Technology
DVIA-MB1000
220330R5-3
Contents
Overview
The DVIA-MB1000 active vibration isolation platform is appropriately installed and functioning as intended.
Prepared for
Shanghai Institute of Technology and Technology
System Information
Model: DVIA-MB1000
Serial Number: 220330R5-3
Engineer
Youngha Lee from DAEIL SYSTEMS
Tuning Date
July 07, 2023
Report written date
July 10, 2023
Date of business trip
17.12.27~17.12.29
Location
Shanghai, China
Equipment
Model: Three-axis Vibration Exciter
Summary of Vibration Transmissibility
| Direction | 2Hz | 5Hz | 10Hz |
|---|---|---|---|
| Z axis | -27.84dB | -24.03dB | -23.39dB |
| X axis | -31.07dB | -44.71dB | -34.36dB |
| Y axis | -31.52dB | -36.37dB | -27.70dB |
Data and Image

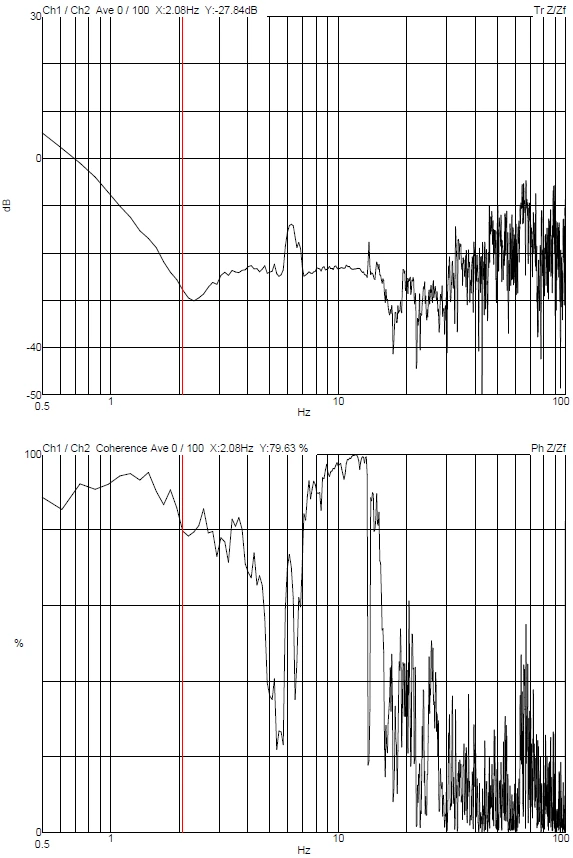

Z-axis (Vertical) Transmissibility

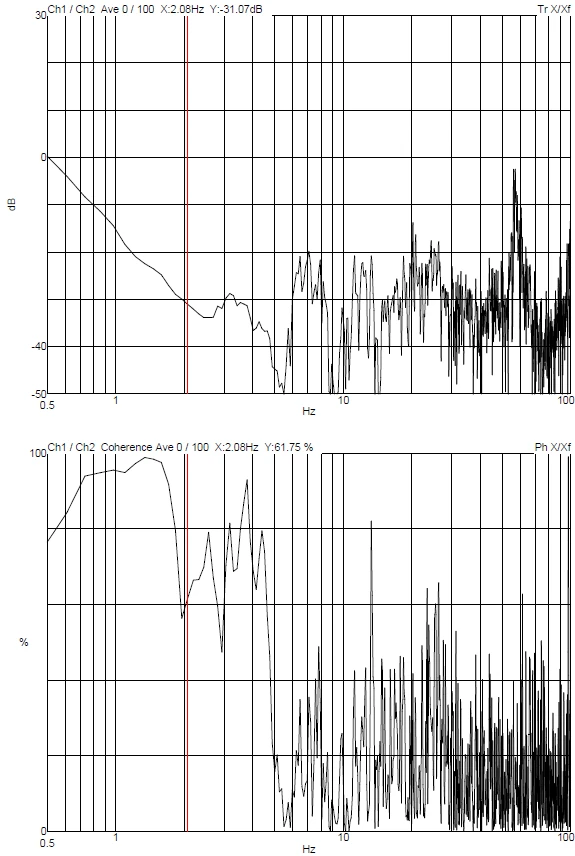

X-axis (Left to Right) Transmissibility

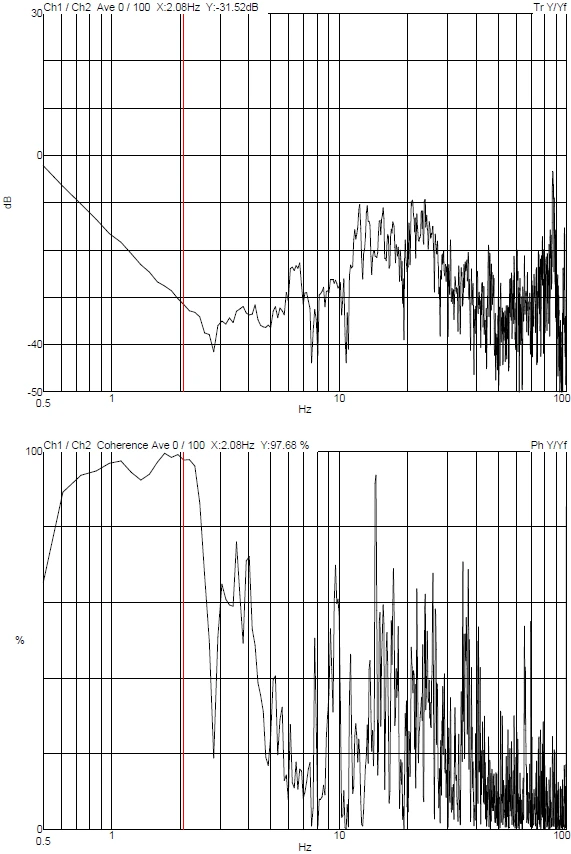

Y-axis (Front to Back) Transmissibility

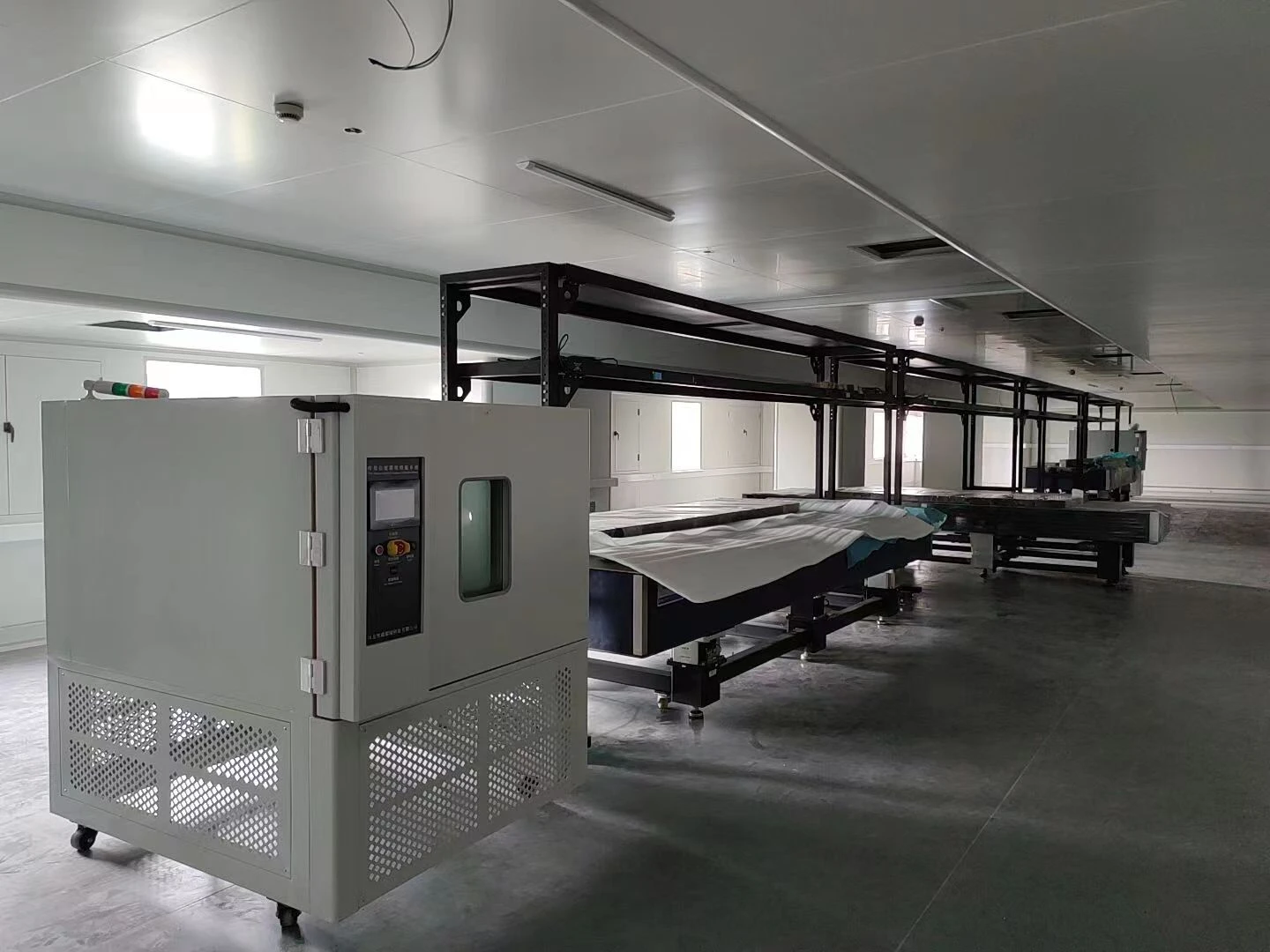

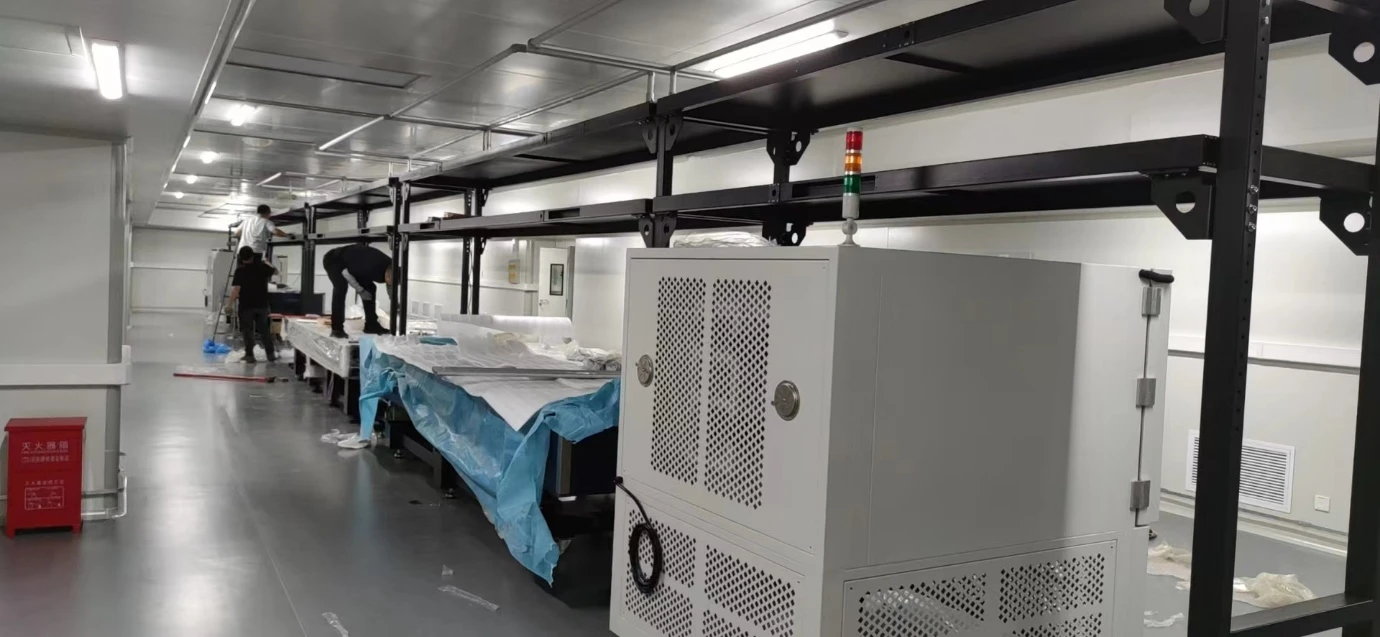

Equipment picture
