Installation Report
DVIA-M Series
12-07-2021
YIMO Thermo Scientific Apreo 2 C MB1000 P262 (211027R2) internal program handout — 2021.12.07
DVIA-M Series
Installation Report
YIMO
DVIA-MB1000
211027R2
P262
Thermo Scientific
Apreo 2 C
Contents
(MB1000 P262 211027R2 Set up)
Target equipment
Thermo scientific – Apreo 2 C
Place of installation
N/A
Remark
Good Performance
END USER
池州西恩新材料科技有限公司
Operator
Kim, Doohyun
Date of setup
Date of setup : 21.12.07
Date of reporting
Date of reporting : 21.12.07
Date of business trip
Date of business trip : 17.12.27~17.12.29
Overview
After Active mounting, measure the vibration environment to check that there is no problem in using the equipment.
Measurement date
Measurement date: 21.12.07 (TUE)
Operator: Daeil System, Research engineer Kim, Doohyun
Place of measurement
Place of measurement : xiamen, 池州西恩新材料科技有限公司
Equipment Model
Equipment Model: Thermo scientific – Apreo 2 C
Measurement conditions and results
Summary of measurement results
| Test Condition | 2 Hz | 5 Hz | 10 Hz |
|---|---|---|---|
| Z | -26 dB | -25 dB | -25 dB |
| X | -40 dB | -30 dB | -21 dB |
| Y | -35 dB | -32 dB | -25 dB |
Good omnidirectional performance.
MB1000 internal program performance measurement result

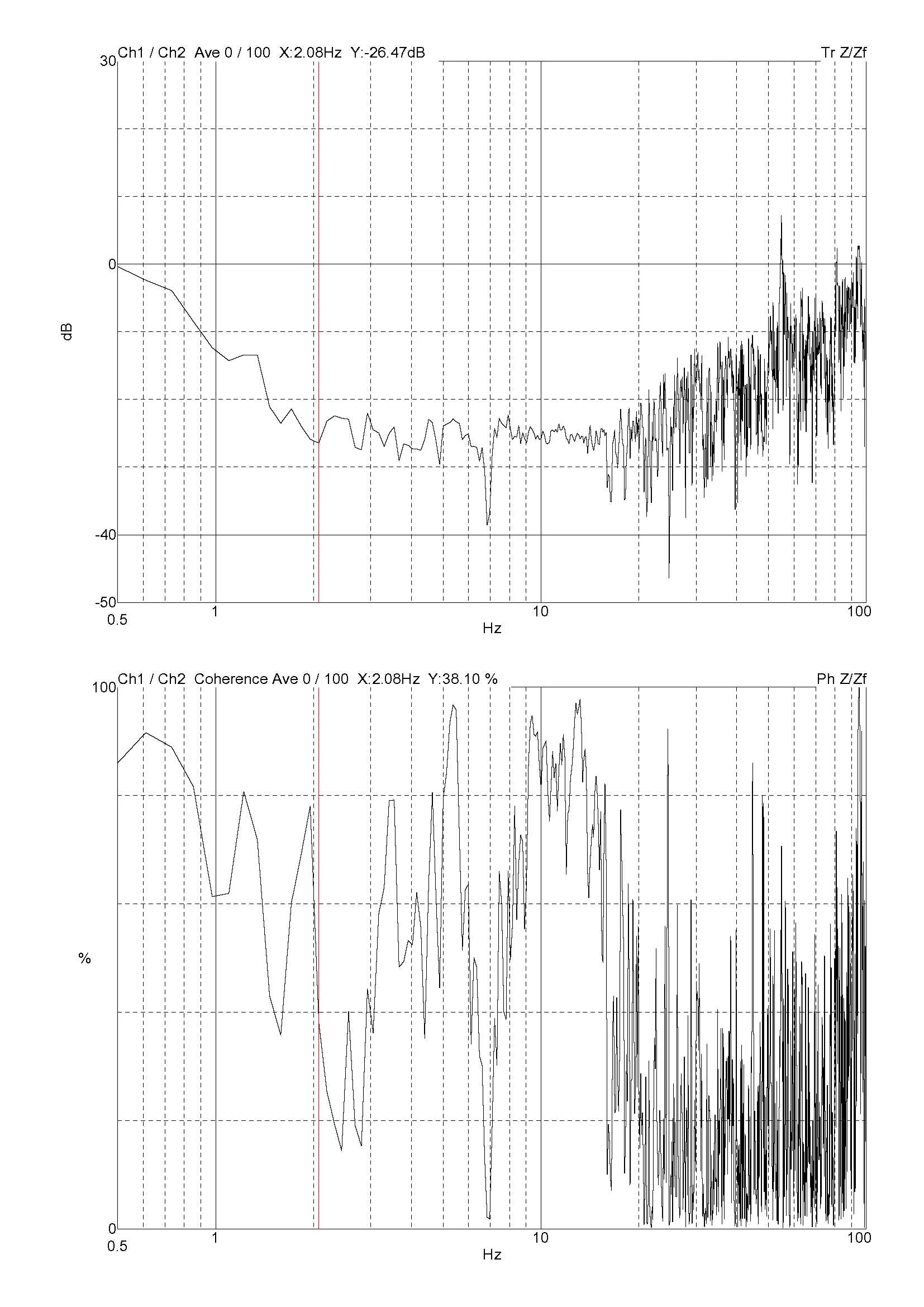

Z axis

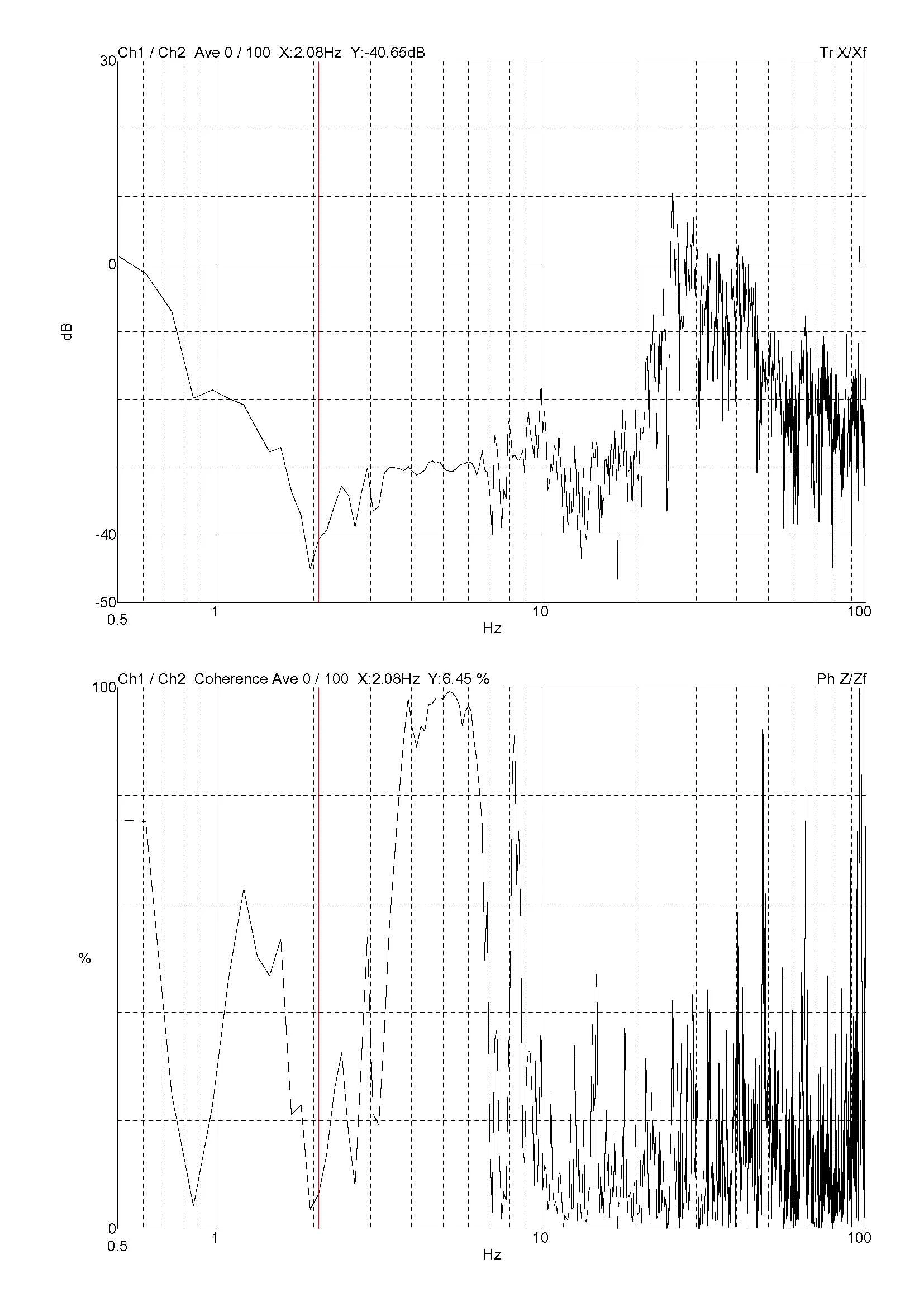

X axis

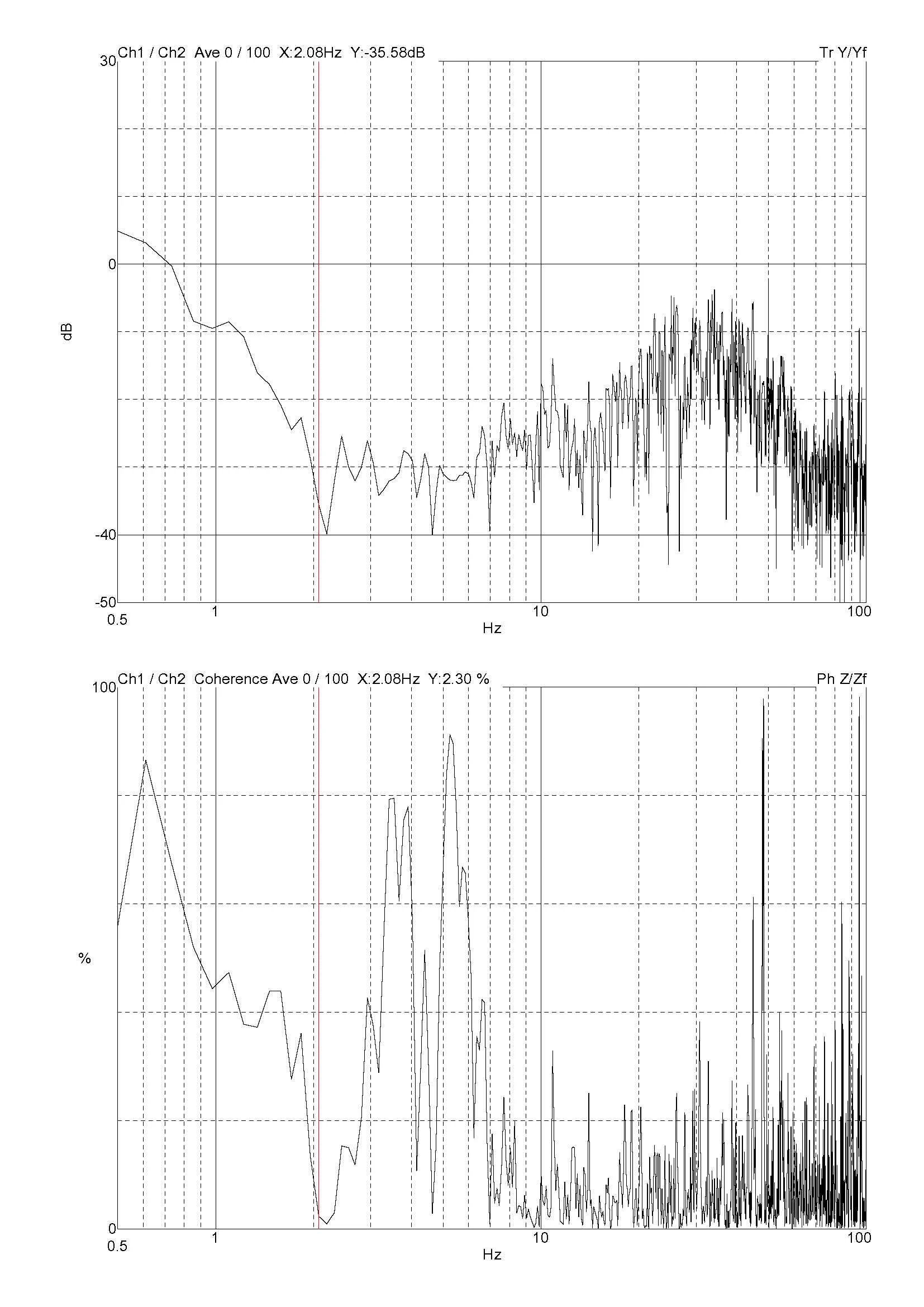

Y axis
