Installation Report
DVIA-M Series
12-13-2021
YIMO Hitachi SU8100 MB1000 P261 (211013R1) internal program handout — 2021.12.13
DVIA-M Series
Installation Report
YIMO
DVIA-MB1000
211013R1
P261
Hitachi
SU8100
Contents
(MB1000 P261 211013R1 Set up)
Target equipment
HITACH SU8100
Place of installation
N/A
Remark
Good Performance
END USER
N/A
Operator
Choi , HyoungMun
Date of setup
Date of setup : 21.11.30
Date of reporting
Date of reporting : 21.12.13
Date of business trip
Date of business trip : 17.12.27~17.12.29
Overview
After Active mounting, measure the vibration environment to check that there is no problem in using the equipment.
Measurement date
Measurement date: 21.11.30 (thu)
Operator: Daeil System, Research engineer Choi, HyoungMun
Place of measurement
Place of measurement : N/A
Equipment Model
Equipment Model: HITACH SU8100
Measurement conditions and results
Summary of measurement results
| Test Condition | 2 Hz | 5 Hz | 10 Hz | ||
|---|---|---|---|---|---|
| Z | -32 dB | -25 dB | -25 dB | ||
| X | -37 dB | -35 dB | -35 dB | ||
| Y | -31 dB | -30 dB | -28 dB | ||
Good omnidirectional performance.
MB1000 internal program performance measurement result

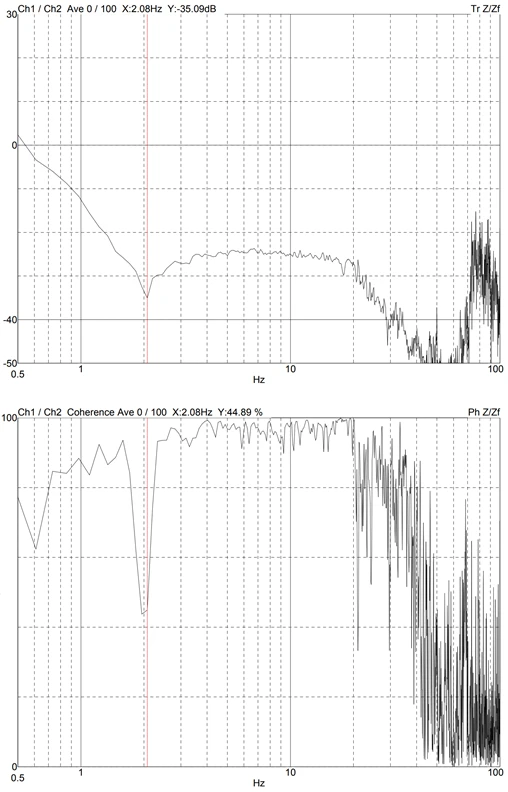

Z axis

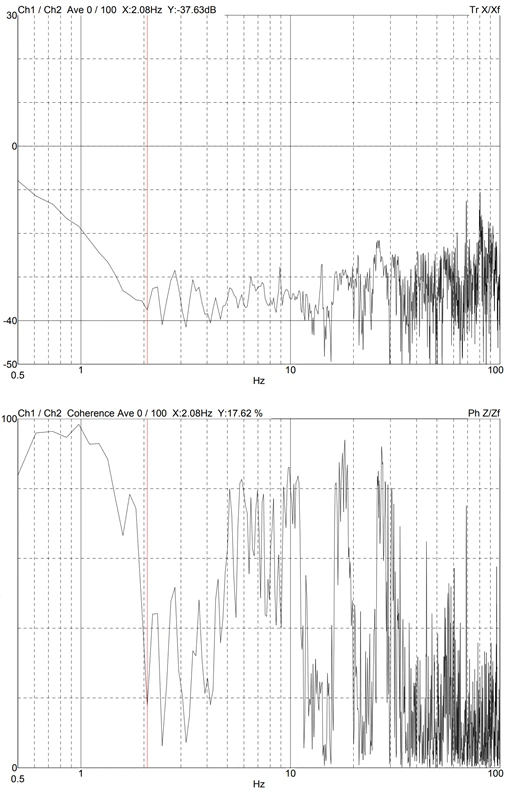

X axis

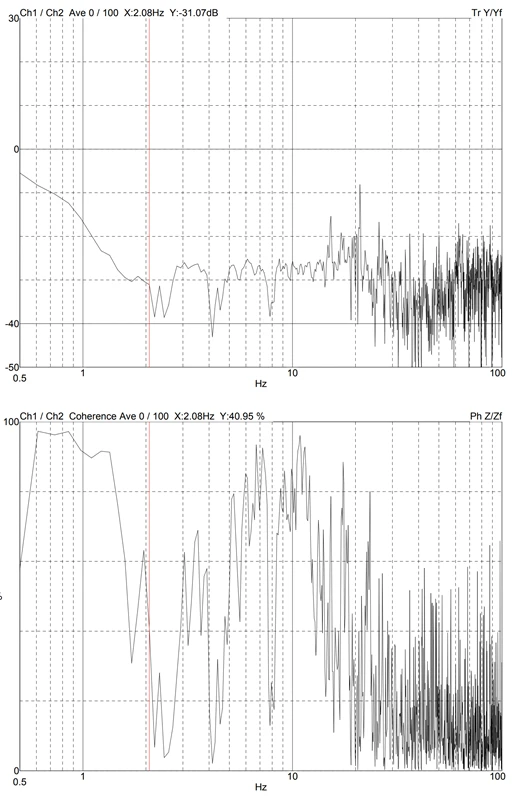

Y axis
