Installation Report
DVIA-M Series
05-18-2022
Wenzhou Hongfeng ZEISS GeminiSEM 300 Wenzhou DVIA-M1000 Installation Report (210714R2-1, 2022-05-18)
DVIA-M Series
Installation Report
Wenzhou Hongfeng
WENZHOU
DVIA-M1000
ZEISS
GeminiSEM 300
210714R2-1
Contents
Wenzhou Hongfeng Electrical Alloy Co., Ltd.
(M1000_ 210714R2-1 Set up)
Site checklist
| Target equipment | ZEISS GeminiSEM300 |
|---|---|
| Place of installation | WENZHOU, 3F |
| Remark | Good Performance |
| END USER | 温州宏丰电工合金股份有限公司 |
Operator and dates
Operator: Kim, Sung kuk
Date of setup : 22.05.18
Date of reporting : 22.05.19
Date of business trip : 17.12.27~17.12.29
Overview
The DVIA-M1000 active vibration isolation platform is appropriately installed and functioning as intended.
Measurement date: 2022.05.18 (Wednesday),
Operator: DAEIL SYSTEMS, SungKuk Kim
Place of measurement: WENZHOU, 3F
Equipment Model: ZEISS GeminiSEM 300
Measurement conditions and results
Summary of measurement results
| Z | X | Y | |
|---|---|---|---|
| Floor | B | B | B |
| Above Active | F | E | E |
Good omnidirectional performance.
MB1000 internal program performance measurement result

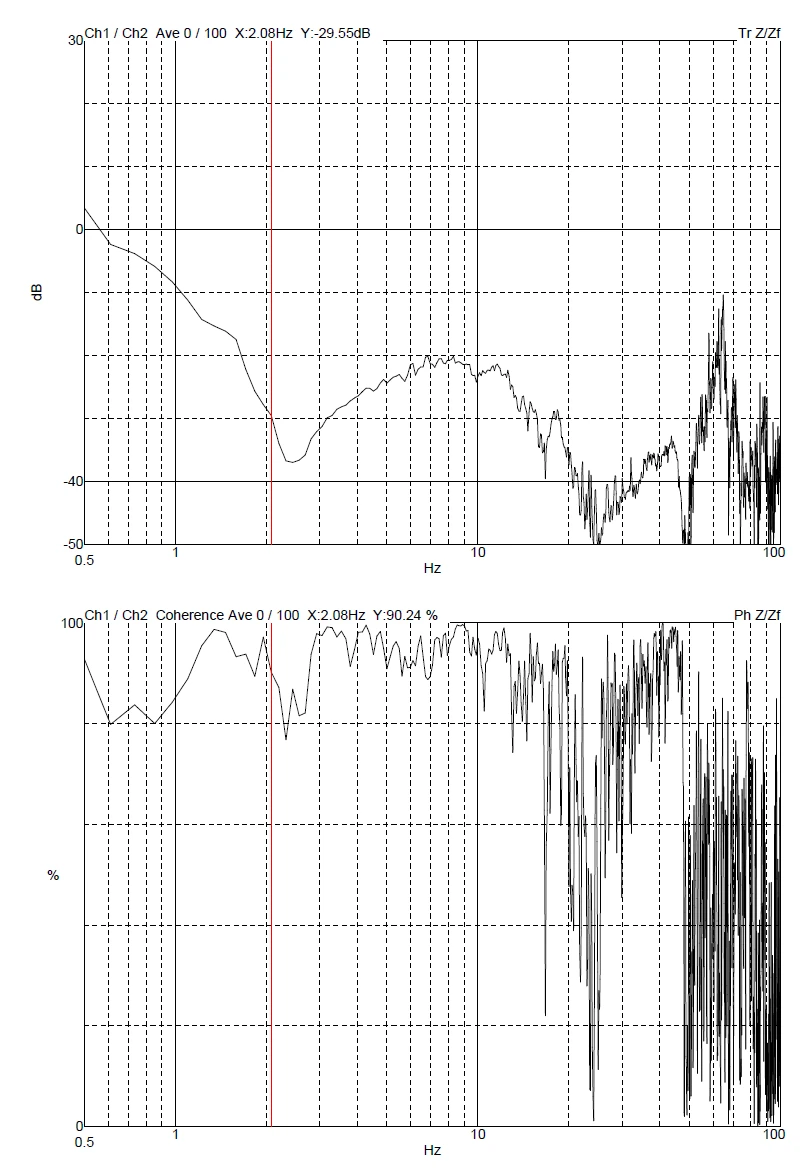

MB1000 internal program — Z axis

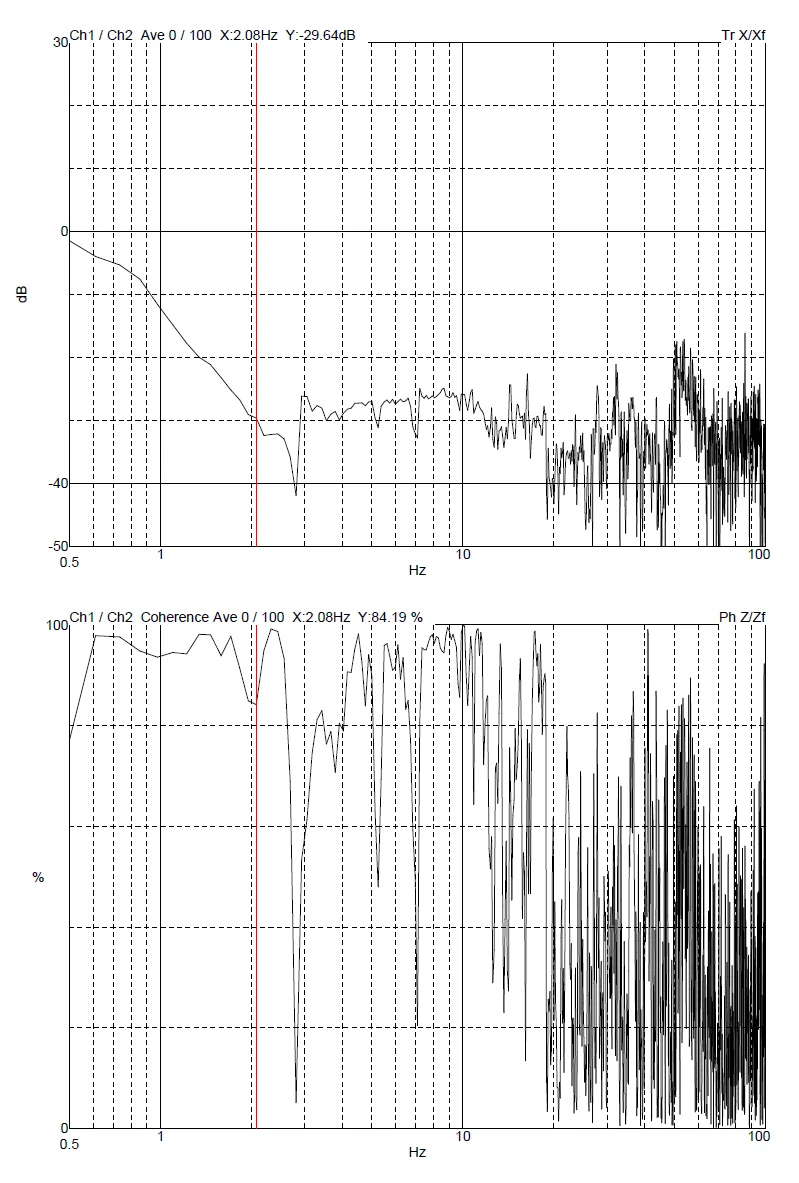

MB1000 internal program — X axis

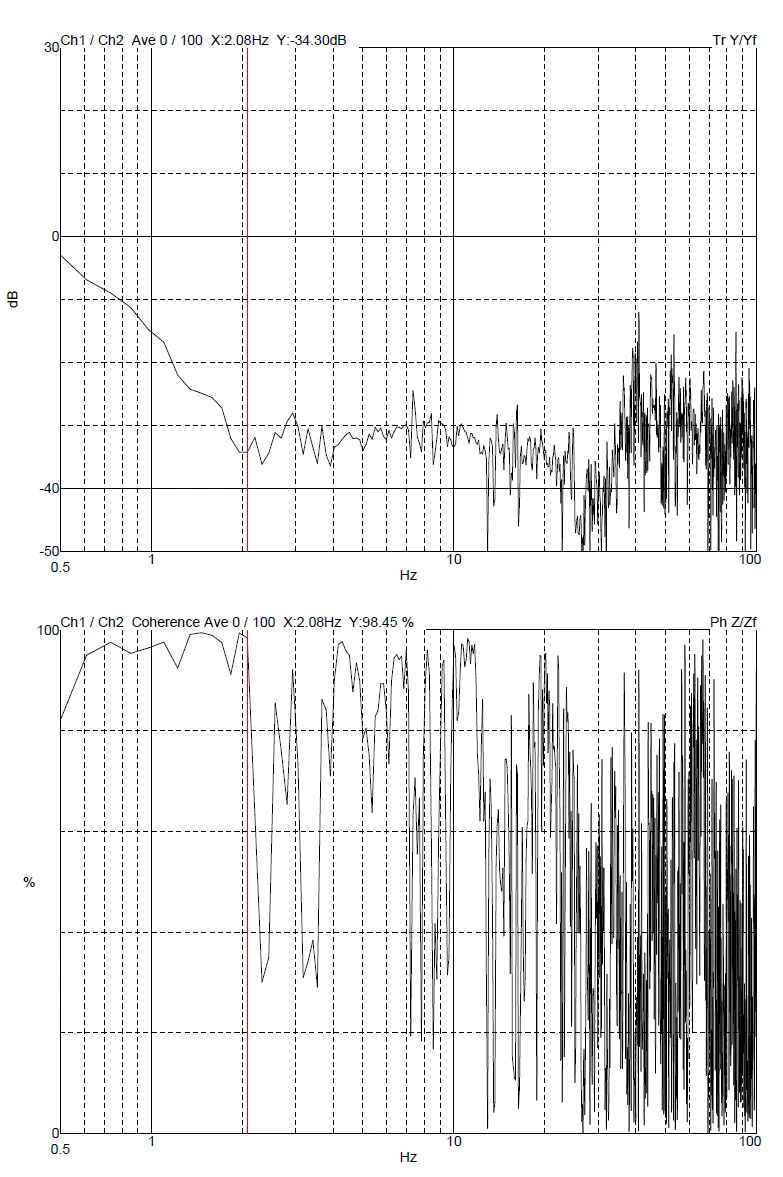

MB1000 internal program — Y axis
Octave Band Result

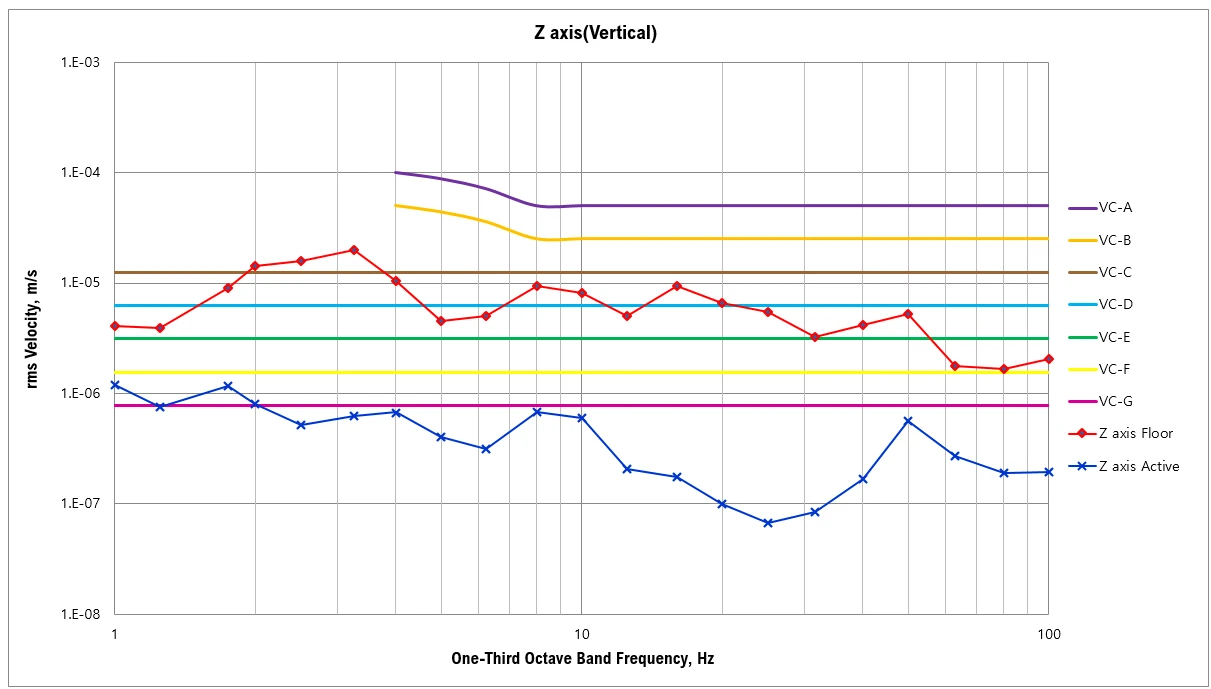

Octave Band Result — Z axis

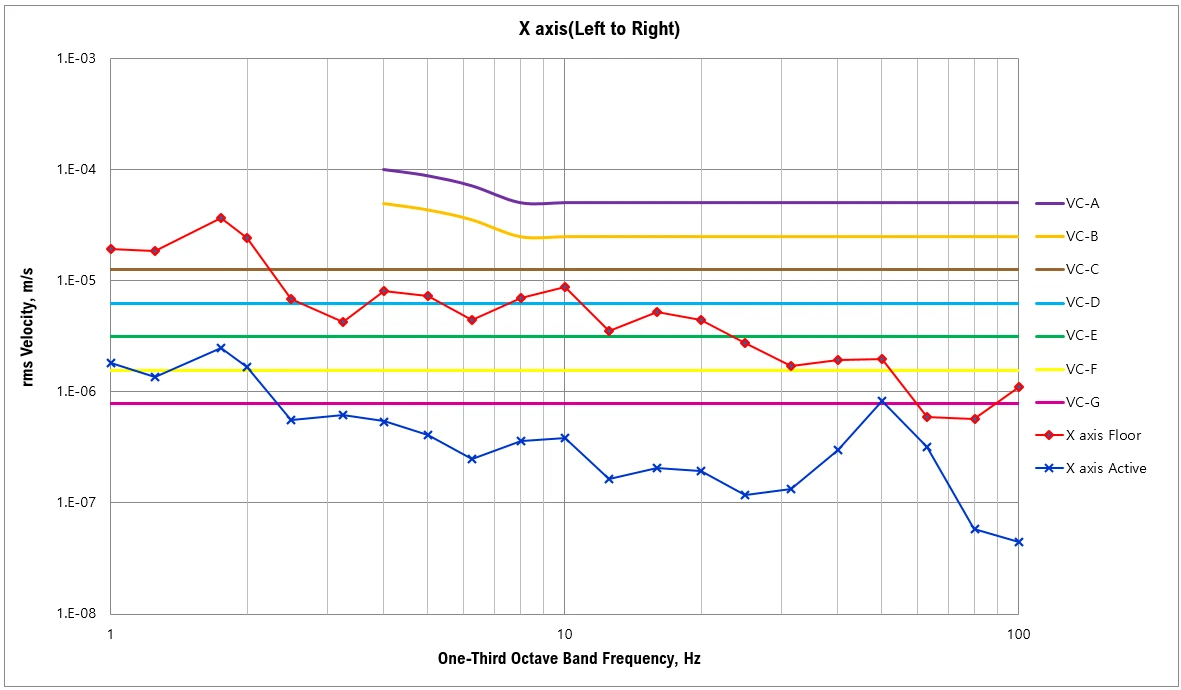

Octave Band Result — X axis

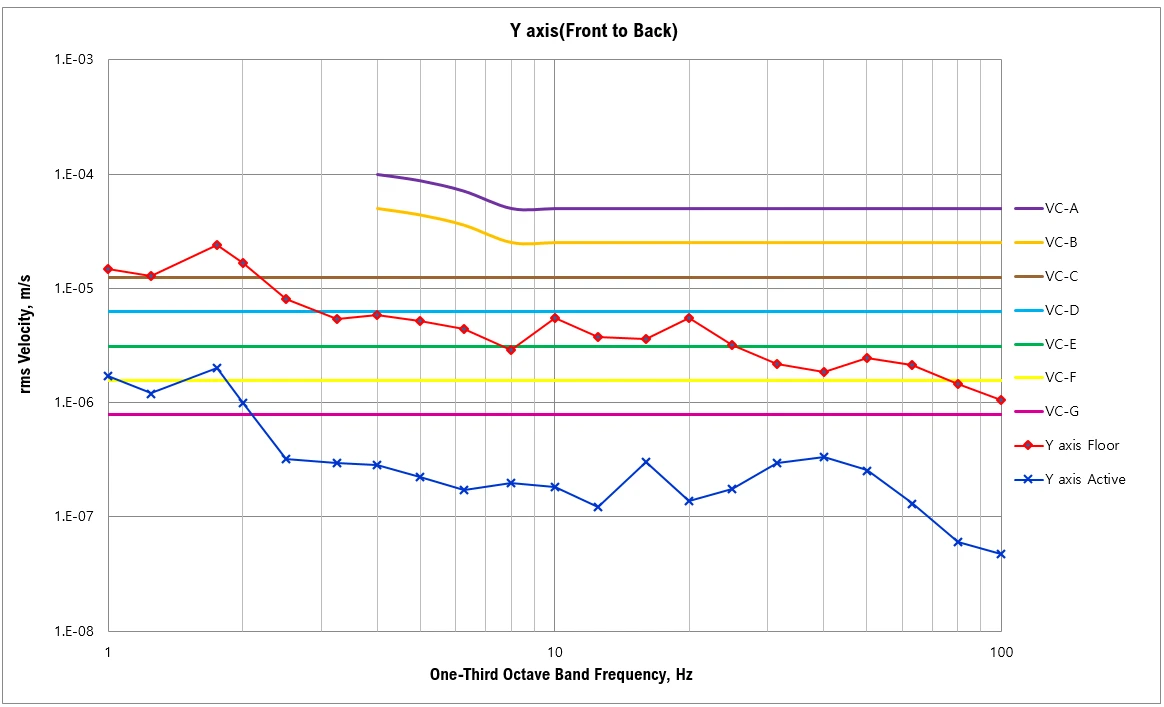

Octave Band Result — Y axis
