Installation Report
DVIA-ML Series
06-18-2021
KBSI (Ochang) MC3000 P20 / 210422R1 vibration worksheet — 2021.06.18
DVIA-ML Series
Installation Report
MC3000
KBSI
210422R1
P20
Contents

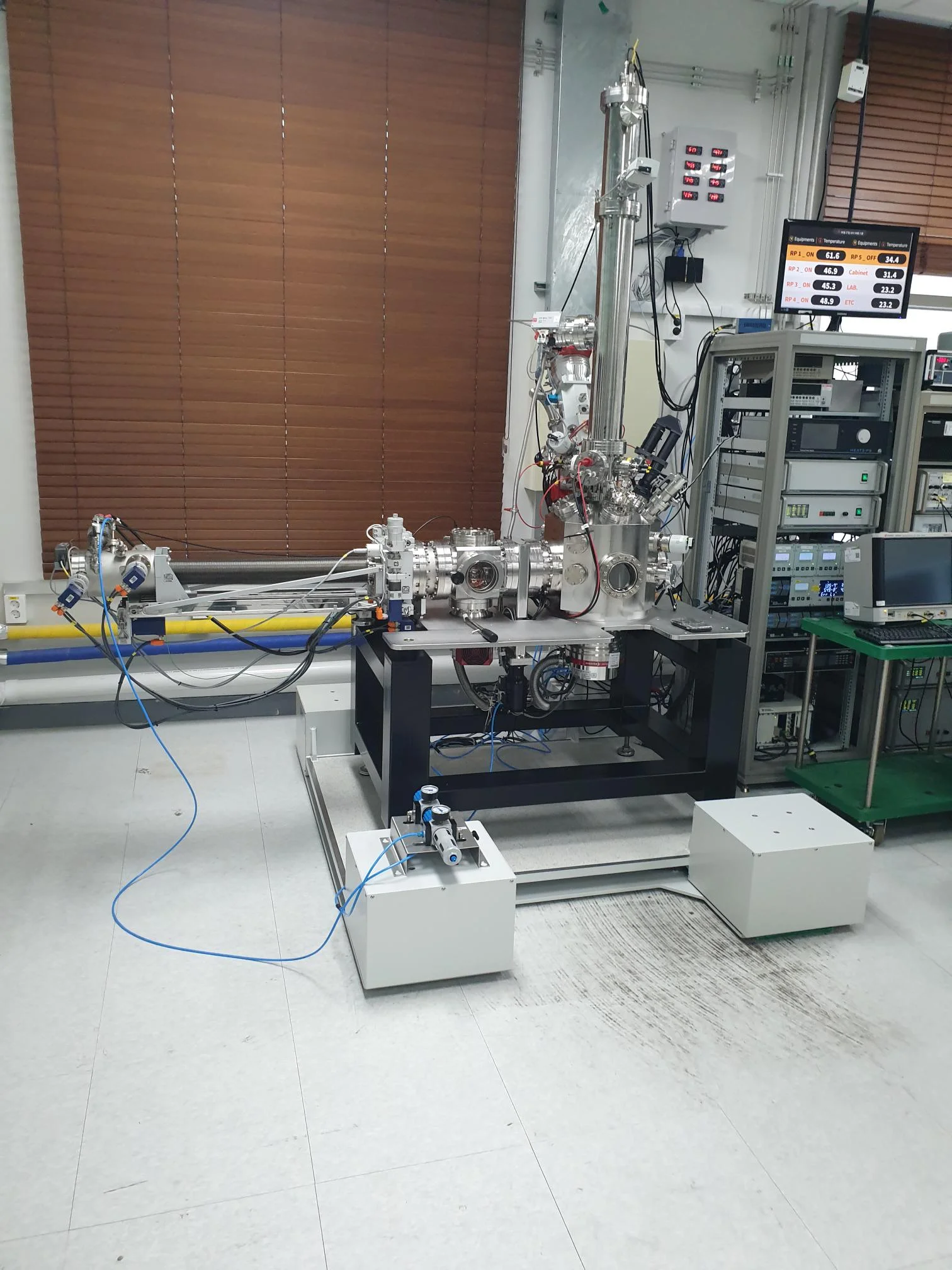

KBSI MC3000 P20 (210422R1) set-up
Installation and measurement worksheet
| Field | Value |
|---|---|
| Target equipment | 자체 개발 장비 |
| Place of installation | 한국기초과학지원연구원(오창) 103동 1층 실험실 |
| Remark | Good Performance |
| END USER | 한국기초과학지원연구원 |
Operator: Kim, DooHyun
Date of setup : 21.06.17
Date of reporting : 21.06.18
Date of business trip : 17.12.27~17.12.29
Overview
After Active mounting, measure the vibration environment to check that there is no problem in using the equipment.
Measurement date: 21.06.17 (THU)
Operator: Daeil System, Research engineer Kim, Doohyun
Place of measurement : 한국기초과학지원연구원(오창) 103동 1층 실험실
Equipment Model: 자체 개발 장비
Measurement conditions and results
DAQ System : B&K PULSE 14 & LAN-XI Type 3056
Accelerometer : PCB PIEZOTRONICS 393B05
Frequency Range : 0.7 ~ 200Hz

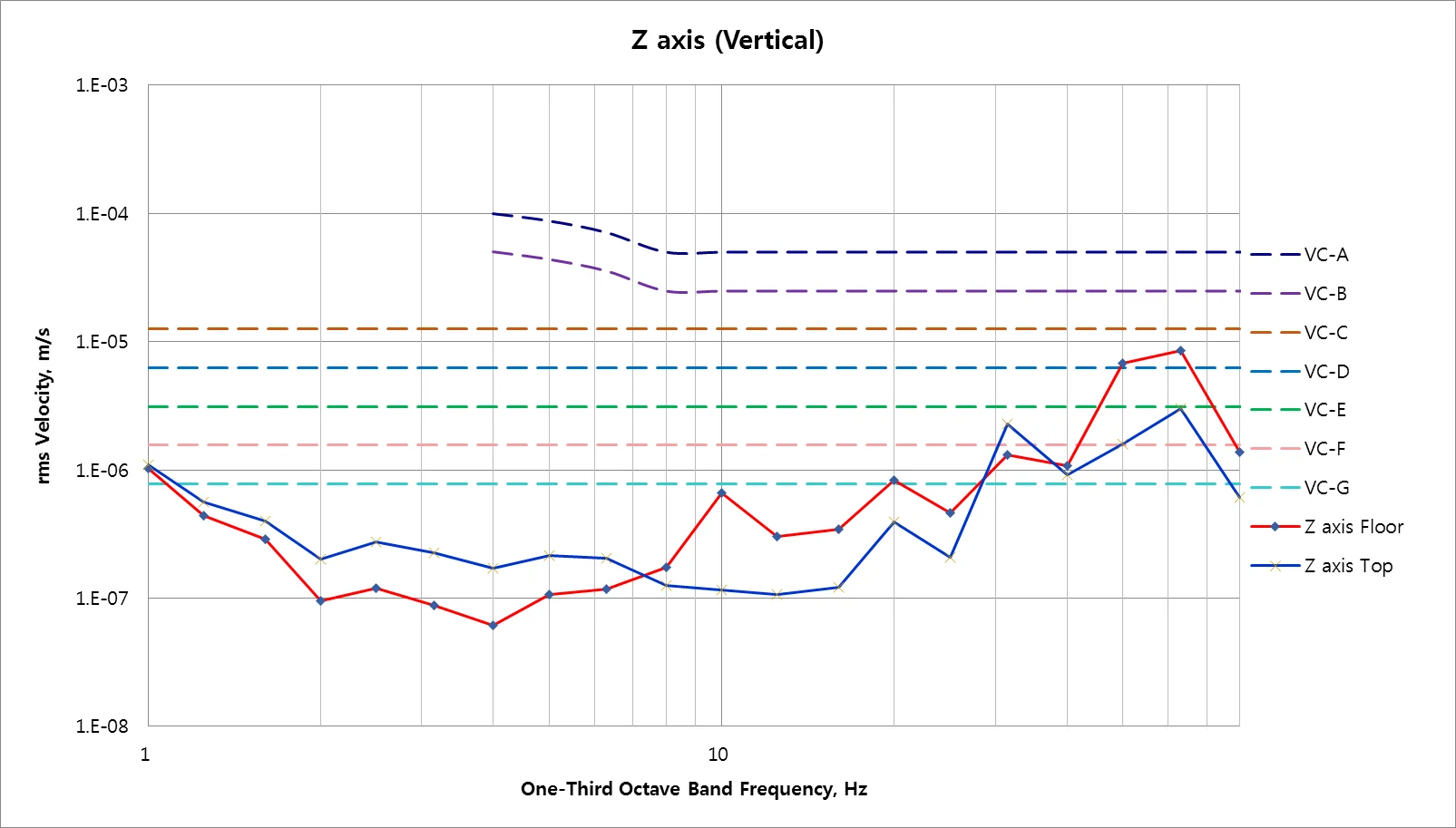

Z axis

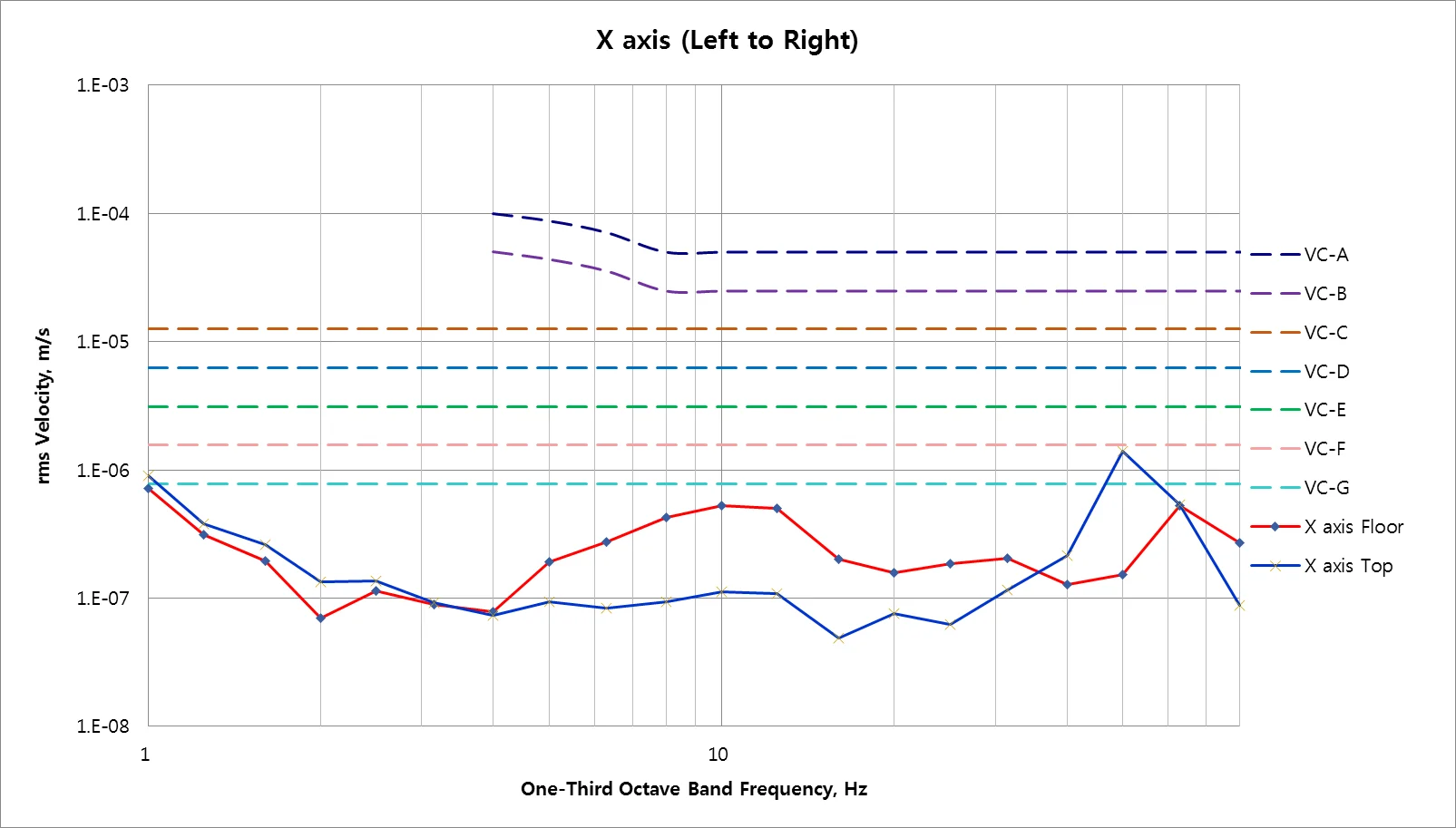

X axis

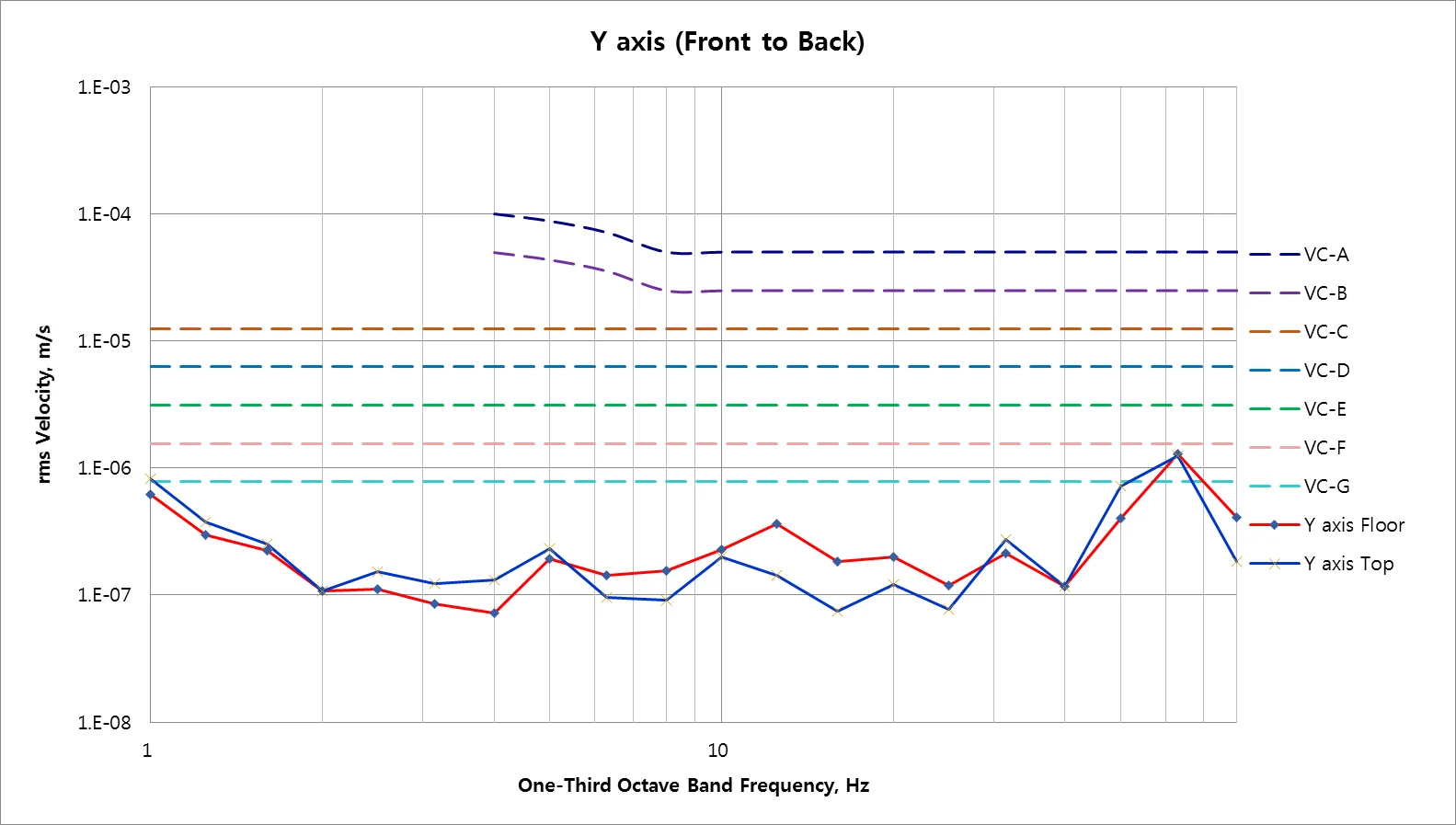

Y axis
Summary of measurement results
Test Condition
VC-Class
| Z | X | Y | |
|---|---|---|---|
| Floor | C | G | F |
| Above Active | E | F | F |
Good omnidirectional performance.
Wide-format measurement plot — first
Wide-format measurement plot — second

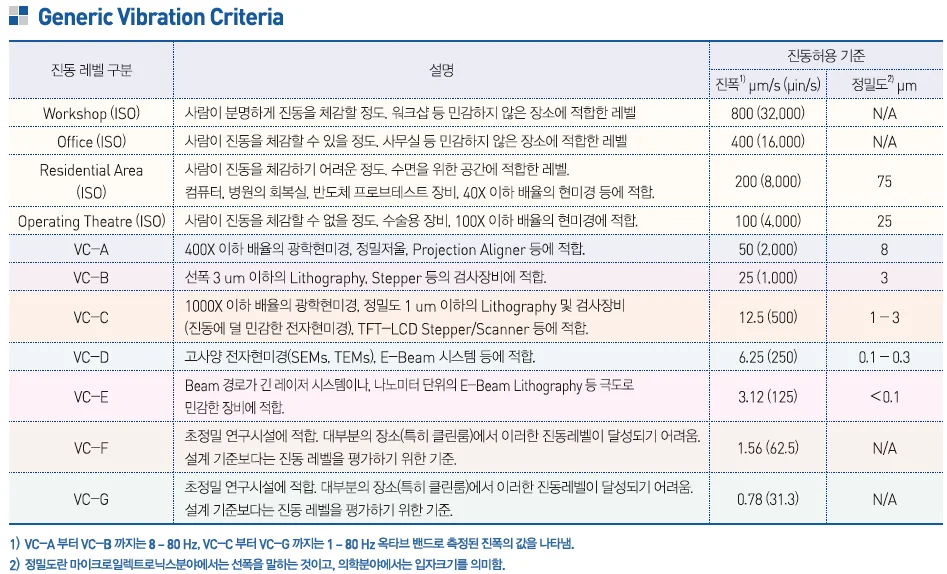

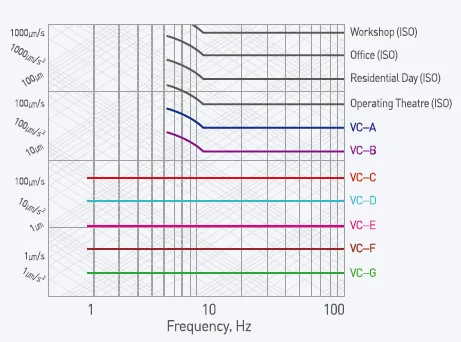

※ Vibration Criterion Curve
Z axis
X axis
Y axis
