Ansteel Iron and Steel Research Institute Thermo Scientific Talos TEM DVIA-ML3000 (251125R4) Installation Report
Contents
Overview
Following the installation of DVIA-ML3000 at Anshan, tuning and vibration measurement were performed.
Vibration measurement was conducted with the equipment in the IDLE state.
Data is represented in VC Curve format and reference material on the vibration level is provided.
Vibration Isolation System Information
Model: DVIA-ML3000
Serial Number: 251125R4
Engineer
Gyumin.Park · DAEIL SYSTEMS
Tuning Date
26.07.23
Report Written Date
26.07.27
Customer
YIMO TECH
End User
Ansteel Iron and Steel Research Institute
Number of Tuning Trial
1st
Site
Anshan
Equipment
Manufacturer: Thermo Scientific
Equipment: TEM
Model: Talos
Vibration Specification
Horizontal
| Frequency [Hz] | Allowable [µm/s RMS] |
|---|---|
| 1 | 1.56 |
| 100 | 1.56 |
Vertical
| Frequency [Hz] | Allowable [µm/s RMS] |
|---|---|
| 1 | 3.12 |
| 100 | 3.12 |
Equipment Condition
IDLE

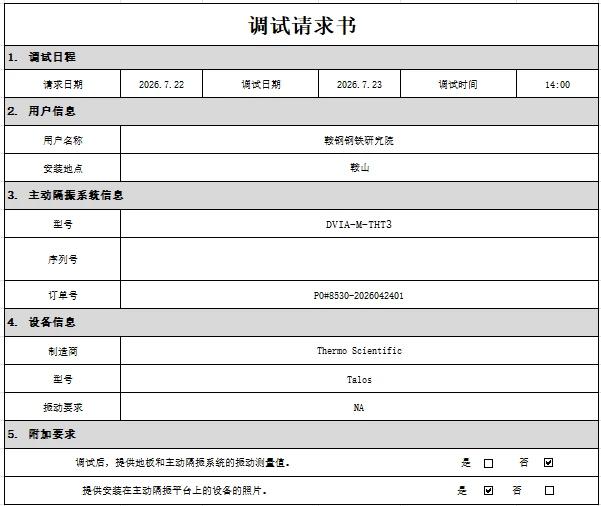

Tuning Request
Measurement Summary
| Measurement Point | VibrationSpecifications | Axis | Result | |
|---|---|---|---|---|
| Floor | DVIA-ML3000 | |||
| 1.Floor 2.DVIA-ML3000 | See Section 9 | Vertical | ✗ FAIL | ✓ PASS |
| Left to Right | ✗ FAIL | ✓ PASS | ||
| Front to Back | ✗ FAIL | ✓ PASS | ||
Measurement Data Obtained via UI Program

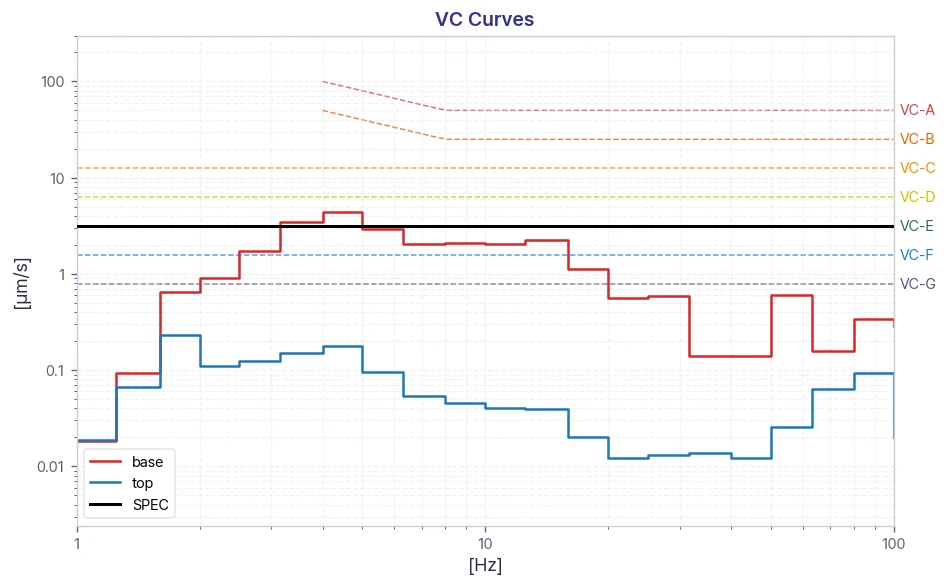

Vertical VC Curves

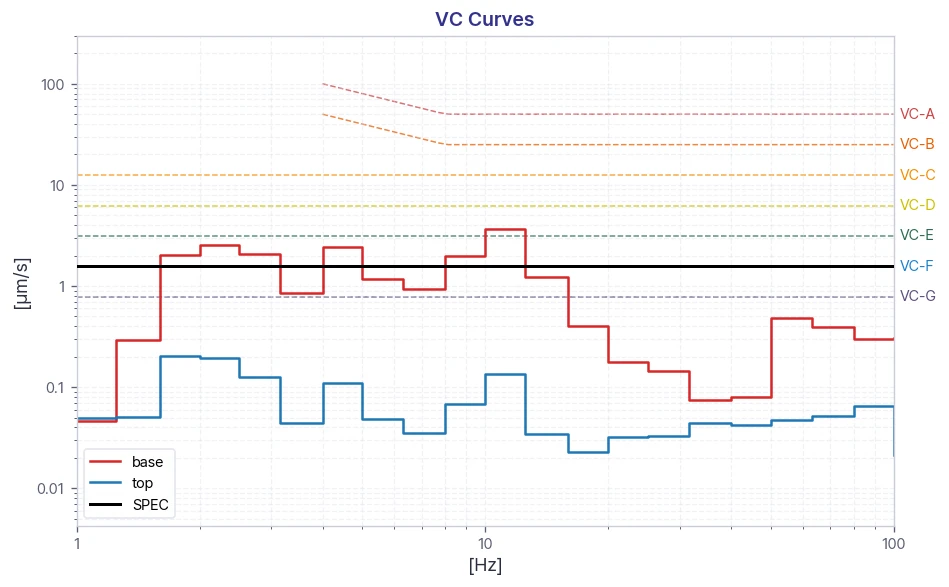

Left to Right VC Curves

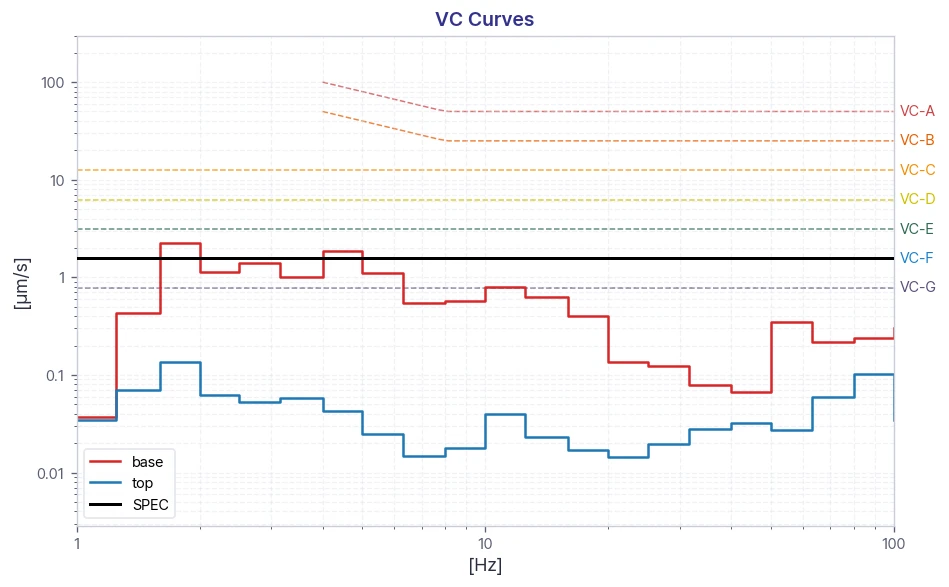

Front to Back VC Curves

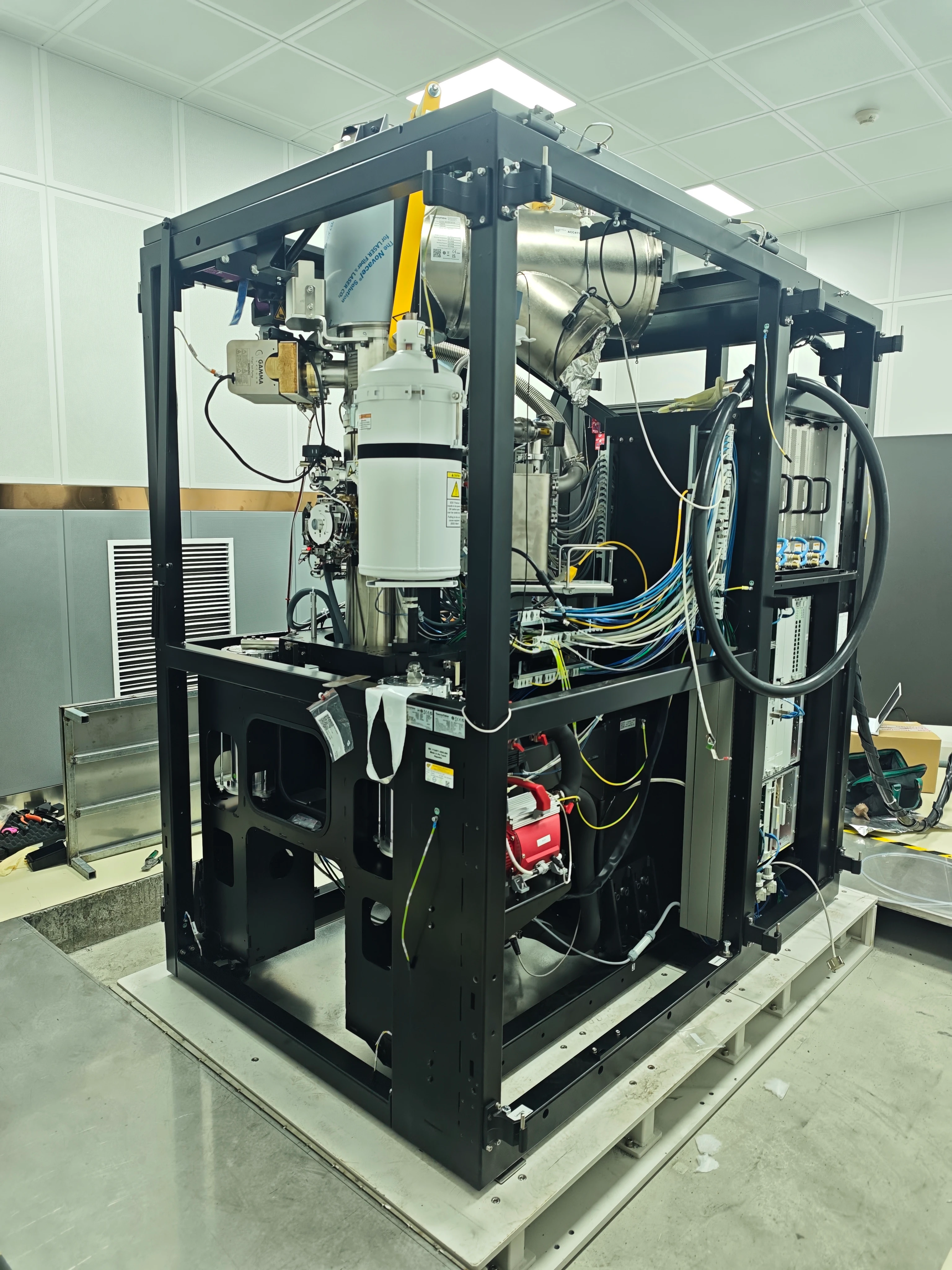

Installation Photo
Reference
The table below classifies vibration levels based on IEST-RP-CC012.2.
Notes:
- As measured in one-third octave bands of frequency over the frequency 8 to 80 Hz (VC-A and VC-B) or 1 to 80 Hz (VC-C through VC-G).
- The detail size refers to the width in the case of microelectronics fabrication, the particle (cell) size in the case of medical and pharmaceutical research, etc. It is to imaging associated with probe technologies, AFMs, and nanotechnology.
The information given in this table is for guidance only. In most instances, it is recommended that the advice of someone knowledgeable about applications and vibration requirements of the equipment and processes be sought.
