Installation Report
DVIA-M Series
06-18-2021
Shihu Technology Nanjing SUSS MA/BA Gen4 Pro DVIA-MB1000 — Remote setup — 2021.06.18
DVIA-M Series
Installation Report
DVIA-MB1000
Shihu Technology
Nanjing
SUSS
210316R5
P229
Contents
(MB1000_210316R5(P229) Set up)
| Target equipment | BOND ALINGER/ SUSS MA/BA Gen4 Pro |
|---|---|
| Place of installation | Nanjing, China (Ground floor, lab) |
| Remark | Good Performance |
| END USER | Shihu Technology(Nanjing) Co., Ltd. |
Operator: Doohyun Kim
Date of setup : 21.06.18
Date of reporting : 21.06.18
Date of business trip : 17.12.27~17.12.29
Overview
After Active mounting, measure the vibration environment to check that there is no problem in using the equipment.
Measurement date: 21.06.18 (FRI)
Operator: Daeil System, Research engineer Doohyun Kim
Place of measurement : Nanjing, China (Ground floor, lab)
Equipment Model: BOND ALINGER / SUSS MA/BA Gen4 Pro
Measurement conditions and results
Summary of measurement results
Test Condition
Transmissibility
| Transmissibility | 2 Hz | 5 Hz | 10 Hz |
|---|---|---|---|
| Z | -27 dB | -20 dB | -30 dB |
| X | -25 dB | -23 dB | -30 dB |
| Y | -16 dB | -30 dB | -38 dB |
Good omnidirectional performance.
MB1000 internal program performance measurement result

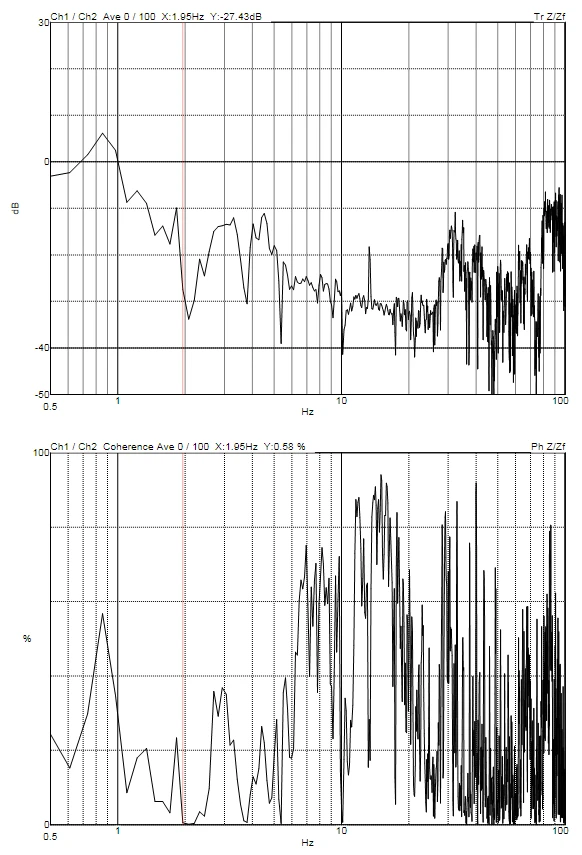

Z axis

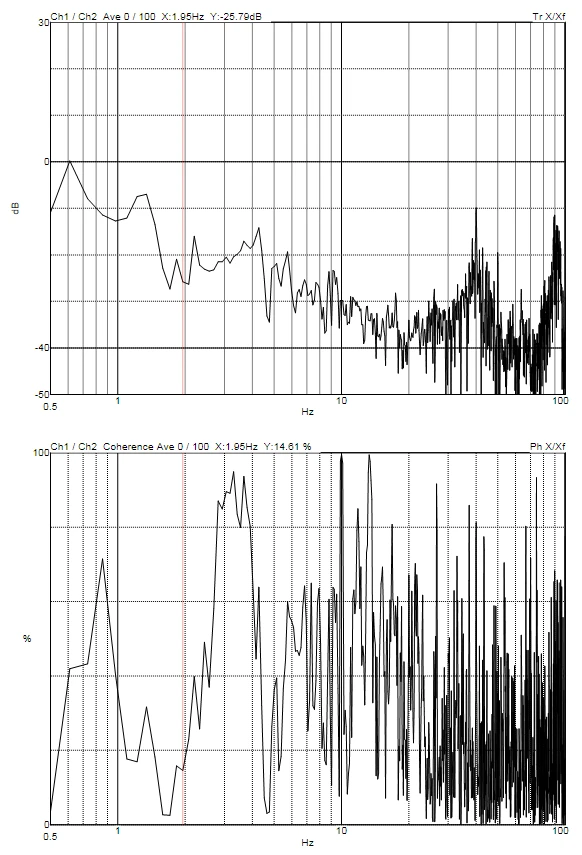

X axis

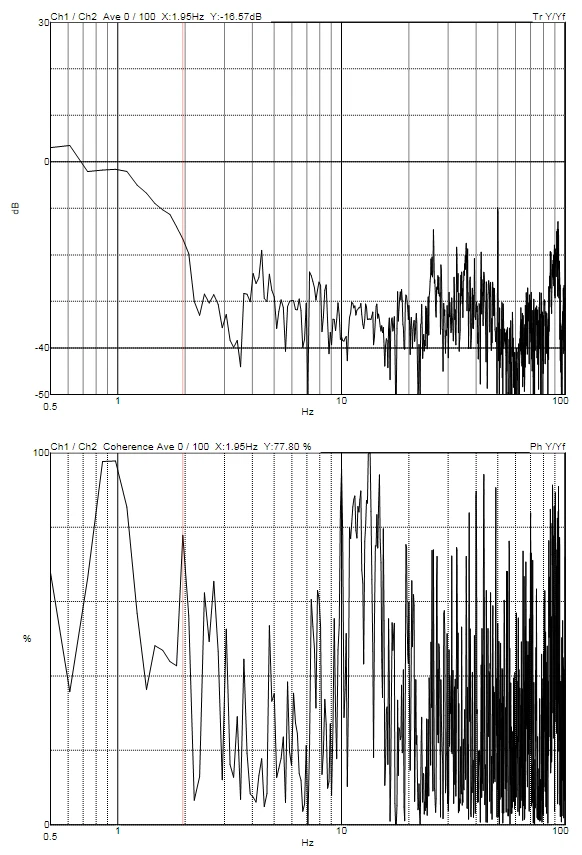

Y axis
