Installation Report
DVIA-M Series
04-30-2021
Shanghai University of Science and Technology TESCAN Mira DVIA-MB1000 (210309R5 · P214) Remote measurement — Internal program plots — 2021.04.30
DVIA-M Series
Installation Report
DVIA-MB1000
210309R5
TESCAN
Mira
Shanghai
Shenzhen
YIMO
Contents
(MB1000_210309R5(P214) Set up)
| Target equipment | Tescan Mira |
|---|---|
| Place of installation | Shanghai, Shanghai University 2F |
| Remark | Good Performance |
| END USER | Shanghai University of science and technology |
| Operator: Munho Noh | Date of business trip : 17.12.27~17.12.29 |
| Date of setup : 21.04.30 | Date of reporting : 21.04.30 |
Overview
After Active mounting, measure the vibration environment to check that there is no problem in using the equipment.
Measurement date: 21.04.30 (FRI)
Operator: Daeil System, Research engineer Munho Noh
Place of measurement : Shenzhen
Equipment Model: Tescan Mira
Measurement conditions and results
Summary of measurement results
| 2 Hz | 5 Hz | 10 Hz | |
|---|---|---|---|
| Z | -30.08 dB | -32.83 dB | -29.94 dB |
| X | -24.60 dB | -27.53 dB | -21.80 dB |
| Y | -24.88 dB | -28.15 dB | -36.26 dB |
Good omnidirectional performance.
MB1000 internal program performance measurement result

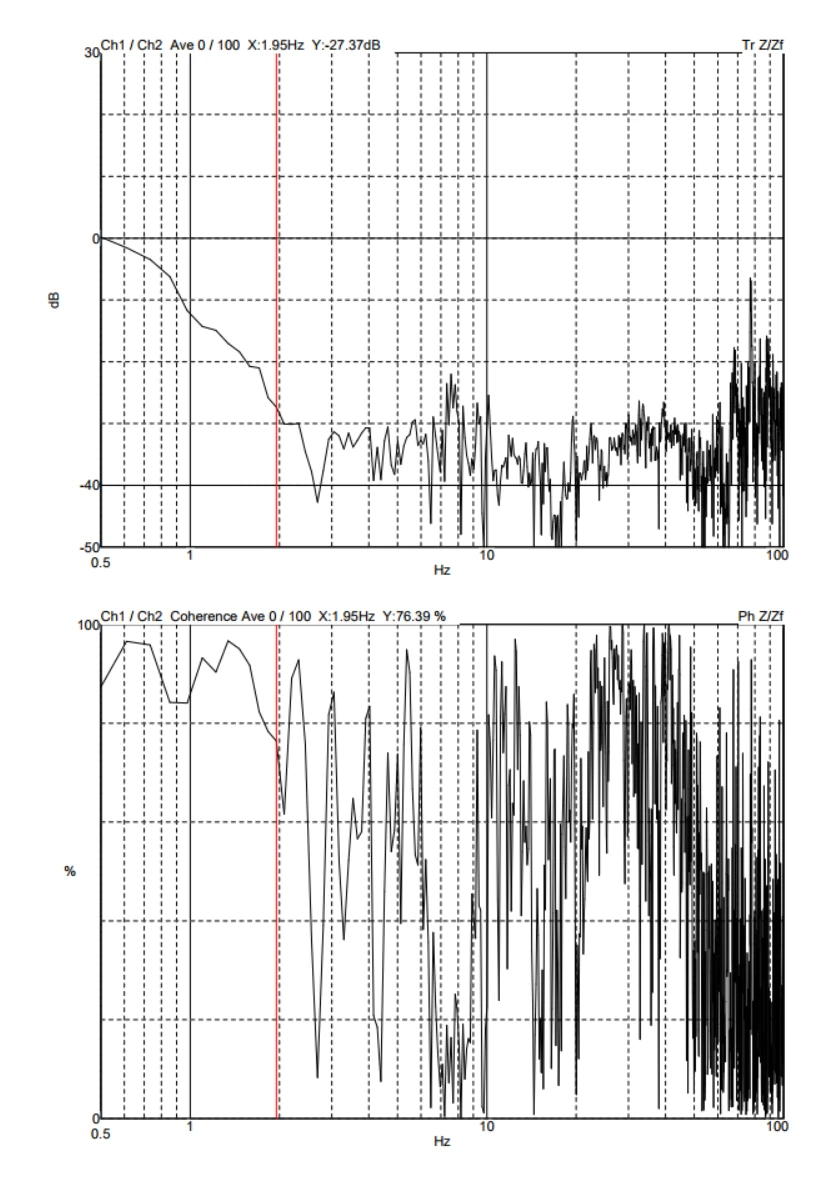

Z axis

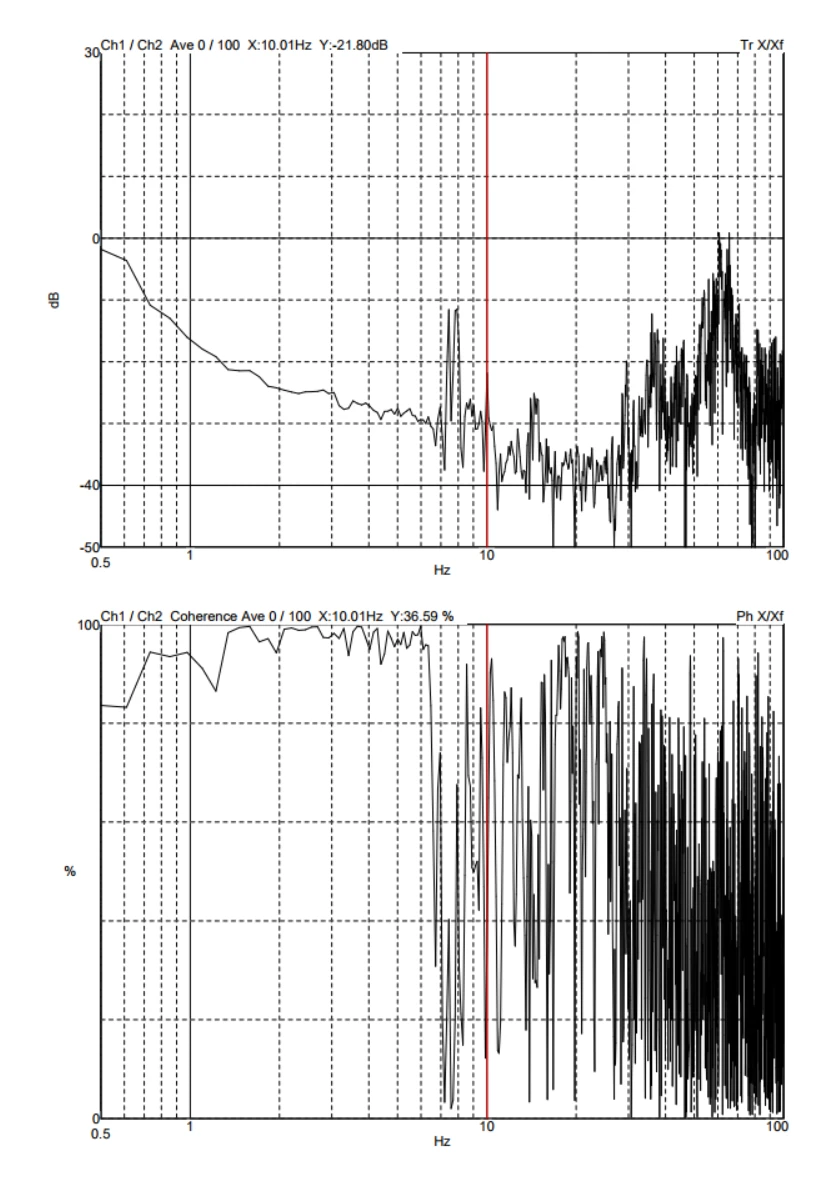

X axis

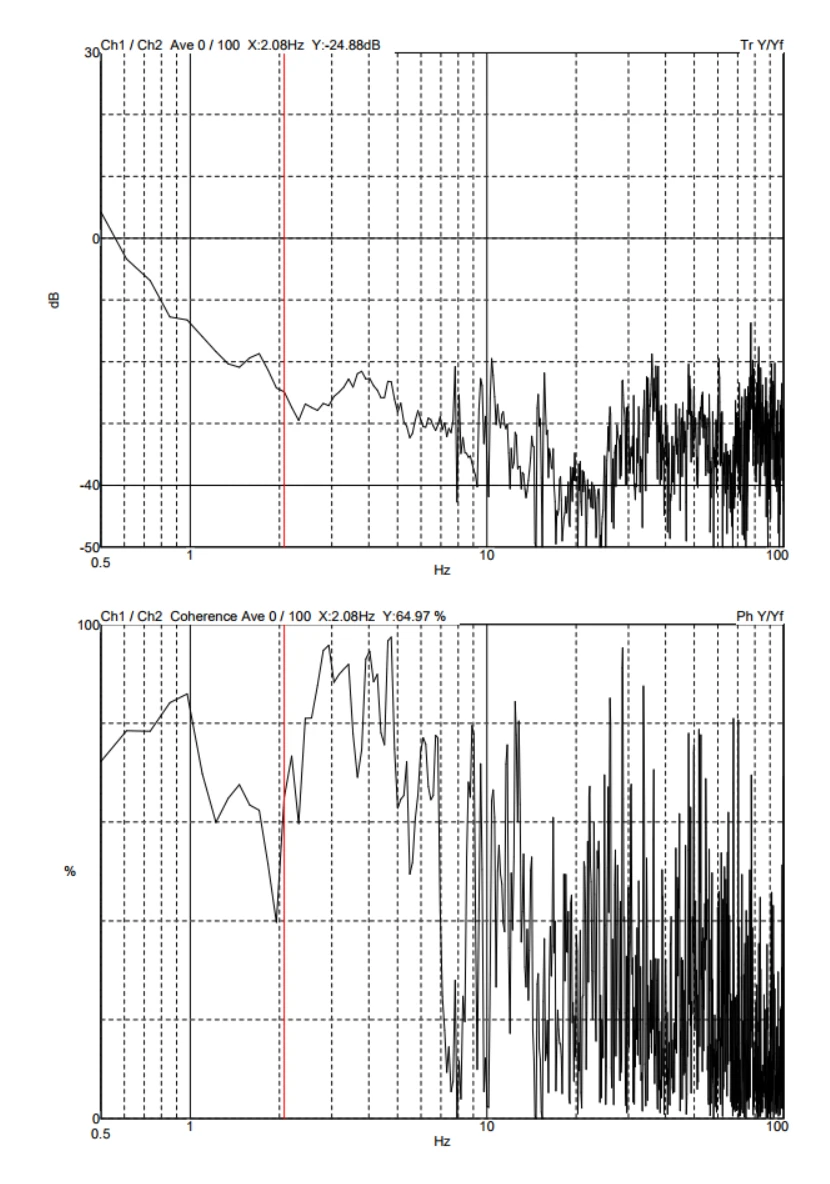

Y axis
