Installation Report
DVIA-M Series
03-09-2021
Echeng Iron & Steel (鄂城钢铁) Zeiss Evo 18 DVIA-MB1000 (200630R2 · P198) Remote measurement — Internal program plots — 2021.03.09
DVIA-M Series
Installation Report
DVIA-MB1000
200630R2
P198
ZEISS
Evo 18
Hubei
YIMO
Echeng Iron & Steel
Contents
(MB1000_200630R2(P198) Set up)
| Target equipment | Zeiss Evo18 |
|---|---|
| Place of installation | Hubei |
| Remark | Good Performance |
| END USER | 鄂城钢铁 |
| Operator: Munho Noh | Date of business trip : 17.12.27~17.12.29 |
| Date of setup : 21.03.09 | Date of reporting : 21.03.09 |
Overview
After Active mounting, measure the vibration environment to check that there is no problem in using the equipment.
Measurement date: 21.03.09 (TUE)
Operator: Daeil System, Research engineer Munho Noh
Place of measurement : Hubei
Equipment Model: Zeiss Evo 18
Measurement conditions and results
Summary of measurement results
Test Condition Transmissibility
| Direction | 2 Hz | 5 Hz | 10 Hz |
|---|---|---|---|
| Z | -22.93 dB | -27.43 dB | -33.35 dB |
| X | -22.87 dB | -28.60 dB | -29.96 dB |
| Y | -24.48 dB | -30.62 dB | -35.63 dB |
Good omnidirectional performance.
MB1000 internal program performance measurement result

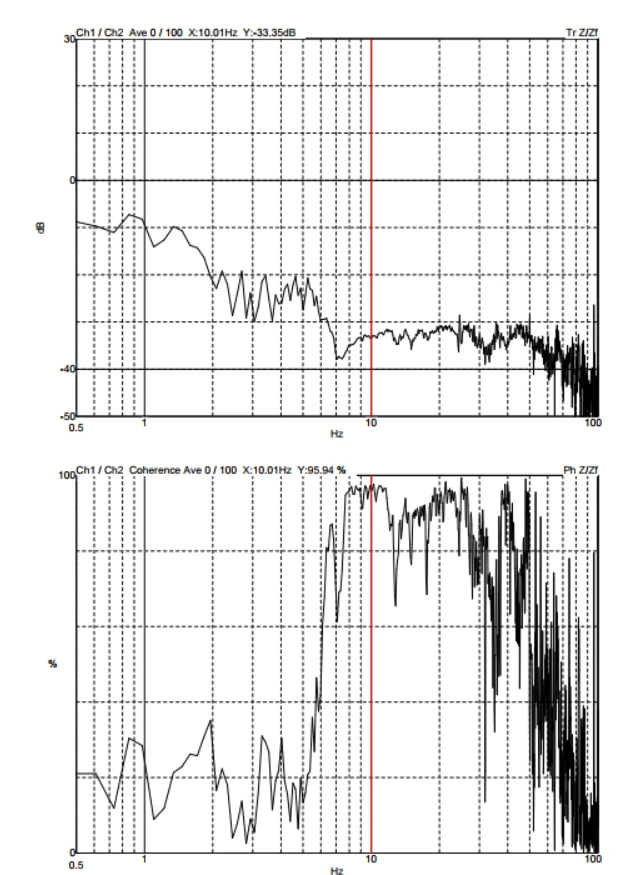

Z axis

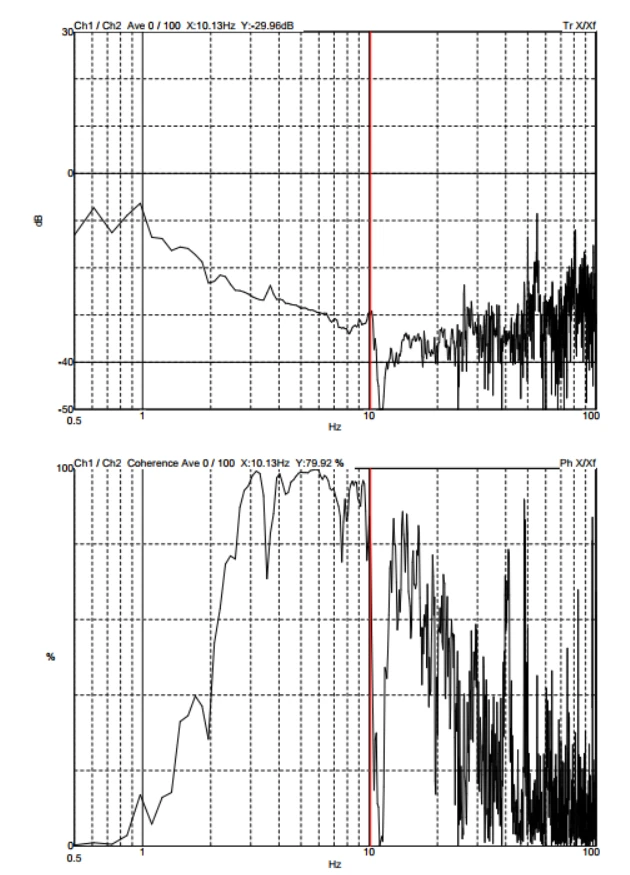

X axis

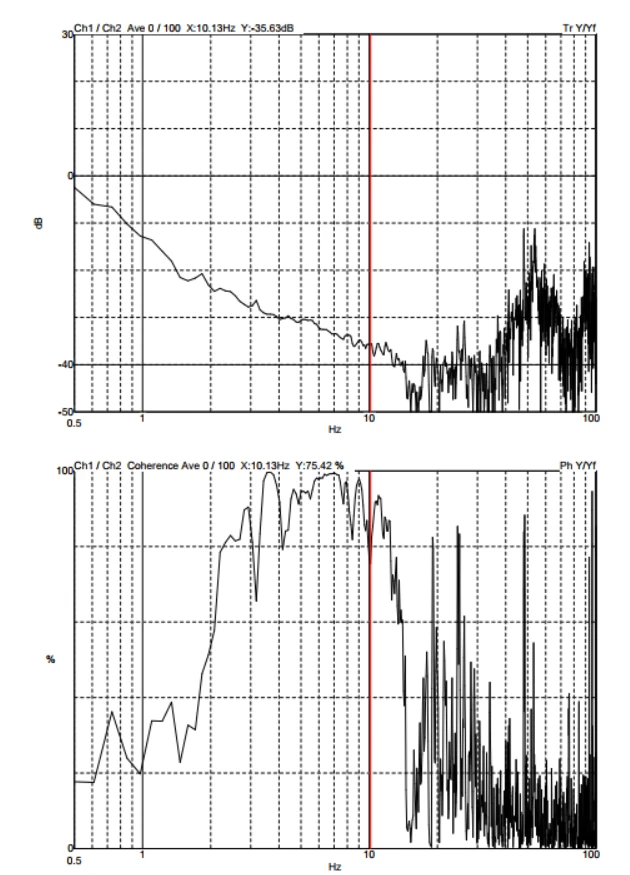

Y axis
